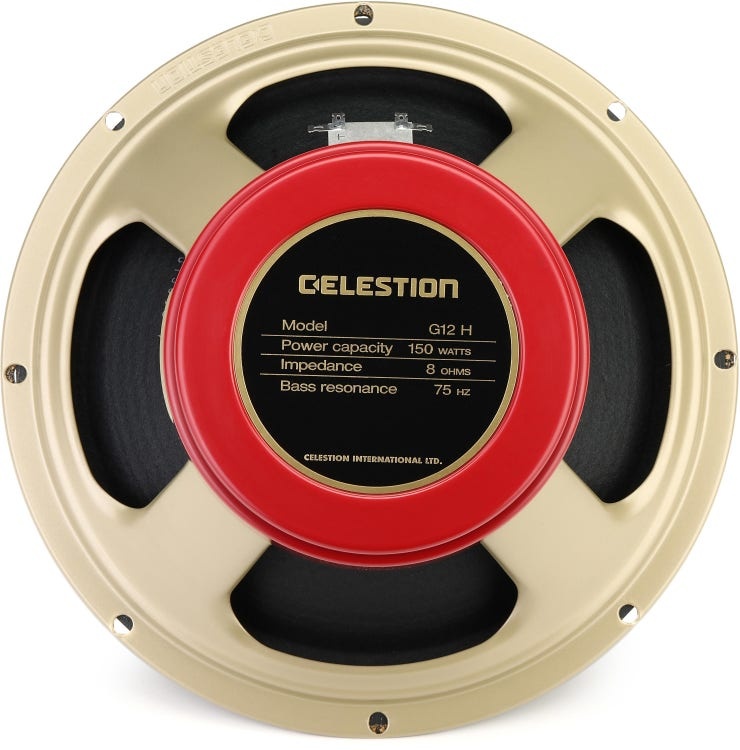

Specifications

Nominal diameter: 305mm / 12in

Power rating: 150W

Rated impedance: 8Ω or 16Ω

Sensitivity: 100dB

Chassis type: Pressed steel

Magnet type: Ceramic

Magnet weight: 1.42kg / 50oz

Voice coil diameter: 2in / 50mm

Voice coil material: Round copper

Frequency range: 70-5000Hz

Resonance frequency, Fs: 75Hz

DC resistance, Re: 6.45Ω & 12.54Ω

Mounting Information

Cut-out diameter: 283mm / 11.1in

Diameter: 309mm / 12.2in

Magnet structure diameter: 168mm / 6.6in

Mounting hole dimensions: 7.9mm / 0.31in Ø

Mounting hole PCD: 297mm / 11.7in

Number of mounting holes: 8

Chassis depth (inc gasket): 95mm / 3.71in

Magnet depth: 43mm / 1.69”in

Overall depth: 138mm / 5.4in

Unit weight: 4.7kg / 10.4lb
