The Eversolo DAC-Z8 DAC and Headphone Amplifier is perfect for enhancing audio quality. Equipped with an ES9038 Pro 32 bits D/A converter chip, the DAC-Z8 delivers exceptional audio quality with excellent dynamic range and ultra-low distortion. The third-generation XMOS XU316 processor provides rapid processing speeds and low-latency capabilities to maintain Hi-Res audio. The DAC-Z8 is specifically primed to optimise your headphones with ultra-low distortion, excellent signal-to-noise ratio, and both low and high gain modes. Create a listening experience that suits you.
Enjoy clear, immersive sounds thanks to the eight OPA1612 operational amplifiers which ensure minimal background noise and preserves the original quality of your favourite songs. The two USB inputs grant direct connectivity options for your computer and smart devices as well as support for DSD512 Native, PCM768KHz@32Bit, and MQA full decoding for increased frequency response and superior sound quality. You can further connect to a variety of audio devices thanks to the optical, coaxial, RCA, and XLR connections.
Boasting a built-in Qualcomm QCC5125 Bluetooth 5.0 module, the DAC-Z8 offers exceptional wireless connectivity with compatible smart devices. Delight in your preferred playlists with high-quality AAC, aptX, aptX LL (Low Latency), and aptX HD audio quality. Additionally, the sturdy, compact aluminium chassis ensures lasting durability and inconspicuous placement options.
What's in the box?
1 x Remote control
1 x Power cable
1 x USB cable
1 x Product manual
| Model | EverSolo DAC-Z8 |
|---|---|
| Display Screen | 3-inch LCD Screen |
| Chassis | Aviation aluminium alloy |
| DAC | ES 9038Pro |
| Audio Processor | XMOS XU316 |
| OPA Chip | OPA1612*10 |
| Power Supply | Low noise switching power supply |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol |
| USB-B DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA |
| USB-C DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Optical Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |
| Coaxial Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |

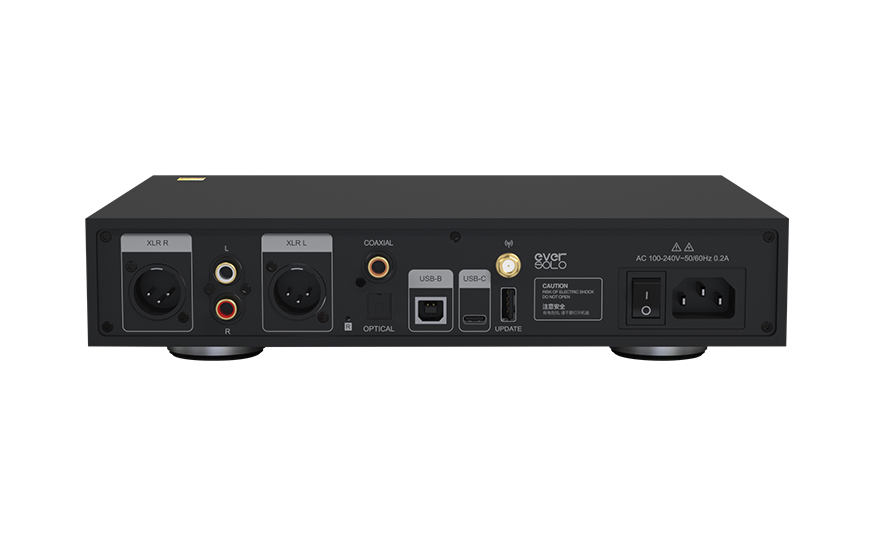

| Analog Audio Output | Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended |
| USB Port | USB2.0*1（only for firmware upgrade） |
| Control Methods | Remote control, mobile APP control and knob control |
| Headphone Impedance | 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω） |
| XLR Audio Characteristics | Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz (-124dB@1kHz) THD+N@No-wt：0.000069%@1kHz (-123dB@1kHz) Noise@No-wt: <1.2uVrms SNR @No-wt: 133dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -130dB@1kHz DNR @No-wt: 133dB@1kHz |
| RCA Audio Characteristics | Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz) THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz) Noise @No-wt: <1.5uVrms SNR @No-wt: 126dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -123dB@1kHz DNR@No-wt: 126dB@1kHz |
| Headphone (low gain mode) | Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz) Noise @No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 119dB@1kHz |
| Headphone (high gain mode) | Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz) Noise@No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 124dB@1kHz |
| Power Input | AC 110~240V 50/60Hz |
| Rated Power | 9W |
| Dimensions | 270mm(W) x 187mm(D) x 50mm(H) |
