SPL Crossover Mk2
The analog crossover in its second generation
The second generation of the SPL Crossover features even more crossover frequencies and an extended range of functions – making it the best and most versatile SPL crossover ever.
The perfect integration of bass loudspeakers or subwoofers can be difficult.
There are almost only digital crossovers for this purpose.
But who wants to convert back to digital in an analog high-end playback chain?
Our analog Crossover Mk2 sets the crossovers anew and rewards with outstanding listening pleasure – thanks to the SPL VOLTAiR technology.

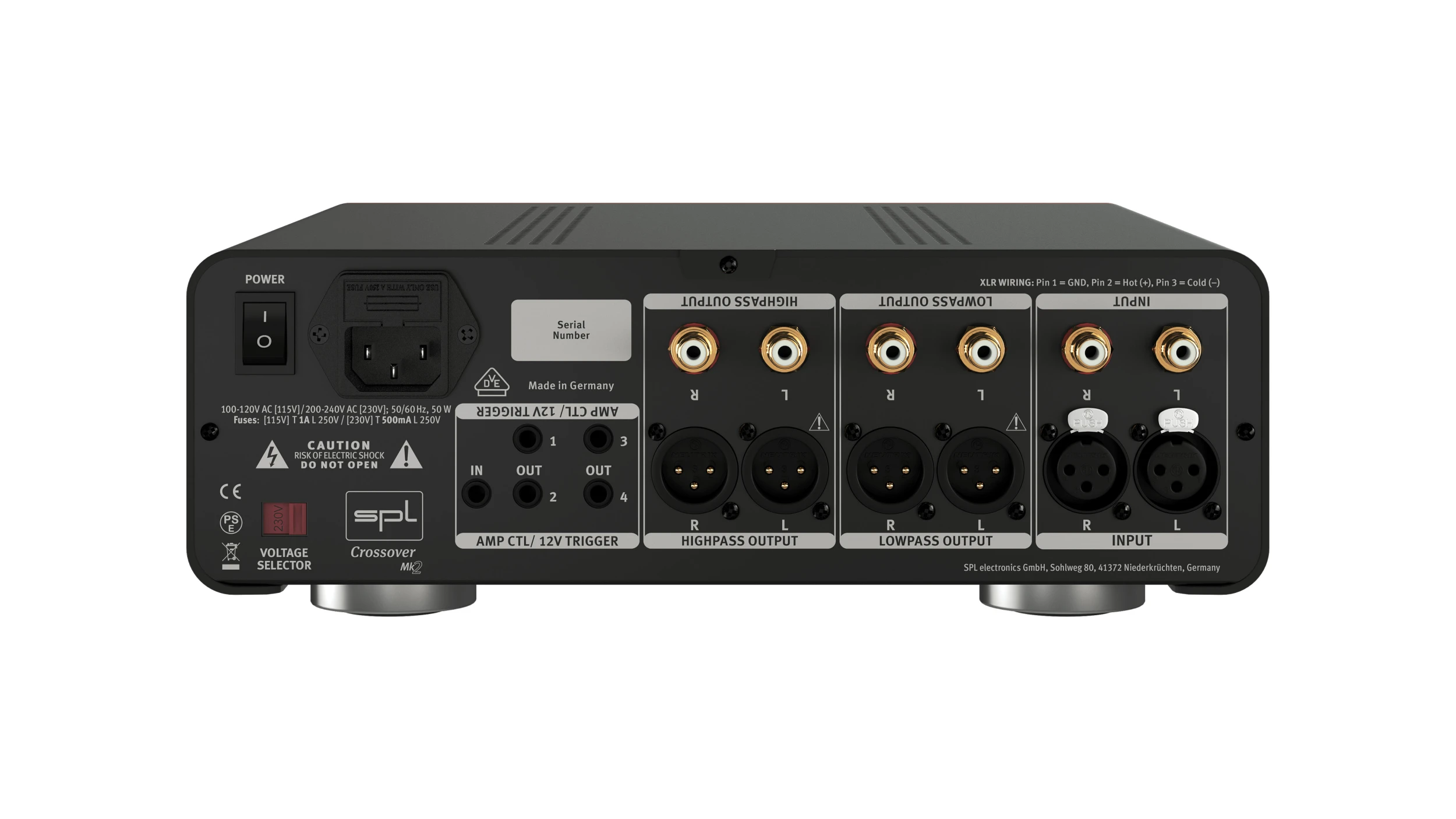

Analog Inputs & Output: XLR (balanced) and RCA
Maximum input & output gain: 32.5 dB
Input impedance (RCA): 20 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection (XLR): 82 dBu
Frequency range (-3 dB): 10 Hz – 100 kHz
Crosstalk (1 kHz): -70 dB
THD (0 dBu, 1 kHz, HIGHPASS filter on): 0.0008 %
THD (0 dBu, 30 Hz, LOWPASS filter on): 0.0009 %
Noise (A-weighted, HIGHPASS output): -106 dBu
Noise (A-weighted, LOWPASS output): -105 dBu
Dynamic range (HIGHPASS output): 138 dB
Dynamic range (LOWPASS output): 137 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/-60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 50 VA
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm
Unit weight: 4.6 kg
Shipping weight (incl. packaging): 5.85 kg
