Marantz SACD 10 Silver - CD Plejer
Garantujemo najnižu cenu!
High-Performance Reference SACD Player with SACDM-3 transport mechanism
The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 transport mechanism for maximum rejection of resonance.
• Marantz SACDM-3 transport mechanism
• DSD 256 and PCM 384 / 32 support
• 7Headphone amplifier
• Dual power supplies with toroidal transformers
• OLED display
• Marantz Industrial Design
General
Unit (W × H × D mm): 440 × 192 × 442
Cabinet Size: 440 × 192 × 422
Net weight: 33.0kg
Packaging Dimensions (W × H × D mm): 600 × 379 × 540
Packaging gross weight: 38.4kg
Carton Color: 1 Color (Material color: Brown Printing: Black)
Panel Color: Black / Marantz Champagne
Front (Center) Pane: Aluminum
Back-shell: Aluminum
Front panel illumination: Yes (All sides, Dimmer)
Side cover: Aluminum (Thickness: Max 15.8mm)
Top cover: Aluminum (Thickness: 12mm)
Bottom Layer / Bottom plate: Triple layer copper-plated
Foot: Solid aluminum with Copper
Audio
Frequency Response:
• SACD: 2Hz–50kHz (-3dB)
• CD: 2Hz–20kHz (±1.0dB)
Harmonic distortion:
• SACD: 0.0004%
• CD: 0.0015%
S/N:
• SACD: 118dB
• CD: 116dB
Dynamic range:
• SACD: 112dB
• CD: 98dB
Line Output Leve:
• UNBALANCED : 2.0Vrms
• BALANCED : 4.0Vrms
Headphone Output Level: 130mW / 32 ohms
Power Consumption:
• 55W
• Less than 0.3W (at Standby)
Audio Feature
Output Circuit: New HDAM
Power Transformer: Toroidal
Headphone Circuit: Discrete
H/P Amp Gain Setting: Yes (Low / Mid / High)
H/P On.Off Setting: H/P Off automatically, when in use
DAC Circuit: New MMM-Conversion
Dither: MMM-Stream (Dither 1, 2, Off)
Noise Shaper: MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
Digital Filter:
• MMM-Stream
• Filter 1, 2 Selectable
Jitter Reducer: Yes
DAC Master Clock Design (SACD, USB-A, USB-DAC): Yes
Asynchronous mode (for USB-B input): Yes
Isolator (for USB-B input): Yes (Complete Isolation System Duo)

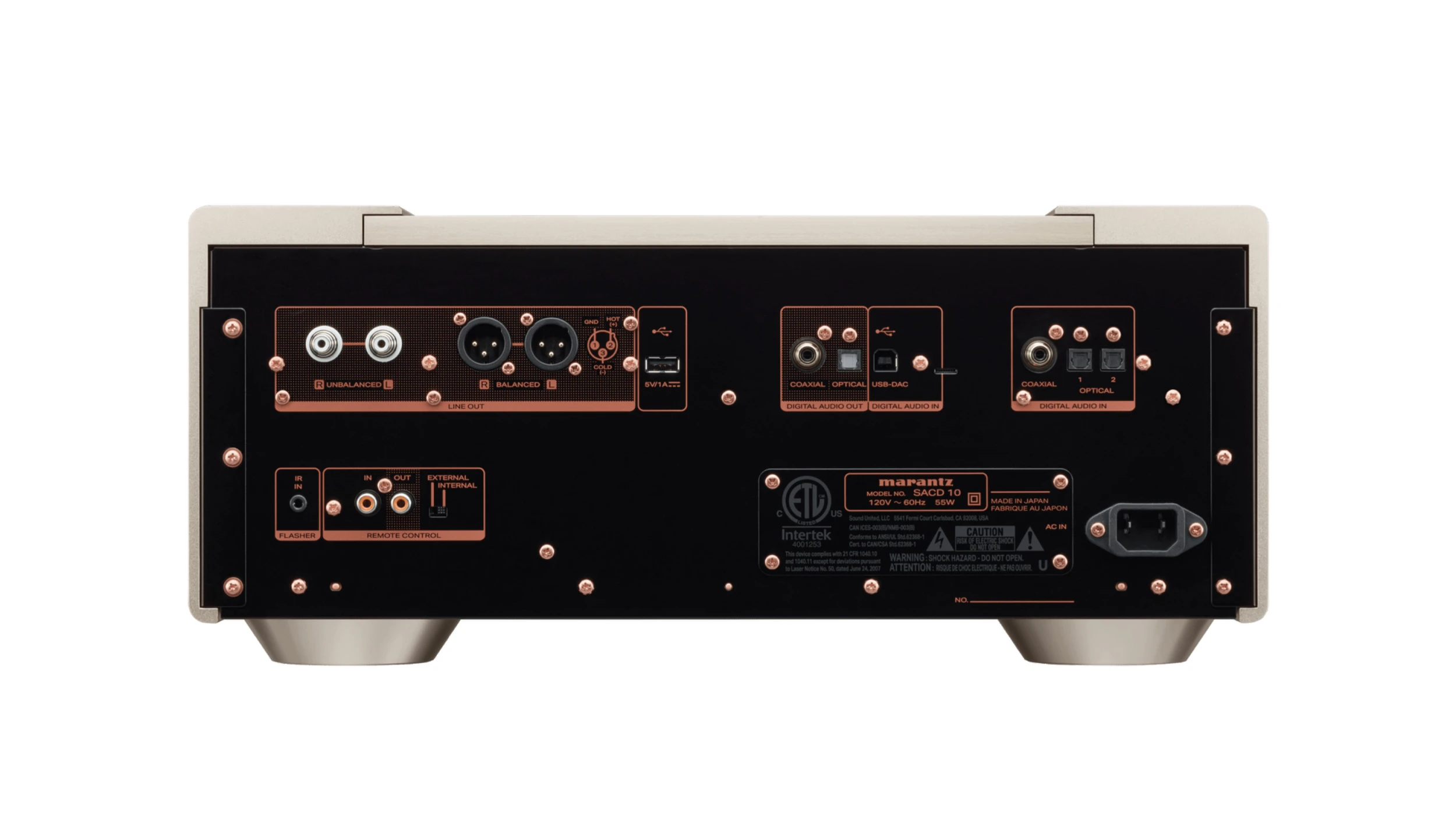

Connectivity
Fixed Analog Output (RCA):
• Cinch × 1
• Thick nickel plated Maching copper L/R independent terminals
Fixed Balanced XLR Output: 1
Optical input / output (Maximum Support):
• 2/1
• 44.1 kHz - 192 kHz
Coaxial input / output (Maximum Support):
• 2/1
• 44.1 kHz - 192 kHz
Headphone Output: Yes (φ6.3 x 1)
Remote Control Bus Termina: Yes
Remote Internal / External Switch: Yes
AC Inlet: Yes
Accessory Box: Yes
Remote Controller: RC004PMND
Battery: Yes (AAA ×2)
Power Cord: Yes (ALL region : Audio Grade : OFC)
Other:
• Stereo RCA Cable ×1
• emote connector cable ×1
• oA card
