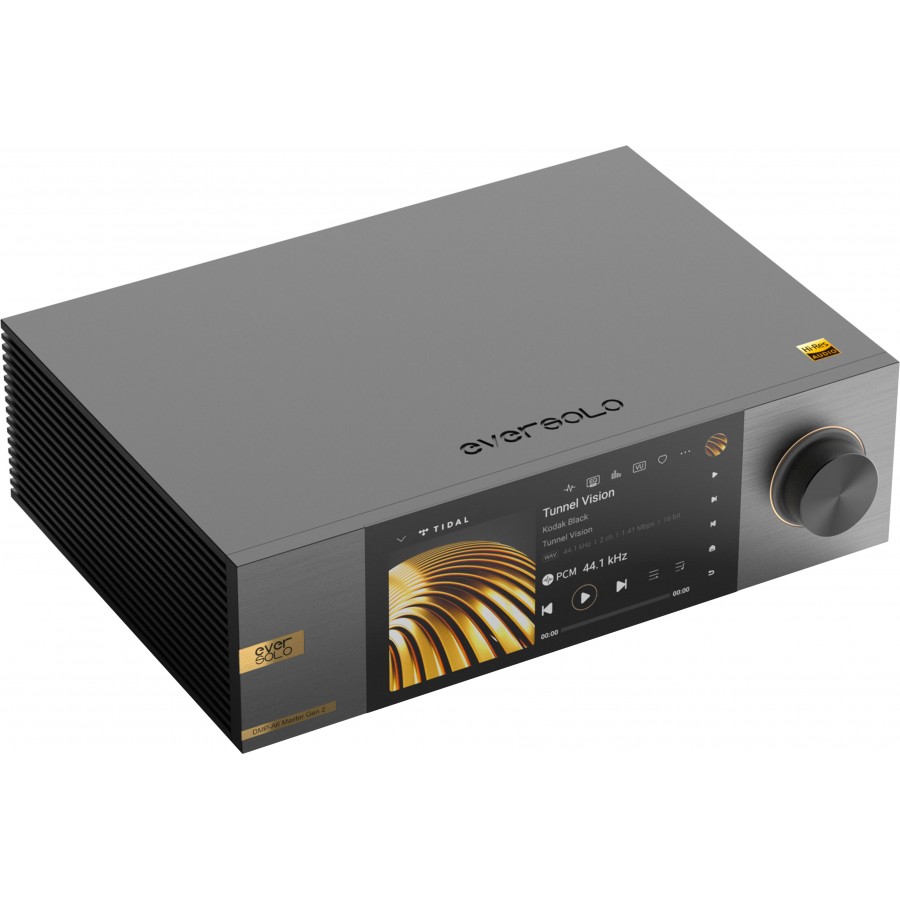

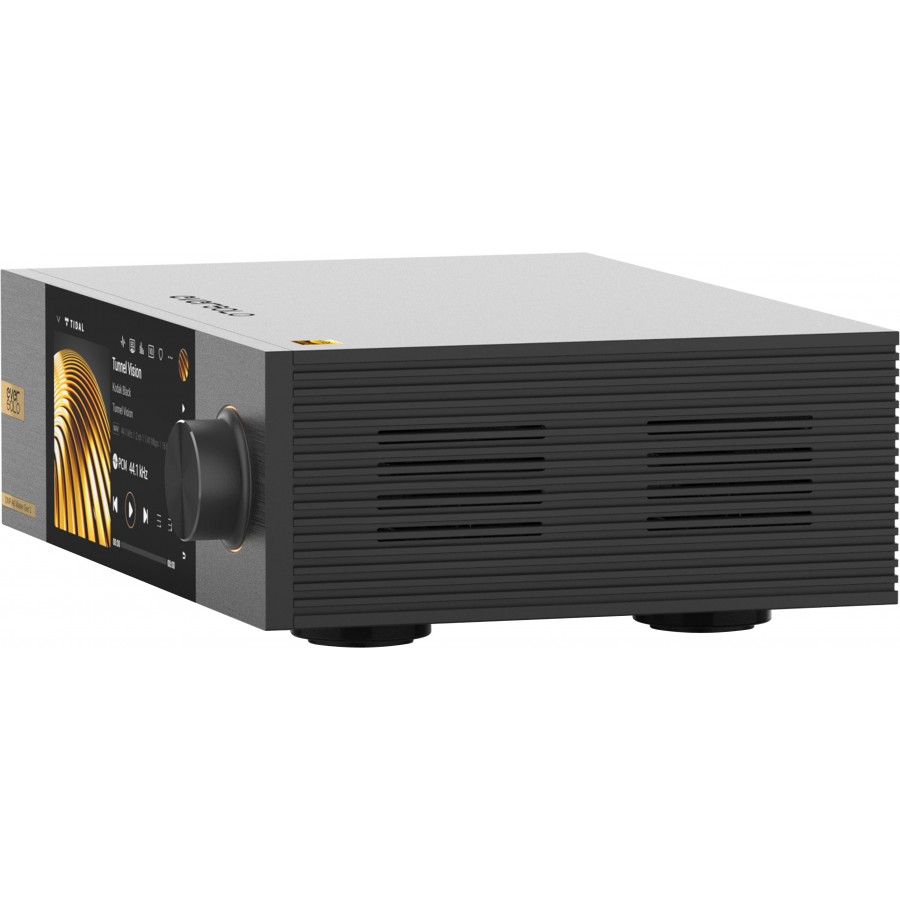

Eversolo DMP-A6 Master Edition Gen2 Black
The Eversolo DMP-A6 Gen 2 is a HiFi network player that seamlessly combines outstanding sound quality with cutting-edge technology. More than just an audio device, it's a new way of connecting to the world of music. From hardware design to audio processing, every detail of the DMP-A6 Gen 2 has been meticulously designed for audiophiles seeking the ultimate listening experience. It not only meets your listening needs, but transforms every listening experience into a wonderful artistic exploration.
General specifications
Product type: Audio streamer
Screen: LCD 6" touch screen
Internal memory: 4Go GDDR4 + 32go eMMC
DAC chips: 2x ESS ES9038Q2M
USB interface: XMOS XU316
OPA: OPA1612
SSD slot: M.2 NVME 3.0 2280, support up to 4TB (SSD sold separately)
USB ports: 2x USB-A 3.0
Ethernet: RJ45 (10/100/1000Mbps)
Wireless network: WiFi 2.4G+5G dual band
Supported sampling rates:
• PCM up to 32bit 768kHz
• Native DSD up to DSD512
• MQA
Supported streaming services: Deezer, Apple Music, TIDAL, Qobuz, Amazon Music, Soundcloud, Presto Music, HIGHRESAUDIO, IDAGIO, Calm Radio, Radios internet, TuneIn, Radio Paradise...
Supported network protocols: DLNA, TIDAL Connect, Roon Ready...
Control modes & Integration:
• App
• Touch screen
• Trigger out
• Wake On LAN (WoL)

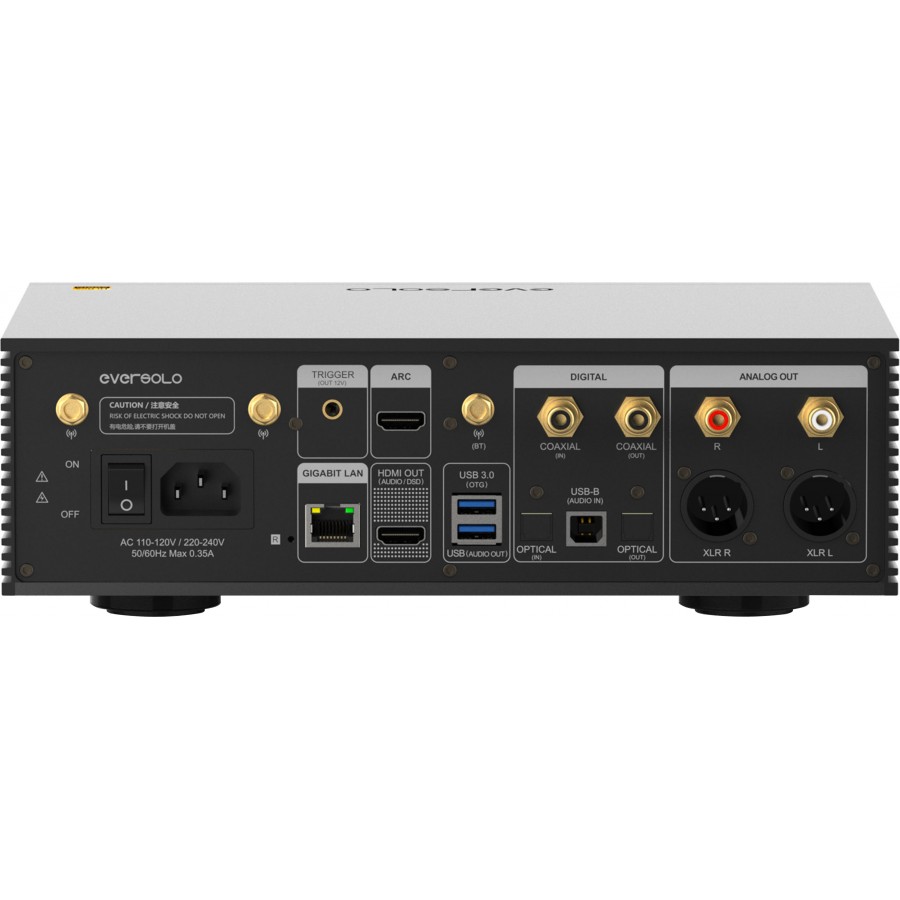

Audio inputs & outputs
Bluetooth audio input: Bluetooth 5.0, support SBC/AAC
USB-A audio input: Compatibility: Windows 10/11, Mac, Android, iOS
Support: DSD512, PCM 32bit 768kHz, MQA
Coaxial / Optical audio input: Support PCM 24bit 192kHz, DoP64, MQA
HDMI ARC input: Support PCM up to 24bit 192kHz
USB audio output: Support PCM up to 32bit 768kHz, DSD512, MQA
HDMI audio output: Support PCM 192kHz, multichannel up to 5.1 / Native DSD64 multichannel
Optical / Coaxial audio output: Support PCM up to 24bit 192kHz, DoP64, MQA
Analog audio output:
• Balanced XLR
• Single-ende RCA
Audio performances
Output level:
• XLR: 5.2V
• RCA: 2.6V
Frequency response:
• XLR: 20Hz - 20kHz (±0.15dB)
• RCA: 20Hz - 20kHz (±0.2dB)
Dynamic range:
• XLR: > 128dB
• RCA: > 125dB
SNR:
• XLR: > 128dB @ A-wt
• RCA: > 125dB
THD+N:
• XLR: < 0.000087% (-121dB)
• RCA: < 0.0001% (-120dB)
Crosstalk:
• XLR: > -125dB
• RCA: > -124dB
Other informations
Supply voltage: 110-240V AC 50/60Hz Max 0.35A
Consumption: 13W
Dimensions (WxDxH): 270 x 187 x 90mm
Color: Black
Package:
1x Eversolo DMP-A6 Master Edition Gen 2
1x Power cable
1x USB cable
1x Trigger cable
