General
Unit (W × H × D mm): 440 × 192 × 472 (with antenna)
Cabinet Size: 440 × 192 × 422
Net weight: 33.3kg
Packaging Dimensions (W × H × D mm): 600 × 379 × 540
Packaging gross weight: 38.7g
Carton Color: 1 Color (Material color: Brown Printing: Black)
Panel Color: Black / Marantz Champagne
Front (Center) Pane: Aluminum
Back-shell: Aluminum
Front panel illumination: Yes (All sides, Dimmer)
Side cover: Aluminum (Thickness: Max 15.8mm)
Top cover (Centor) ventilation hole material: No
Interior ilumination: No
Rear Panel: Triple layer Copper-plated
Chassis Material: Copper-plated
Bottom Layer / Bottom plate: Copper-plated
Volume Knob: Solid aluminum (Bearing construction)
Input Selector: Solid aluminum (Bearing construction)
Foot: Solid aluminum with Copper

Audio
Frequency Response: PCM 2Hz–50kHz (-3dB)
Harmonic distortion: PCM 0.0004%
S/N: PCM 0.0004%
Dynamic range: PCM 0.0004%
Line Output Leve:
• UNBALANCED : 2.0Vrms
• BALANCED : 4.0Vrms
Headphone Output Level: 130mW / 32 ohms
Frequency Response (analog input): 5 Hz–100 kHz (+0dB/-3 dB)
Harmonic distortion (analog input): 0.001% (20Hz–20kHz)
S/N:
• PHONO (MC) : 76dB
• HONO (MM) : 88dB
• BALANCED : 122dB
• LINE : 122dB
Phono Input sensitivity:
• MM : 8mV
• MC : 80mV
Phono Input impedance:
• MC Low : 32 ohms
• MC Mid : 100 ohms
• MC High : 390 ohms
• MM : 39 kohms
Power Consumption:
• 7W
• Less than 0.3W (at Standby)
• Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB)

Audio Feature
Output Circuit: New HDAM
Power Transformer: Toroidal
Pre Amplifier Circuit:
• New HDAM High Grade
• Full balance
Volume:
• Electric (MUSES 72323)
• Variable gain
Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
Type of Tone Control: Electric
Headphone Circuit: Discrete
H/P Amp Gain Setting: Yes (Low / Mid / High)
H/P On.Off Setting: H/P Off automatically, when in use
DAC Circuit: New MMM-Conversion
Dither: MMM-Stream (Dither 1, 2, Off)
Noise Shaper:
• MMM-Stream
• Balanced, Natural, Dynamic Music, Dymanic Voice)
Digital Filter:
• MMM-Stream
• Filter 1, 2 Selectable
Jitter Reducer: Yes
DAC Master Clock Design (No Support for Network Playback): Yes
Asynchronous mode (for USB-B input): Yes
Isolator (for USB-B input): Yes (Complete Isolation System Duo)

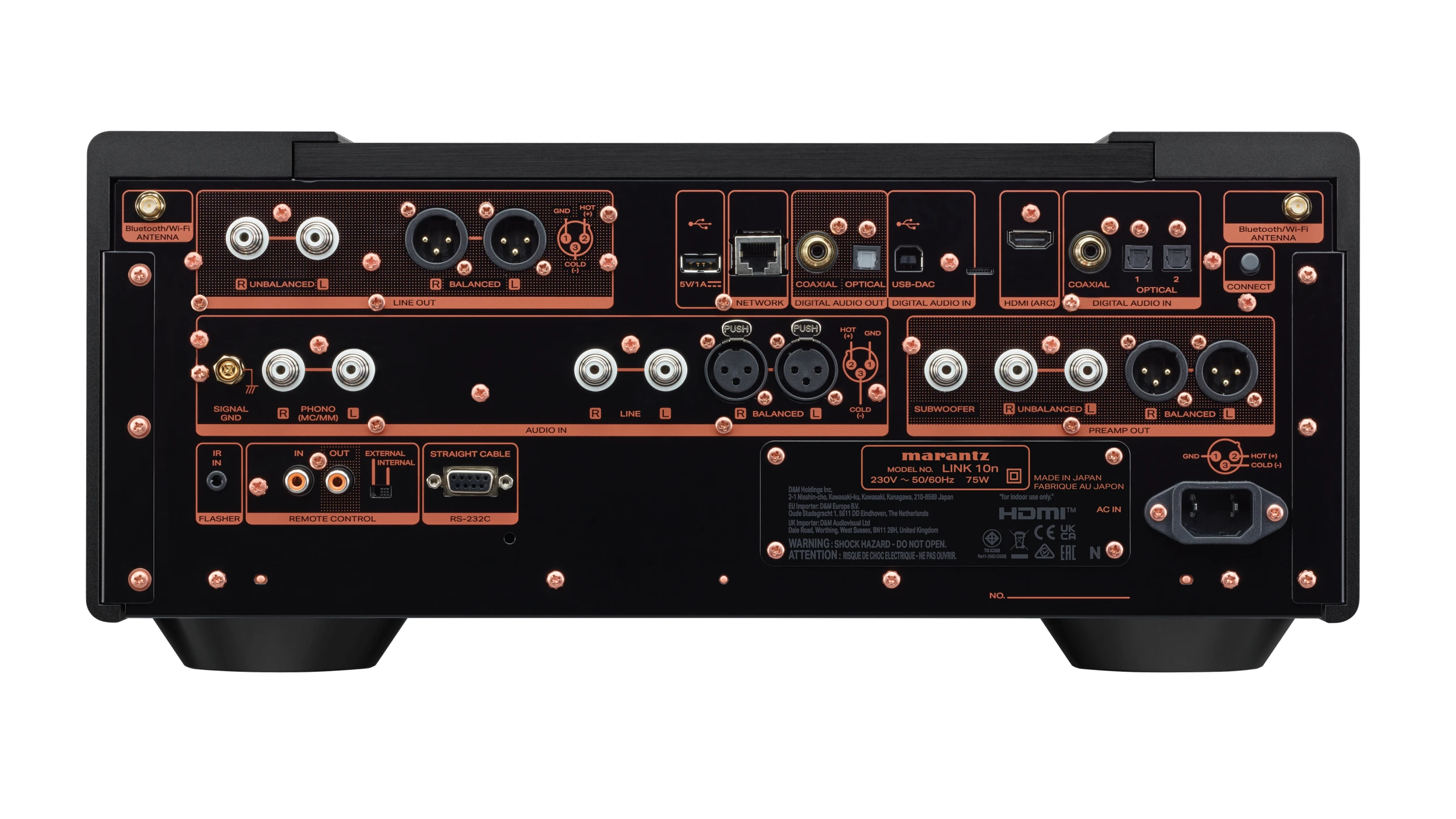

Fixed Analog Output (RCA):
• Cinch × 1
• Thick nickel plated independent terminals
Pre / Variable Audio Output (RCA):
• Cinch × 1
• Thick nickel plated independent terminals
Fixed Balanced XLR Output: Yes (1 Pair)
Pre/ Variable Balanced XLR Output: Yes (1 Pair)
RCA Input:
• Cinch × 1
• Thick nickel plated independent terminals
Balanced XLR Input: Yes (1 Pair)
Phono input:
• Yes (MM / MC)
• Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
• Thick nickel plated independent terminals
Optical input / output (Maximum Support):
• 2 / 1 (on/off switchable)
• 44.1 kHz - 192 kHz
Coaxial input / output (Maximum Support):
• 1 / 1 (on/off switchable)
• 44.1 kHz - 192 kHz
HDMI input / output: No / Yes (ARC)
Headphone Output: Yes (Φ6.3 ×1)
Subwoofer: Yes with LP filter adjustable

Easy to Use
App: HEOS app
Remote Controller: 10 series universal Remote control
Front Panel Display: New HD TFT Color Display
Display Language
• N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian)
• U: (English/ French/ Spanish)
• K: ( Simplified Chinese/English)
• F: (Japanese/ English)
Dimmer for Front Display: 20 steps
Level meter: No
Volume Display: 0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable
Voice Assistant:
• Apple Siri
• Google Assistant
Control with App via Network Player (Use Remote Control Bus): No
External Amp Control with App (Use Remote Control Bus): Yes
Synchronously turn on amplifier and switch the input (Use Remote Control Bus): Yes
HDMI CEC: Yes
Remote Controller: RC004PMND
Battery: Yes (AAA ×2)
Power Cord: Yes (ALL region : Audio Grade : OFC)
Other:
• Stereo RCA Cable ×1
• Remote connector cable ×1
• CoA card
