General
Unit (W × H × D mm): 440 × 192 × 473
Cabinet Size: 440 × 192 × 422
Net weight: 33.7kg
Packaging Dimensions (W × H × D mm): 600 × 379 × 540
Packaging gross weight: 39.0kg
Carton Color: 1 Color (Material color: Brown Printing: Black)

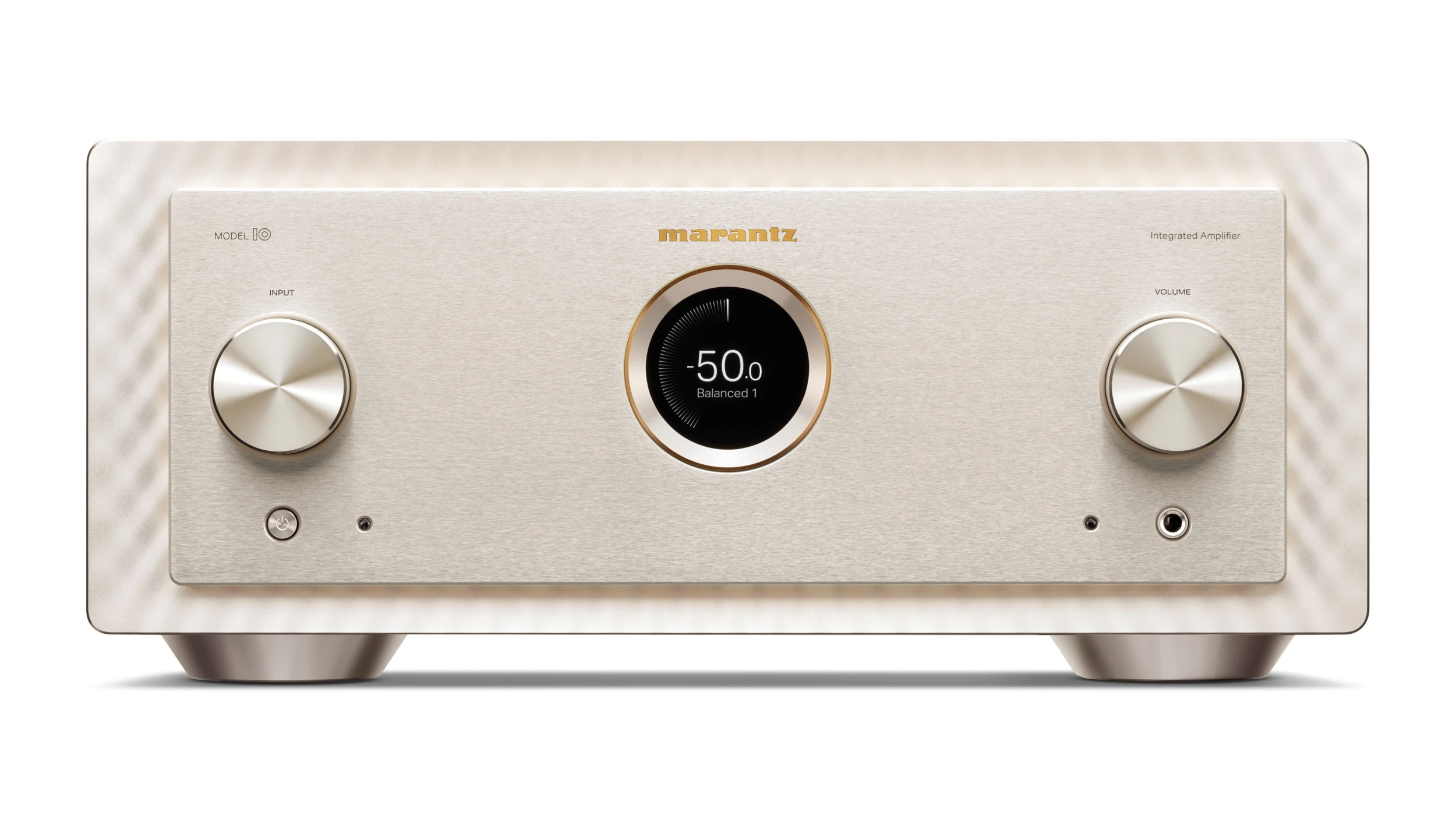

Panel Color: Black / Marantz Champagne
Front (Center) Panel: Anodized machined aluminum
Back-shell: AAnodized machined aluminum
Front panel illumination: Yes (All sides, Dimmer)
Side cover: Aluminum (Thickness: Max 15.8mm)
Top cover: Aluminum (Thickness: 6mm)
Top cover (Centor) ventilation hole material: Stainless mesh
Interior ilumination: Yes, dimmable
Rear Panel: Copper Plated
Chassis Material: Copper Plated
Bottom Layer / Bottom plate: Triple layer Copper plated
Front panel illumination: Yes (All sides, Dimmer)
Volume Knob: Solid aluminum (Bearing construction)
Input Selector: Solid aluminum (Bearing construction)
Foot: Solid Alminum Copper plated (H: 18.5mm)
Heatsink for Power Amplifier: Extruded Aluminum

Audio
Rated Output Power:
• 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %)
• 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %)
Speaker Impedance: 4~16ohm
Frequency Response:
• 5Hz~60kHz +0dB/-3dB
• 20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion: 0.005% (125W, 8ohm, 20-20kHz)(CCIF IMD, DFD IMD)
Damping Factor: 500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono input:
• MM: 3.6 mV / 36 kohm
• MC (Low): 400 μV / 33 ohm
• MC (Mid): 400 μV / 100 ohm
• MC (High): 400 μV / 390 ohm
RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input:
• MM : 80mV
• MC : 8mV
Input Sensitivity: CD/LINE/RECORDER:
• 350 mV/41kohm (Unbalanced)
• 700 mV/36kohm
Input Sensitivity: Power Amp input:
• Unbalanced: 1.58V / 41kohm (Gain : 29dB)
• Balanced: 3.16V / 15kohm (Gain : 24dB)
SN Ratio:
• PHONO (MM): 88dB
• PHONO (MC): 76dB
• CD: 122dB
• Balanced: 122dB
Headphone Output Level: 130mW / 32 ohms
Tone Control:
• BASS : 50Hz ±10dB
• TREBLE : 15kHz ±10dB
Power Consumption:
• 270W
• 0.1W (at Standby)

Audio/ Video
Phono Input:
• Yes (MM / MC)
• Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
• PHONO (MC Low): 400 μV / 33Ω
• PHONO (MC Mid): 400 μV / 100Ω
• PHONO (MC High): 400 μV / 390Ω
• PHONO (MM): 3.6 mV / 39kΩ

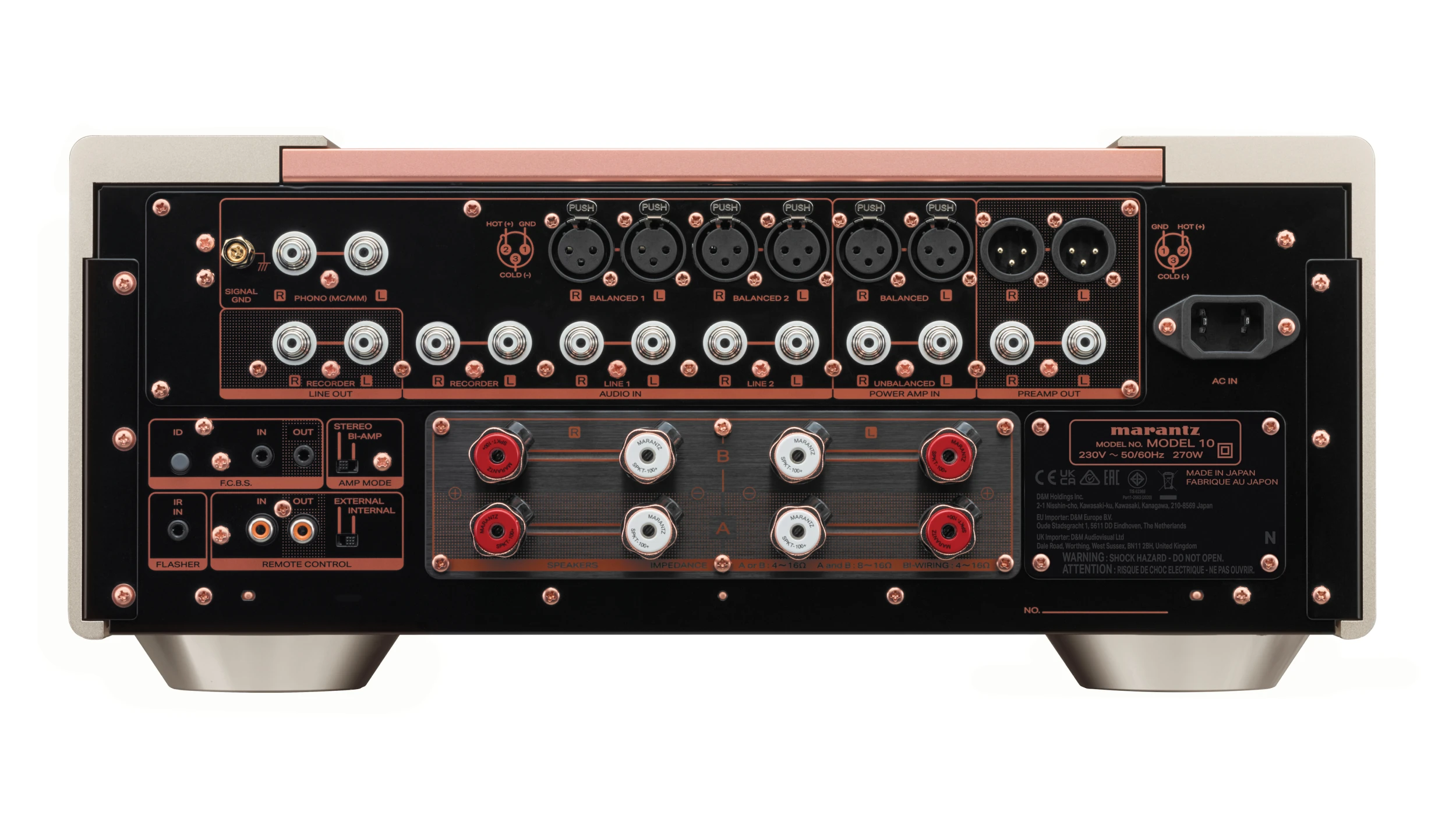

Analog Input (include Phono) / REC Out (RCA): 4 /1
• (LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
• (RECORDER: Thick nickel plated independent terminals)
Balanced XLR input: 2
Power Amp Direct: Yes [RCA (Thick nickel plated independent terminals) / XLR]
Pre out: Yes [RCA (Thick nickel plated independent terminals) / XLR]
2 sets of Speaker Output: Yes (Bi-wiring)
Speaker Terminal:
• Marantz Original SPKT-100+
• 2 (High quality and high-purity copper plated)
Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)

Control/ Other
Remote Control Bus Terminal: Yes (RC-5 In / Out)
Remote Internal / External Switch: Yes
Flasher Input: Yes
AC Inlet: Yes
Other: F.C.B.S. (Floating Control Bus System)
Remote Controller: 10 series Universal Remote control
Unit control (Button): Tact Switch : 1 - POWER
Unit control (Knob): 2 - VOLUME, INPUT SELECTOR
LED:
• POWER: 1 White
• Protection: 1 Orange
• Illumination (Edge): White
• Interior: White
Front Panel Display: New HD TFT Color Display
Dimmer for Front Display: 20 steps
Level meter: Yes (HD Display)
Volume Display:
• -infinity/-99.5dB - 0dB / 0.5 step (default)
• 0-100 / 0.5 step
• switchable
Last Function Memory: Yes
Auto Standby Mode: Yes
Remote Controller: RC004PMND
Battery: Yes (AAA ×2)
Power Cord: Yes (ALL region / Audio Grade / OFC)
Other: CoA card
