Marantz AMP 10
Garantujemo najnižu cenu!
The Marantz AMP 10 Power Amplifier is state-of-the-art when it comes to powering your home cinema. Utilising Marantz's high-performance audio technology, it can deliver up to 16 channels of high-quality audio. The AMP 10 is the perfect product to pair with either Marantz's AV 10 or an existing home theatre system due to its versatile connectivity options. With its slick design, soft, built-in lighting and analogue meter, this product will complement any home theatre setup.
High-performance amplification
Featuring Marantz's custom Class D amplifiers and HDAM-SA2 technology, this amplifier will bring the highest quality theatrical audio to your home setup. The AMP 10 offers 16 channels of the highest resolution audio.
Slick design

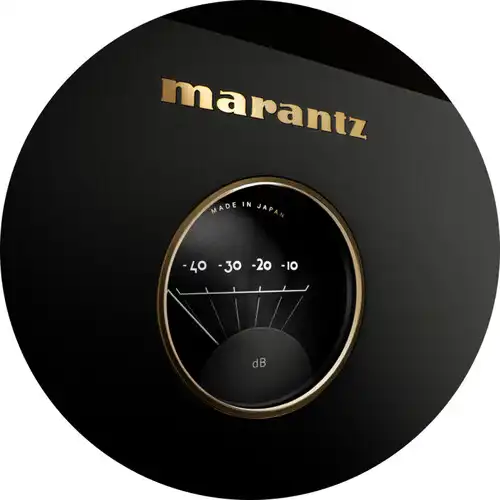

A modern yet timeless look. Fashioned from first-class materials with a centre-mounted analogue-level meter, the amplifier has an unparalleled authentic feel. Every detail has been meticulously thought through and flawlessly executed.
Marantz's CINEMA Series
Paired with the AV 10, this makes up the flagship device in Marantz's CINEMA Series. Marantz is setting the bar for premium home theatre audio, providing the listener with stunning, immersive audio.
Compatibility

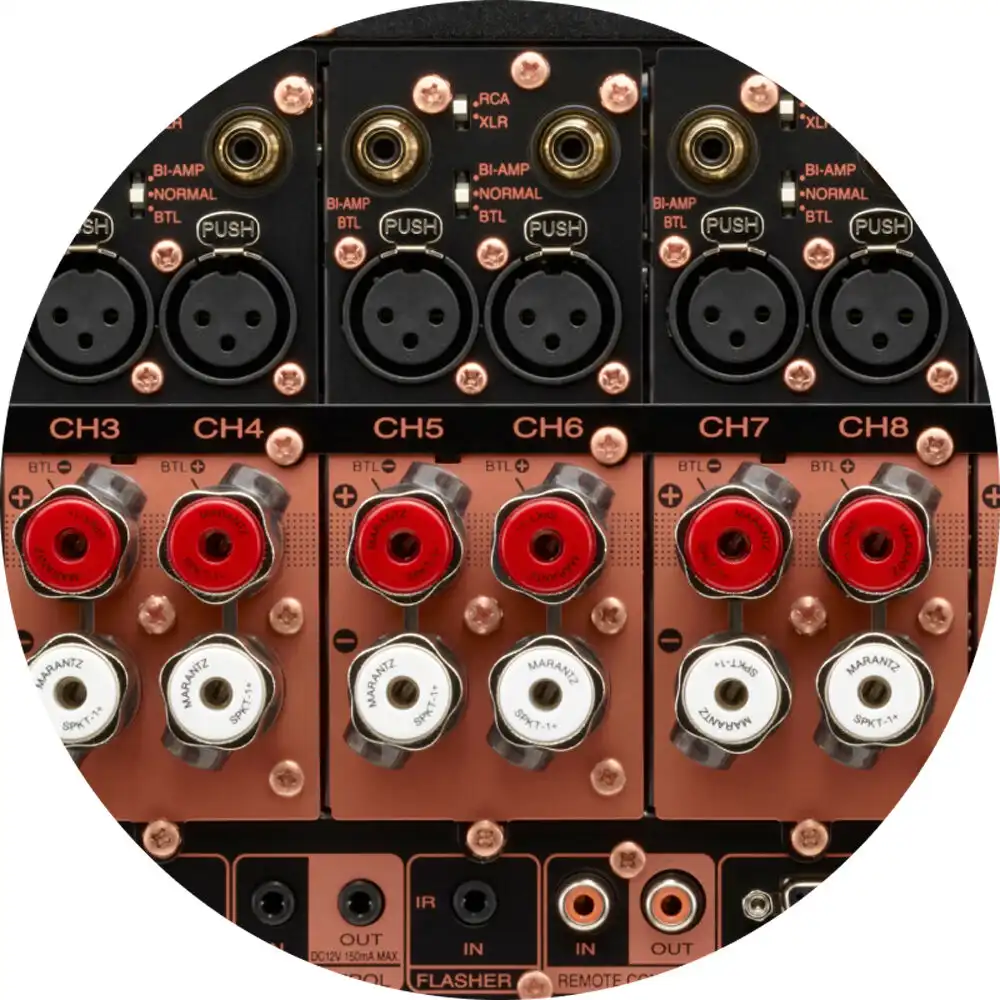

Its breadth of connectivity options makes it suitable for integrating seamlessly with a wide range of home theatre systems. This includes both gold-plated RCA and high-grade XLR connectors.
Customisation
Complete with selectable amplifier modes, this ensures that the AMP 10 will get the most out of your system. This includes the ability to set the amplifier to bi-amp mode to isolate frequency bands from each other.
Leading technology
Marantz is renowned for its dynamic, rich and warm sound. Providing 16 channels of quality engineered audio, the amplifier pushes the boundaries of what a home theatre system can be.
What's in the box
Main Unit
Quick Start Guide
AC Cord
Amp Control Cable
Remote Control Cable,
SP Terminal Wrench
Features
Detailed and immersive sound using Marantz's best-in-class amplification technology
Elegant design complements rich, warm sound and integrates perfectly into any home theatre
200 watts per channel into 8Ω / 400 watts per channel into 4Ω - capable of powering virtually any loudspeaker configuration
16 channels powers even the largest home theatres, with no need to compromise your setup
Bi-amp mode drives high and low-frequency sections of loudspeakers with separate amps for maximum performance
Bridge mode combines two channels into a single 400-watt channel for powering larger speakers or a subwoofer
Perfect match for Marantz AV 10 processor, giving up to 7 HDMI audio inputs
Balanced XLR input leaves uncompromised audio quality, maintaining the highest possible signal-to-noise ratio

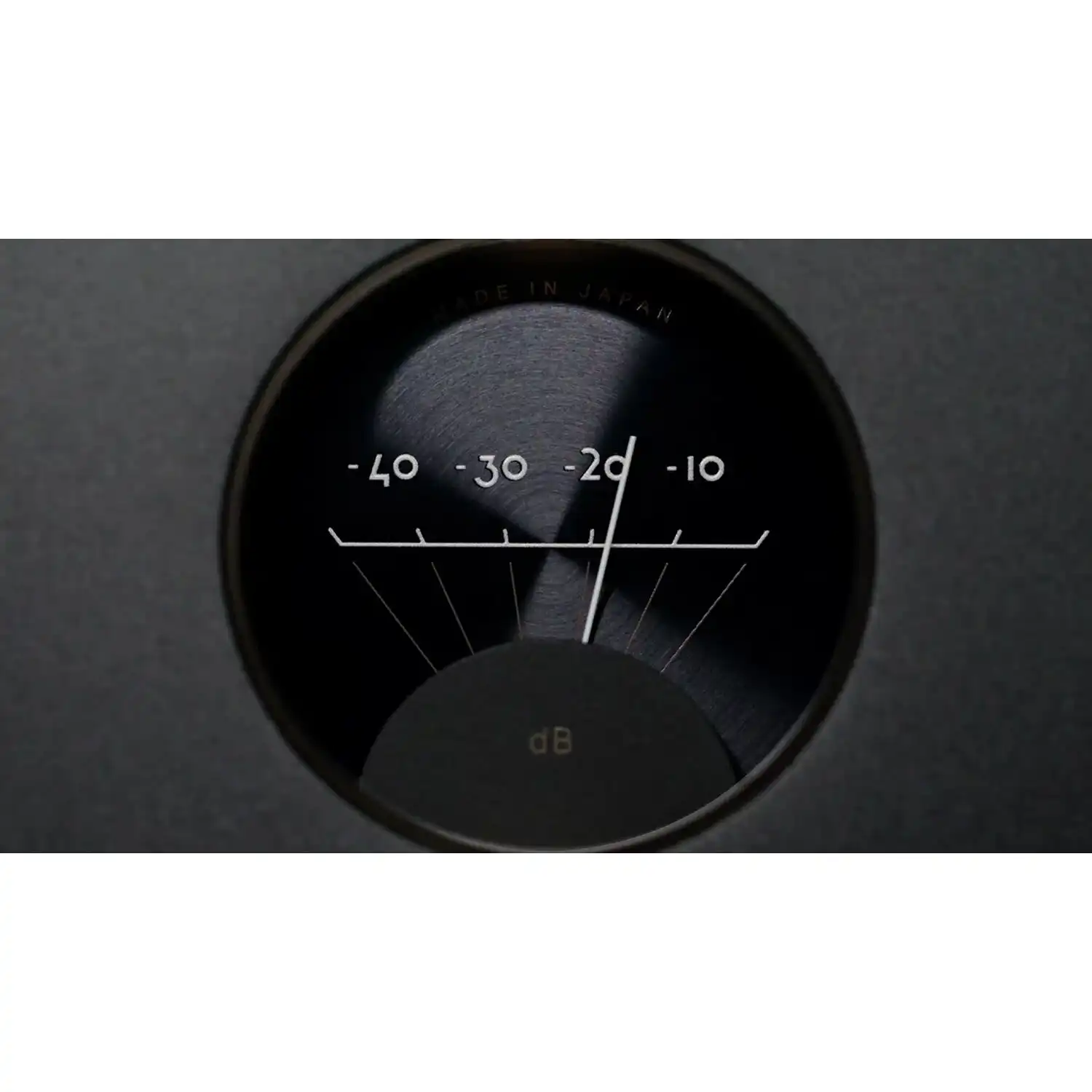

Stunning analogue meter measures output giving a truly authentic feel
Soft side lights cast a warm glow on the front surface of the amplifier for a sophisticated look
|
IP Control |
No |
|
RS232 Control |
Yes |
|
Web Control |
No |
|
App Control |
No |
|
IR Flasher In |
Yes |
|
Marantz Remote Bus |
Yes |
|
DC Trigger Input/ Output |
1/ 1 |
Inputs/ Outputs
|
Main Amplifier in |
Balanced & Unbalanced: 16ch (exclusive use by a selector switch) |
|
Speaker Terminal: Gold plated screw/ regular screw |
Brass type (same as MODEL 40n) |
|
Number of Speaker Terminals |
16 |
|
Bi-Amp Drive/ BTL Drive |
Yes/ Yes |
|
Level Meter |
Yes |
|
Chassis |
Copper Plated |
Audio
|
Number of poweramps |
16 |
|
Power Output (8 ohm, 1 kHz, 0.05 2ch Drive) Normal/ BTL |
200W/ 400W |
|
Power Output (4 ohm, 1 kHz, 0.7 2ch Drive) Normal |
400W |
|
Power Output (8 ohm, 1 kHz, 0.7 5ch Drive) Normal |
200W |
|
70 Guarantee(Normal/ Bi-Amp/ BTL) |
Yes(w/ Yes JP) |
|
100 Guarantee(Normal/ Bi-Amp) |
Yes |
General
|
Pre-Programmed/ Learnable/ LCD Display |
No/ No/ No |
|
Power Consumption in W |
500W |
|
Power Consumption No-Sound (ECO on/ off) in W |
No/ 140W |
|
Standby Consumption in W |
0.2 |
|
UPC code |
747192137519 |
Other
|
Front Display |
Level Meter |
|
Firmware Update by Network/ USB/ RS232C |
No/ No/ Yes |
|
Auto Power off |
Yes |
Dimensions
|
Dimensions (H x W x D) (mm) |
7.4 x 17.4 x 19.2 |
Weight
|
Weight (kg) |
19.8 |
Design
|
Colour |
Black |
|
Front Panel Material |
Metal |
