Features
Channels: 5
Current Feedback Topology: Yes
Phono EQ: Standard / Current Feedback / Constant Current Feedback: No / No / No
HDAM version: No
Power Transformer: Toroidal / El: No / Yes
High Grade Audio Components: Yes
Customised Components: Yes
Symmetric PCB Layout: No
Aluminium extrusion heat sink: Yes
Copper Plated Chassis: No
Tri Tone Control (Bass / Mid / Treble): No
Balance / Bass / Treble / Loudness: No

Others
Linear Drive Power Supply: Yes
CCNE: No
Liniear volume control: No
BTL Possibility: No
BI-AMP and Multichannel option: No
Choke input: No
Shottky diodes: No
Input buffer amp (all inputs / CD only): Yes / No
Separate Solid Heat Sinks: No
System block shielding: Copper / metal / none: No / No / No
Double Layer Bottom Plate: No
Low noise LCD display: Yes
Low noise LED display: No
Power Meter : Analog / Digital: No / Yes
Source Direct: No
Power Amp direct: Yes
Standby Mode: Yes
5mm aluminium top plate: No

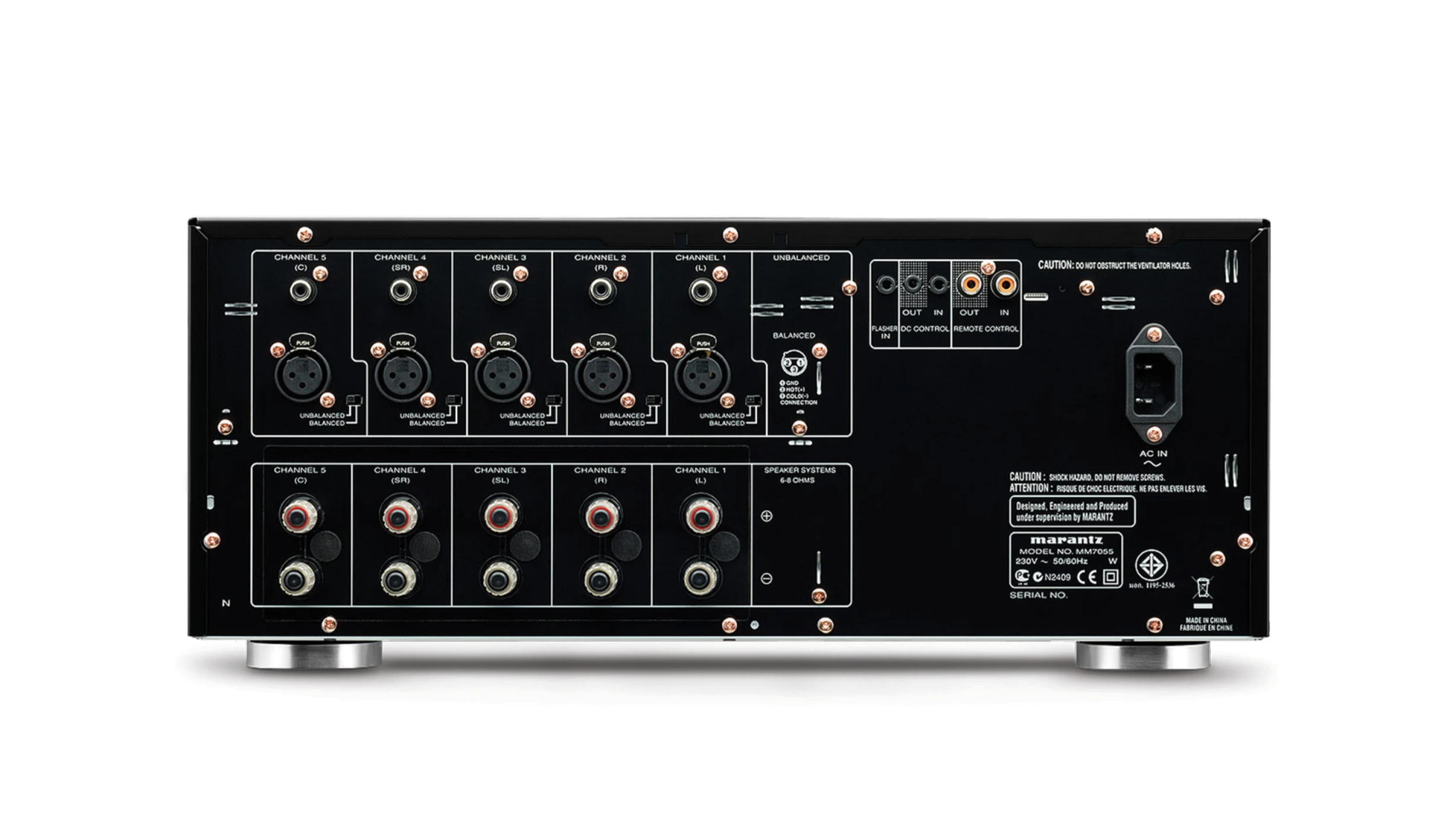

Inputs Outputs
Audio Inputs: No
Phono Input: MM / MC: No
Audio Outputs: No
Balanced In / Out: 5 / No
Pre-out / Main-in: No / 5
Power Amp Direct IN: No
Gold Plated Cinch: No
Speaker A / B: No
Speaker Terminal: Screw / Marantz / WBT: Yes / No / No
Number of terminals: 5
D-Bus: Yes
Floating Control Bus (3.5 mm mono jack x 2): No
Remote Power Control Trigger - In Out: Yes
Flasher In / IR Receiver In: Yes / No
Headphone Out: No
iPod input (direct / docking station): No / No

Specifications
Power Output (8 / 4 Ohm RMS): 140 W / 170 W (6)
Power Output (8 / 4 Ohm DIN): No
Power Output (8 / 4 Ohm IHF): No
Bridged Power Output (8 Ohm RMS): No
Frequency response: 8 Hz-100 kHz (+-3 dB)
Total Harmonic Distortion: 0.03% (20 Hz - 20 kHz)
Damping Factor: 100
Input Sensitivity: MM: No
Input Sensitivity: MC: No
Signal to Noise Ratio: MM/MC: No
Input Sensitivity: High level: 1.2 V / 22 K
Input Sensitivity: Balanced High level: 2.4 V / 30 K
Signal to Noise Ratio: High level: 105 dB

General
Available Colors: Gold / Silver / Black / Silver-Gold: No / No / Yes / No
Metal Front Panel: Yes
Power Consumption in W: 400
Standby Consumption in W: 0.4
Auto Power off: Yes
Detachable Power Cable: Yes
Remote Control: No
System Remote Function: No
Maximum Dimensions (W x D x H) in mm: 440 x 183 x 384
Weight in kg: 15.2
