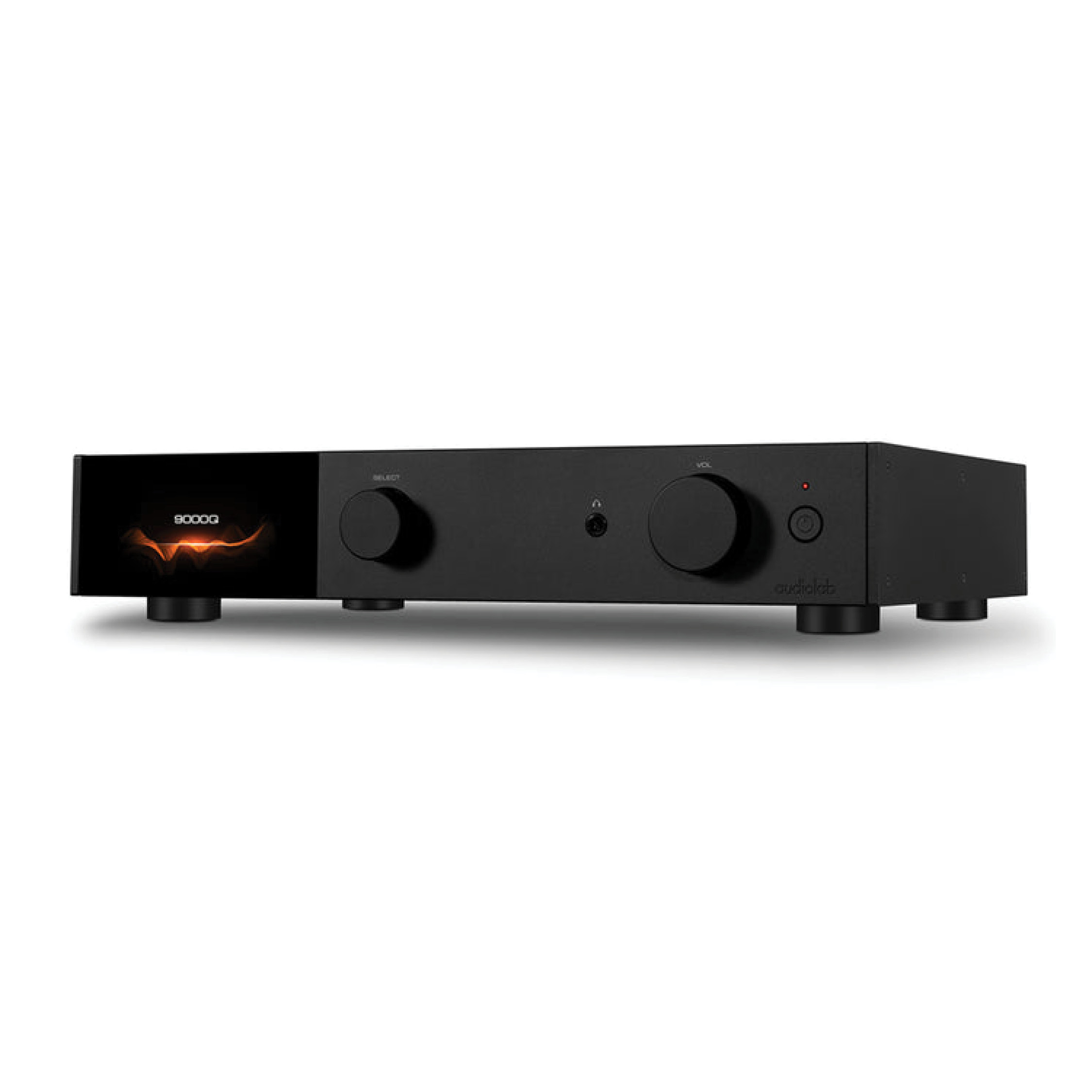

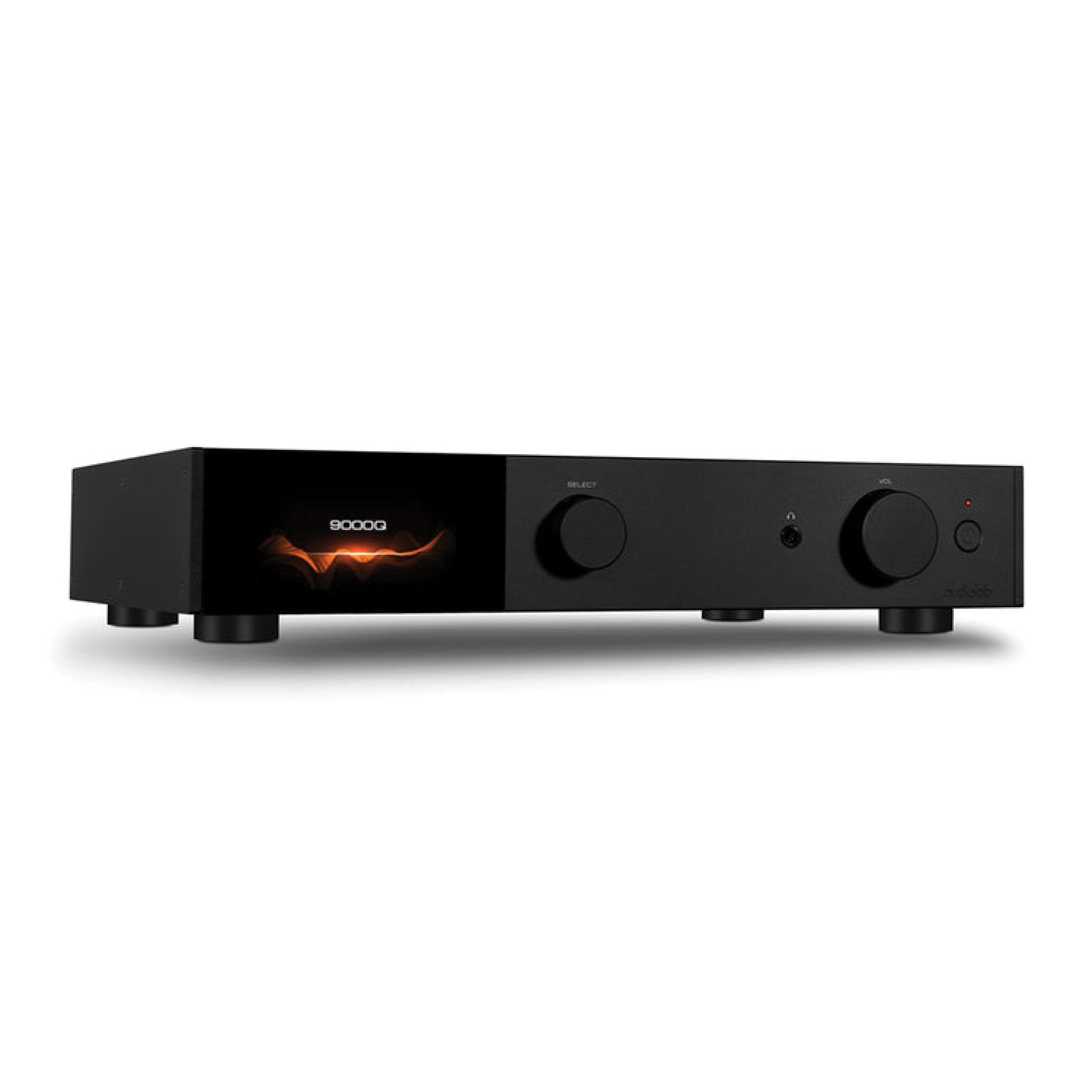

Audiolab 9000Q Aluminium Black - Pretpojačalo
The Audiolab 9000Q is a preamplifier that embodies the audio excellence of the flagship 9000 series.
Inspired by the award-winning 9000A integrated amplifier, the 9000Q transcends the ordinary to deliver an extraordinary auditory experience. This refined preamplifier embodies a symphony of innovation and craftsmanship, featuring functional enhancements that elevate your listening journey. With its tone controls and fully balanced signal paths, the 9000Q empowers you to explore your music with unparalleled versatility and precision. Embrace the power of sound and let the 9000Q ignite your passion for music, transforming every note into a powerful emotional experience.
Model: 90000Q
General Description: Preamplifier
Design Philosophy and Core Technology:
• ES9038Pro 32-bit DAC
• MQA Full decoder (PC USB, Coax/Optical)
• 4.3” 800 x 480 IPS LCD
• Bluetooth 5.1 (aptX/aptX HD/LDAC) streaming
• Dedicated Current-Feedback Headphone Amp
• Dedicated High Performance Low Noise MM Phono stage
Inputs:
• 3 x Analogue, 1 x XLR, 1 x Phono (MM)
• 2 x SPDIF (Coax), 2 x SPDIF (Optical)
• 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC)

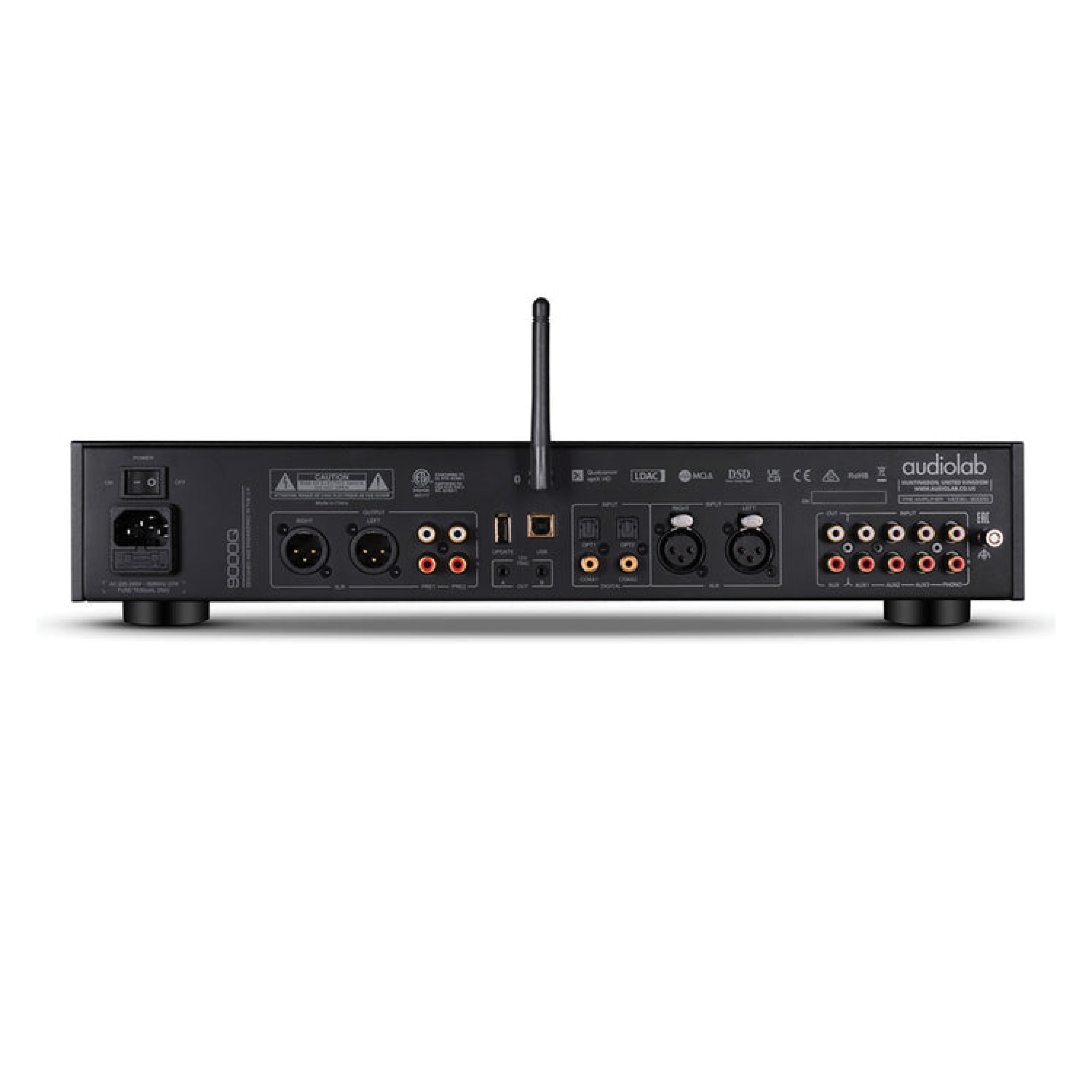

Outputs: 2 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger
Sampling Frequency:
• Optical/Coaxial: 44.1-192kHz
• Sampling Frequency
• PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD5, DSD512
Preamp / DAC
D to A Converter: ES9038Pro
Input Sensitivity:
• 1Vrms (Line, Volume = 0dB)
• 2Vrms (XLR, Volume = 0dB)
• 4.5mV (Phono MM, Volume = 0dB)
Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
Frequency Response: 20Hz - 20kHz (+/-0.1dB)
Output lmpedance: 120 ohm
Max.Sampling Frequency:
• Optical, Coaxial: 192KHz
• PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N):
• > 113dB (A-weighted, RCA)
• > 117dB (A-weighted, XLR Direct)
Headphone Amplifier
Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
Output lmpedance: 2.35 ohm
Load lmpedance: 20-600 ohm
General
Standby Power Consumption: <0.5W
Net Weight: 6.2kg
Gross Weight: 8kg
Dimensions(mm) (W x H x D): 444 x 90 x 328 mm
Carton Size (mm) (W x H x D): 514 x 165 x 470 mm
Finish: Silver / Black
Power Requirements(depending on region):
• 220-240V - 50/60Hz
• 100-120V - 50/60Hz
Standard Accessories: Power Cord, Remote Control, User Manual, Antennas
