Quad 33 Grey - Pretpojačalo
Very few Hi-Fi components are as instantly recognisable as the QUAD 33 and 303, and for that we make no apologies!
Still one of the most popular models in the history of one of the world’s most poignant Hi-Fi brands, the QUAD 33 and 303 are benchmarks in almost every angle of desirable audio equipment – performance, reliability, industrial design, value and musical romance.

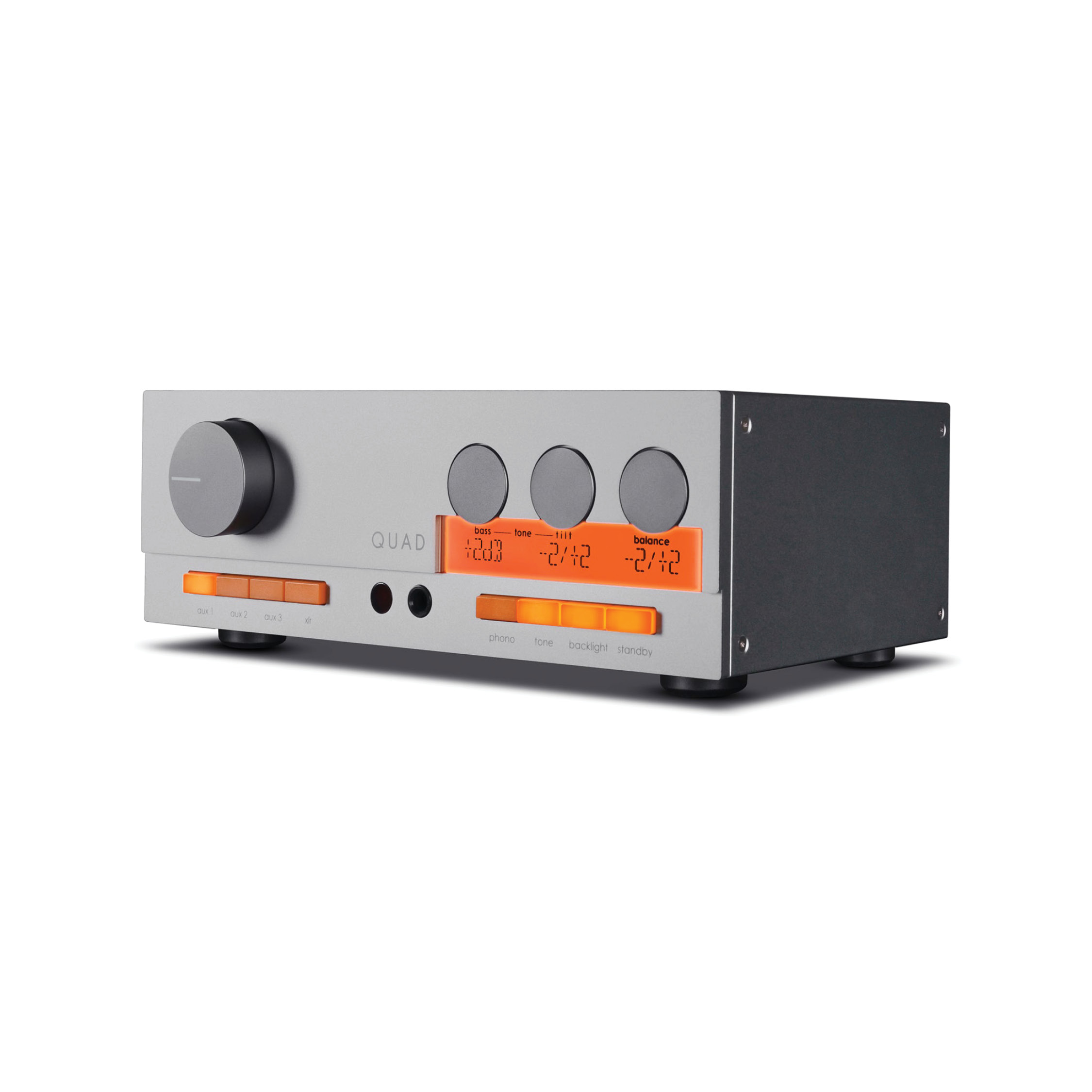

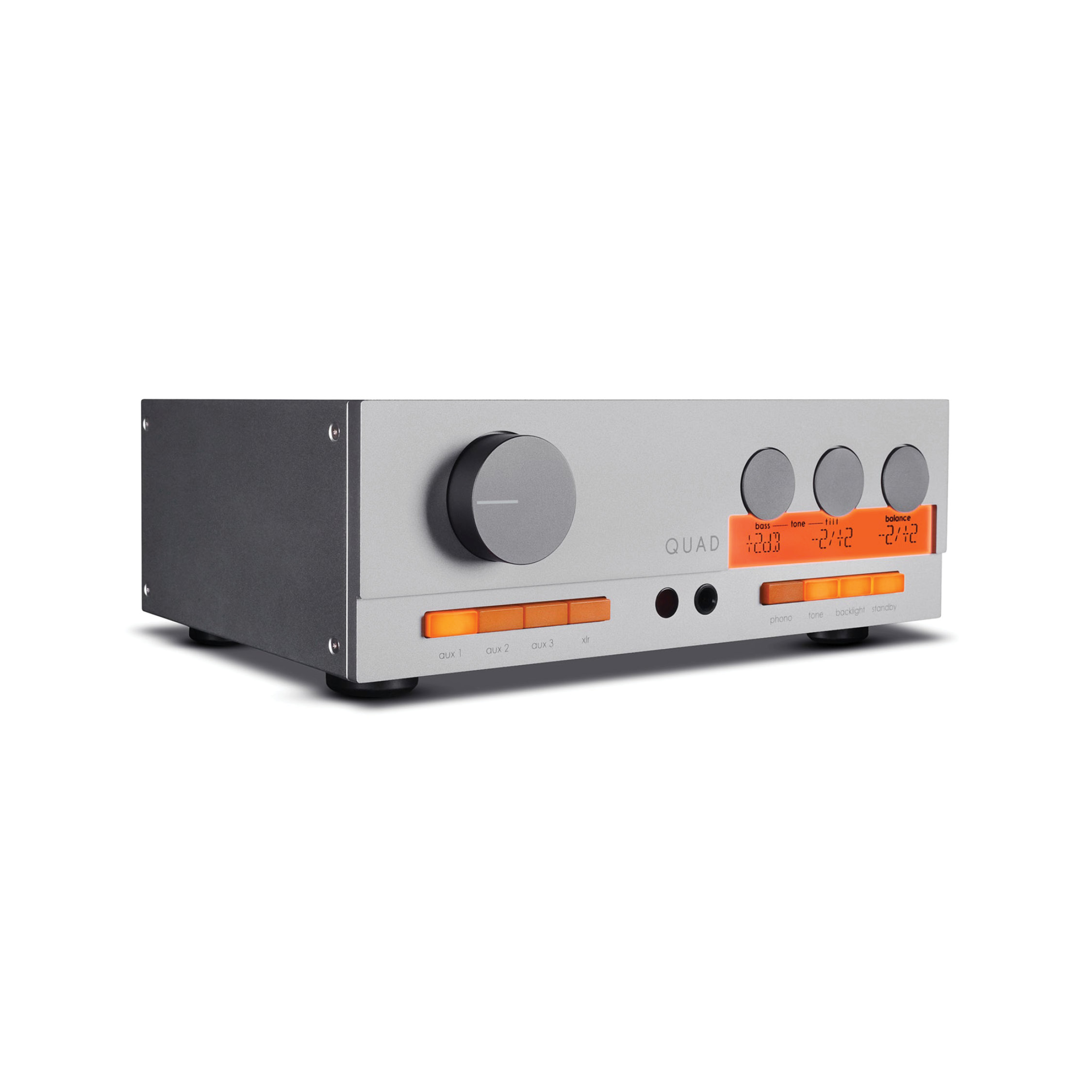

Model: QUAD 33
General Description: Pre Amplifier
Design Philosophy and Core Technology:
• Illuminated LCD screen
• Dedicated High Performance Low Noise MM/MC Phono stage
• Classic QUAD 'Tilt' adjustment
• Classic QUAD / Tone Controls
• Dedicated Current-Feedback Headphone Amplifier

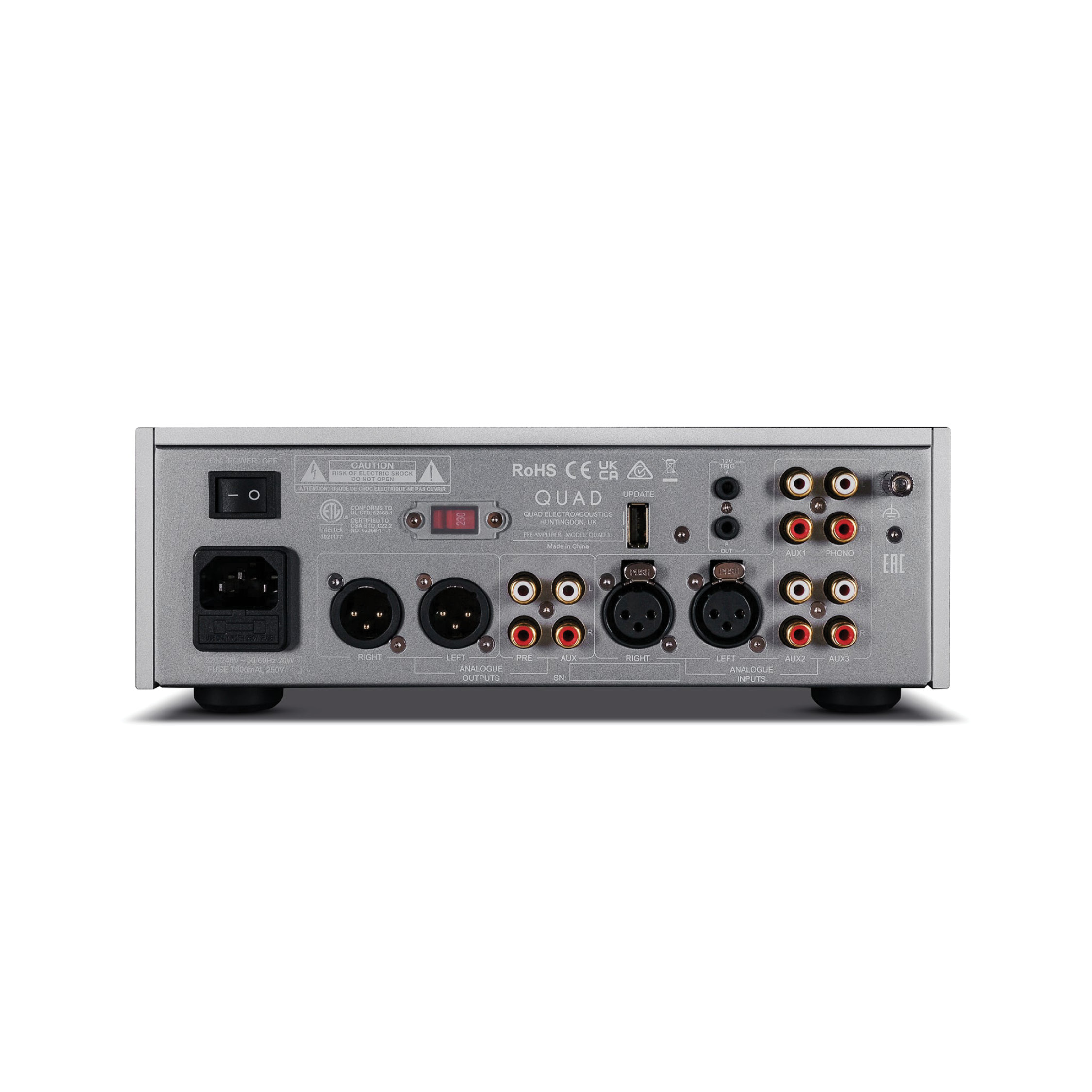

Inputs: 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable)
Outputs: 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out
Pre Amplifier Section
Gain:
• 0dB (Line / XLR)
• +46dB (Phono MM)
• +63.5dB (Phono MC)
Input Sensitivity (Vout=695mV):
• 695mV (Line / XLR)
• 3.2mV (Phono MM)
• 460uV (Phono MC)
Input Impedance:
• 10k (Line / XLR)
• 47k/100pF (Phono MM)
• 100R/1.7nF (Phono MC)
Total Harmonic Distortion (THD):
• <0.0005% (1kHz, Line/XLR)
• <0.002% (1kHz, Phono MM / MC)
Frequency Response: 20Hz - 20kHz (+/-0.2dB)
Signal-to-Noise ratio (S/N):
• > 108dB (A-weighted, Line/XLR)
• > 82dB (A-weighted, Phono MM)
• > 74dB (A-weighted, Phono MC)
Output Impedance: 120 ohms
Headphone Amplifier
Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
Output Impedance: 2.35 ohms
Load Impedance: 20 - 600 ohms
General
Standby Power Consumption: <0.5W
Net weight: 4kg
Gross weight: 4.96kg
Dimensions (mm) (W x H x D): 258 x 94 x 165
Carton Size (mm) (W x H x D): 330 x 192 x 257
Finish: Classic QUAD Grey
Power requirements (depending on region):
• 220 - 240V - 50 / 60Hz
• 100 - 120V - 50 / 60Hz
Standard accessories: Power Cord, Remote Control, User Manual.
