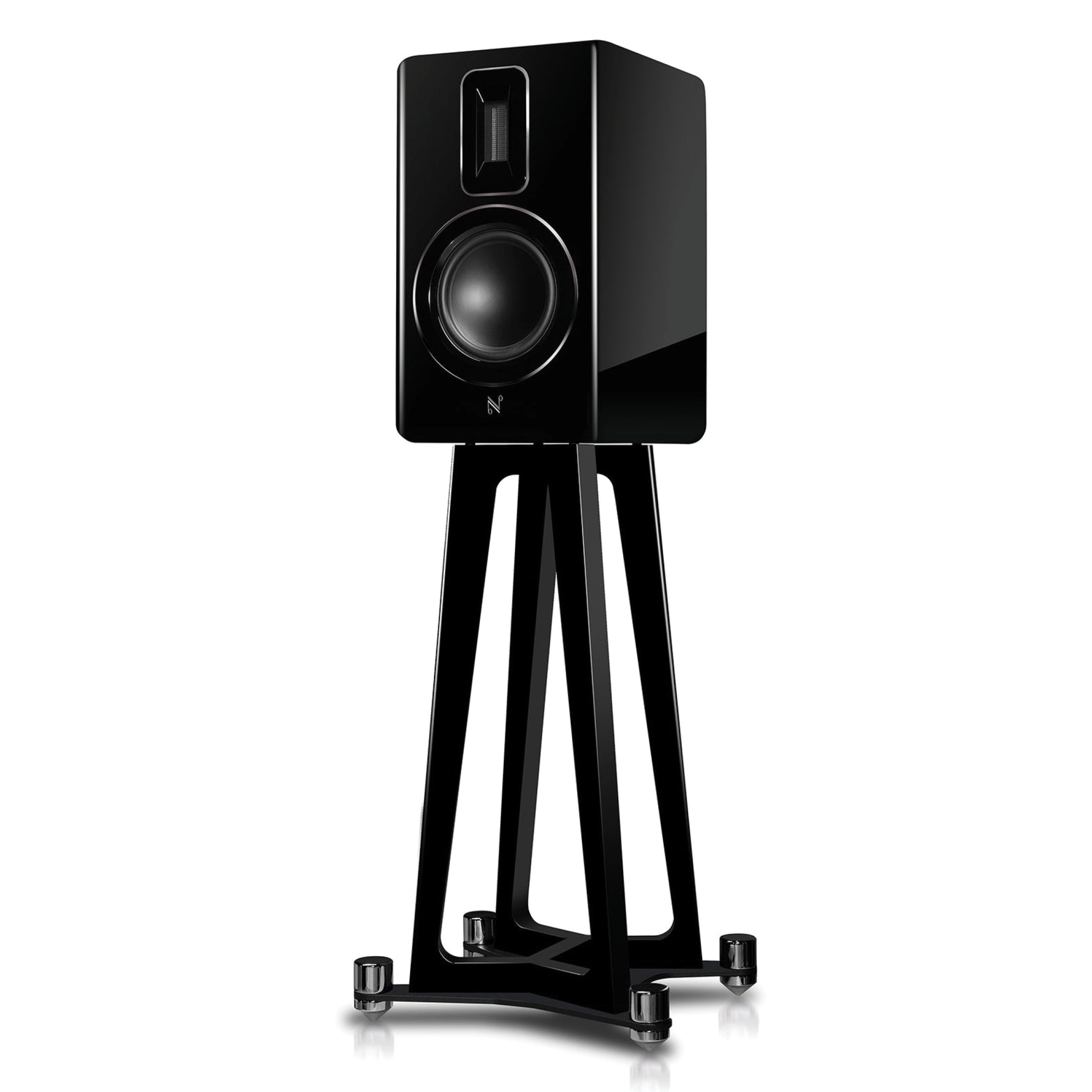

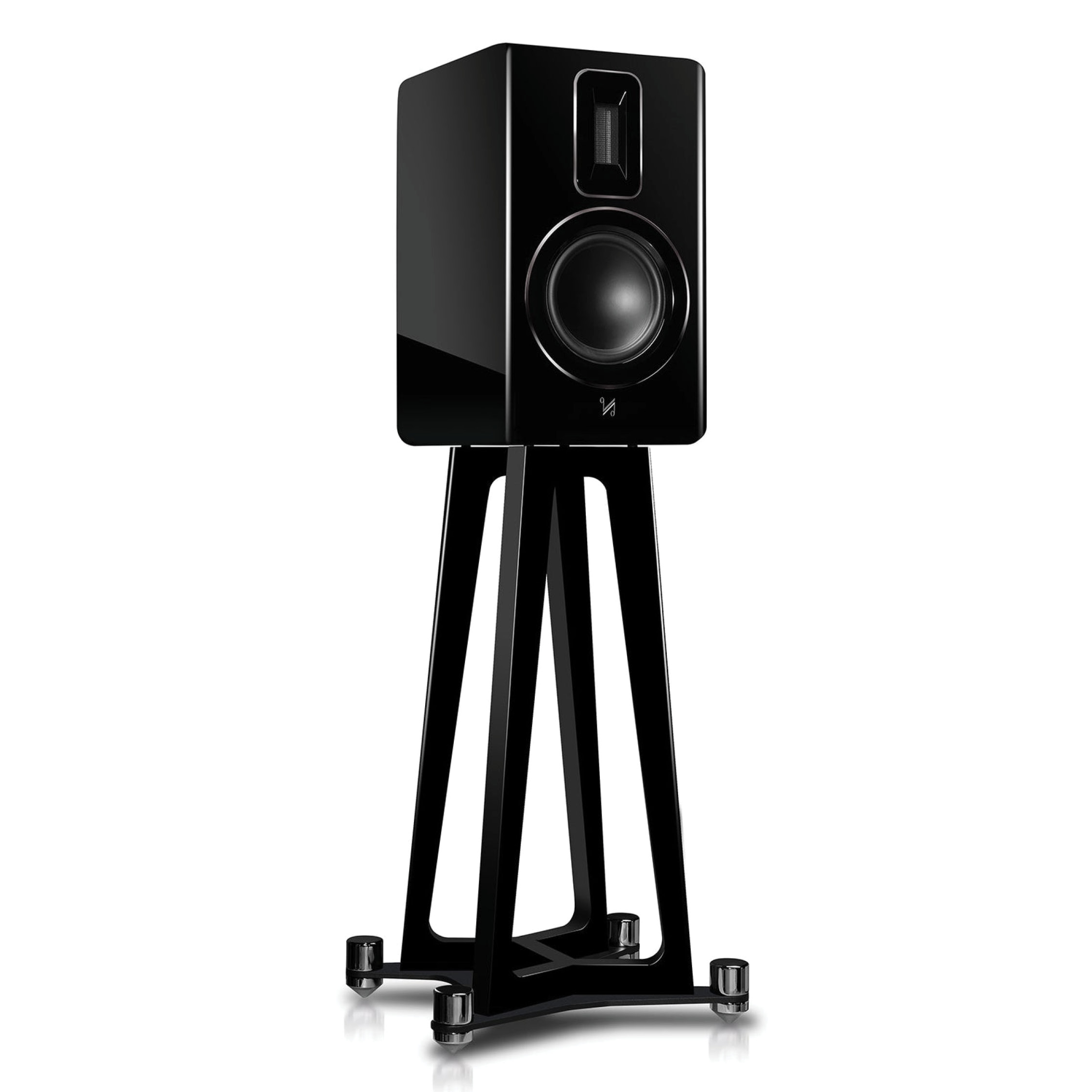

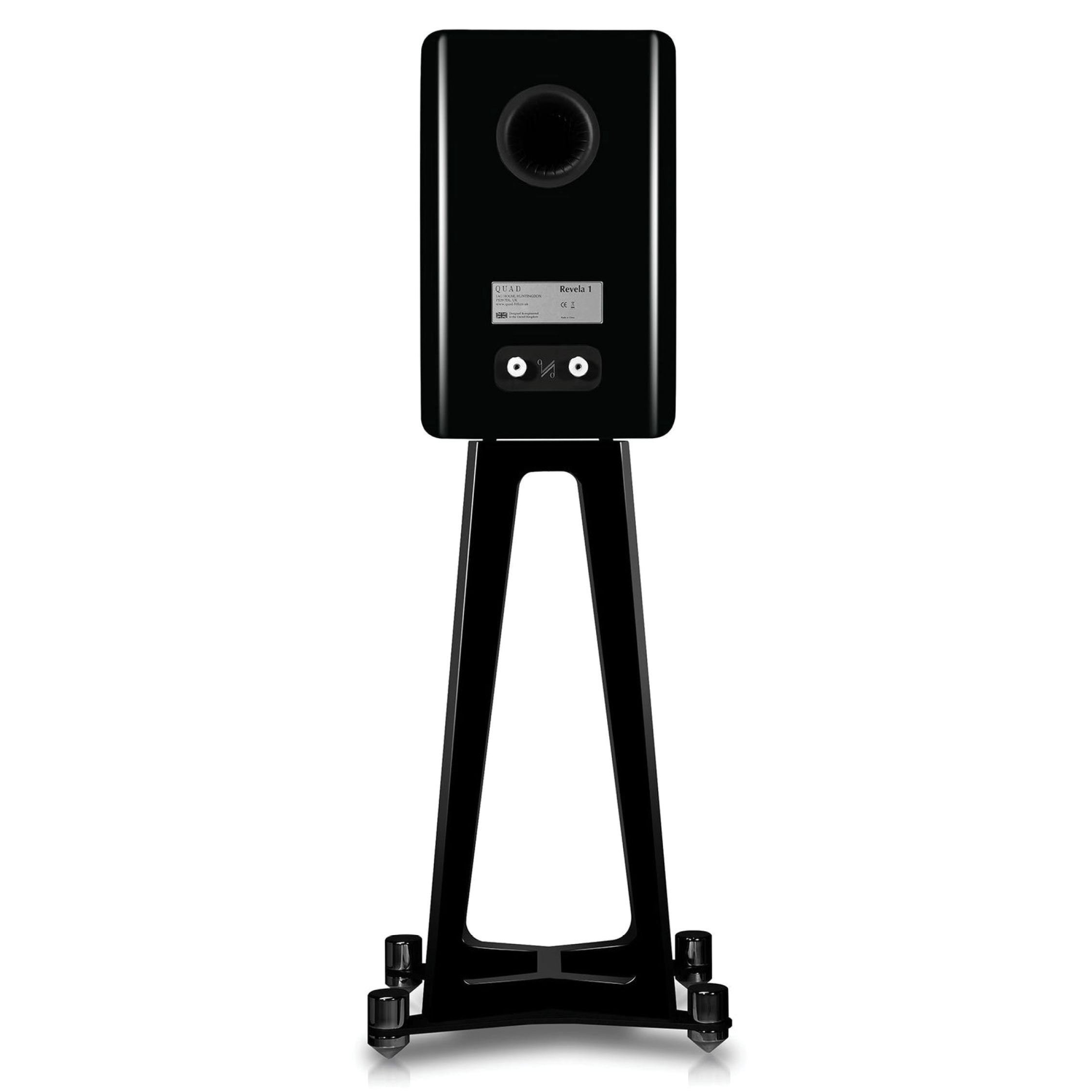

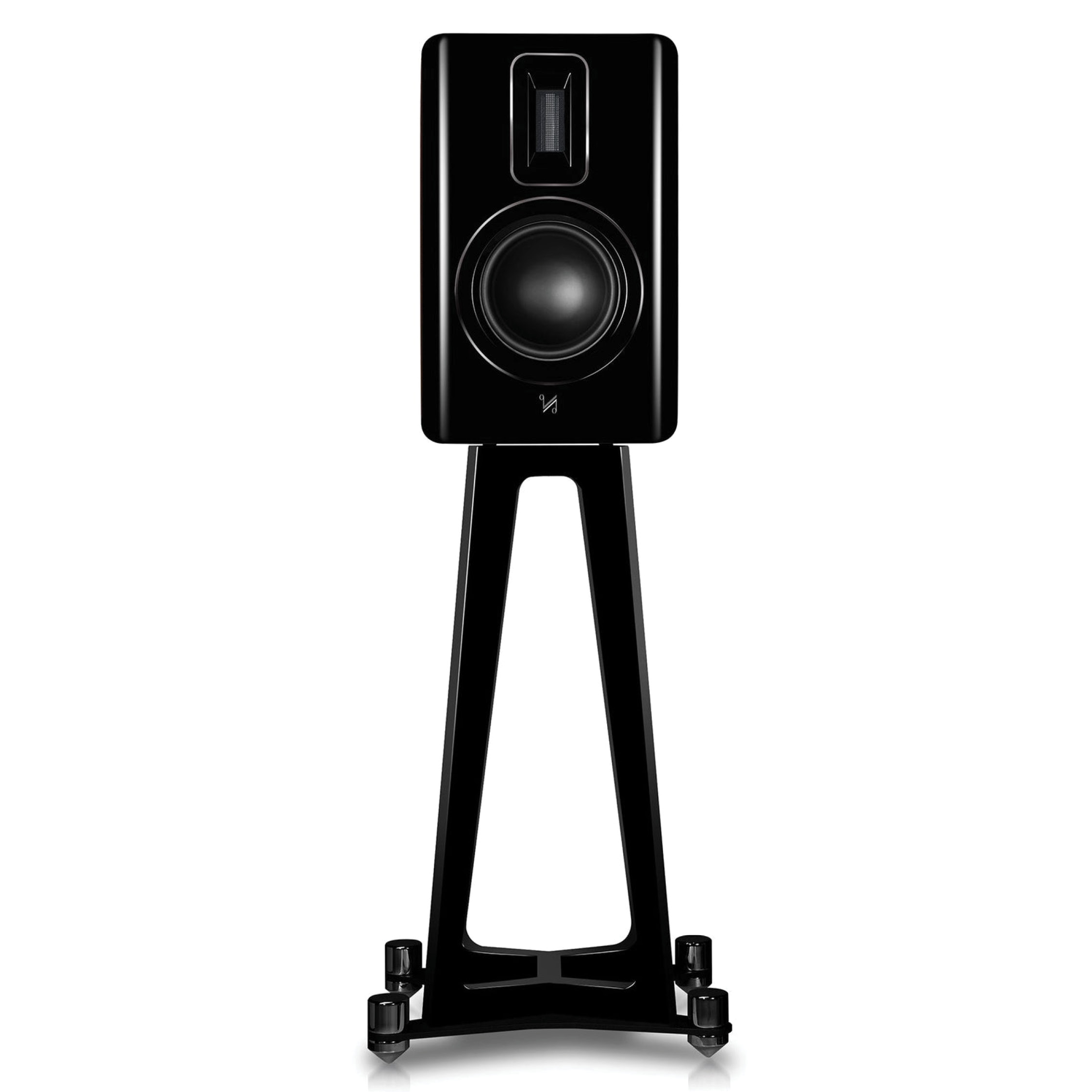

Revela 1 with Stand Black
The Revela 1 is a classic bookshelf/stand-mount monitor equipped with a 6.5″ woofer and offered with an optional custom-engineered stand of equally striking design. The stand is finished in the same high-gloss paint standards as the speaker and provides the perfect mounting option and display solution for the stand-mount offering in the series.
QUAD’s Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF with over four years of research to bring a new level of musical delicacy, smoothness and ‘hear-through’ performance, thus revealing beautiful details of your music collection with a truly breath-taking performance.
General Description: Bookshelf
Enclosure Type: Bass reflex
Transducer Complement: 2-way
Bass Driver: 165mm advanced fibre cone
Midrange Driver
• Treble Driver: 27 x 60mm true ribbon
AV Shield: No
Sensitivity (2.83V @lm): 86dB
Recommended Amplifier power: 30-120w
Peak Power Handling: 120w
PeakSPL: 102dB
Nominal Impedance: 6Ω
Minimum Impedance: 4.1Ω
Frequency Response (+ / -3dB): 54Hz - 24kHz
Bass Extension (-6dB): 40Hz
Crossover Frequency: 2.9kHz
Cabinet Volume (in litres): 17.6L
Dimensions
Height (on plinth & spikes): 395mm
Width: 246mm
Depth (inc Grille and Terminals): 312mm
Carton Size: 650mm x 400mm x 515mm
Net Weight: 24.6kg/ctn
Finish: Piano Walnut / Piano Black, Piano Black
Standard Accessories: User manual, certificate, rubber feet
