JBL Synthesis SCL10
2 -way Dual 6 ½ -inch Built-In Loudspeaker

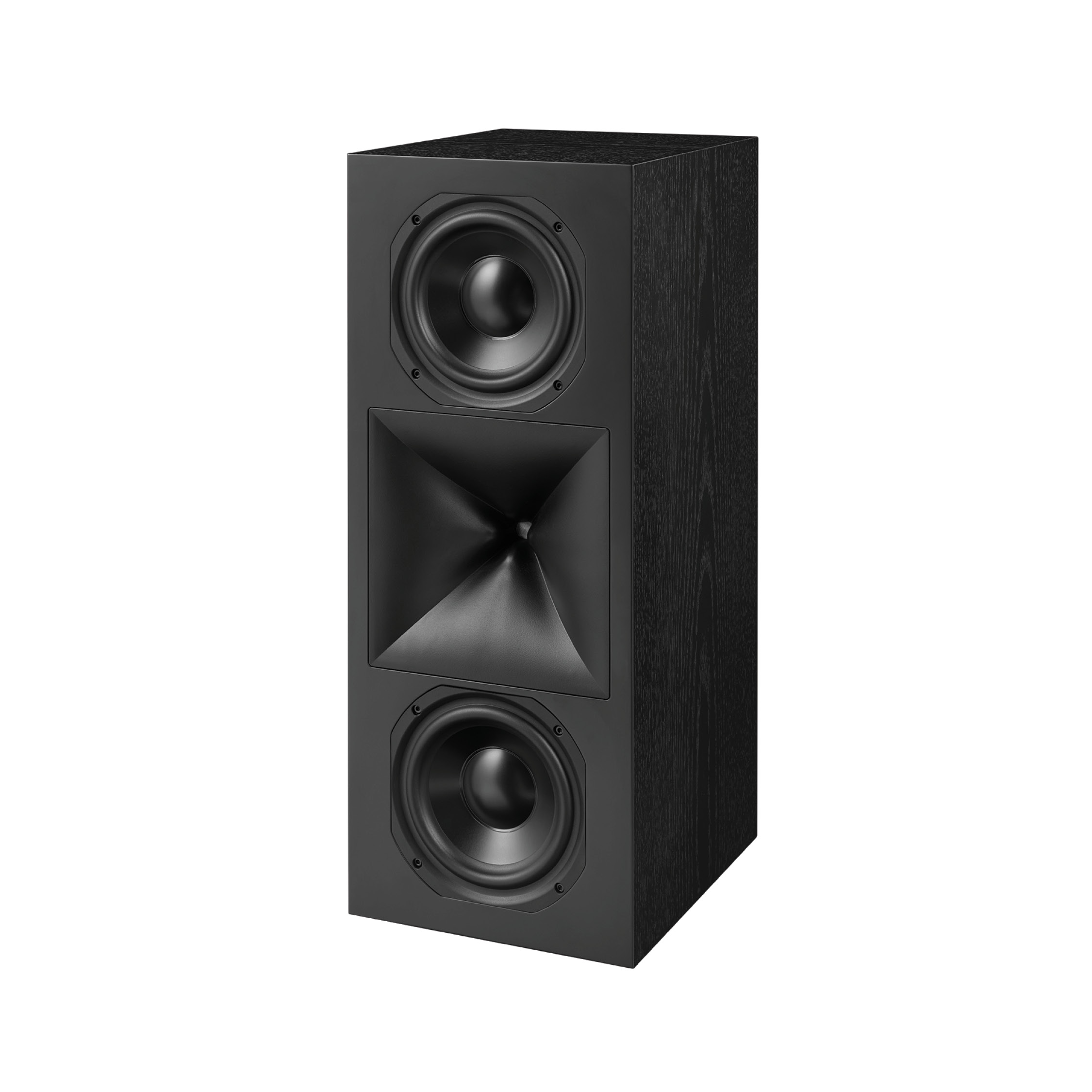

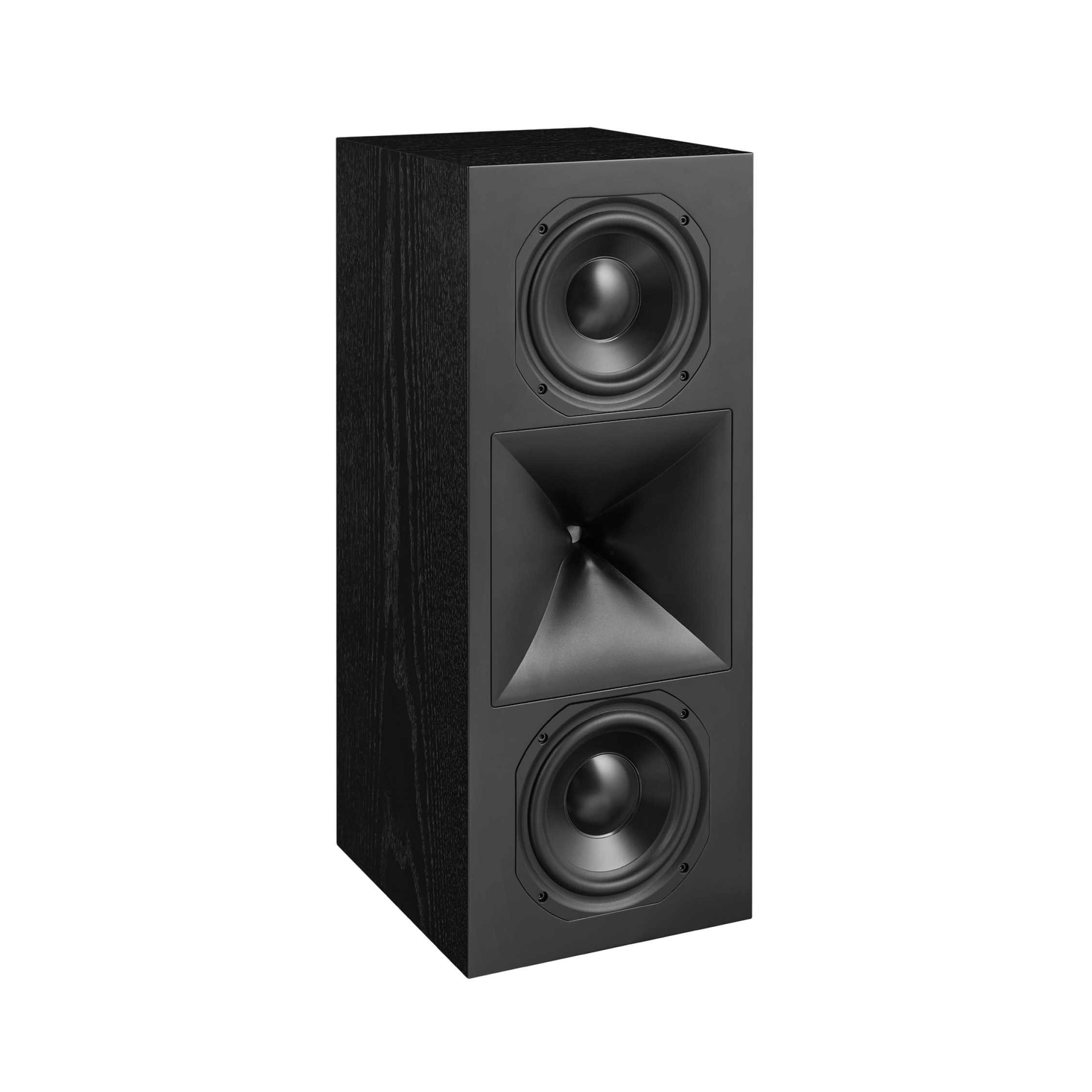

The SCL-10 is a custom in-room/built-in loudspeaker designed as a built-in solution as LCR behind a projection screen, or in-room in custom cabinetry vertically or horizontally. It features JBL’s patented 2409 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 6.5-inch (165mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2 -way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The SCL-10 delivers extraordinary performance in a wide variety of applications and is ideal for use in medium and large-sized rooms.
Type: 2‑way built‑in loudspeaker
Low Frequency Driver: Dual 6½‑inch (165mm) cast‑frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver: 2409H, 1‑inch (25mm) high frequency compression driver

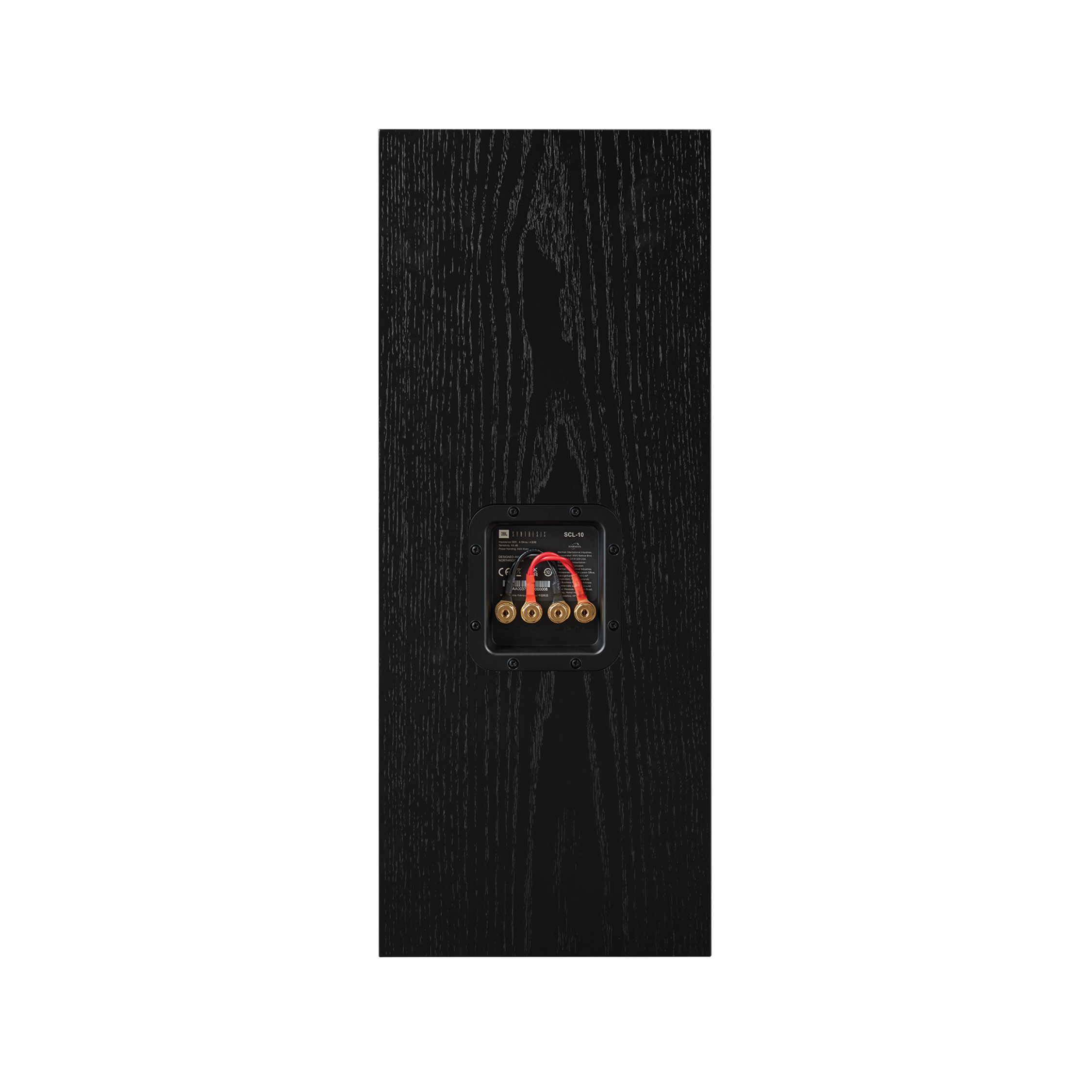

Inputs: Dual sets of gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling: 200 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response: 53Hz – 20kHz (-6dB)
Coverage Angle (-6dB): 100° Horizontal, 80° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m): 88dB
Impedance: 4Ω nominal, 4.0Ω minimum @ 197Hz
Crossover Frequencies: 2.1kHzHz
Finished Dimensions with Grille (H x W x D): 23.6” x 9.5” x 11.6” (600mm x 241mm x 296mm)
Product Weight: 38.6lbs (17.5)
Shipping Weight: 48.3lbs (21.9kg)
Enclosure type: Sealed

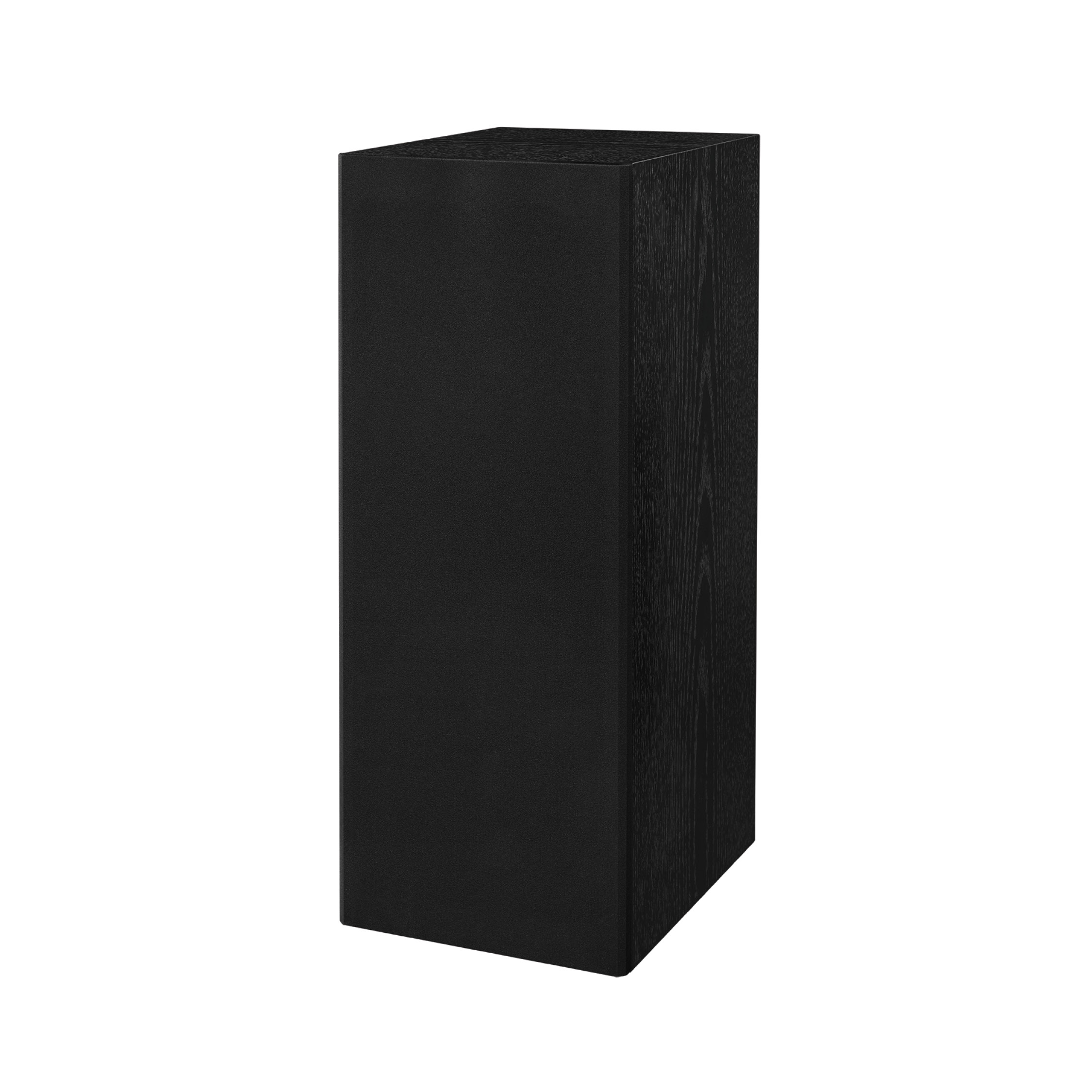

Finish: Black ash wood veneer with magnetically attachable cloth grille
