JBL Synthesis SCL10XL
2 -way Dual 10 -inch Built-In Loudspeaker

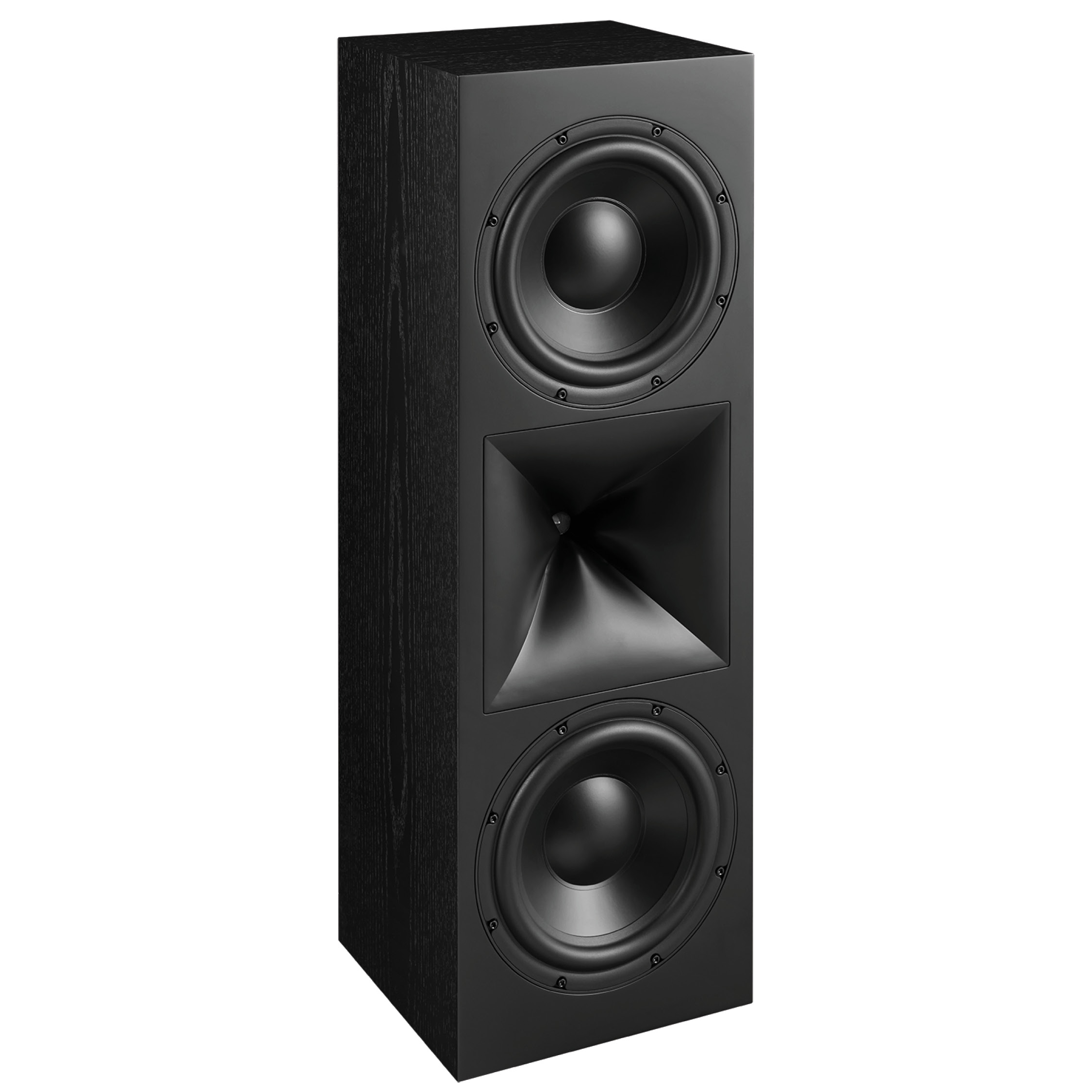

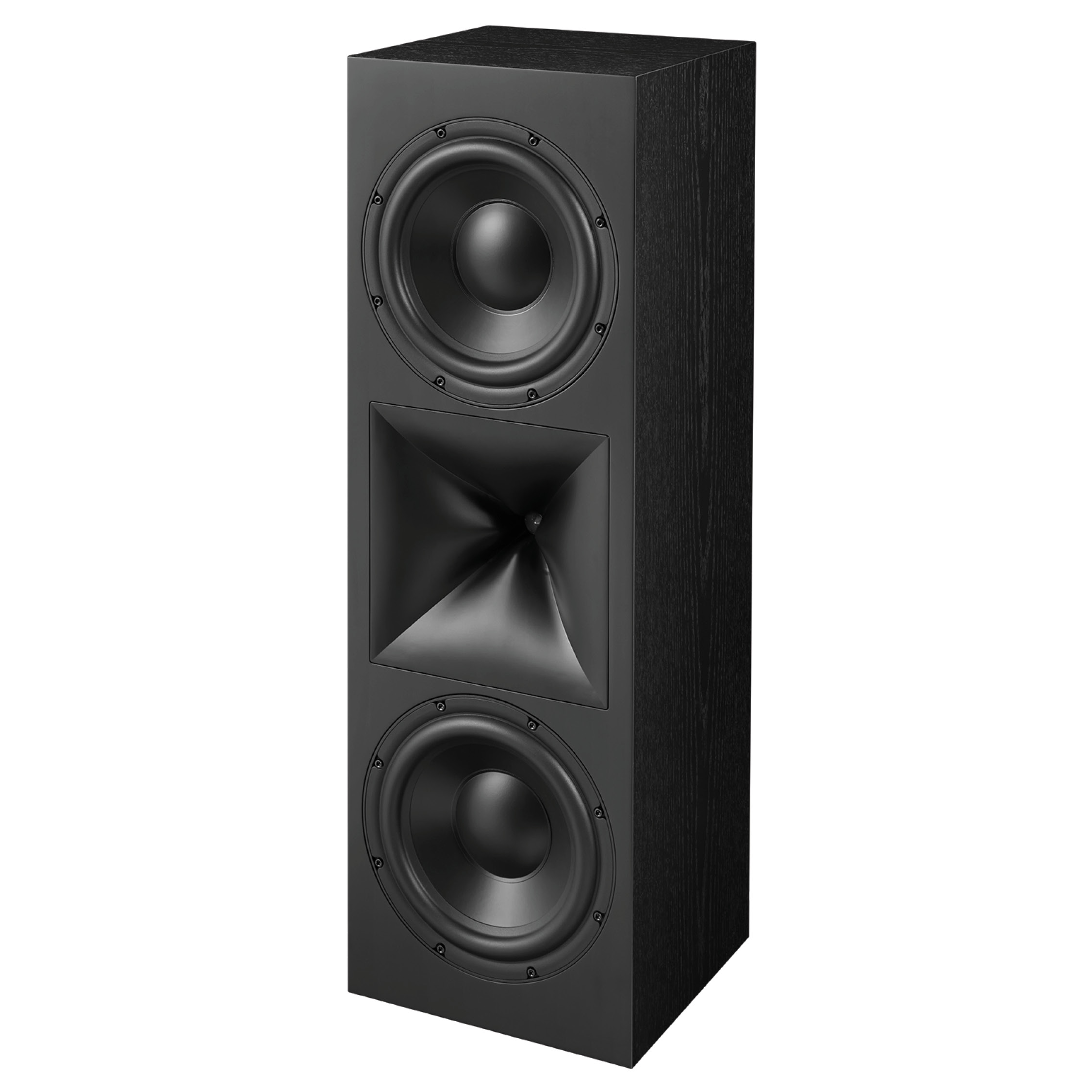

The SCL-10XL is a custom in-room/built-in loudspeaker designed as a built-in solution as LCR behind a projection screen, or in-room in custom cabinetry vertically or horizontally. It features JBL’s patented D2815K 1.5-inch (38mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 10-inch (250mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a 2 -way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The SCL-10XL delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.
Type: 2‑way built‑in loudspeaker
Low Frequency Driver: Dual 10‑inch (250mm) Carbon Cellulose Composite Cone (C4) cast‑frame woofers
High Frequency Driver: D2815, 1.5‑inch (38mm), dual annular ring Teonex® diaphragm compression driver with dual neodymium motor structure mated to an HDI™ horn

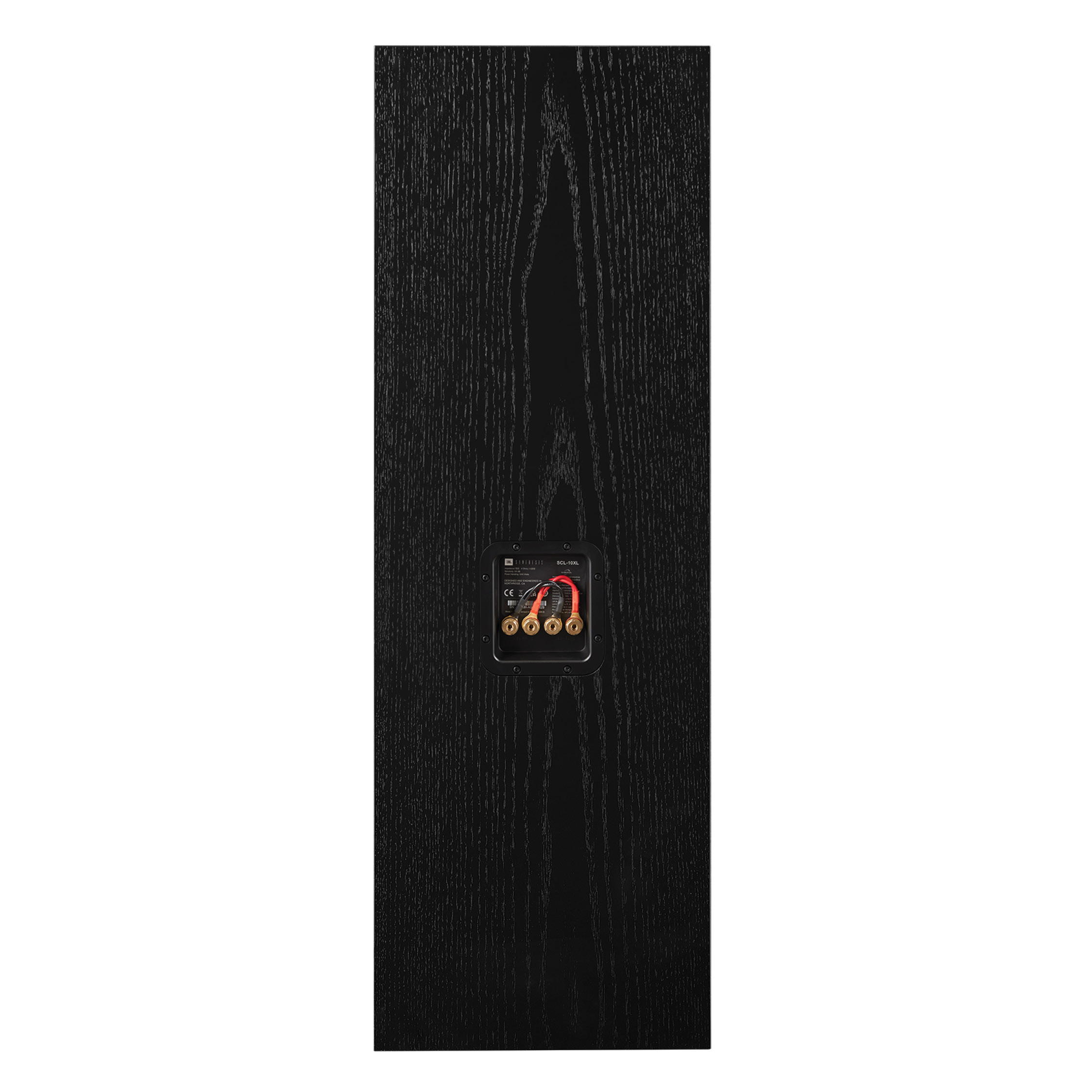

Inputs: Dual sets of gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling: 300 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response: 41Hz – 20kHz (-6dB)
Coverage Angle (-6dB): 100° Horizontal, 100° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m): 90dB
Impedance: 4Ω nominal, 3.8Ω minimum @ 115Hz
Crossover Frequencies: 815Hz
Finished Dimensions with Grille (H x W x D): 35.4” x 11.8” x 11.6” (900mm x 300mm x 296mm)
Product Weight: 73.4lbs (33.3kg)
Shipping Weight: 84.4lbs (38.3kg)
Enclosure type: Sealed

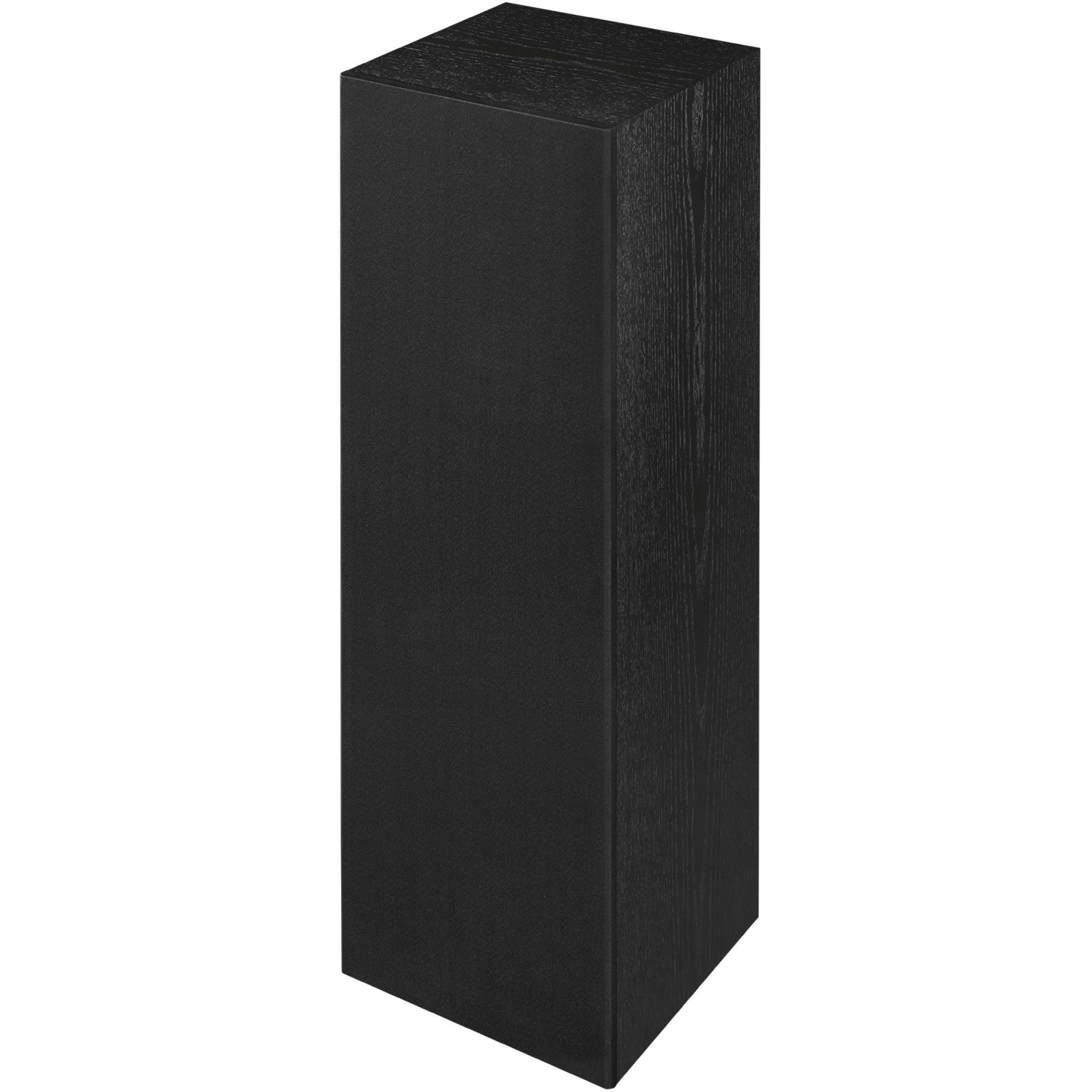

Finish: Black ash wood veneer with magnetically attachable cloth grille
