JBL Synthesis SCL9
2-way Dual 5.25-inch Surface Mount Loudspeaker

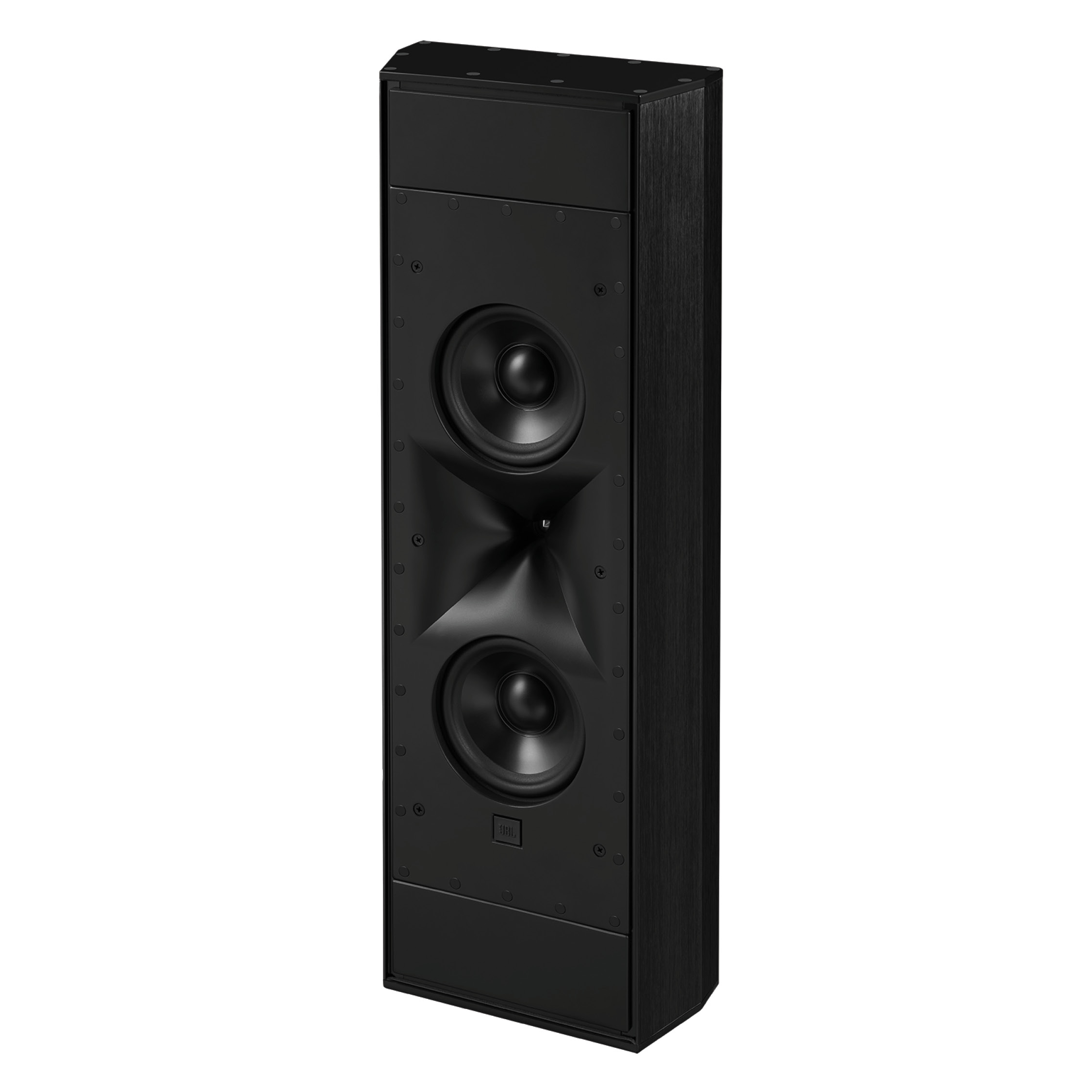

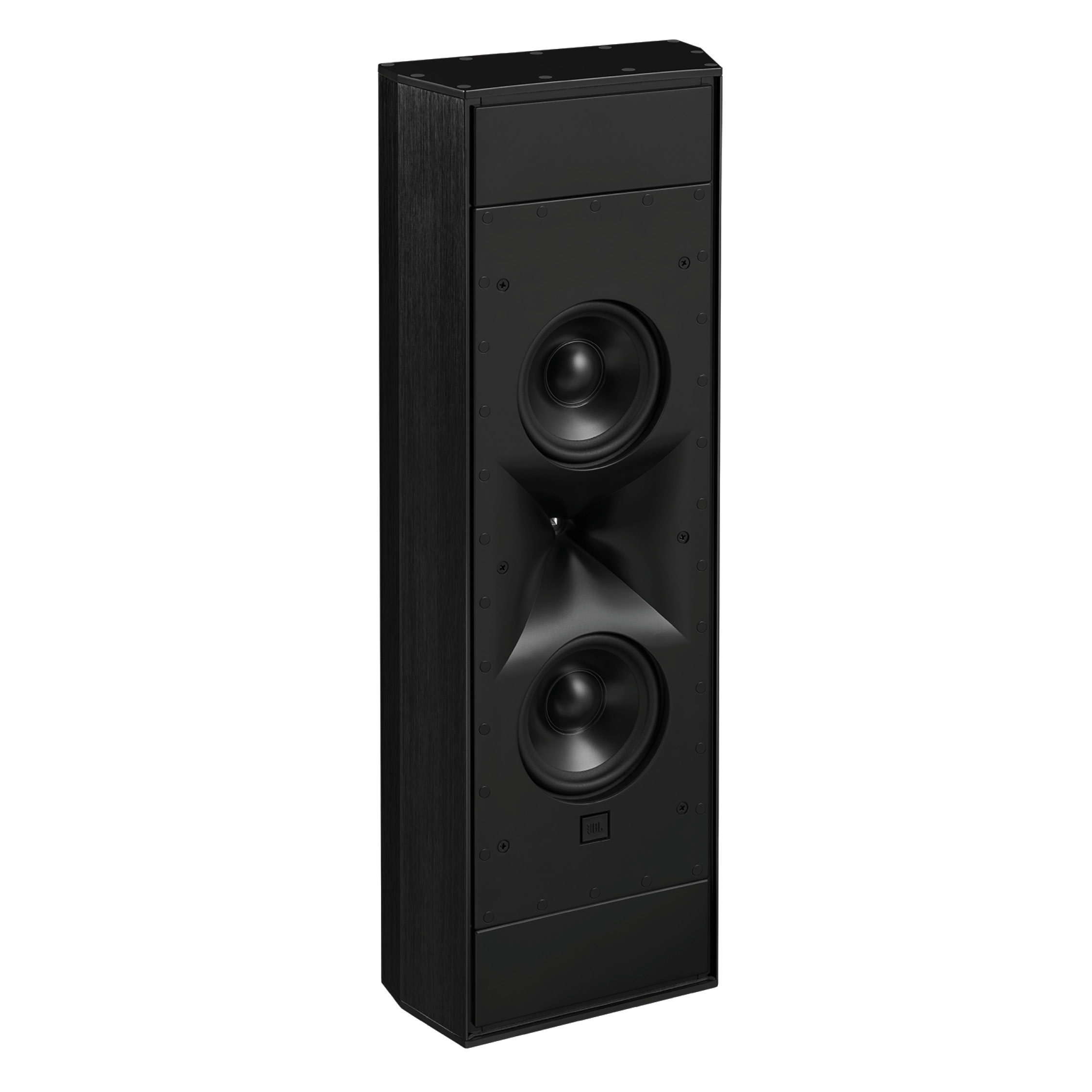

The SCL-9 is a surface-mount loudspeaker featuring a symmetrical design to be used horizontally or vertically as an on-wall LCR or as an on-wall surround. It features JBL’s patented 2410H-2 1-inch (25mm) HF compression driver mated to a symmetrical High-Definition Imaging (HDI™) horn. Dual 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2-way network configuration. With a sealed enclosure, the low-profile design is both elegant and discreet while offering an easy and simple installation where in-wall fitting is not possible and performance is vital.
Type: 2‑way on‑wall loudspeaker
Low Frequency Driver: Dual 5¼‑inch (130mm) cast-frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver: 2410H‑2, 1‑inch (25mm) high frequency compression driver

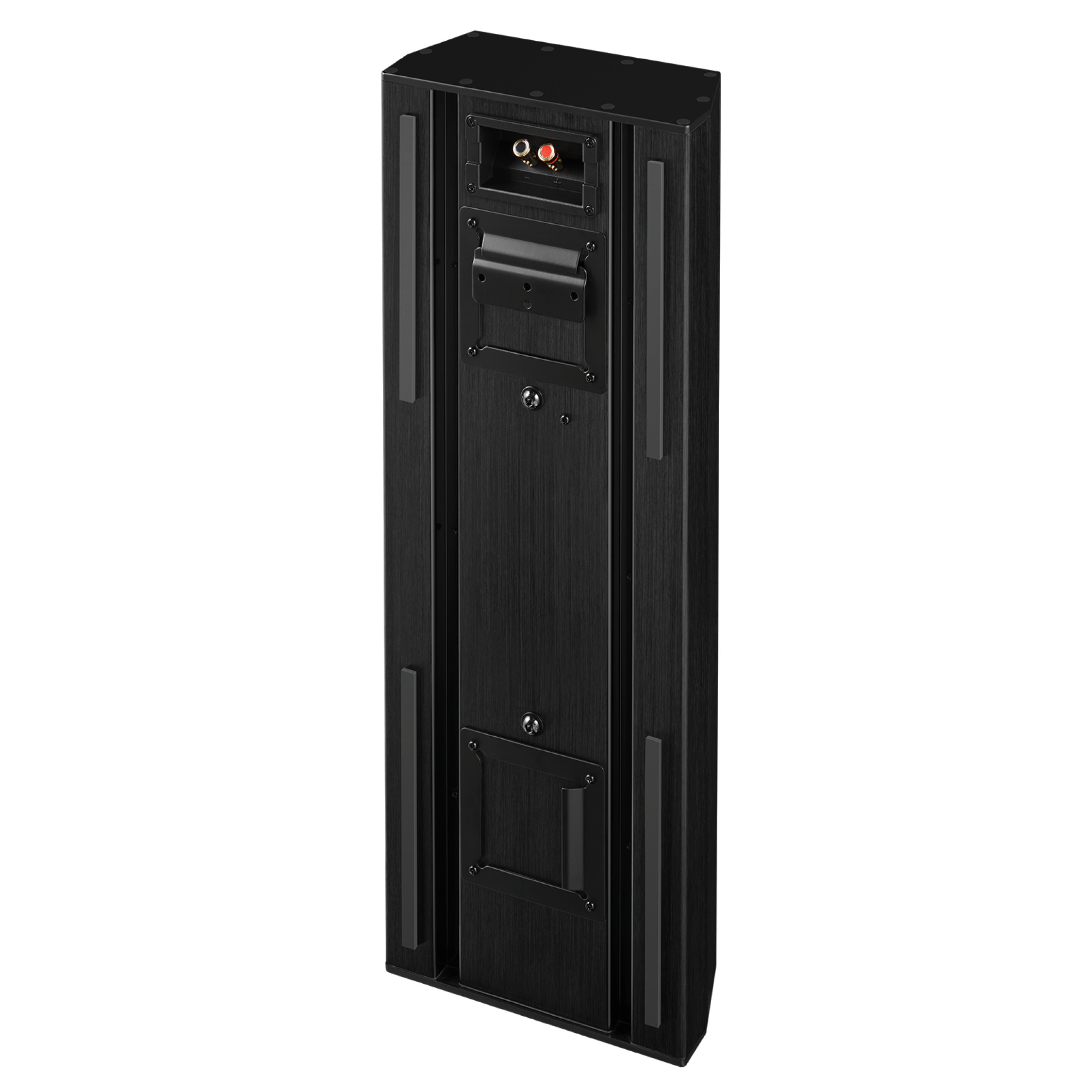

Inputs: Spring-loaded gold-plated binding posts
Power Handling: 125W RMS (CEA-426B specification, at rated load impedance)
Frequency Response: 64Hz – 20kHz (-6dB)
Coverage Angle (-6dB): 90° Horizontal, 90° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m): 87dB
Impedance: 4Ω nominal, 4.0Ω minimum @ 503Hz
Crossover Frequencies: 1.7kHz
Finished Dimensions with Grille (H x W x D): 25.5” x 9.2” x 4.2” (648mm x 233mm x 112mm)
Product Weight: 22lbs (10kg)
Shipping Weight: 29.1lbs (13.2kg)
Enclosure type: Sealed, on-wall mount

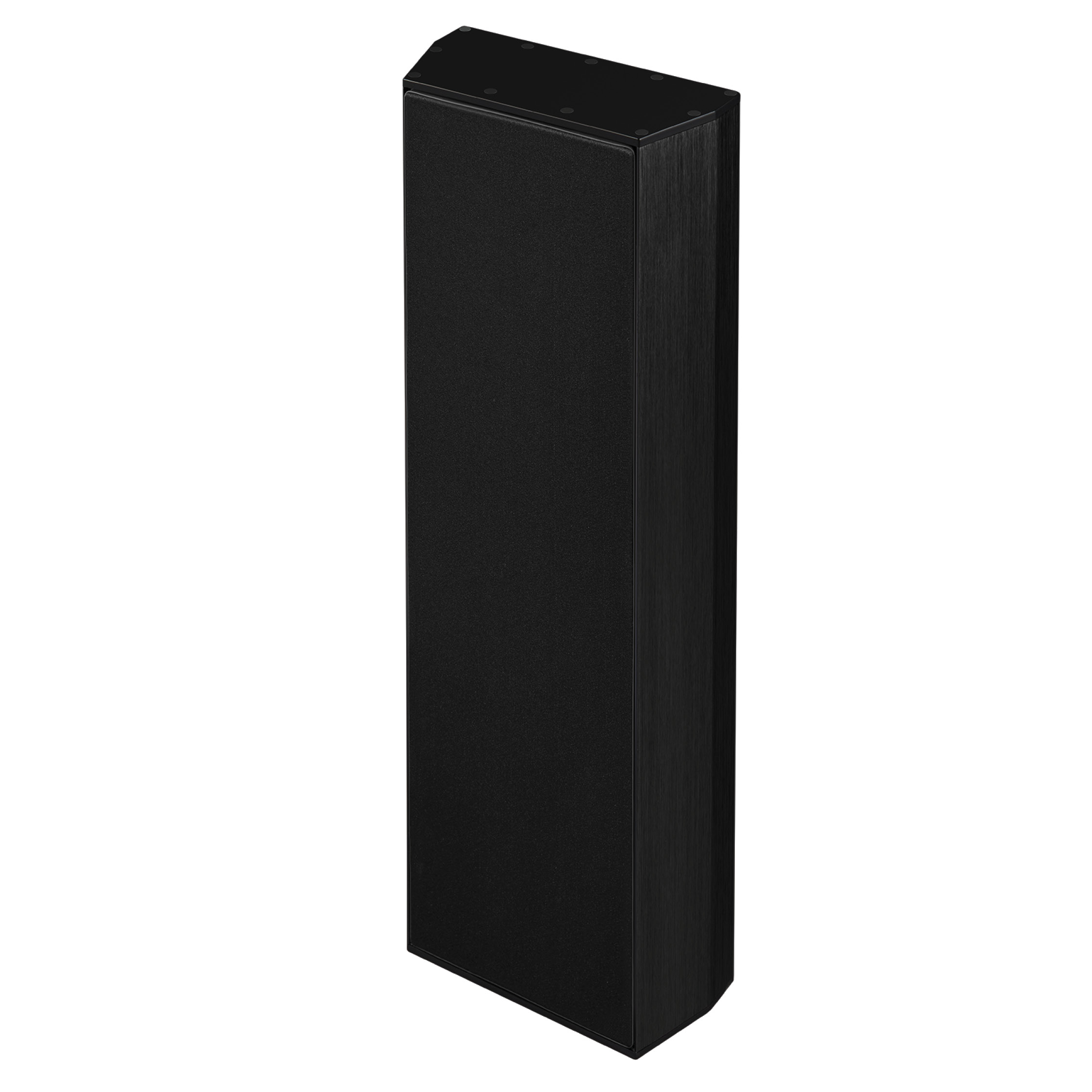

Finish: Black anodized brushed aluminum with magnetically attachable cloth grille
