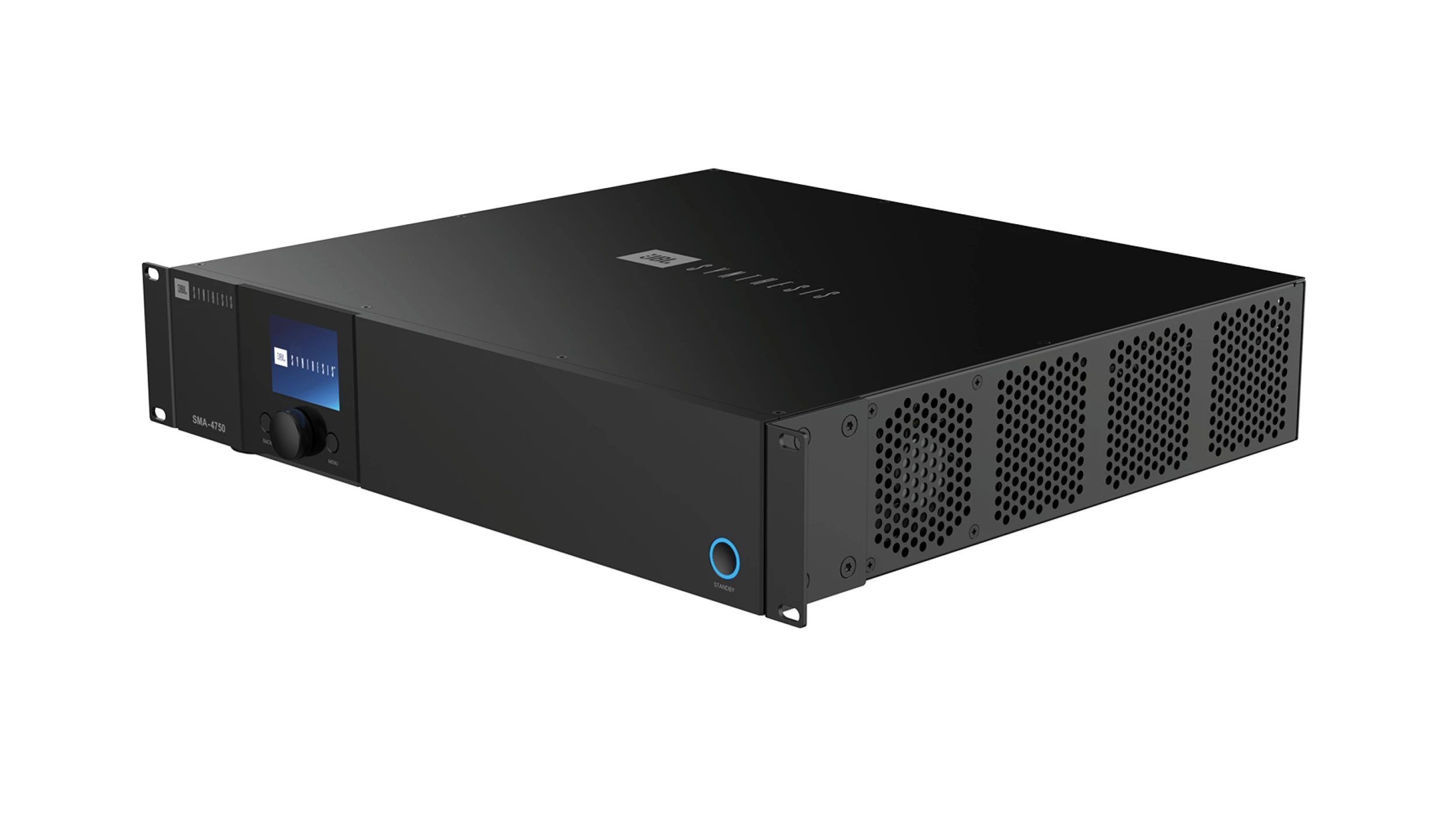

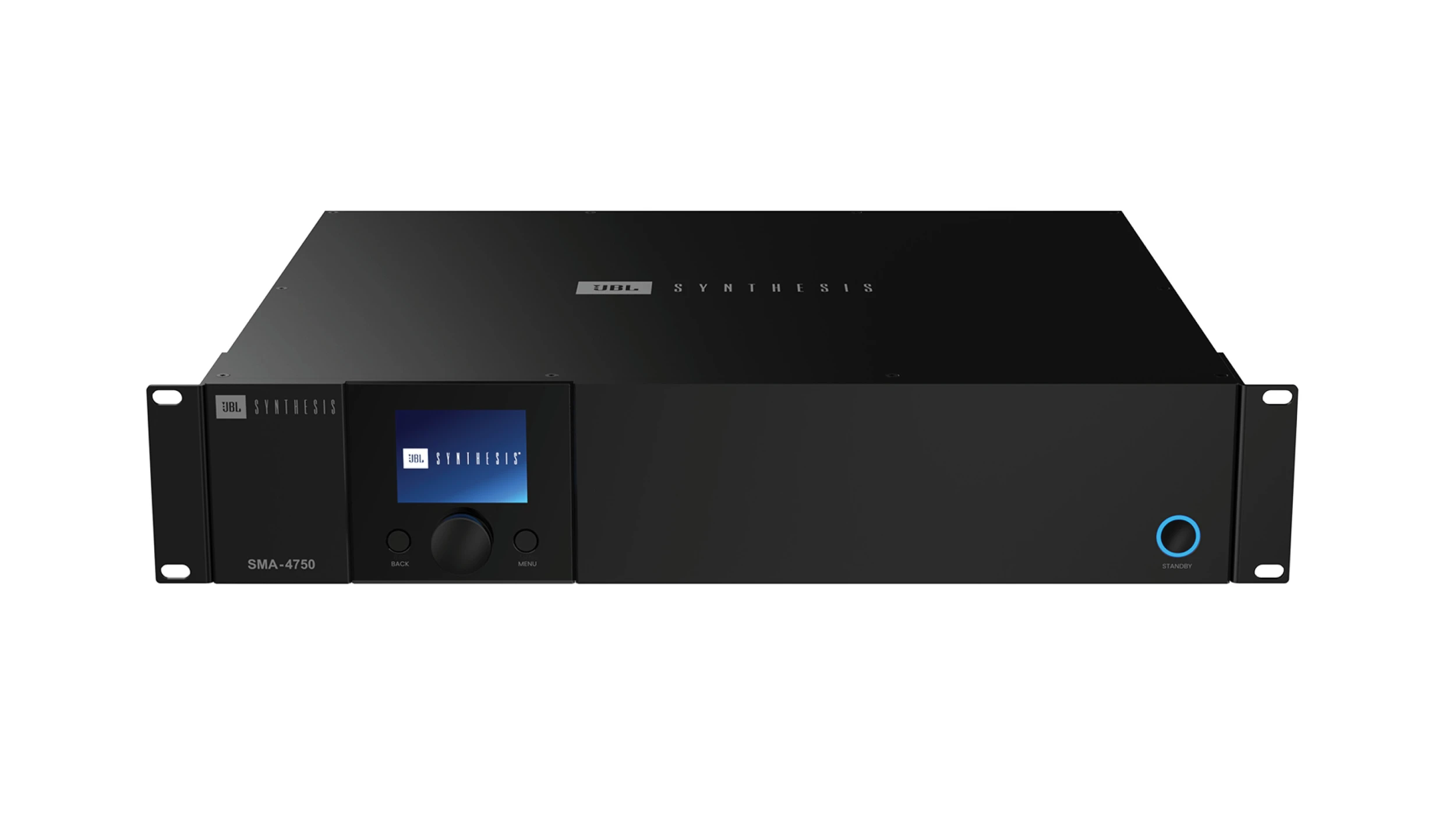

JBL Synthesis SMA 4750 EU
4 Channel Bridgeable Class-D Amplifier
The SMA-4750 is a versatile 4-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 750W into 8 ohms and adjacent channel pairs can be bridged to deliver 2,500W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, height channel loudspeakers as well as subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.

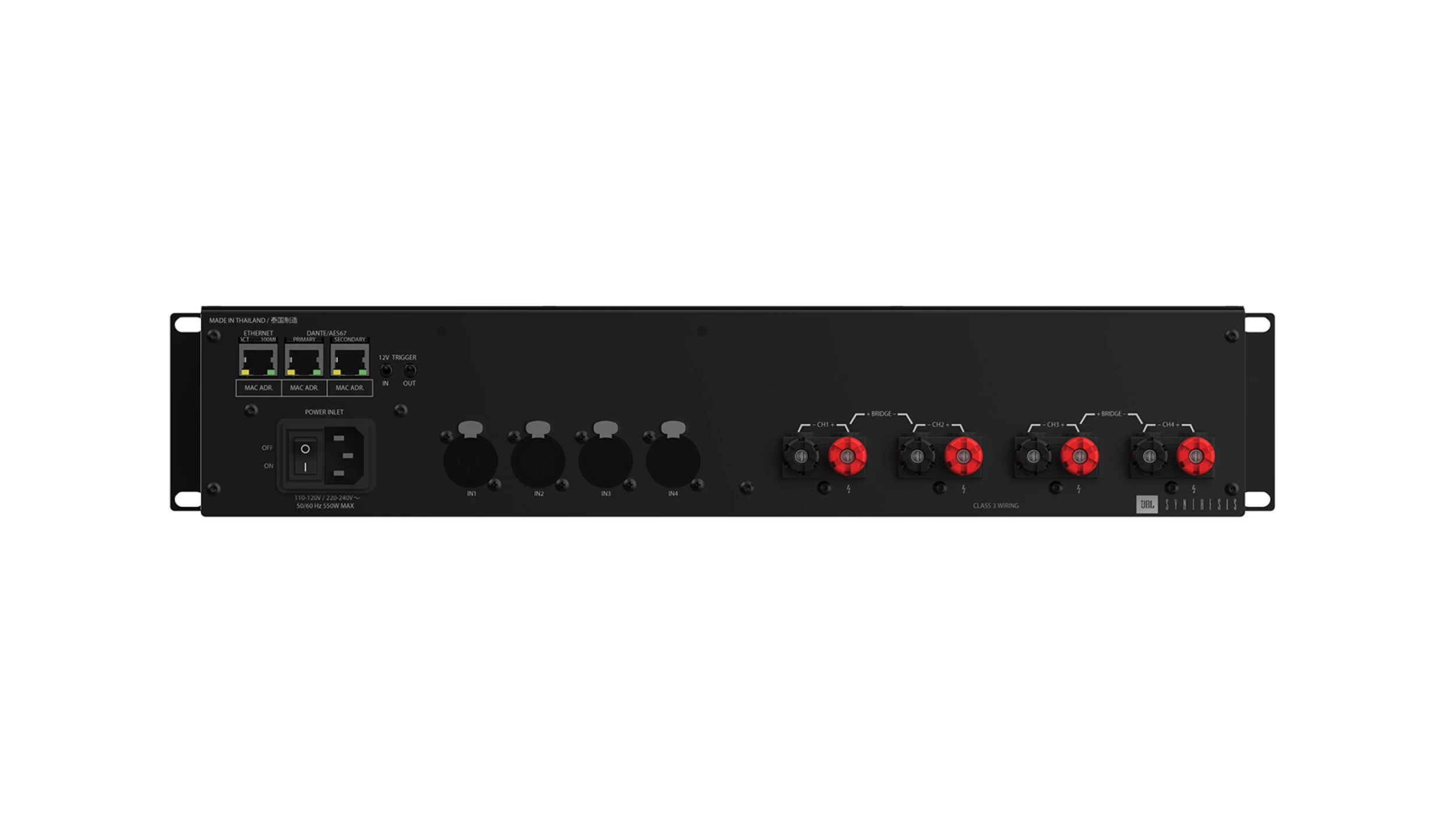

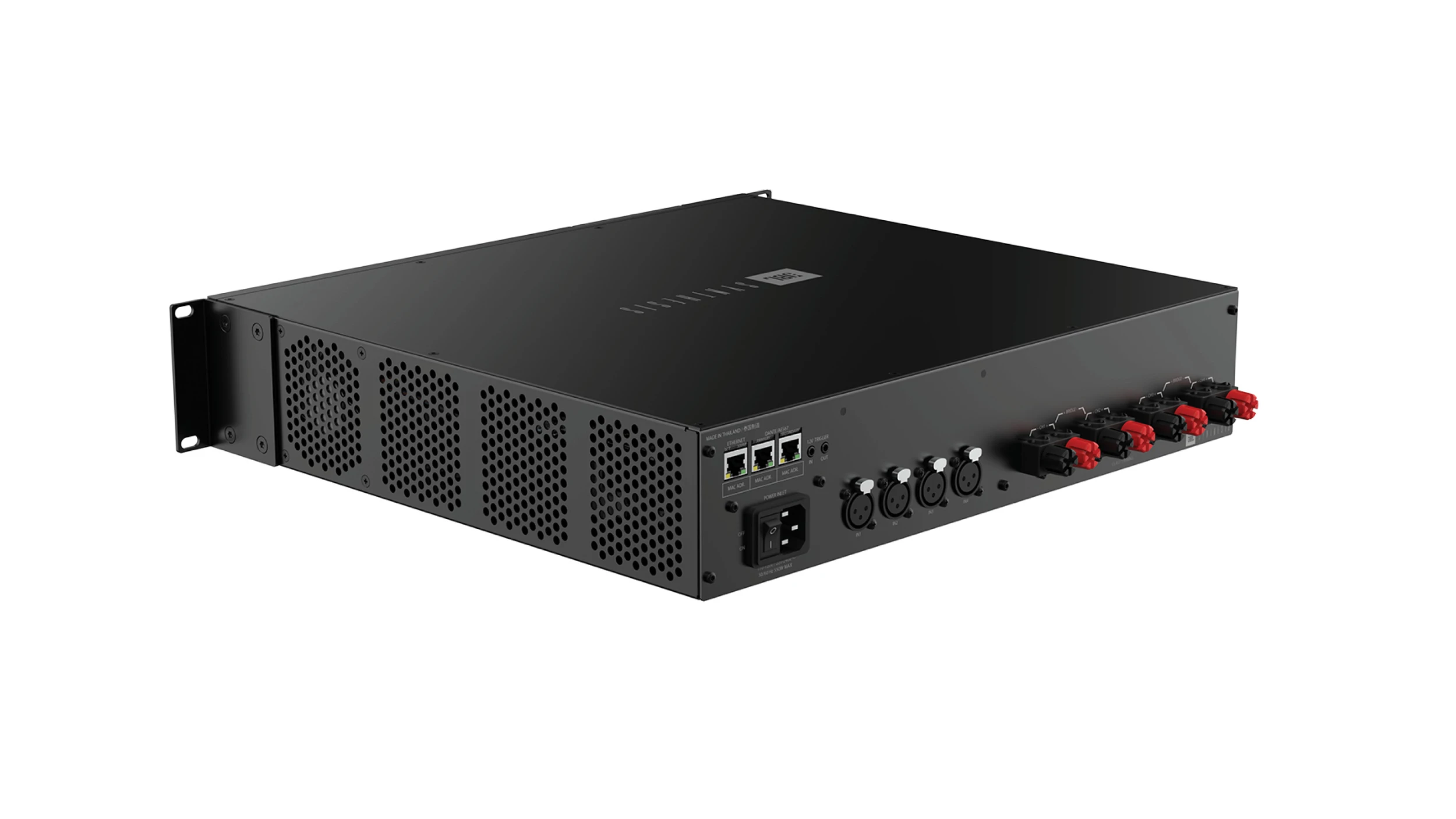

Analog audio input: 4x XLR (Balanced)
Digital audio input (Dante/AES67): 2x RJ45
Speaker output: Binding Posts, accommodates 10AWG wire, spade, and banana termination
12VDC trigger control: 1x 3.5mm (in), 1x 3.5mm (out)
Network/Monitoring/Control: 1x RJ45
Power: Standard IEC
Power (2 channels driven, <0.5% THD), Rated Power (8Ω): 750W
Power (2 channels driven, <0.5% THD), Rated Power (4Ω): 1,500W
Power (2 channels driven, <0.5% THD), Rated Power (8Ω Bridged, one zone driven): 2,500W
Digital signal processing: 96kHz, 32-bit floating point
Frequency response (4Ω, 20Hz – 20kHz): ±0.5dB
Total harmonic distortion (at full rated power, from 20Hz – 20kHz): 0.35%
Analog input signal to noise ratio (ref. Rated power, ‘a’-wtd.): >105dB
Analog input signal to noise ratio (ref. Rated power, 20Hz – 20kHz): >99dB
Damping factor (20Hz to 100Hz): >1000
Input impedance (nominally balanced, nominally unbalanced): 70 kΩ balanced, 35 kΩ unblanced
Maximum input level (low amp gain mode): +21dBU
Load impedance stereo/dual mode: 2Ω –16Ω load
Impedance bridge mono: 4Ω – 16Ω
Maximum fan noise (REF. dB SPL @ 1M): 51dBA
Power supply: 100 – 220V ±10%, 50/60Hz
Dimensions incl. rack ears, connectors, controls (H x W x D): 3.5 x 19.0 x 17.0 in (88.9 x 482.6 x 432.6 mm)
Dimensions excl. rack ears, connectors, controls (H x W x D): 3.5 x 17.0 x 15.7 in (88.9 x 431.8 x 400.0 mm)
Net Weight: 21.8 lb (9.9 kg)
