Rean RC3FR
Šifra:

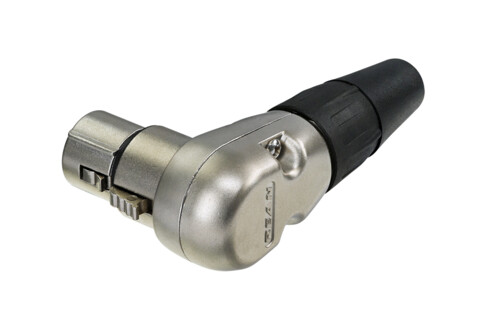

3 pole female right-angle XLR cable connector
Technical Information
Product
Title RC3FR
Connection Type XLR
Gender female
Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A
Mechanical
Lifetime > 1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Jack Bronze
Plastic Body PA6+30%GF UL94-HB
Ground Contact Steel
Housing Zinc
Button Zinc
Rubber Ring Rubber
Front Body Zinc
Push Tube PP
Cover Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
Button Nickel Plating
Front Body Nickel Plating
Cover Nickel Plating
