ELEKTRON Analog Four MKII
Šifra: 19715
Na stanju
Regularna cena:
216.000,00 rsd
161.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
194.280,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
21.720,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Svetogorska 9, Beograd
Key Features
4-voice monophonic/polyphonic multitimbral analog synthesizer
2 LFOs, 2 envelopes, 2 filters per voice
Elektron step sequencer & quick performance control
Specifications
Synth voice features (×4)
Fully analog signal path
2 × analog oscillators
Variable waveshape on all waveforms
Oscillator AM and sync modes
2 × sub-oscillators
1 × noise generator
1 × 4-pole analog lowpass ladder filter
1 × 2-pole analog multi-mode filter
1 × analog overdrive circuit Filter feedback
2 × assignable LFOs
1 × dedicated vibrato LFO
2 × dedicated waveshape LFOs
1 × amp envelope
2 × assignable envelopes
2 × dedicated LFO fade envelopes
1 × dedicated noise fade envelope
1 × dedicated vibrato envelope
1 × dedicated autobend envelope
3 × individual send effects
Polyphony
Up to 4 notes of polyphony
Up to 4 part multitimbrality
Up to 4 note unison playback
Storage
128 projects
4096 sounds (+Drive sound library)
128 sounds per project (project sound pool)
128 kits per project
128 patterns per project
16 songs per project
Sequencer
4 synth tracks
1 FX track
1 CV/Gate track
Sequencer MIDI Out
Up to 64 steps per pattern
Individual length per track
Individual scale per track
6 × arpeggiators
Parameter locks
Step recording mode
Trig preview
Trig probability
Instant pattern, kit, and sound reload
Live friendly performance mode
Swing, slide, accent
Track transpose
Micro timing
Sound-per-step change
Full real-time control
Send effects
Chorus
Delay
Reverb

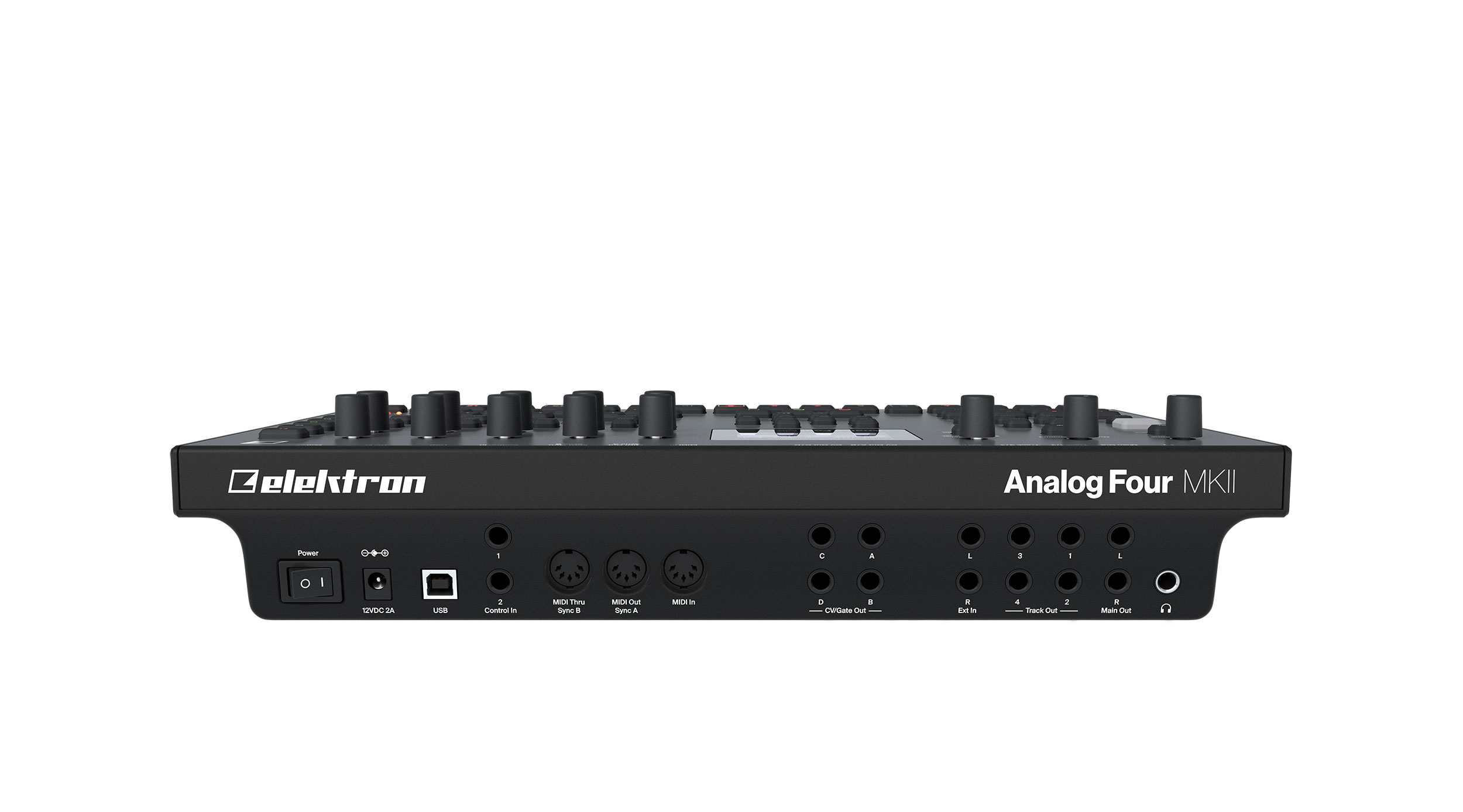

Hardware
128 × 64 pixel OLED screen
MIDI In/Out/Thru with DIN Sync out
2 × 1/4” impedance balanced main audio out jacks
4 × 1/4” separate stereo voice output jacks
2 × 1/4” audio in jacks
1 × 1/4” stereo headphone jack
4 × 1/4” CV/Gate outputs
2 × 1/4” CV/Expression inputs
48 kHz, 24-bit D/A and A/D converters
USB 2.0 Hi-Speed port
Balanced audio outputs
Headphones out level: +19 dBu (55 Ω)
Main outputs level: +19 dBu
Output impedance: 440 Ω unbalance
Unbalanced external inputs
Input level: +19 dBu maximum
Audio input impedance: 9 kΩ
CV/Expression inputs
Input voltage on tip: -5 V – +5 V. Supplies +5 V on ring
Accepts CV, expression pedals
CV outputs
Voltage range:-10 V–+10 V.
Digital S/N ratio: 102 dBFS (20–20.000 Hz)
Electrical specifications
Unit power consumption: 15 W typical, 20 W maximum
Recommended power supply: 12 V DC, 2 A
Physical specifications
Aluminum enclosure
Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) (including knobs, jacks, and feet)
Weight: approximately 2.4 kg (5.3 lbs)
Miscellaneous
Overbridge enabled
Class compliant USB audio
3 year Elektron warranty
Included in the box
Power Supply PSU-3c
Elektron USB cable
Quick Guide
