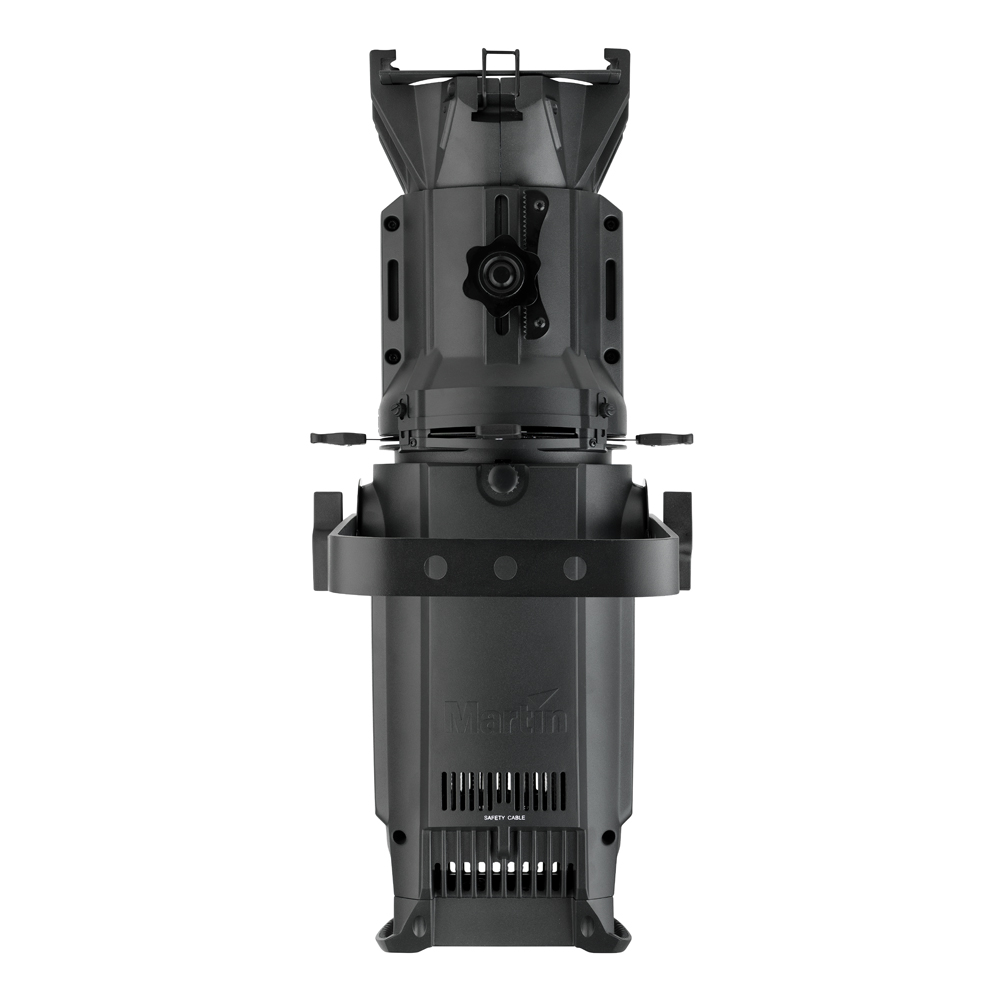

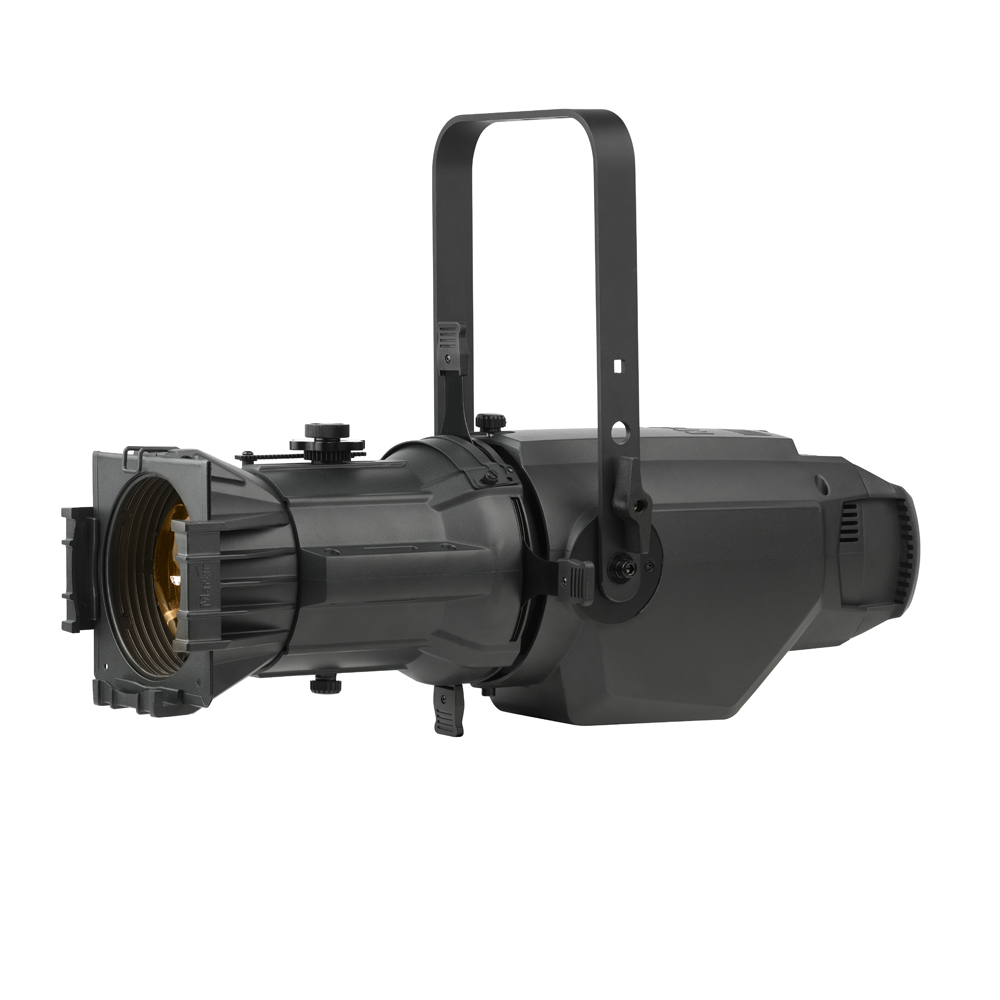

MARTIN ELP CL
Šifra:
Full color LED ellipsoidal profile
Specifications
Physical
Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs) body only
Dynamic Effects
Color mixing: RGBLA
Color Temperature Range: 2000-10000K
Color selection: 26 color presets
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone
Setting and addressing: Control panel with OLED display or via RDM
16-bit control: Intensity, CTC, RGBLA
DMX channels: 1/10/17
PWM: 600-2400 Hz
Standalone programming: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics
Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Color temperature: 2000-10000K
Lens tube options: 19°, 26°, 36°, 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
Calibration: White Point Color Calibration
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: 20,000 lumens
High Output Mode
Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85
CCT: 5500 K (+/- 250 K)
High Quality Mode
Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP20
Gobos and Color Frame
Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
*Gobo holder not included
Installation
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections
AC power in, thru: Neutrik PowerCON TRUE1
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V / 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
