Specifications

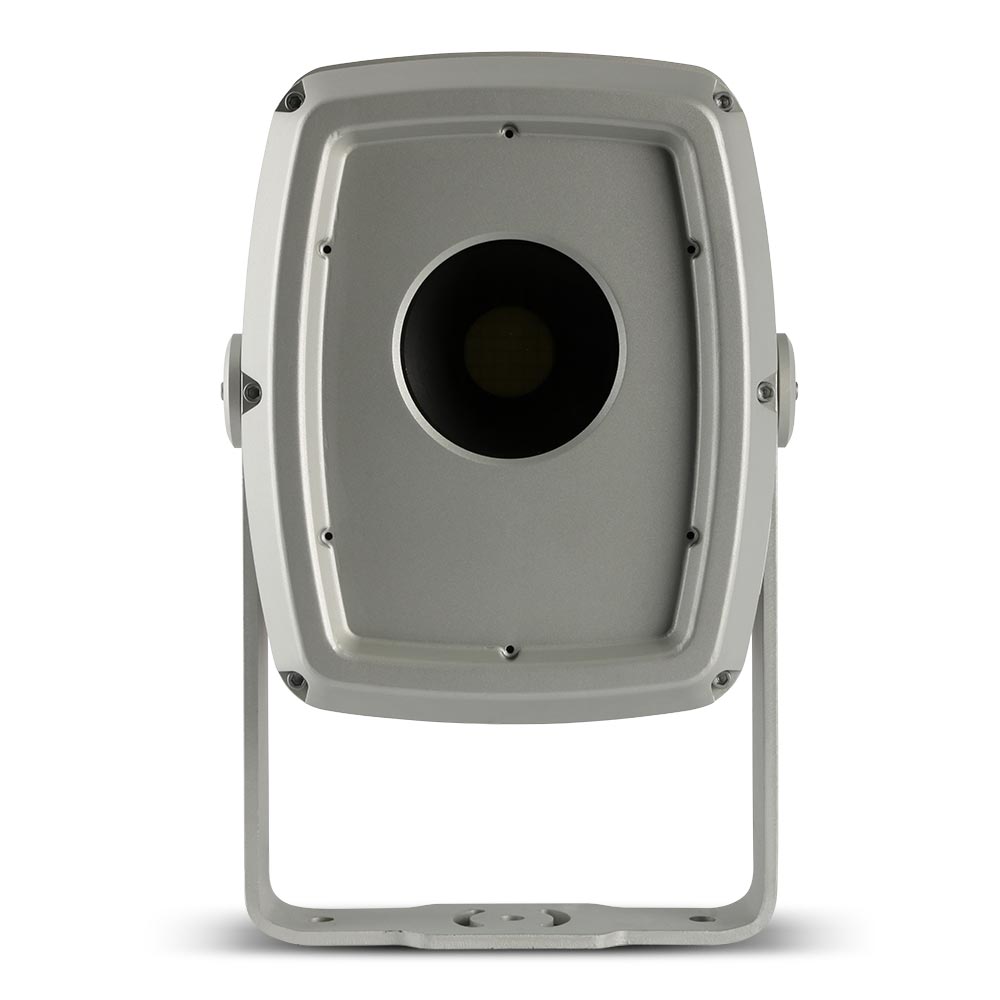

PhysicalLength: 415 mm (16.4 in.)Width: 293 mm (11.6 in.)Height: 444 mm (17.5 in.)Weight: 17.5 kg (38.6 lbs.)All figures include mounting yoke
Dynamic EffectsColor wheel: 8 interchangeable colors + openGobo wheel: 6 rotating gobos plus open, indexing, variable rotationGobo animation: Variable speed linear animation effectPrism: Prism wheel with 2 interchangeable prisms, prism rotation and indexingFrost (wash effect): Motorized variableDimming: Electronic, constantly variable 0-100%, 16-bit controlShutter: Strobe and pulse effects, instant open and blackoutFocus: Motorized, variable 3 m (9.8 ft.) to infinity

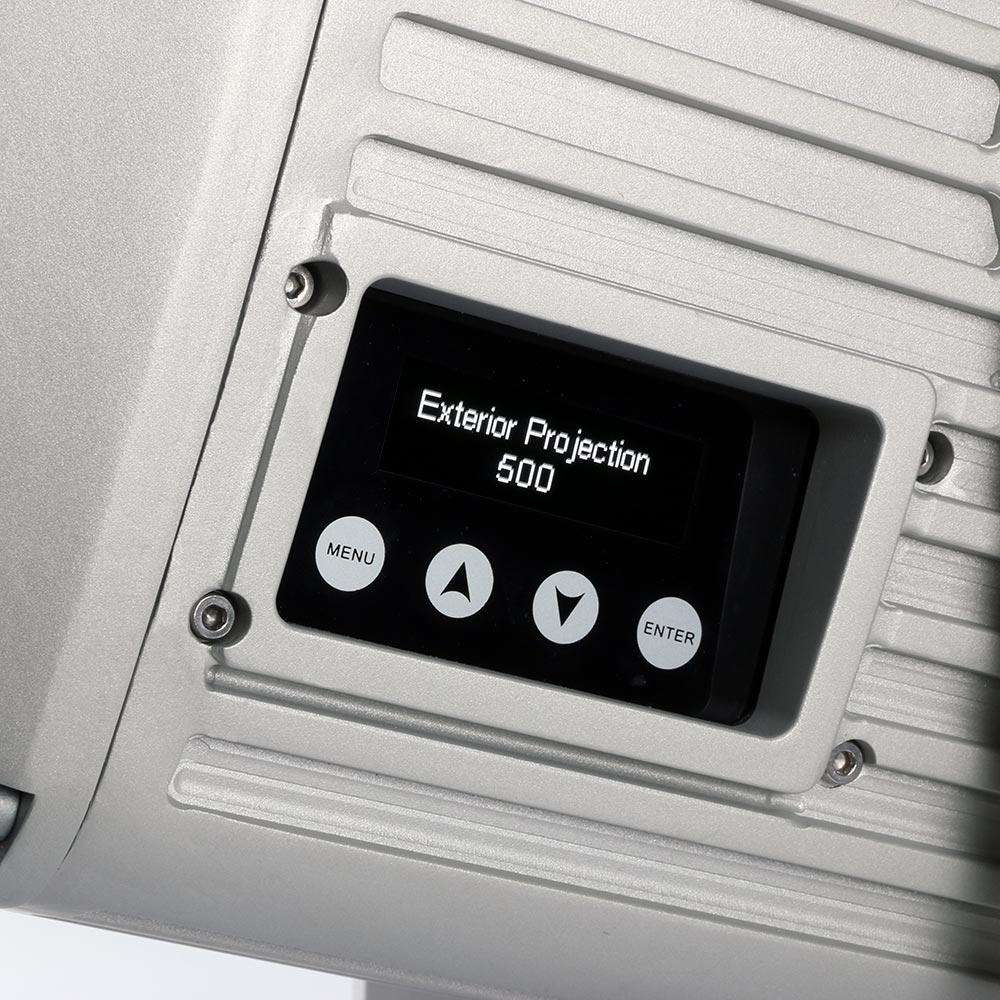

Control and ProgrammingStand-alone control: Up to 20 scenes with global fade/hold timesControl options: DMX, RDM, standaloneConfiguration, addressing and status: Onboard control panel with OLED display8-bit control: color/gobo selection, prism, frost, animation16-bit control: Gobo indexing and rotation, focus and intensityDMX channels: 13DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20
OpticsLight source: 230 W white light LED engineCRI (Color Rendering Index): 72Color temperature: 8300 KLED lifetime: 20,000 hours (to >70% luminous output)*LED manufacturer: Prolight OptoBinning: Tight color and flux binning*Figure obtained under manufacturer's test conditions
Photometric DataNarrow:
Cut-off angle: 12°
Total output: 5000 lumens
Center peak: 203,000 cd

Medium:
Cut-off angle: 22°
Total output: 6100 lumens
Center peak: 77,000 cd

Wide:
Cut-off angle: 37°
Total output: 5700 lumens
Center peak: 28,000 cd

Very Wide:
Cut-off angle: 50°
Total output: 3400 lumens
Center peak: 11,000 cd

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

ConstructionHousing: Cast aluminumFinish: Hard anodized, metallic grey lacqueredFront glass: 5 mm (0.2 in.) anti-reflection coated tempered glassIngress protection: IP66Impact resistance: IK08 (with control panel display cover plate installed)Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)EPA (Effective Projected Area): 0.15 m2RoHS compliant

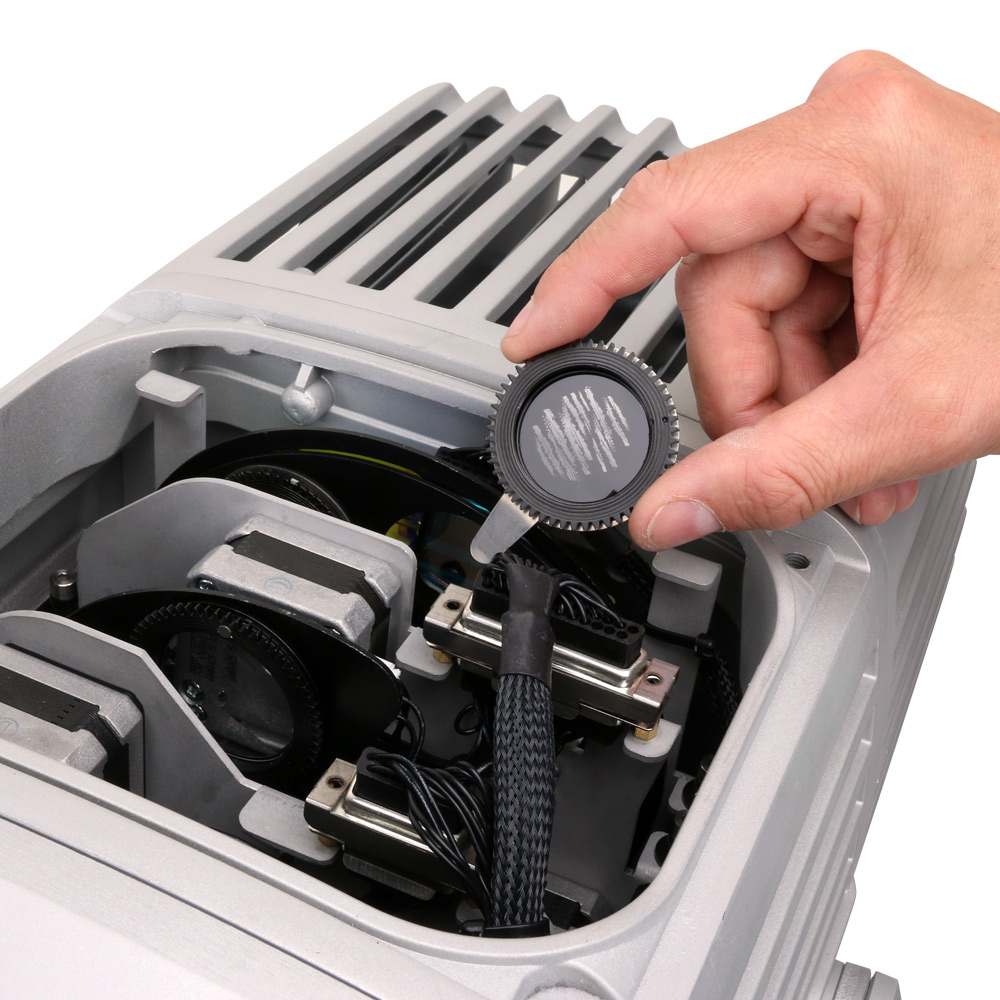

GobosSuitable material: Borosilicate glass, coatings heat-resistant to 450°C (842° F)Alternative material: Aluminum 1060, paint on front lens side, 450° C (842° F)Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)Maximum image diameter: 23 mm (0.91 in.)Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.)HT paint
InstallationMounting: Adjustable yokeLocation: Suitable for wet locations. Do not immerse in water.Orientation: Any (sides must be kept vertical)Minimum distance to illuminated surfaces: 0.5 m (20 in.)

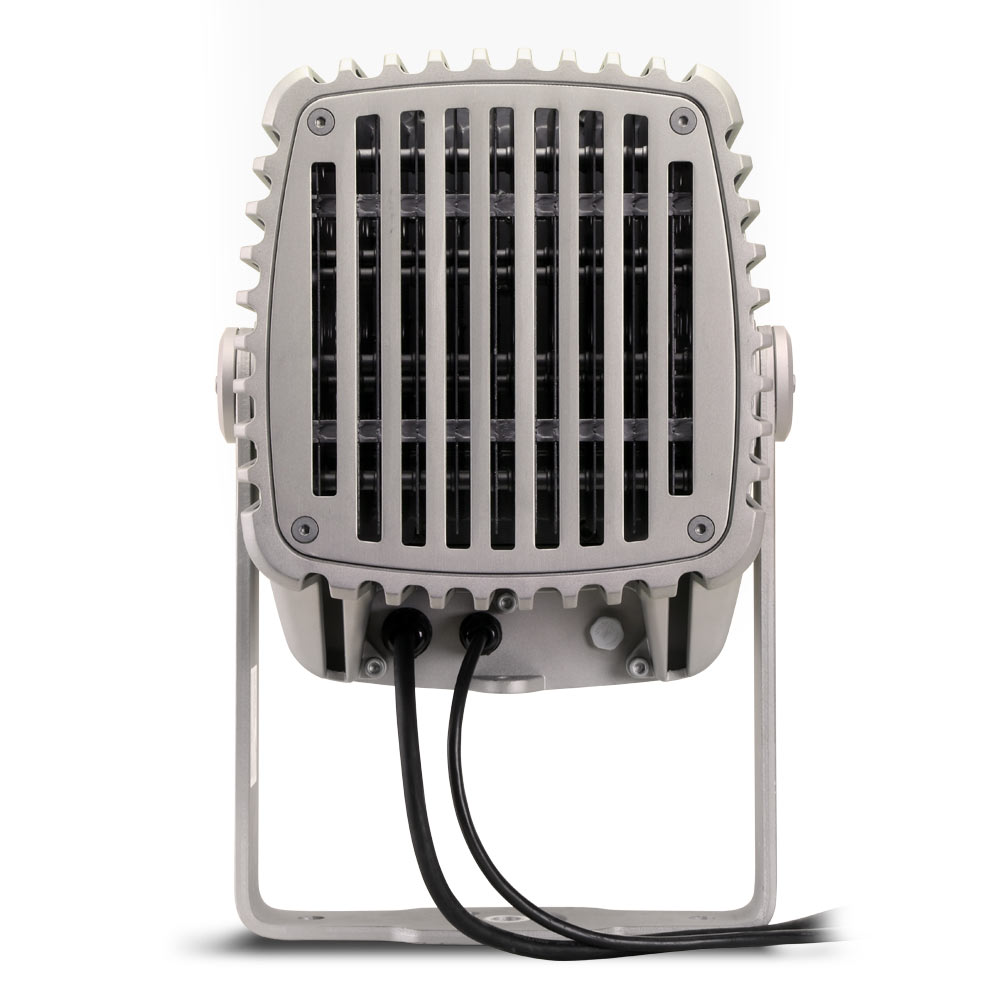

ConnectionsPower cable entry: IP68 cable glandPower connection: 1.8 m (5.9 ft.) cable tail with bare endsData cable entry: IP68 cable glandData connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
ElectricalAC power: 100-240/277 V nominal, 50/60 HzPower Supply: Auto-ranging electronic switch-modeTypical half-cycle RMS inrush current: 8.4 AIdle power (zero intensity, no effects applied): 32 W, 0.3 ASurge protection: 4 KV
Typical Power and Current110 V, 60 Hz: 320 W, 2.9 A, PF 0.977230 V, 50 Hz: 310 W, 1.4 A, PF 0.971277 V, 60 Hz: 305 W, 1.2 A, PF 0.950
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

ThermalCooling: Convection, internal forced airTotal heat dissipation (calculated): 1100 BTU/hr.Maximum surface temperature: 85° C (185° F)Maximum ambient temperature (Ta max.): 45° C (113° F) *Minimum ambient temperature (Ta min.): -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly.

EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 20 lm/WLWR*: 349 lm/kg (158 lm/lb)
LWR = Lumen-to-Weight Ratio

ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)EU safety: EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547US safety: ANSI/UL 1598US EMC: CFR 47 Part 15 Class ACanadian safety: CSA C22.2 No 250.0Australia/NZ: RCMIndia: BIS
Related ItemsMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader)

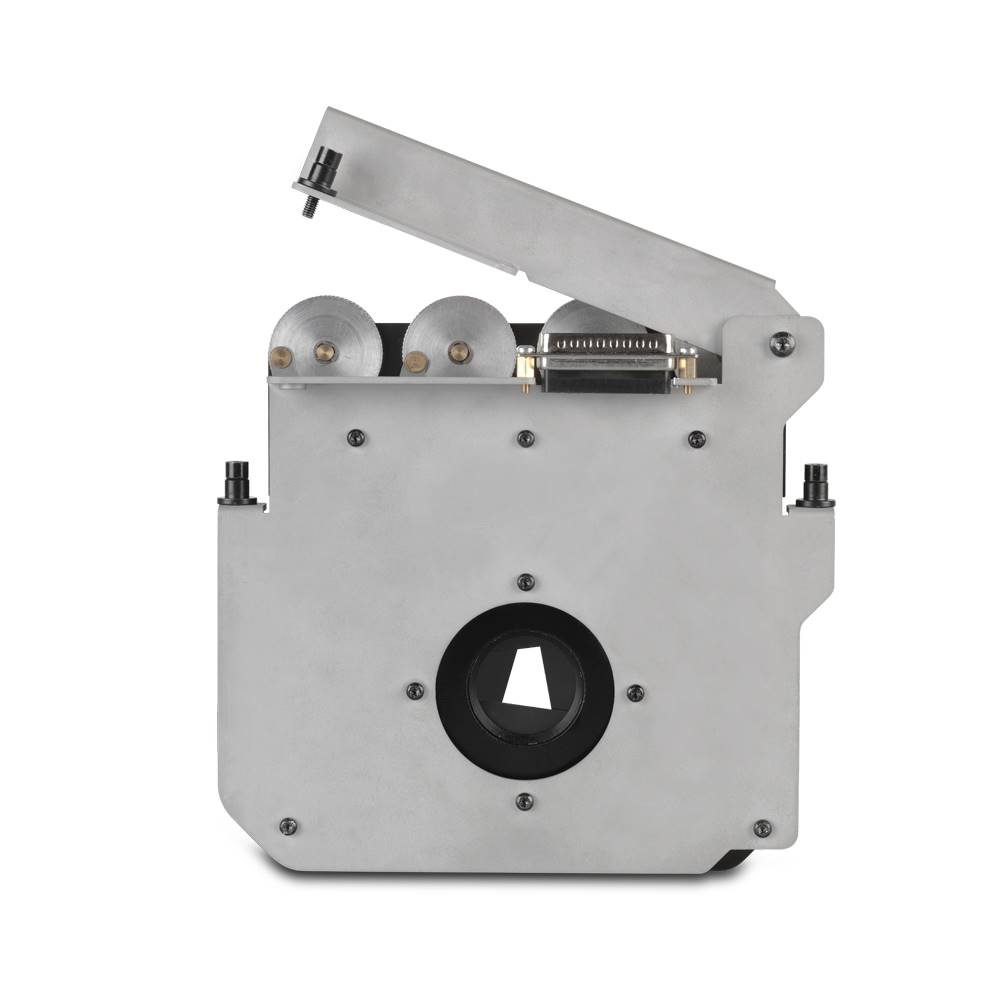

AccessoriesGlare Shield, Exterior Projection 500, aluminum: P/N 91611767Projection Setup Gobo: P/N 91616068EP-500, Manual Framing Module: P/N 91611842Ring for gobo, OD30, set of 10 pcs: P/N MAR-91611851
