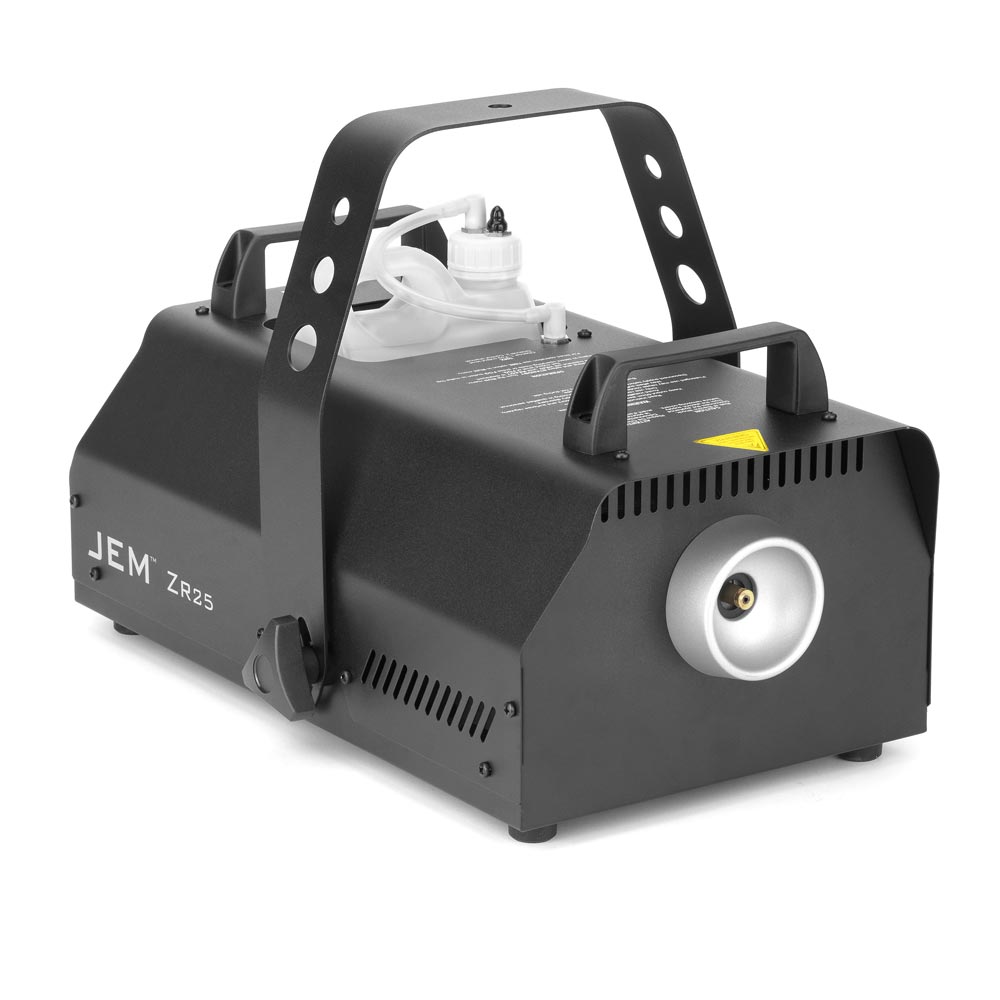

MARTIN JEM ZR25
Šifra:
1150 watt compact-sized professional fog machine
Specifications
Physical
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
Performance
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes
Continuous effect output
Control and Programming
Control options: Integrated digital remote control, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum
Color: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing
Hanging bracket: Integrated yoke with safety attachment point
Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

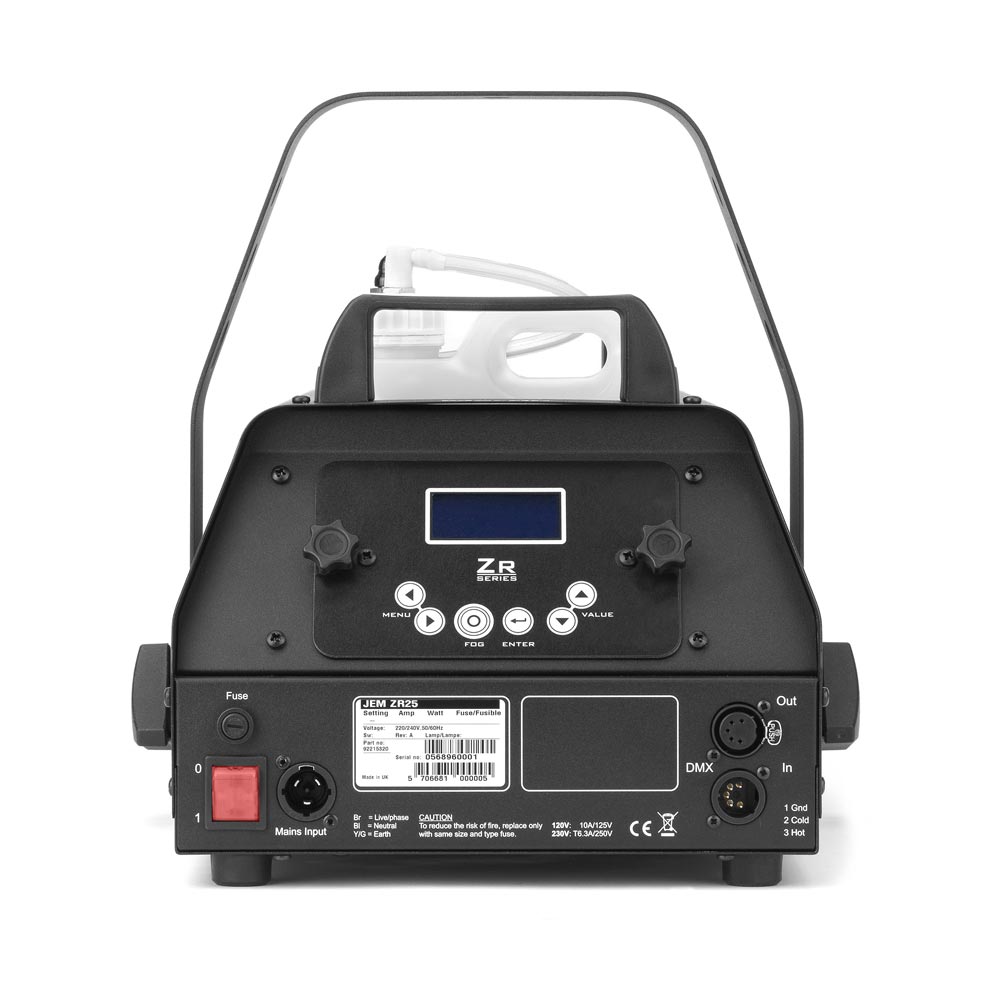

Connections
AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Electrical
EU Model:
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 5.3 A @ 230 V *
Power Consumption
Typical: 1200 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 8.8 A @ 110 V *
Power Consumption
Typical: 1050 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal
Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Included Items
Fluid reservoir, 2.5 l: P/N 34300521
JEM ZR Series Integrated Digital Remote Control: P/N M55765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
