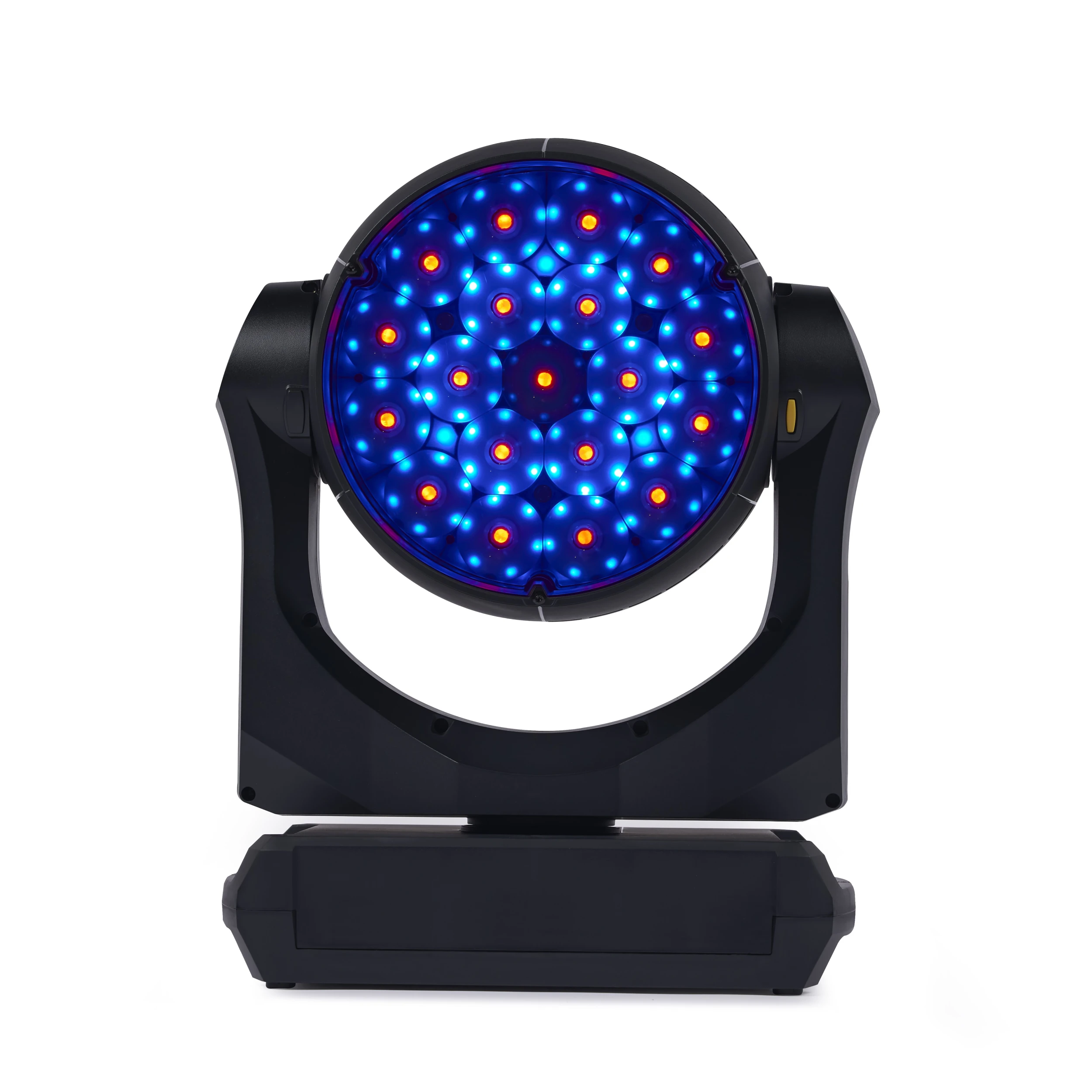

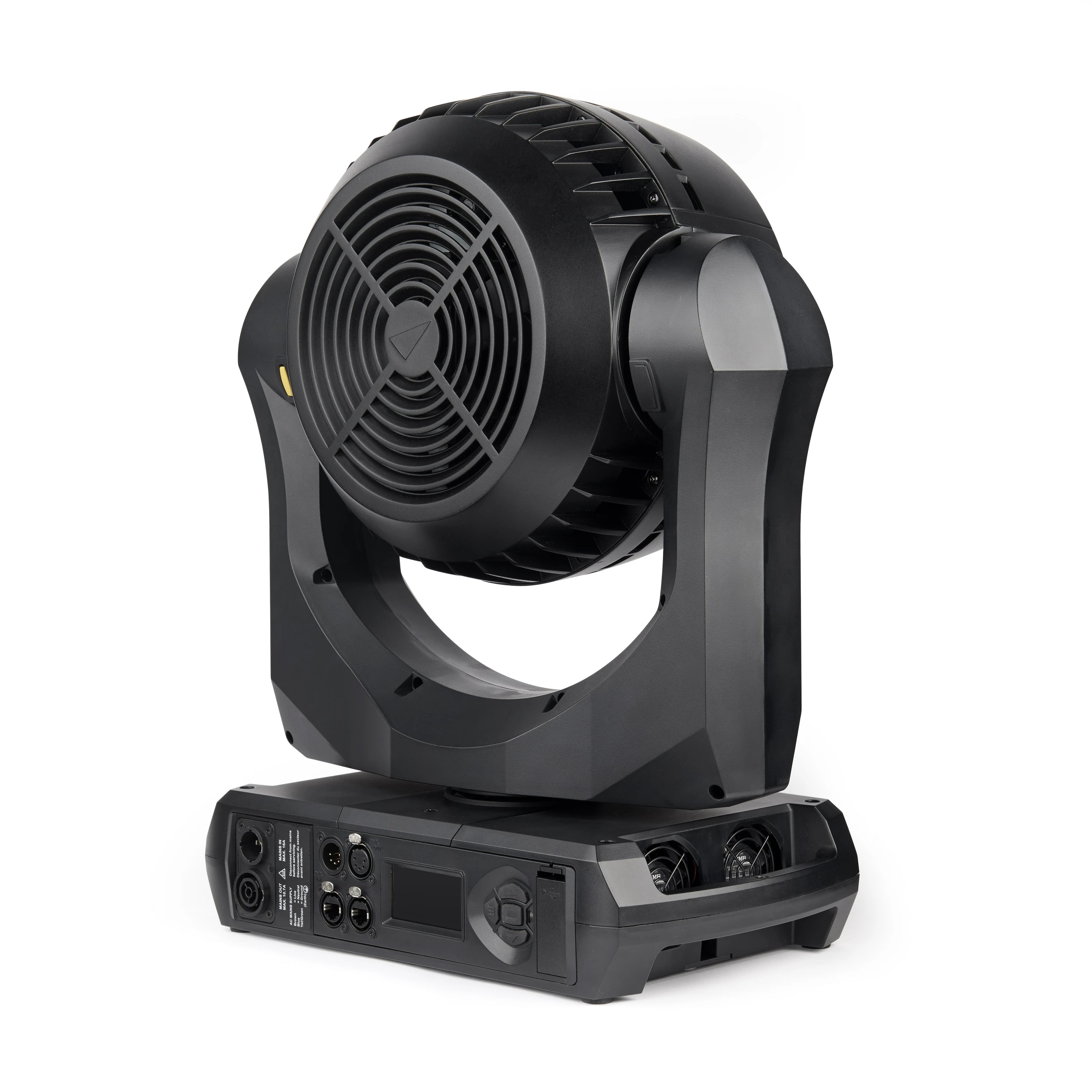

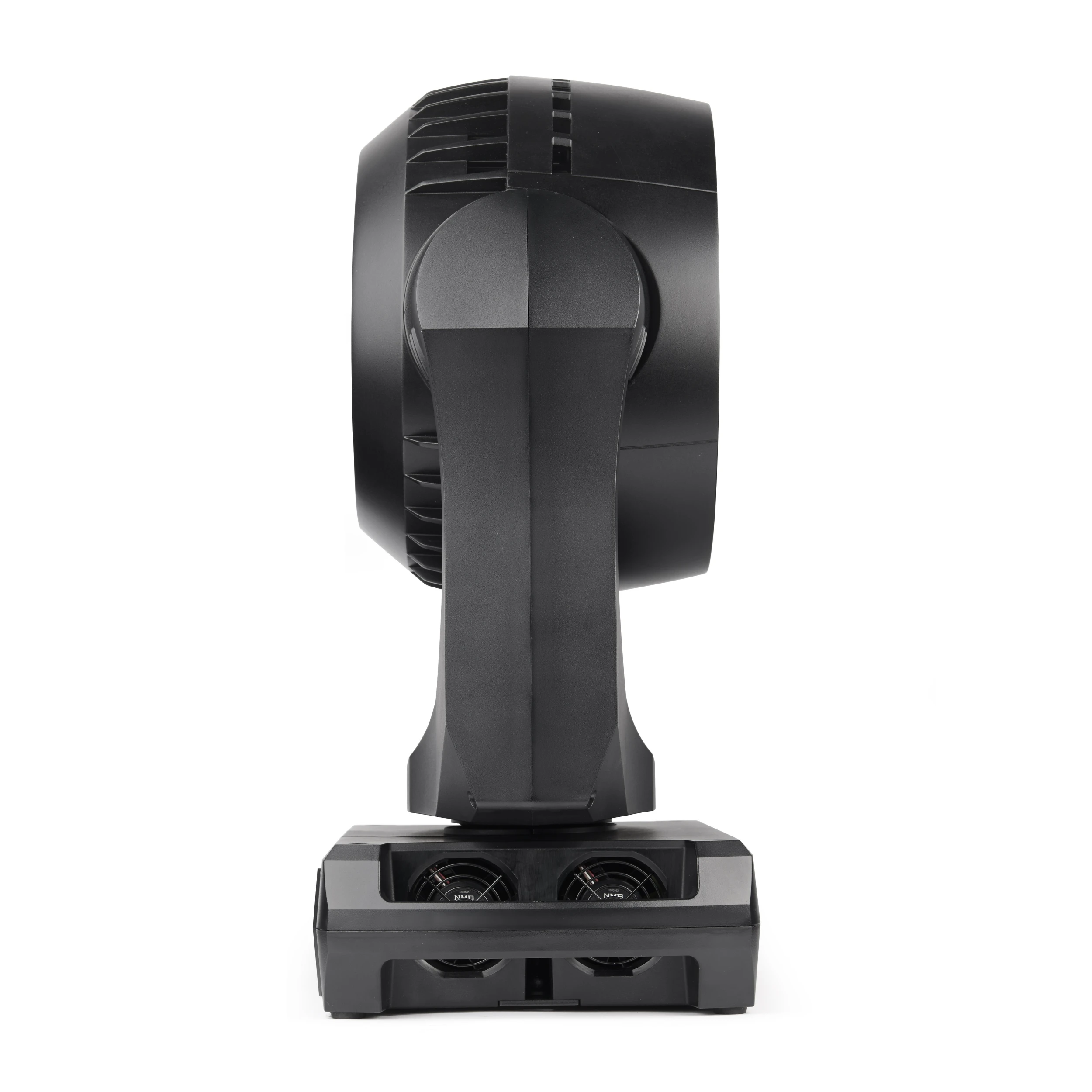

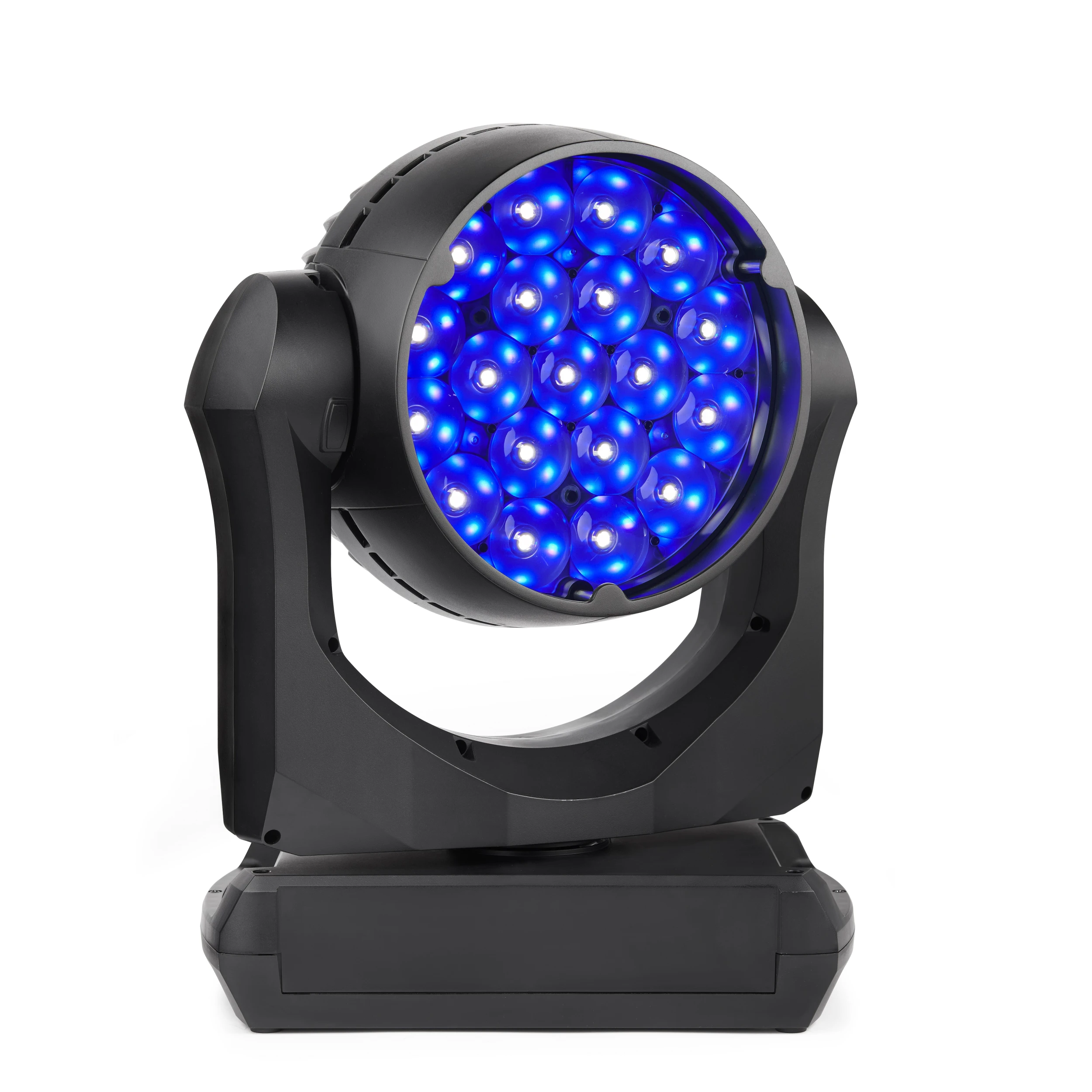

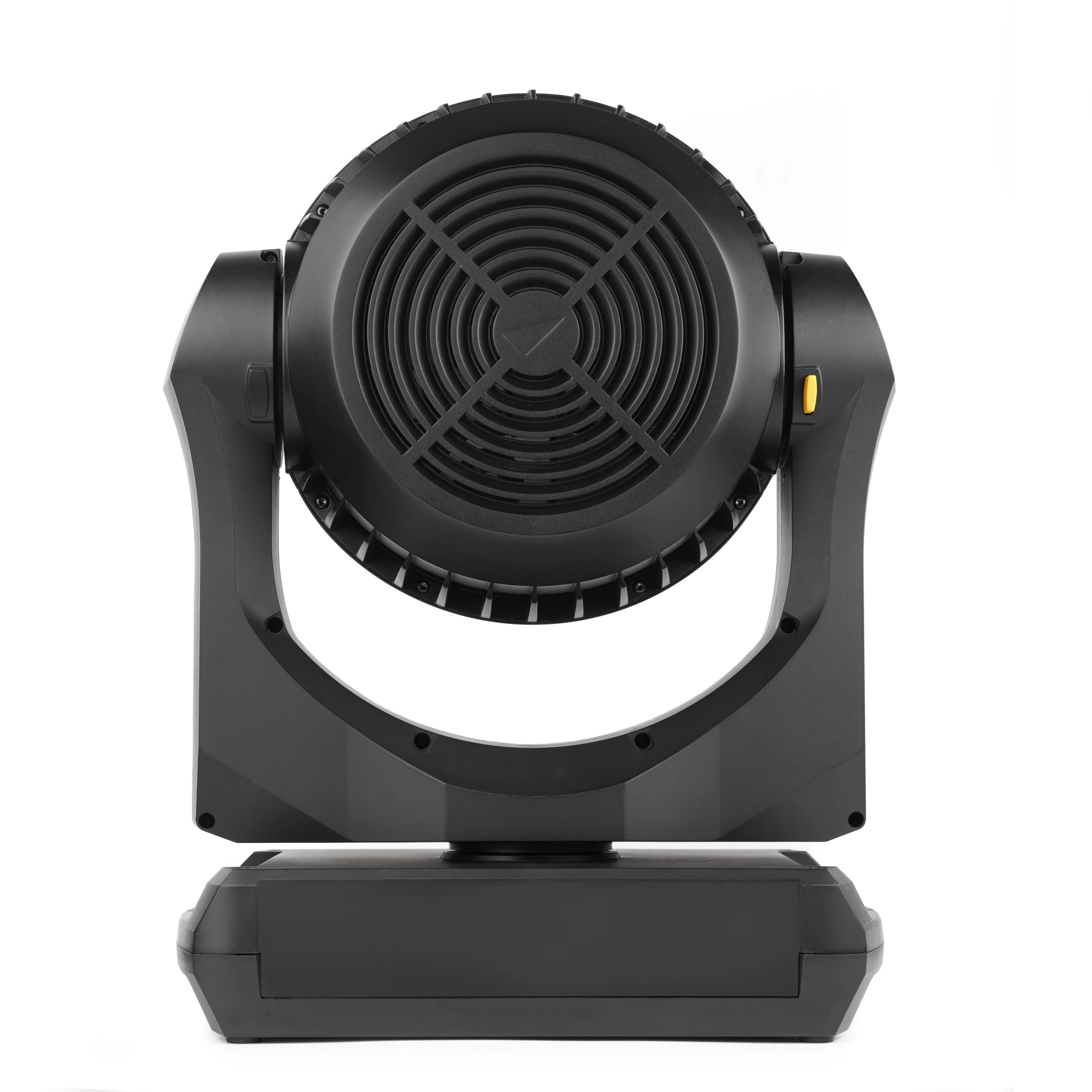

MARTIN MAC Aura PXL EPS
Šifra:
Multi-Source Wash Light
Specifications
Physical
Width (across yoke): 410 mm (16.14 in.)
Width (base): 385 mm (15.16 in.)
Height (head straight up): 489 mm (19.25 in.)
Height (maximum): 544 mm (21.42 in.)
Depth (head): 216 mm (8.50 in.)
Depth (base): 232 mm (9.13 in.)
Minimum center-to-center distance in side-by-side installation: 440 mm (17.32 in.)
Weight: 15.60 kg (34.39 lbs)
Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 10,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:8 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 268°
Beam PixelMapping: individual RGB control of each of the 19 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 10,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each of the 141 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended & Ludicrous
DMX Channels: 17, 32, 89 & 512
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Optics
Front Lens Diameter: 255 mm (10.04 in.)
Zoom Range: 1:8
Full Zoom Range at Half Peak (Beam Angle): 6° - 40°
Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°
Beam Light Source: 19 x 40 W RGBW LED
Aura Light Source: 141 x 0.3 W RGB LED
Max. Total Beam LED Engine Power: 570 W
Max. Total Aura LED Engine Power: 50 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output: 19,000 lumens
Fixture Luminous Output Wide: 10,500 lumens
Fixture Luminous Output Narrow: 8,500 lumens
Peak Luminous Intensity Narrow: 940,000 cd
CCT: Variable 2,000 K – 10,000 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 73
CQS (Color Quality Scale): ≥ 85
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
TLCI (Television Lighting Consistency Index): ≥ 61
Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode
Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Extended Color Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20
Installation
Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor
Orientation: Any
Minimum distance to combustible materials: 0.2 m (7.87 in.)
Minimum distance to illuminated surfaces: 2.4 m (94.49 in.)
Connections
AC mains power in/thru: Neutrik powerCON TRUE1
Firmware from flash memory: USB 2.0 type A port
DMX and RDM data in/thru: Neutrik 5-pin locking XLR
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
Typical earth-leakage current: 0.36 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *
Power Consumption
Maximum: 560 W
Typical: 500 W *
Idle: 81 W *
Hibernation: 37 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F)
Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 25.4 lm/W
LWR*: 705 lm/kg (320 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Safety and Installation Manual in Eng/Fre/Ger
Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
Accessories
Optical
MAC Aura PXL SoftLens: P/N MAR-91614062HU
Transport and Storage
Flightcase for 3 x MAC Aura PXL: P/N 91515052
Additional SiP Foam Flightcase Insert for MAC Aura PXL: P/N 91611860HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Verified Third-Party Accessories
Beam Control
MAC Aura PXL Top Hat: P/N City Theatrical 2786
MAC Aura PXL Hexcel Louver: P/N City Theatrical 2787
MAC Aura PXL Concentric Ring: P/N City Theatrical 2788
MAC Aura PXL Beam Control Accessory Mount Kit: P/N City Theatrical 27880001
