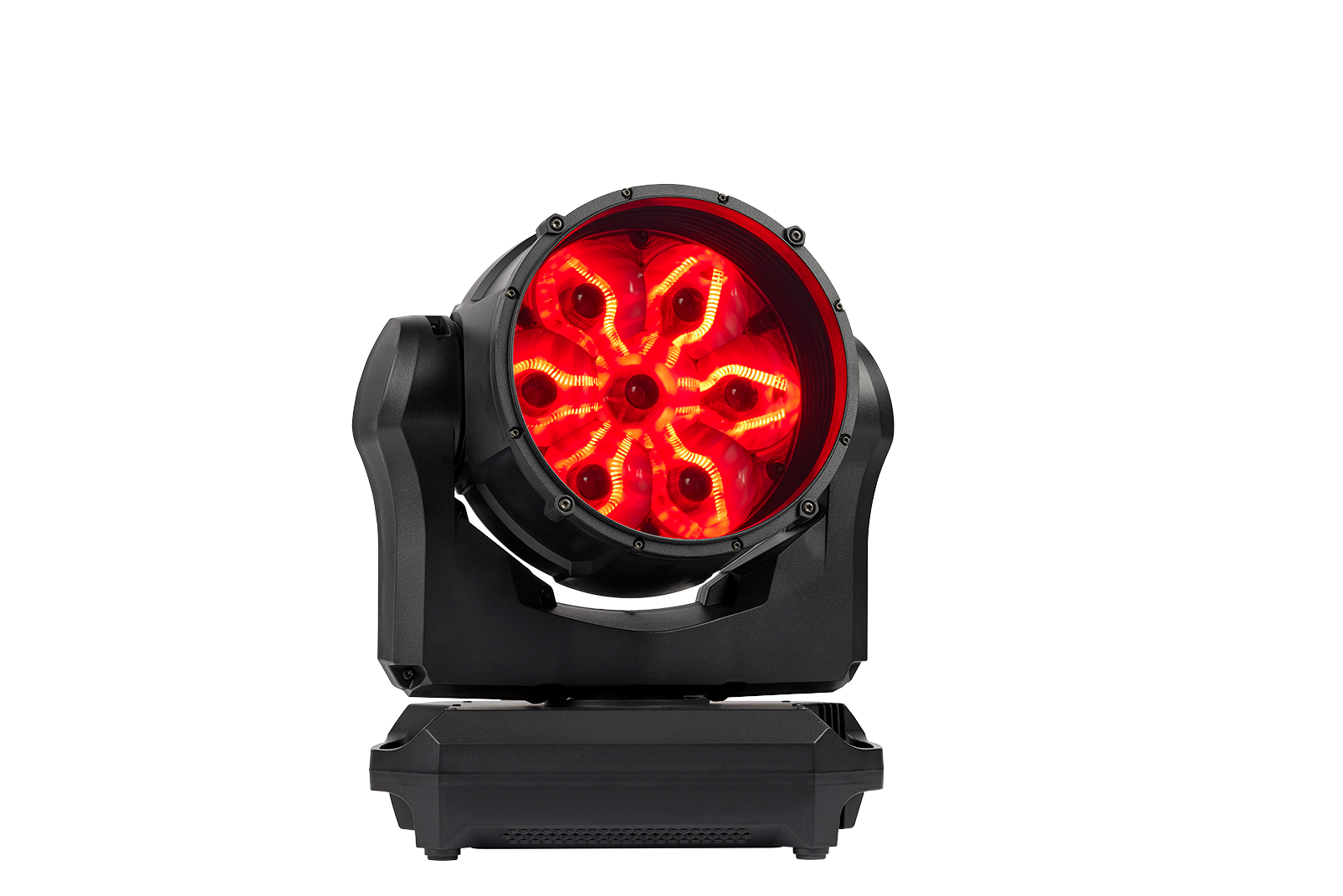

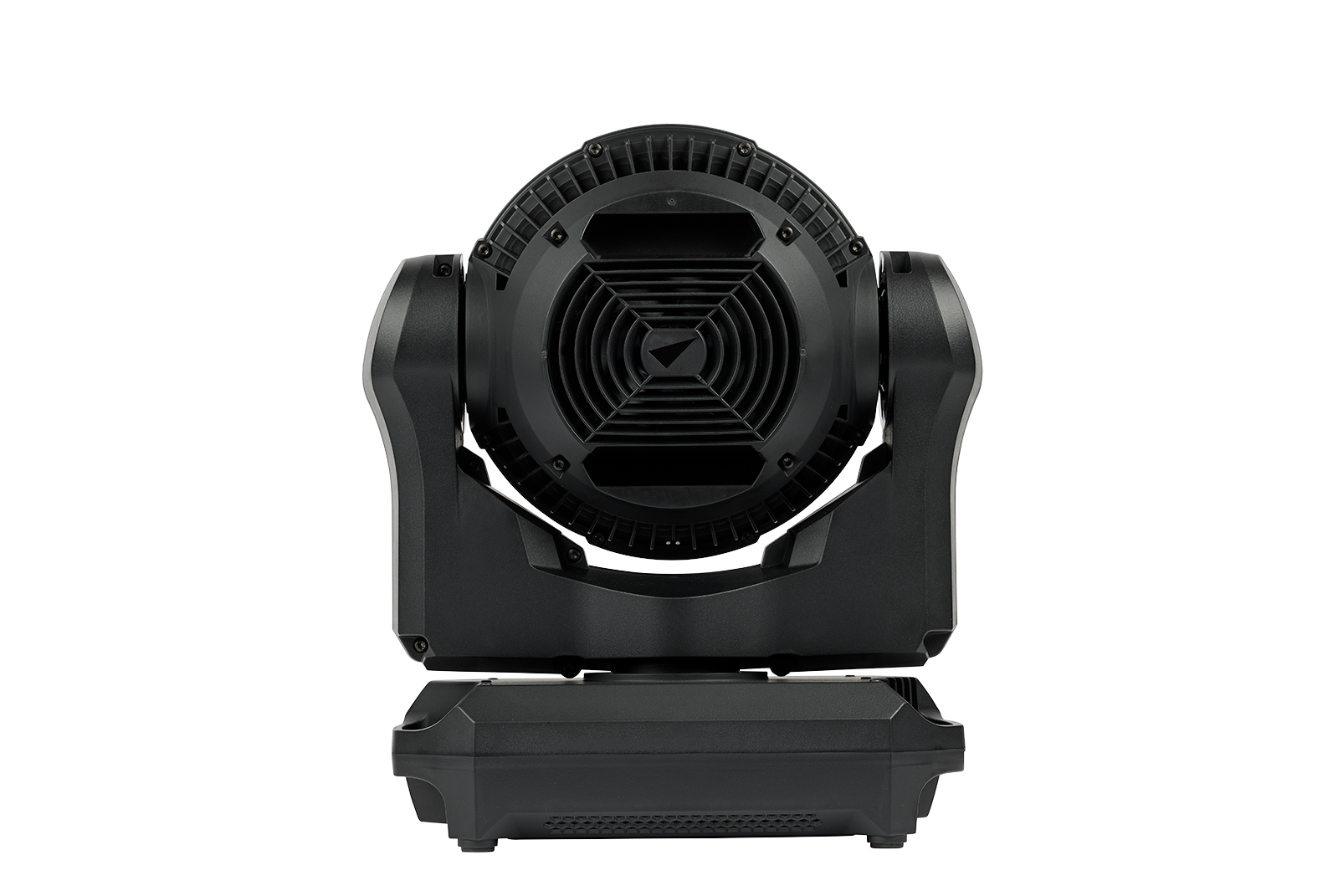

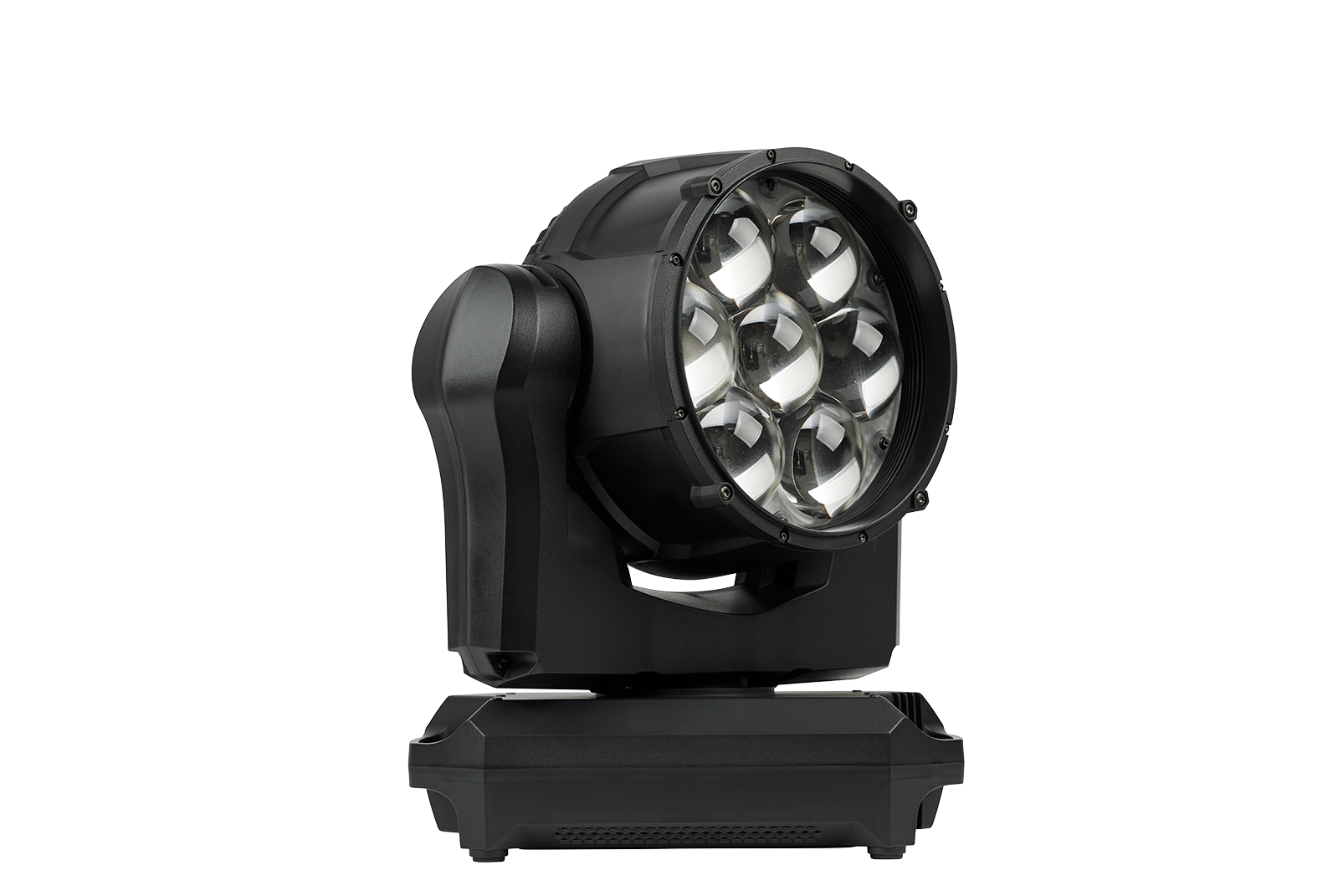

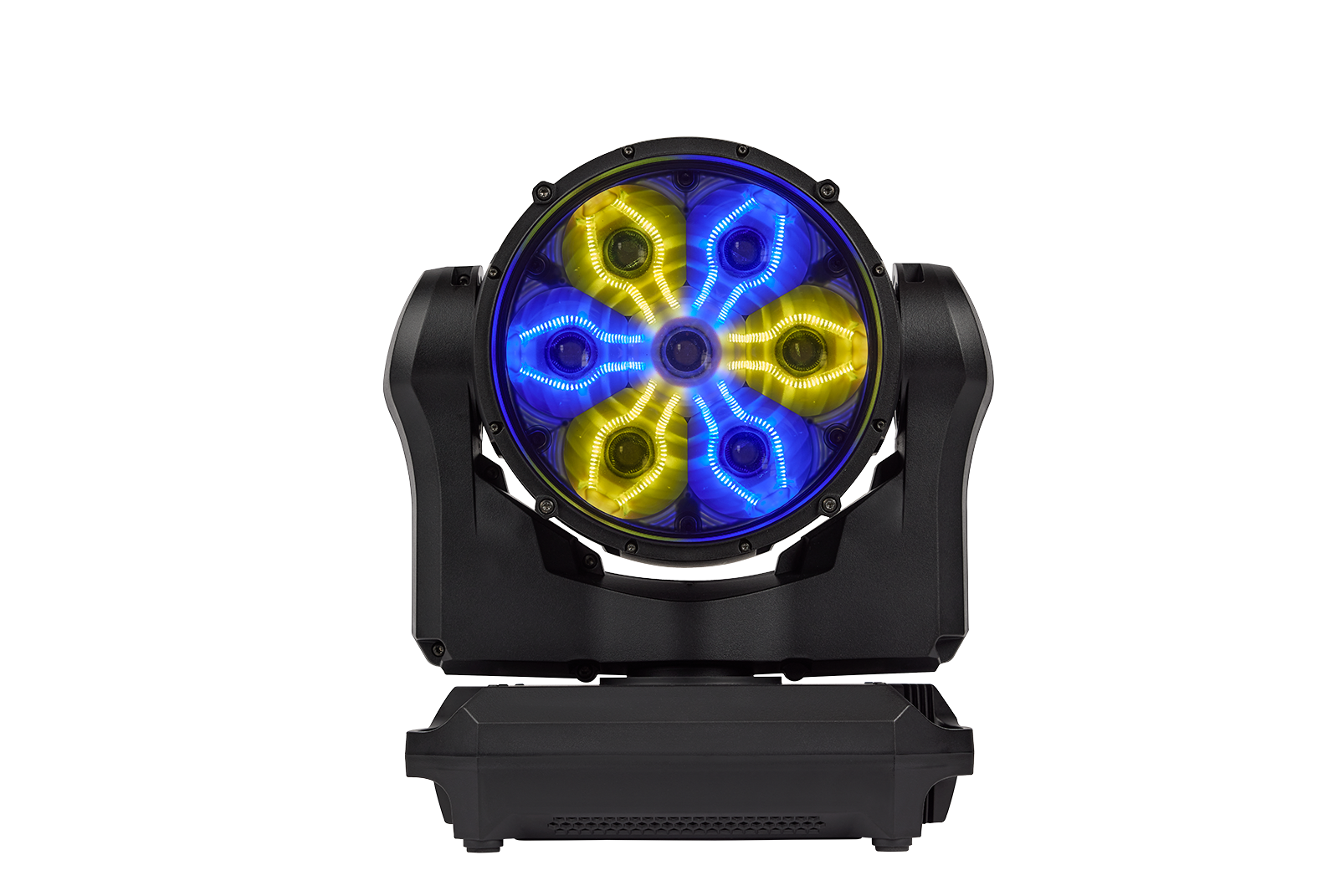

MARTIN MAC AURA XIP IN DUAL SIP
Šifra:
Wash Light with smart outdoor protection and Aura filaments
Specifications
Physical
Width (across yoke): 338 mm (13.31 in.)
Width (base): 306 mm (12.05 in.)
Height (head straight up): 380 mm (14.96 in.)
Height (maximum): 421 mm (16.57 in.)
Depth (head): 205 mm (8.07 in.)
Depth (base): 226 mm (8.90 in.)
Minimum center-to-center distance in side-by-side installation: 350 mm (13.78 in.)
Weight: 8.95 kg (19.73 lbs.)
Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 1,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:6 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 220°
Beam PixelMapping: Individual RGB control of each of the 7 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 1,000 – 12,850 K
Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: Individual RGB control of each of the 12 Aura filaments
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
LED Frequency control: Variable LED PWM control
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended, Ludicrous, XB Standard & XB Extended
DMX Channels: 20, 36, 57, 93, 14 & 25
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter: 196 mm (7.72 in.)
Zoom Range: 1:6
Full Zoom Range at Half Peak (Beam Angle): 6.3° - 35.3°
Full Zoom Range at Tenth Peak (Field Angle): 8.8° - 50.4°
Beam Light Source: 7 x 60 W RGBW LED
Aura Light Source: 12 x 4 W RGBW LED
Max. Total Beam LED Engine Power: 296.5 W
Max. Total Aura LED Engine Power: 35.1 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output: 11,000 lumens
Fixture Luminous Output Wide: 6,000 lumens
Fixture Luminous Output Narrow: 4,500 lumens
Peak Luminous Intensity Narrow: 360,000 cd
CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 71
CQS (Color Quality Scale): ≥ 80
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 78
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
TLCI (Television Lighting Consistency Index): ≥ 57
Beam LED Refresh Rate: Variable 2,400 Hz - 3,000 Hz and 24,000 Hz mode
Aura LED Refresh Rate: 1,200 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Extended Color Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP54
Installation

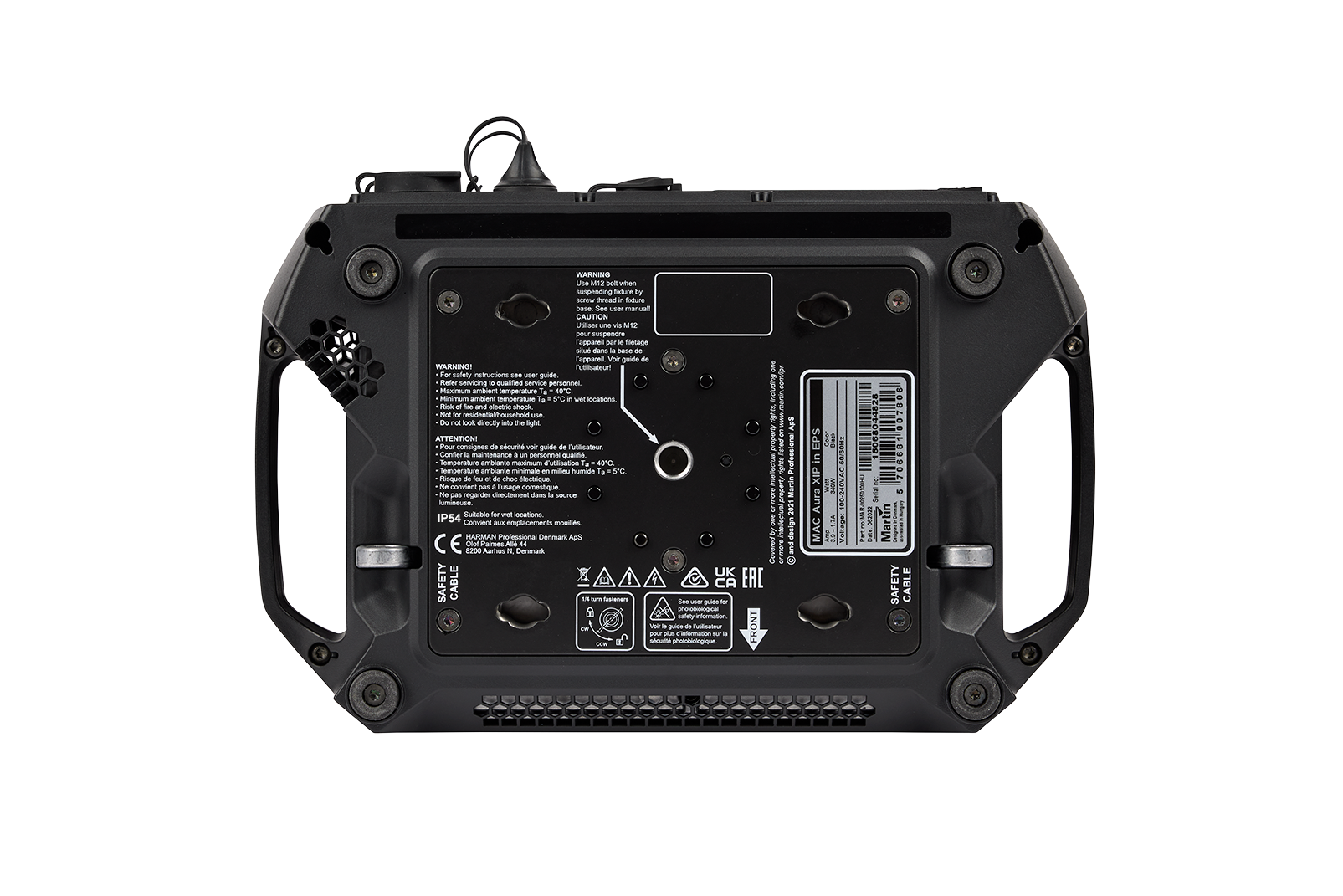

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets and single M12 threaded hole
Location: Indoor or Temporary Outdoor use
Orientation: Any, except with display facing upwards in outdoor application
Minimum distance to combustible materials: 0.2 m (7.87 in.)
Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)
Connections
AC mains power in/thru: Neutrik powerCON TRUE1 TOP
Firmware from flash memory: USB 2.0 type C port
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 7.0 A
Typical earth-leakage current: 0.43 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
Max current draw: 3.9 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 V
Typical current draw: 2.9 A @ 100 V , 2.4 A @ 120 V , 1.4 A @ 208 V , 1.3 A @ 230 V , 1.2 A @ 240 V *
Power Consumption
Maximum: 340 W
Typical: 292 W *
Idle: 47 W *
Hibernation: 32 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 60° C (140° F)
Total heat dissipation (calculated, +/- 10%): 972 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 34.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 25.2 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 21.3 lm/W
LWR*: 670 lm/kg (304 lm/lbs.)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
SoftLens
Multi-Language Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com
Accessories
Transport and Storage
Flightcase for 6 x MAC Aura XIP: P/N MAR-91515057
Additional dual SiP Foam Flightcase Insert for MAC Aura XIP: P/N MAR-91611861HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Spare Parts
Additional MAC Aura XIP SoftLens: P/N 5136656-00
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
