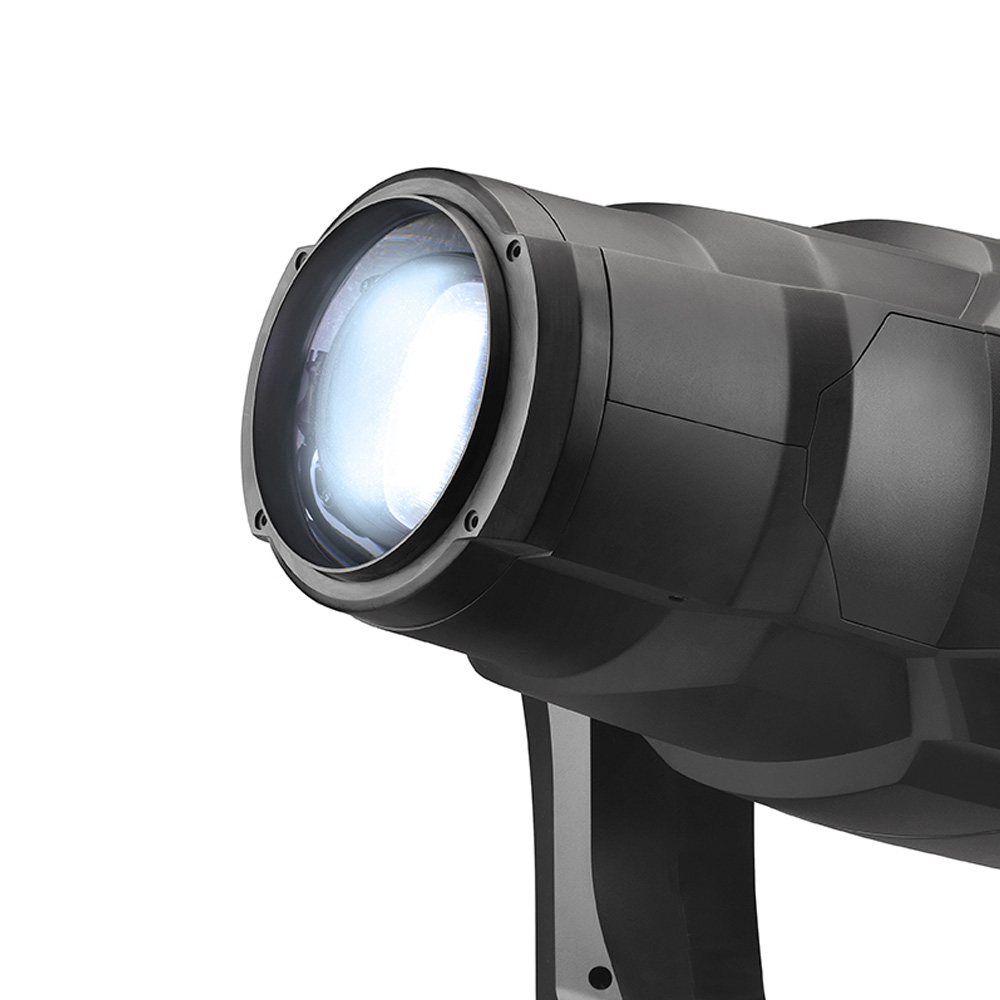

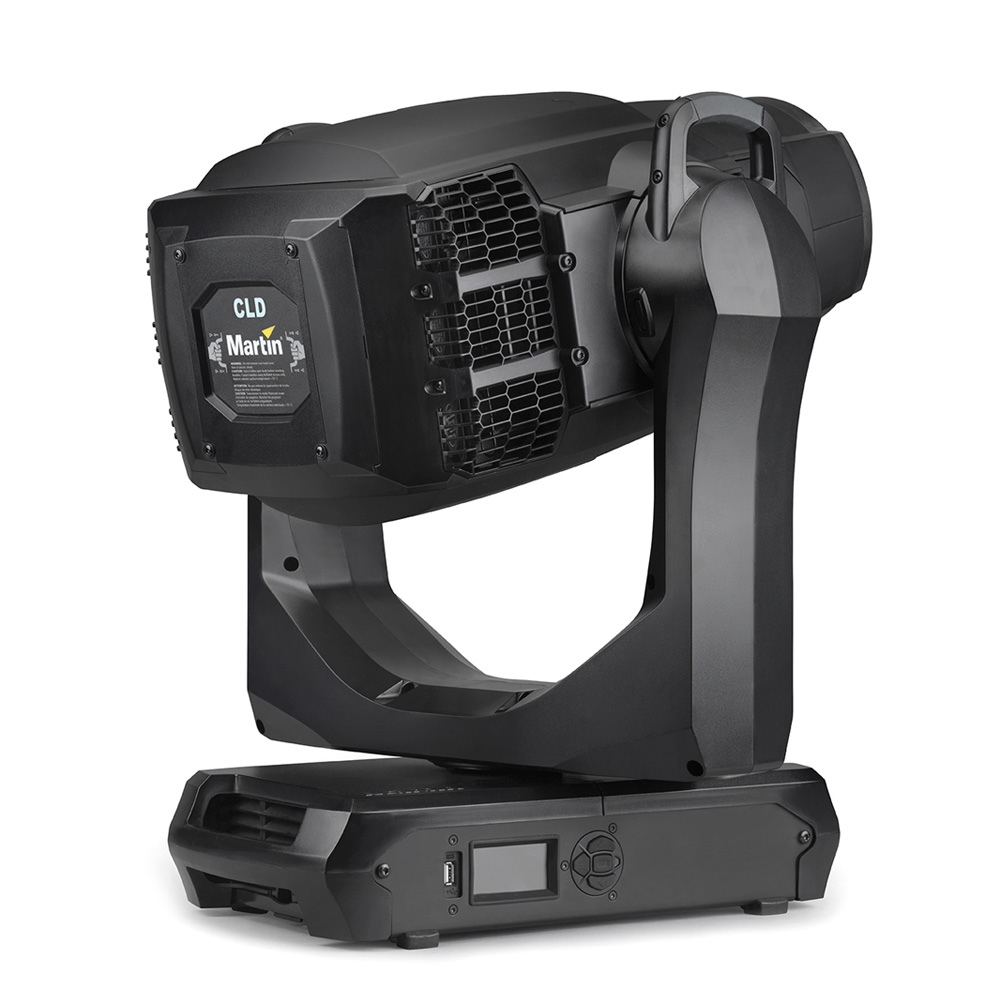

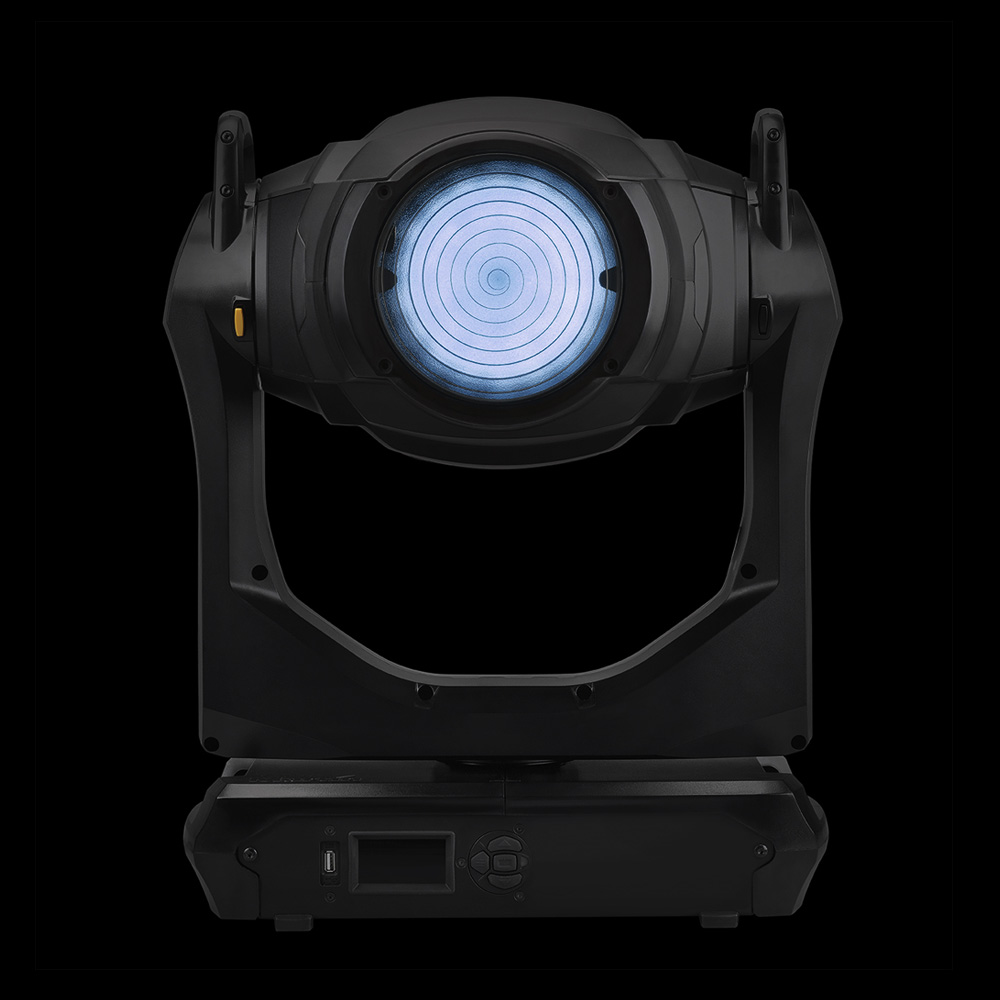

MARTIN MAC ENCORE WASH,CLD,EPS
Šifra:
High quality cold light soft edge moving head
Specifications
Physical
Length: 452 mm (17.8 in.)
Width: 480 mm (18.9 in.) across yoke
Height:
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up
Weight: 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Iris: Variable 0 - 100%
Zoom: Motorized
Color temperature control: Variable 6000 - 2700 K
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and Programming
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
DMX channels: 24
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics
Light source: 468 W custom Martin LED engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: ≥ 39,400 lumens
Fixture luminous output with Fresnel lens (standard): 11,000 lumens
Fixture luminous output with PC lens (optional): 12,000 lumens
CRI (Color Rendering Index) : >80
CQS (Color Quality Scale): >80
TM-30 Rf (IES TM-30-15 Fidelity Index): >80
TM-30 Rg (IES TM-30-15 Gamut Index): >96
TLCI (Television Lighting Consistency Index): >70
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 17 lm/w
LWR*: 386 lm/kg (175 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety: EN 60598-2-17, EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. E598-2-17
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
