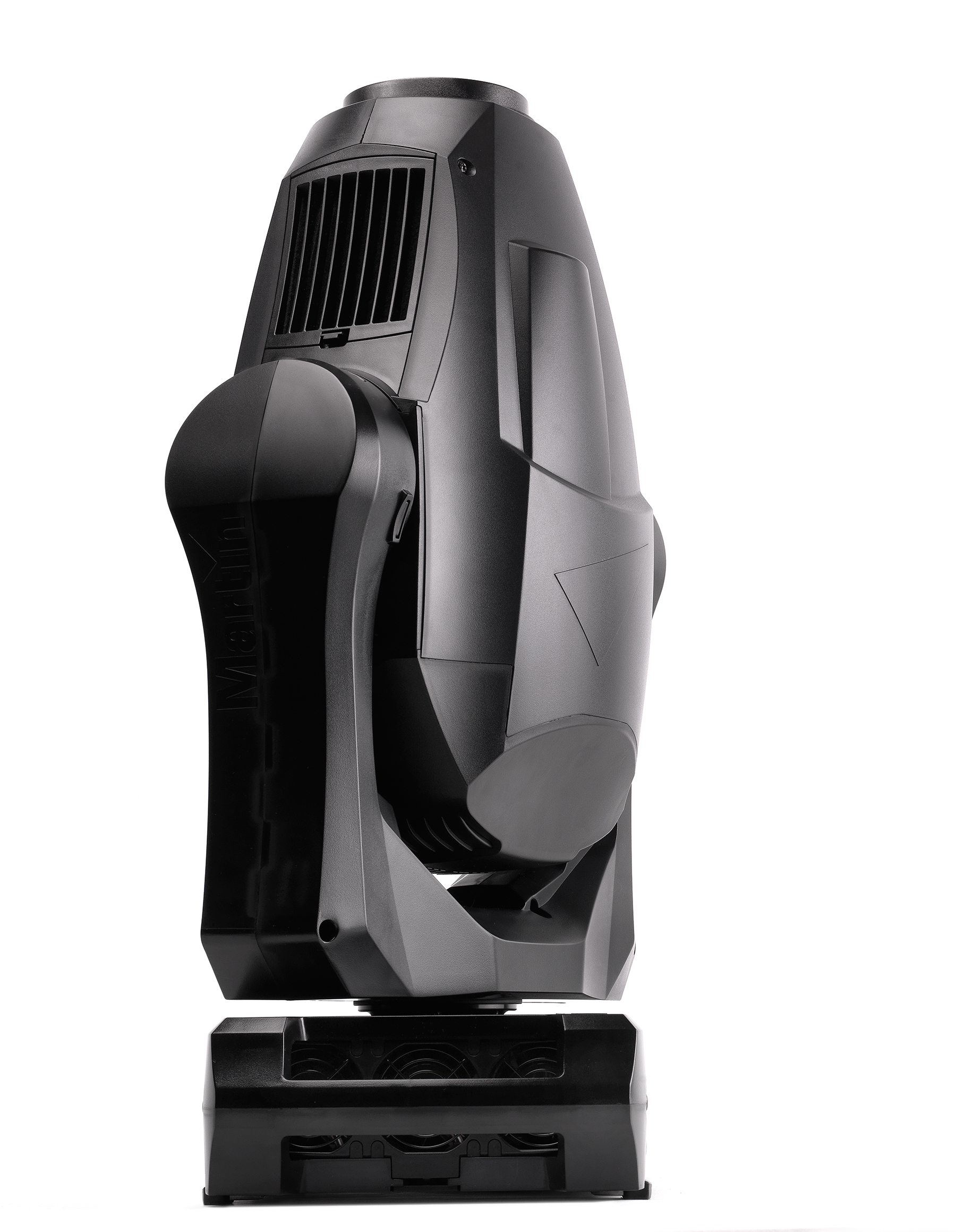

MARTIN MAC Quantum Profile in cardboard
Šifra:
Bright white LED spot with quick and precise CMY color mixing
Specifications
Physical
Length: 452 mm (17.8 in.)
Width: 431 mm (17.0 in.) across yoke
Height:
642 mm (25.3 in.) head straight up
648 mm (25.5 in.) maximum
Weight: 23.2 kg (51.1 lbs.)
Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 color filters plus open
Beam effects: Rotating three-facet prism
Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
Iris: 0 - 100%, pulse effects
Zoom: Motorized
Shutter effect: Electronic, with variable speed regular and random strobe
Electronic dimming: Four dimming curve options
Pan: 540°
Tilt: 268°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Focus: Motorized, with zoom-focus tracking
Control and Programming
Control systems: DMX
Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt

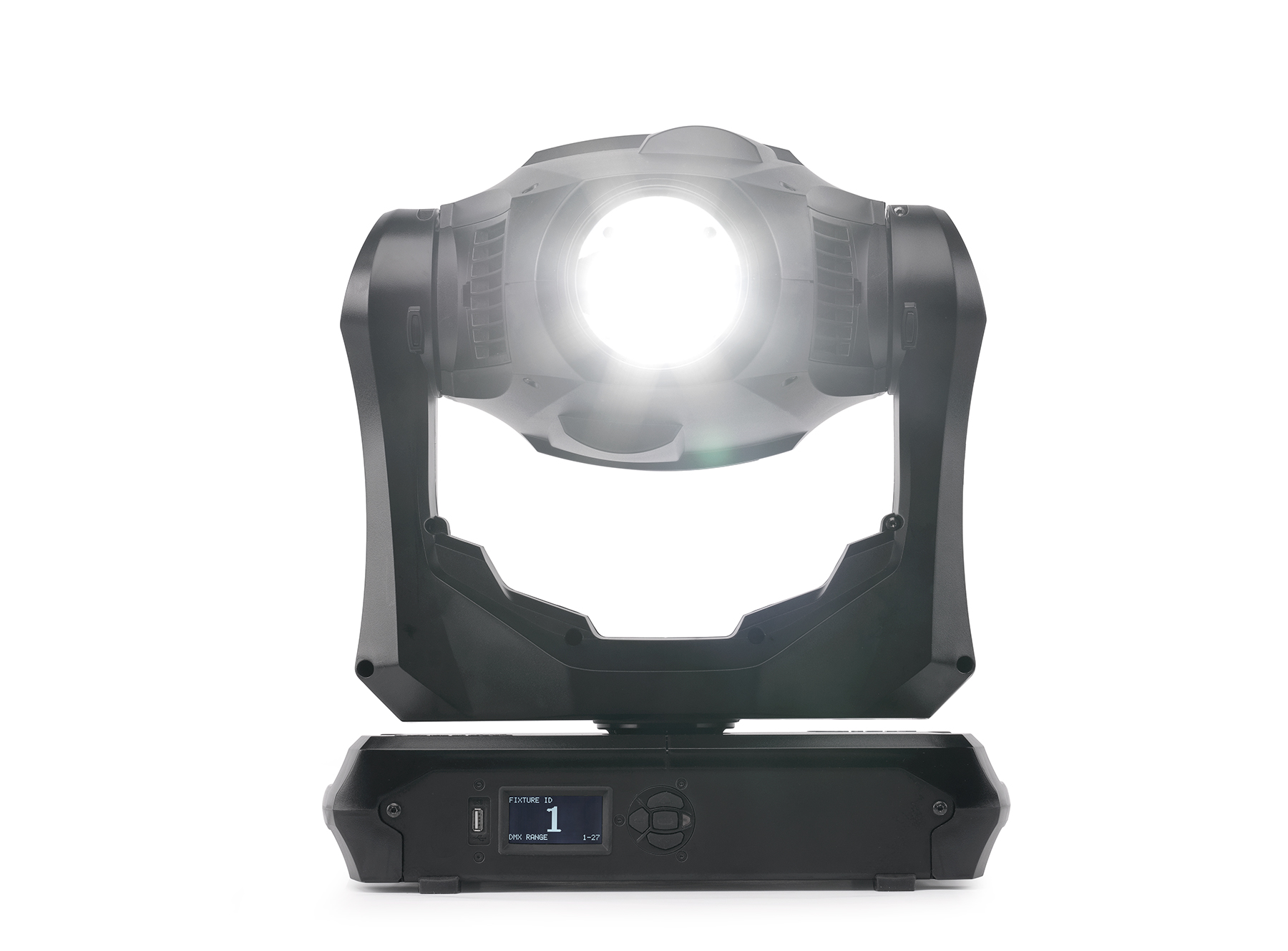

Setting and addressing: Control panel with backlit graphic display
RDM: Implemented
DMX channels: 19/27
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
Optics
Zoom range: 12° - 36° (1:3)
Light source: 475 W LED engine
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
LED refresh rate: 3000 Hz
Default color temperature: 6000 K
Output: 12,700 lumens
*Figure obtained under manufacturer´s test conditions
Photometric Data
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 4 pairs of quarter-turn locks
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m
Minimum distance to illuminated surfaces: 2.0 m

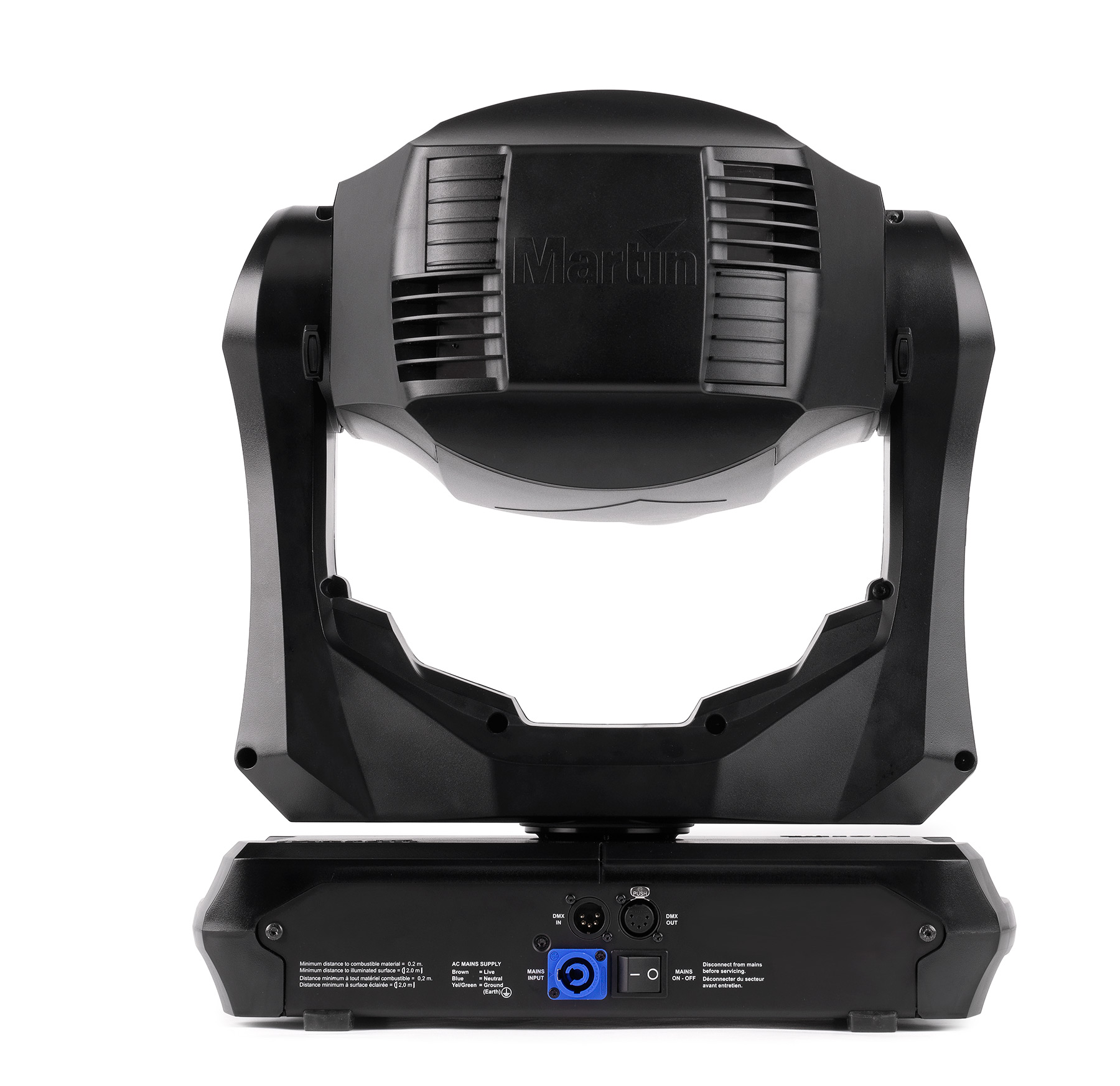

Connections
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
Typical current draw: 4.8 A @ 120 V , 2.8 A @ 208 V , 2.5 A @ 230 V , 2.4 A @ 240 V *
Power Consumption
Maximum: 750 W
Typical: 576 W *
Idle: 50 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
