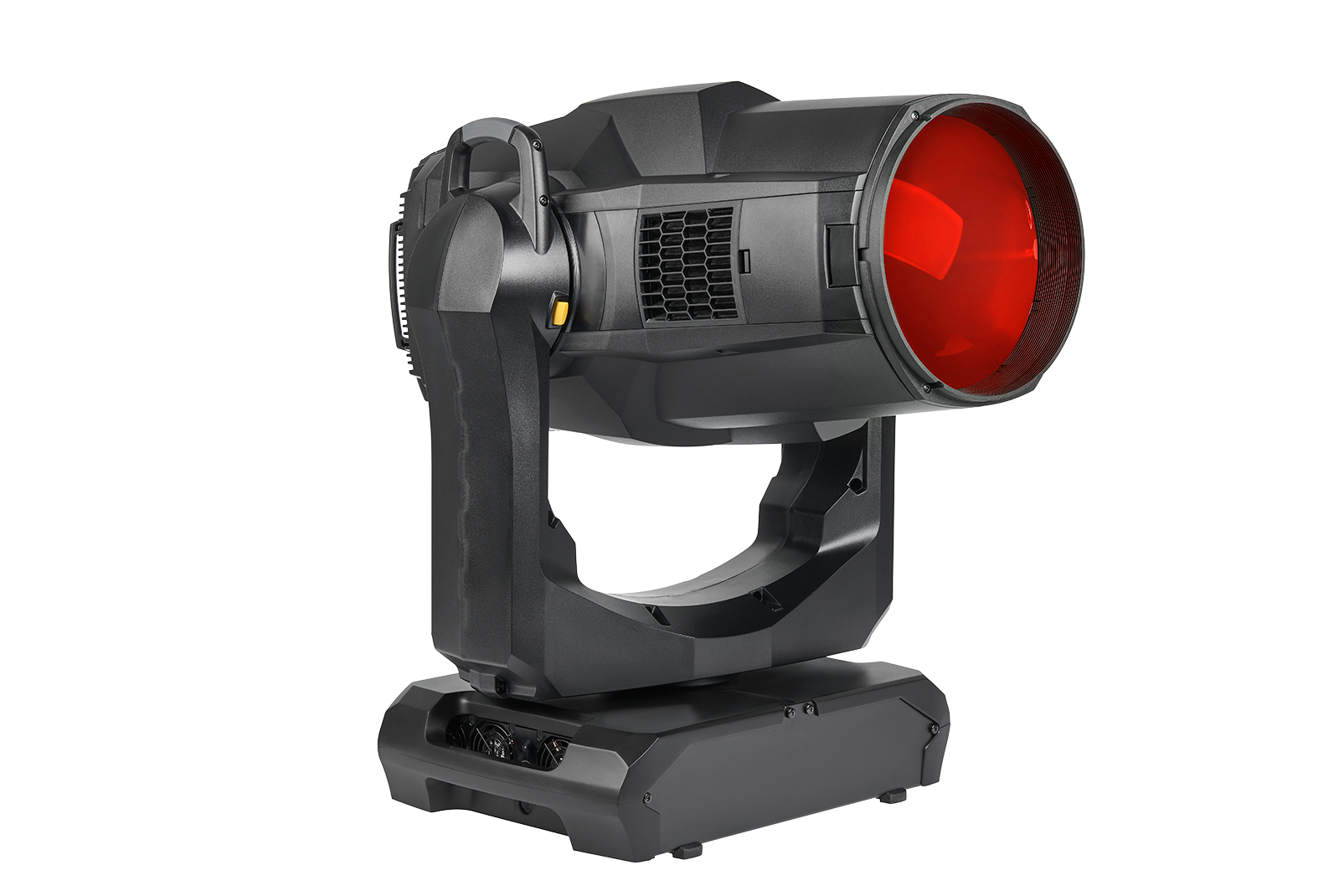

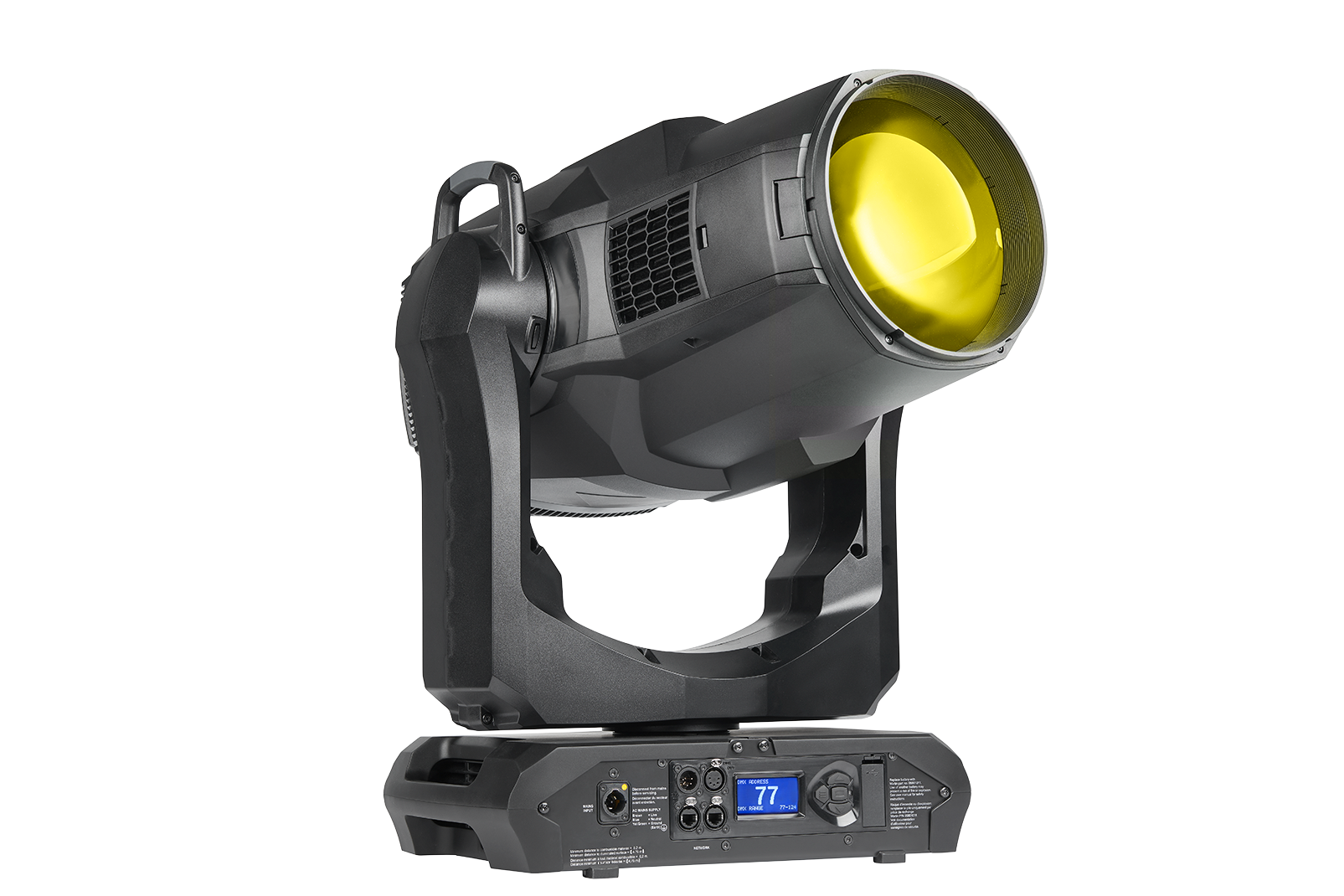

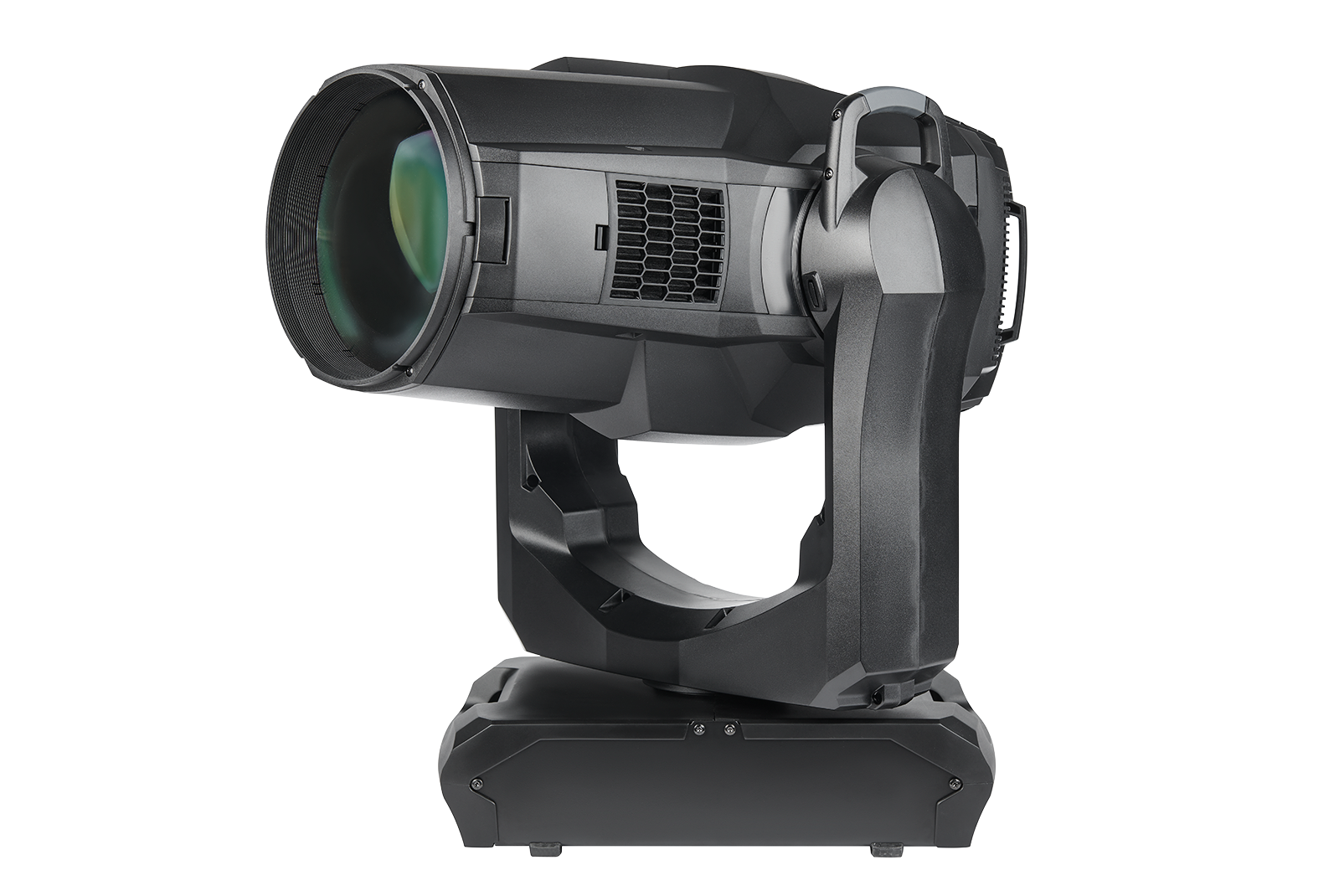

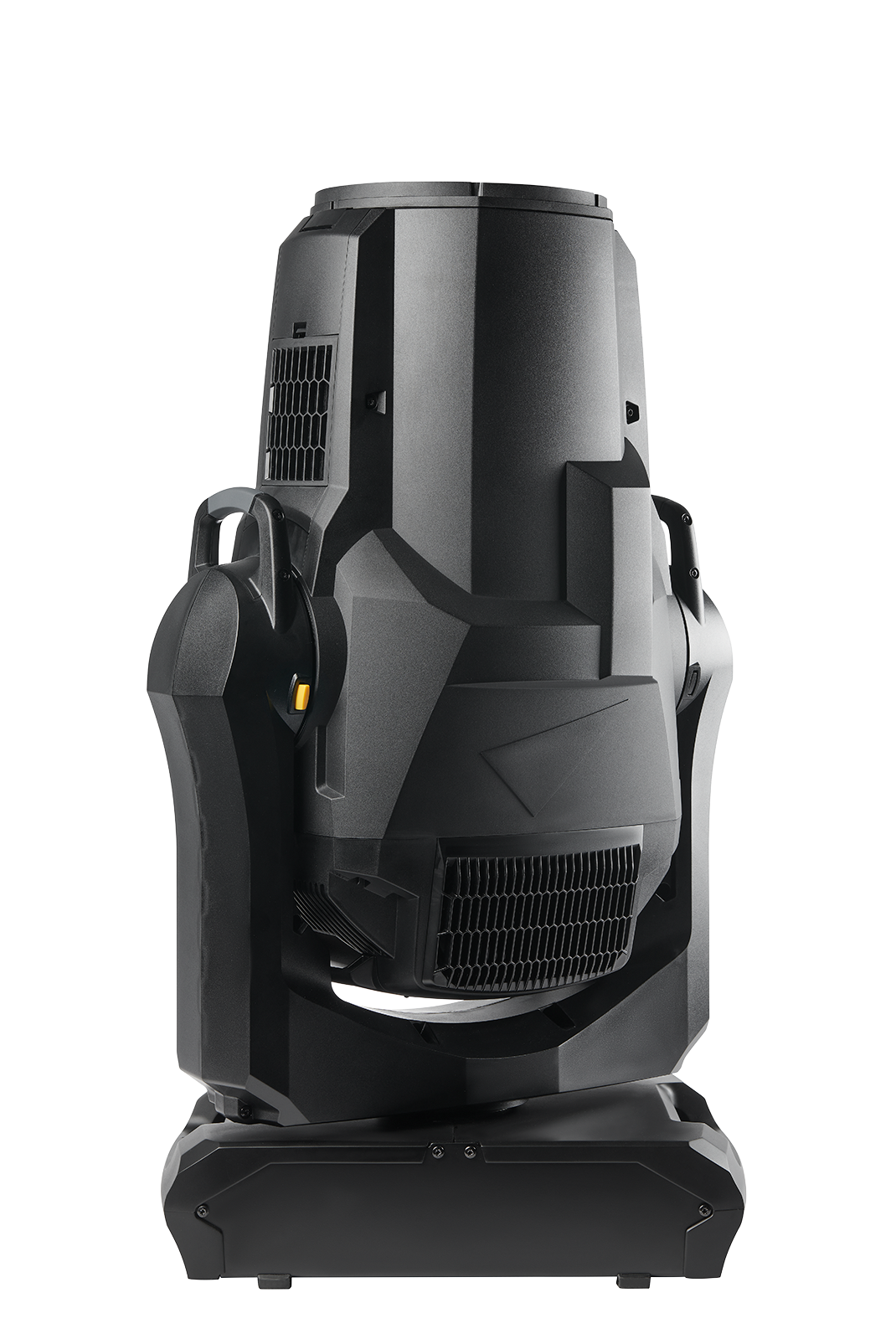

MARTIN MAC ULTRA WASH, SIP
Šifra:
1150 W High output LED Moving Head Wash
Specifications
Physical
Weight: 39.0 kg (86.0 lbs.)
Minimum center-to-center distance in side-by-side installation: 810 mm (31.9 in.)
Length (head): 642 mm (25.3 in.)
Length (base): 468 mm (15.5 in.)
Width (base): 312 mm (12.3 in.)
Width (across yoke): 520 mm (20.5 in.)
Height (head straight up): 848 mm (33.4 in.)
Height (maximum): 867 mm (34.2 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Iris: Variable 0 - 100%, pulse effects
Zoom: Motorized
Color temperature control: Variable 5800 - 2850 K
Frost: Motorized
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°, coarse & fine control and speed
Tilt: 268°, coarse & fine control and speed
P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
DMX Modes: One
DMX channels: 29
16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Local User Interface: Backlit LCD Display with battery-powered operation
Optics
Front lens diameter: 220 mm
Light source: 84 x 20 W White LEDs in a custom Martin engine
Zoom Range Beam (half-peak): 6.8° - 47.5° (1:7)
Zoom Range Field (tenth-peak): 9° - 62° (1:7)
Maximum Total LED Engine Power: 1150 W
Minimum LED Lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: 90,000 lumens
LED refresh rate : 3000 Hz
Standard
Fixture luminous output: 63,500 lumens
CRI (Color Rendering Index): 66 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66
TM-30 Rg (IES TM-30-15 Gamut Index): 95
CCT: 5800 K (+/- 250 K)
Peak Luminous Intensity: 5,000,000 cd
With Spectral Enhancement Filter at 5300 K
Fixture luminous output: 49,000 lumens
CRI (Color Rendering Index): 78 (+/- 3)
With CTO and Cyan at 3200 K
Fixture luminous output: 19,500 lumens
CRI (Color Rendering Index): 90 (+/- 3)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)

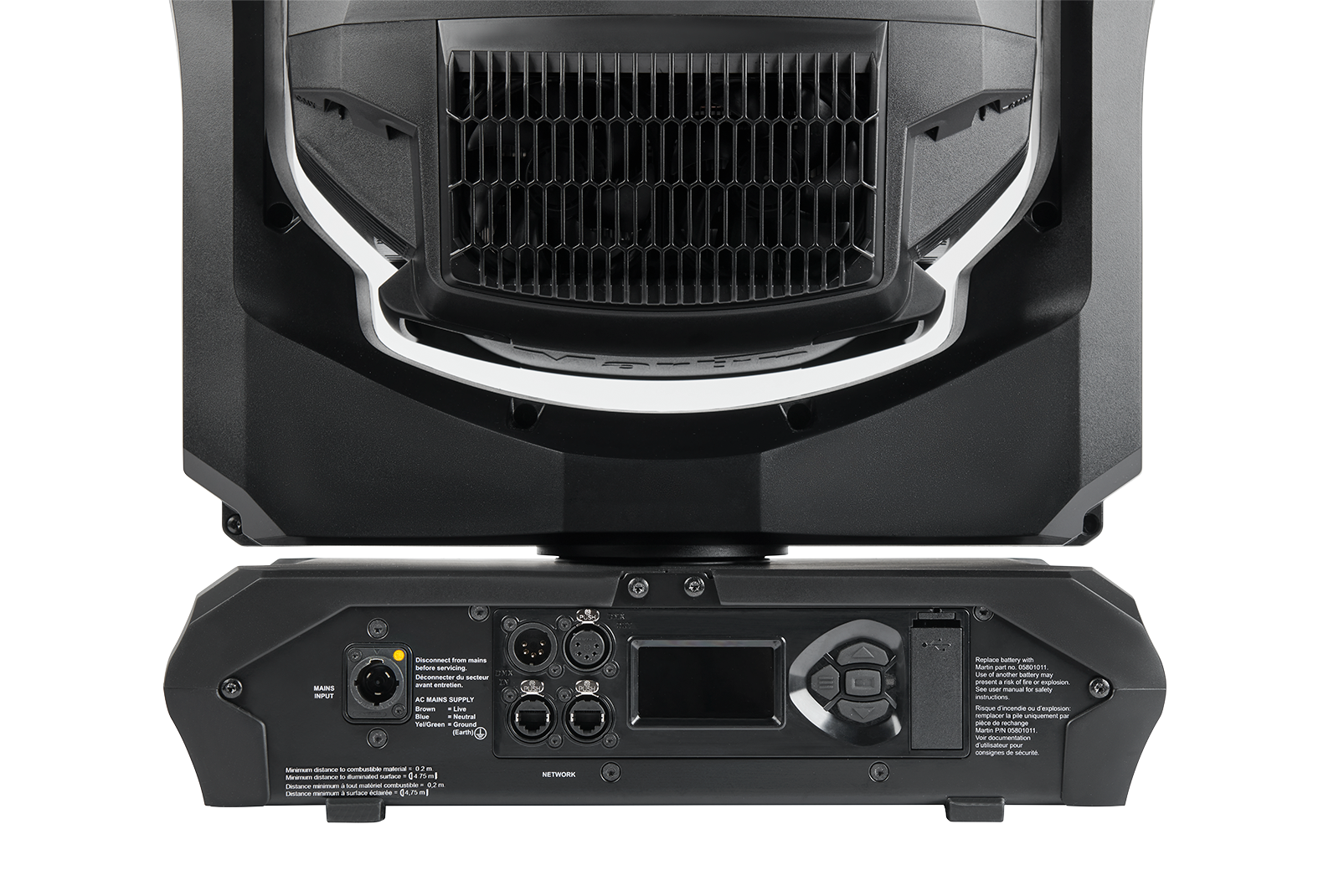

Connections
DMX and RDM data in/out: 5-pin locking XLR
AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON
Firmware from flash memory: USB 2.0 port
Electrical
AC power: 200-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
Power Factor: 0.99 @ 208 V / 230 V / 240 V
Max current draw: 8.0 A @ 208 V , 6.7 A @ 230 V / 240 V
Typical current draw: 6.6 A @ 208 V , 6.0 A @ 230 V , 5.7 A @ 240 V *
Power Consumption
Maximum: 1450 W
Typical: 1360 W *
Idle: 100 W *
Hibernation: 55 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F)
Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.5 db(A)
