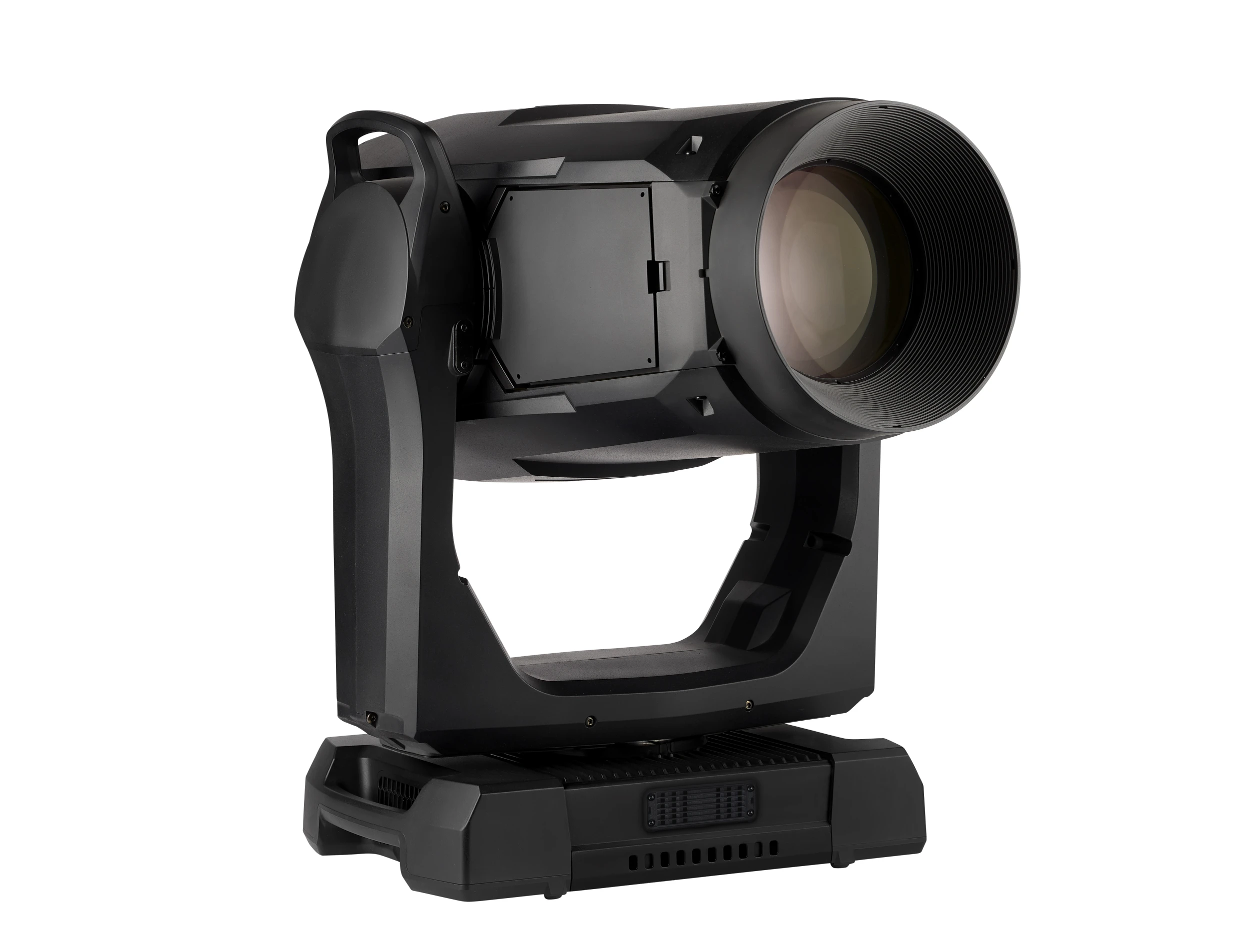

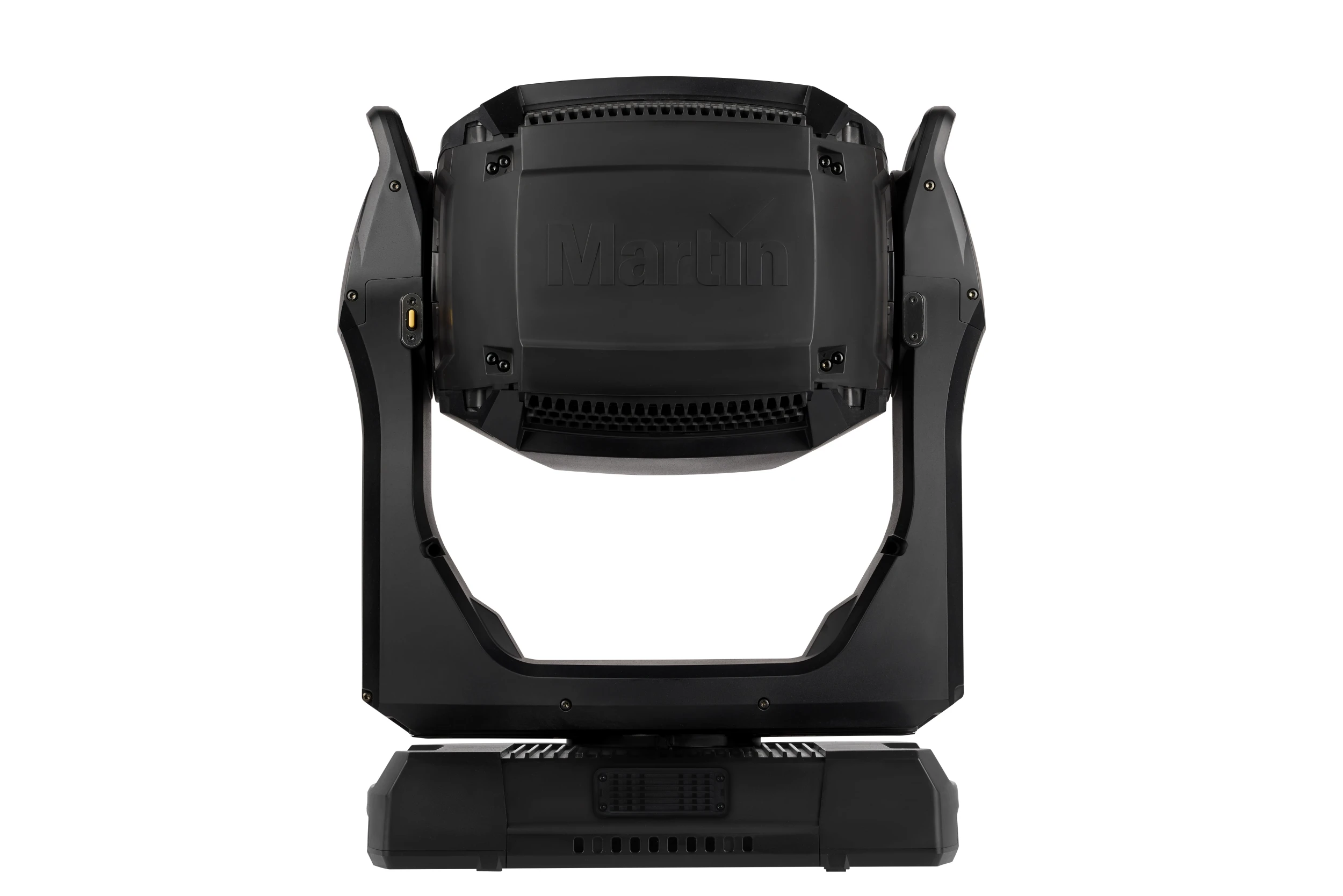

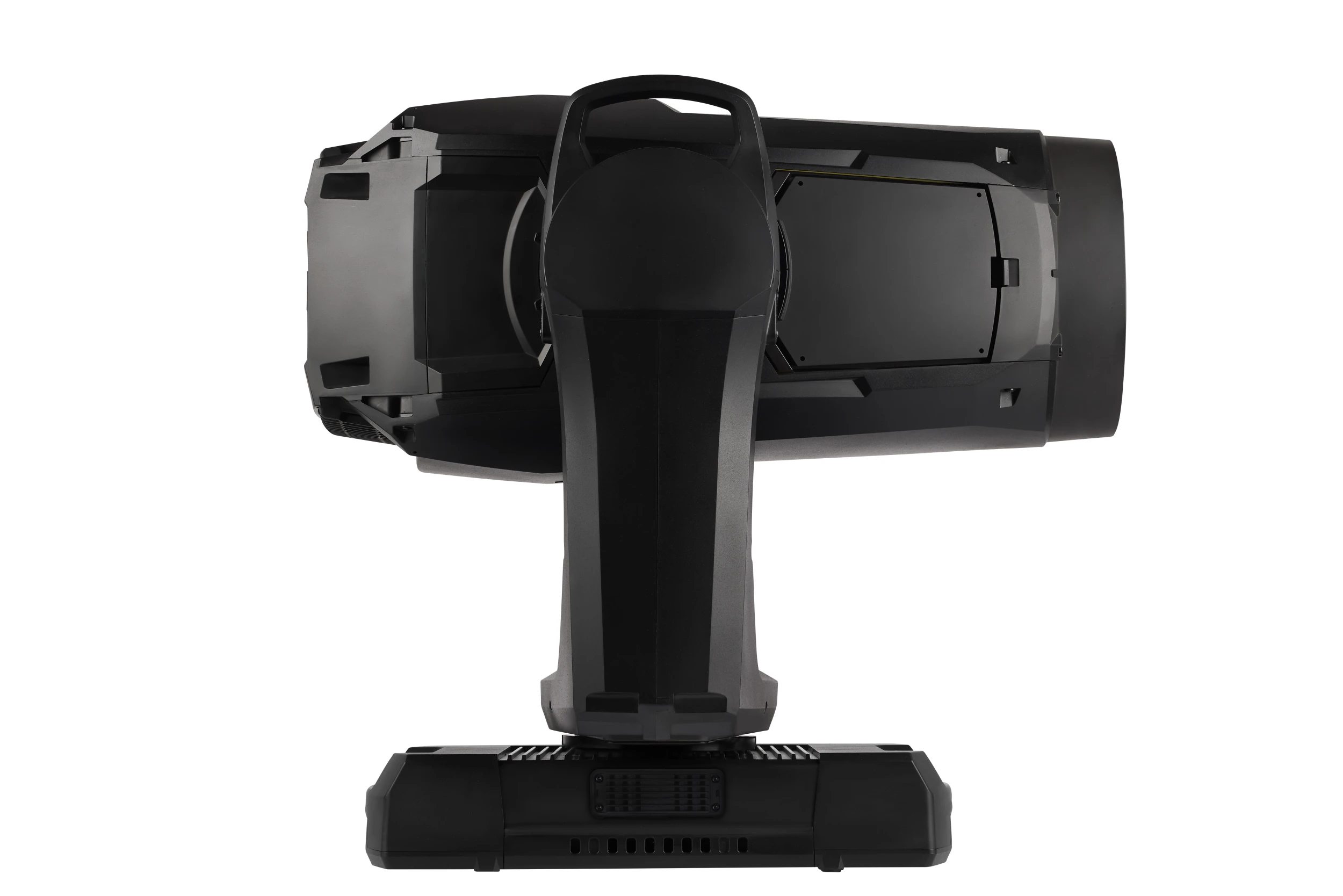

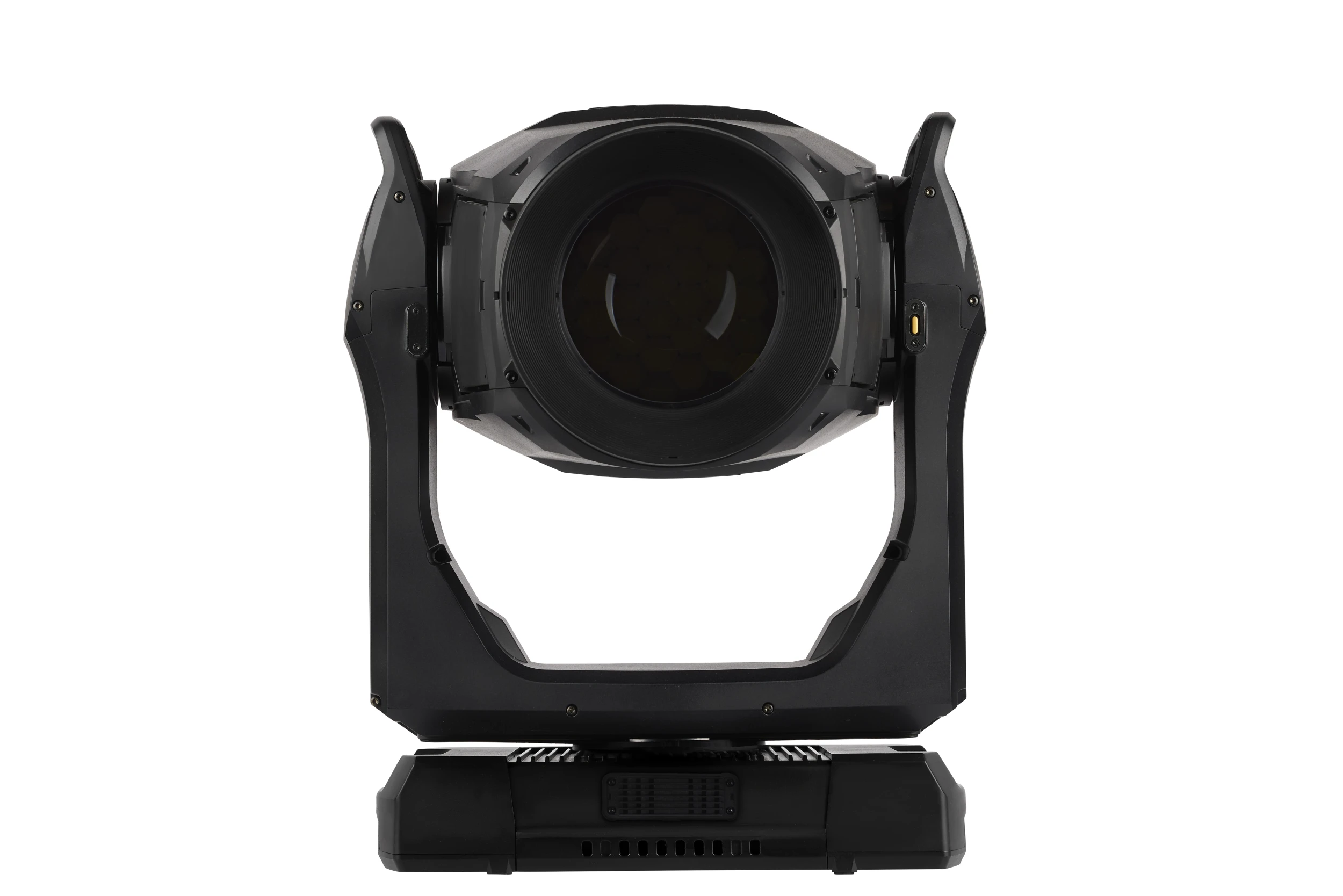

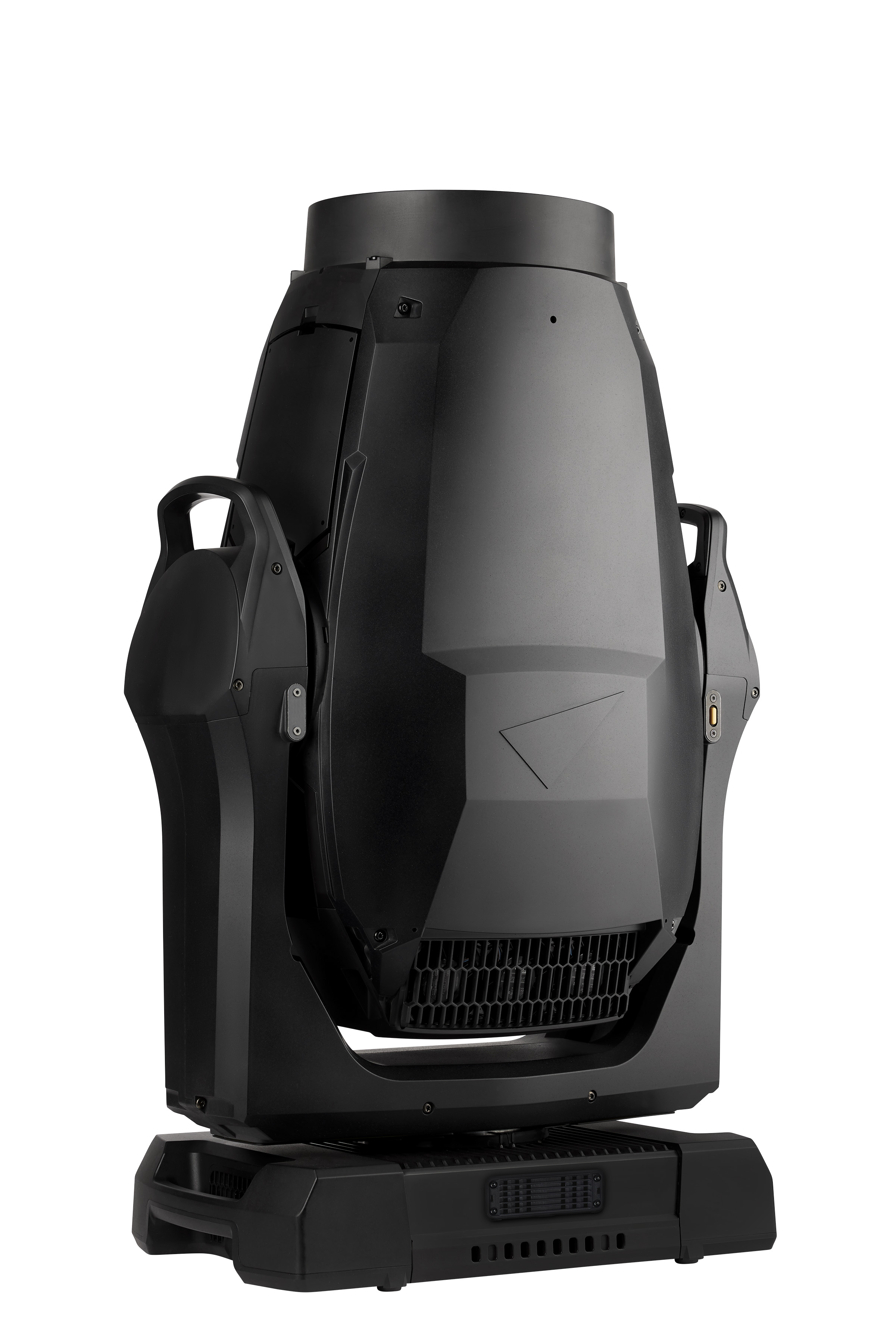

MARTIN MAC Viper XIP EPS
Šifra:
High-output, full-featured outdoor Moving Head
Specifications
Physical
Weight: 37.0 kg (81.1 lbs.)
Minimum center-to-center distance in side-by-side installation: 704 mm (27.7 in + Clearance)
Length (head): 594 mm (23.4 in.)
Length (base): 429 mm (16.9 in.)
Width (base): 281 mm (11.1 in.)
Width (across yoke): 479 mm (18.9 in.)
Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 5 x dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
Iris: Variable 0 - 100%, pulse effects
Zoom: Motorized
Color temperature control: Variable 5800 - 2850 K
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
Prism: 4-facet, indexing and continuous rotation
2 x Frost: Variable 0 - 100%, Heavy and Light
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°, coarse & fine control and speed
Tilt: 268°, coarse & fine control and speed
P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Rotating gobo wheel 1: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotation
Rotating gobo wheel 2: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotation
Gobo Color Temperature Correction: Automatic
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
DMX Modes: 3, Basic, Extended and Ludicrous
DMX channels: 54 (Basic), 64 (extended), 70 (Ludicrous)
16-bit Controllable Parameters: Dimming, Color Mixing + CTO, Gobo Rotation, Framing/Framing rotation, Iris, Prism Rotation, Animation wheel Rotation, Zoom, Focus, Pan and Tilt
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
NFC Interface: Martin Companion iOS and Android App
Local User Interface: Backlit LCD Display with battery-powered operation
Wireless DMX: via Universal Connect Module
Optics
Front lens diameter: 150 mm
Zoom range: 1:9 zoom range (5.7° - 51° field angle)
Light source: 55 x 20 W White LEDs in a custom Martin engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
Maximum Total LED Engine Power: 760 W
*Figure obtained under manufacturer’s test conditions
Photometric Data
Light engine luminous output: 56,000 lumens
LED refresh rate : 2,400 Hz
Photometric Data With Spectral Enhancement Filter
Fixture luminous output: 18,700 lumens
CRI (Color Rendering Index): 90 (+/- 3)
Photometric Data Standard
Fixture luminous output: 28,000 lumens
CRI (Color Rendering Index): 68 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 94 (+/- 3)
TLCI (Television Lighting Consistency Index): 44 (+/- 3)
CCT: 5,800 K (+/- 250 K)
Peak Luminous Intensity: 2.4 Mcd
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP54
RoHS: Compliant
REACH: Compliant
Gobos
Maximum image diameter: 22 mm (0.866 in.)
External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ - in.)
Maximum gobo thickness: 1.1 mm (0.04 in.)
Coating: Heavy matted aluminum
Material: Borofloat 33
Installation
Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor or Temporary Outdoor use, must be fastened to surface or structure
Orientation: Any, except with display facing upwards in outdoor application
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)
Connections
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
Firmware from flash memory: USB 2.0 type C port
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Accessory Plug-In: Universal Connect Module Slot
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 200 V , 4.6 A @ 240 V
Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
Power Consumption
Maximum: 1040 W
Typical: 945 W *
Idle: 120 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature: -10° C (Ta min) – Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
Total heat dissipation (calculated, +/- 10%): 3,550 BTU/hr.
