MARTIN P3 PowerPort 1000 IP Installation
Šifra:
Outdoor power & data unit for Martin Creative LED
Specifications
Physical
Length: 426 mm (16.8 in.)
Width: 483 mm (19.1 in.)
Height: 146 mm (5.8 in.)
Weight: 8 kg (17.7 lbs.)
Control and Programming
Addressing and status: Via P3 System Controller
Mapping: Via P3 System Controller
Firmware update: Via P3 System Controller
Control/User Interface

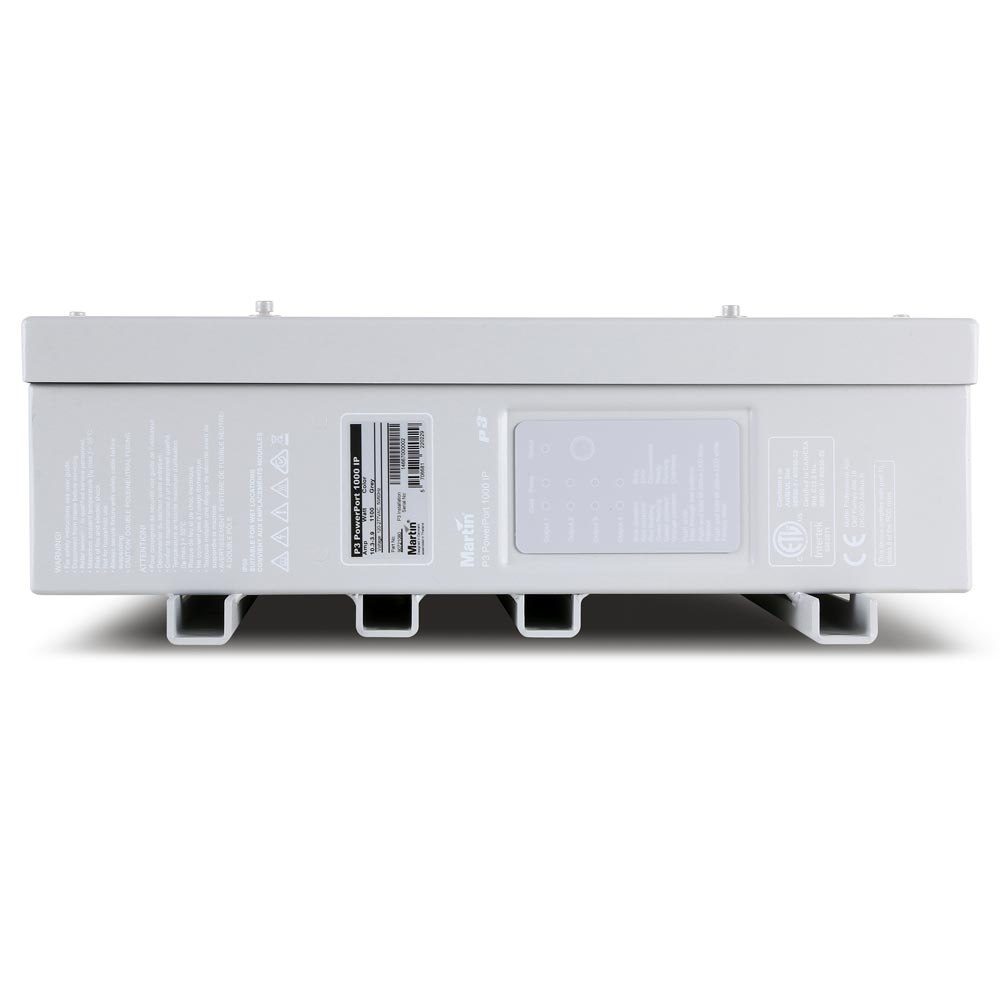

Device status: Multicolor status LED
Power output status: Four LEDs
Data output status: Four LEDs
Device test and reset: Pushbutton to call up local test patterns and reset device
Status LEDs and pushbutton can be disabled remotely if required.
P3 Signal Protocol
Signal type: Gigabit Ethernet
Protocol : Proprietary Martin P3
Hot pluggable: Yes, electrically isolated at all connections
Cable type: Ethernet, CAT 5e or better
Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber
Construction
Housing: Aluminum
Color: Alu grey (customized colors available on project basis)
Protection rating: IP66
NEMA enclosure rating: Type 3
Effective Projected Area (EPA): 0.21 m2
Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
RoHS compliant
Installation
Mounting: Brackets for installation on flat surface
Orientation: Any, except with cable glands facing up or lid facing down
Connections

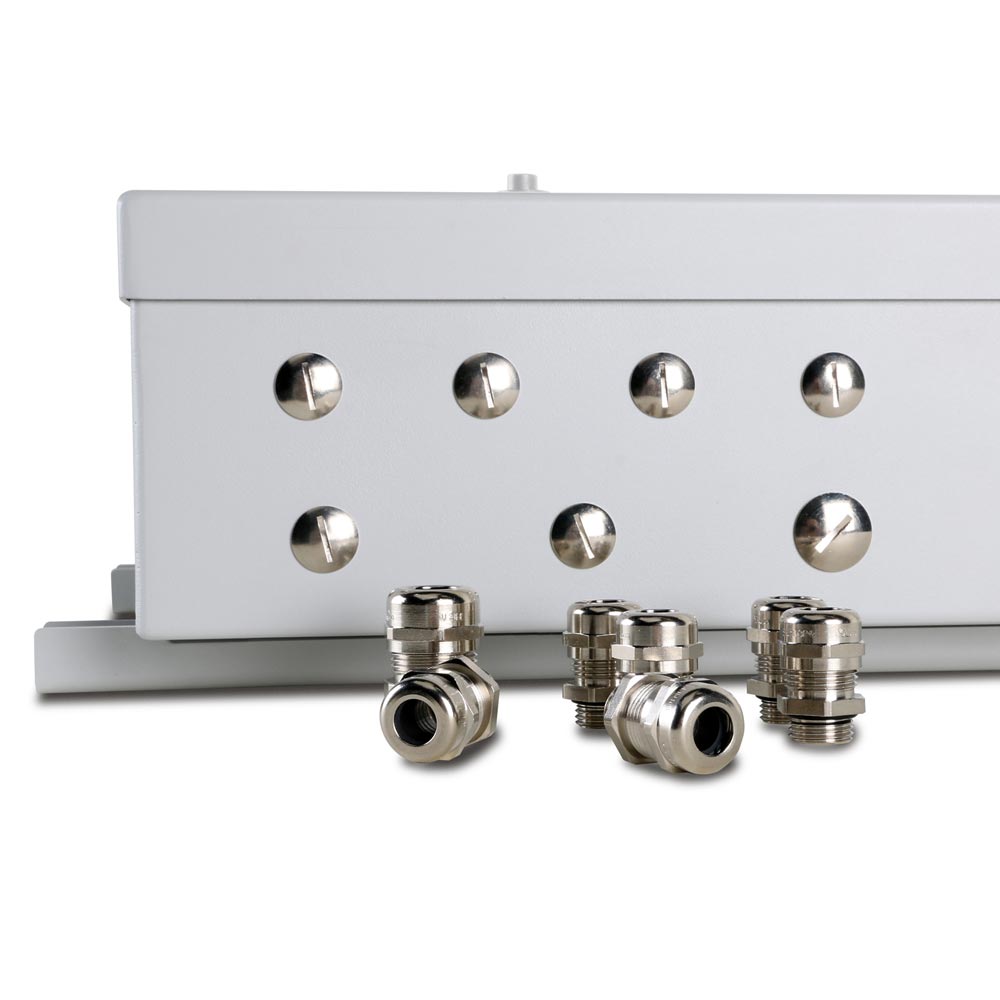

Power input: Cable gland (M20), internal screw terminals
P3 data in/out: Two cable glands (M16), two internal RJ45 connectors (if copper-to-fiber unit is installed, one cable gland can be used for fiber)
M16 cable glands accept 5.5 - 10 mm cable, M20 glands accept 8-13 mm cable.
Combined power & data out: Four cable glands (M16), internal screw terminals
Electrical
AC power: 120-277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity)
Typical half-cycle RMS inrush current: 20.9 A
Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 55° C
Minimum ambient temperature (Ta min.): -30° C
Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)
