MARTIN P3 PowerPort 1500
Šifra:
Indoor power & data unit for Martin Creative LED
Specifications
Physical
Width: 482 mm (19.0 in.)
Height: 88 mm (3.5 in.) rackmount 2U
Depth: 335 mm (13.2 in.)
Weight: 10 kg (22.1 lbs.)
Control and Programming
Addressing and status: Via P3 System Controller
Mapping: Via P3 System Controller
Firmware update: Via P3 System Controller

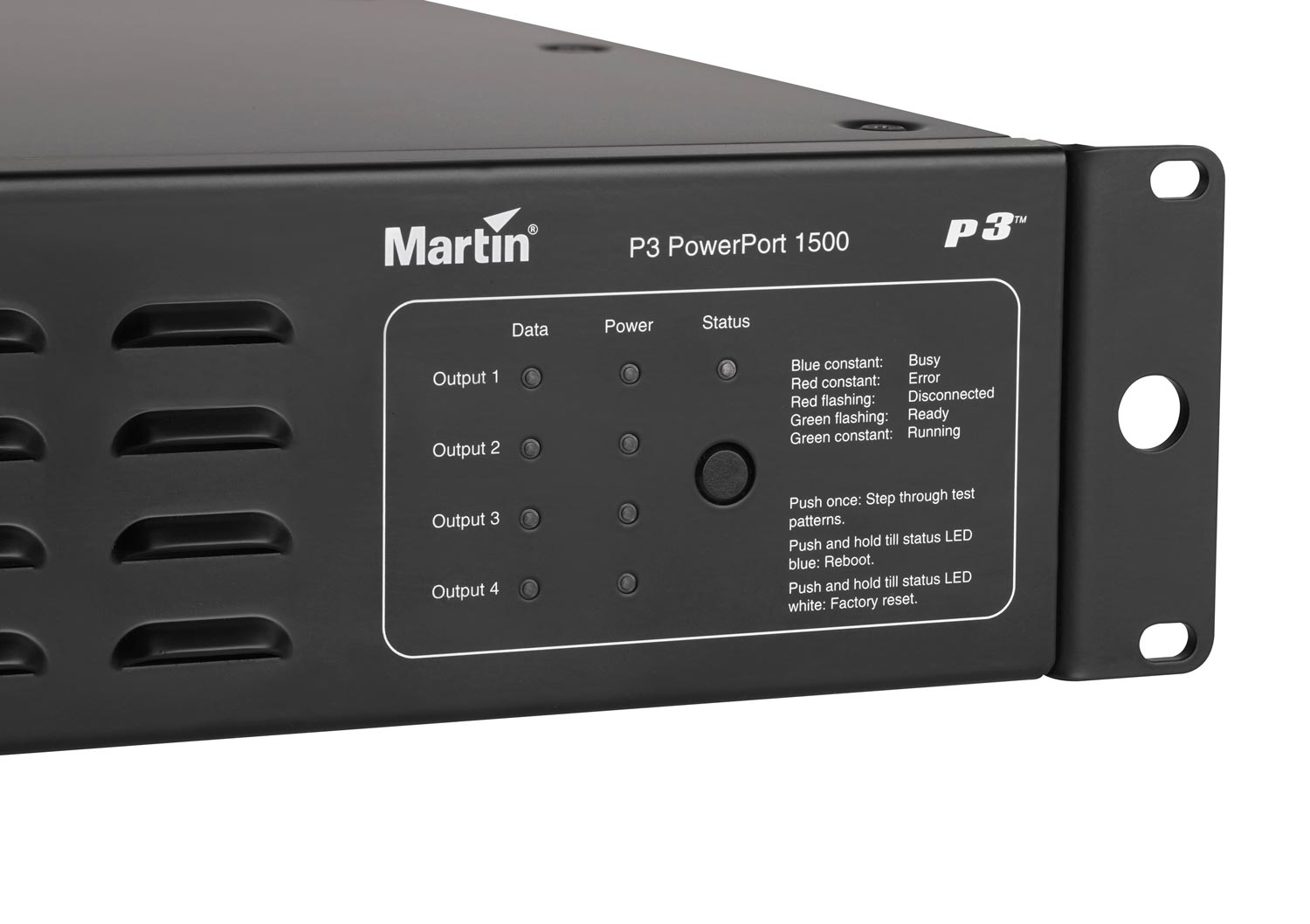

Control/User Interface
Device status: Multicolor status LED
Power output status: Four LEDs
Data output status: Four LEDs
Device test and reset: Pushbutton to call up local test patterns and reset device
P3 Signal Protocol
Signal type: Gigabit Ethernet
Protocol : Proprietary Martin P3
Hot pluggable: Yes, electrically isolated at all connections
Cable type: Ethernet, CAT 5e or better
Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
Construction
Housing: Steel and aluminum
Color: Matte black
Protection rating: IP20
Installation

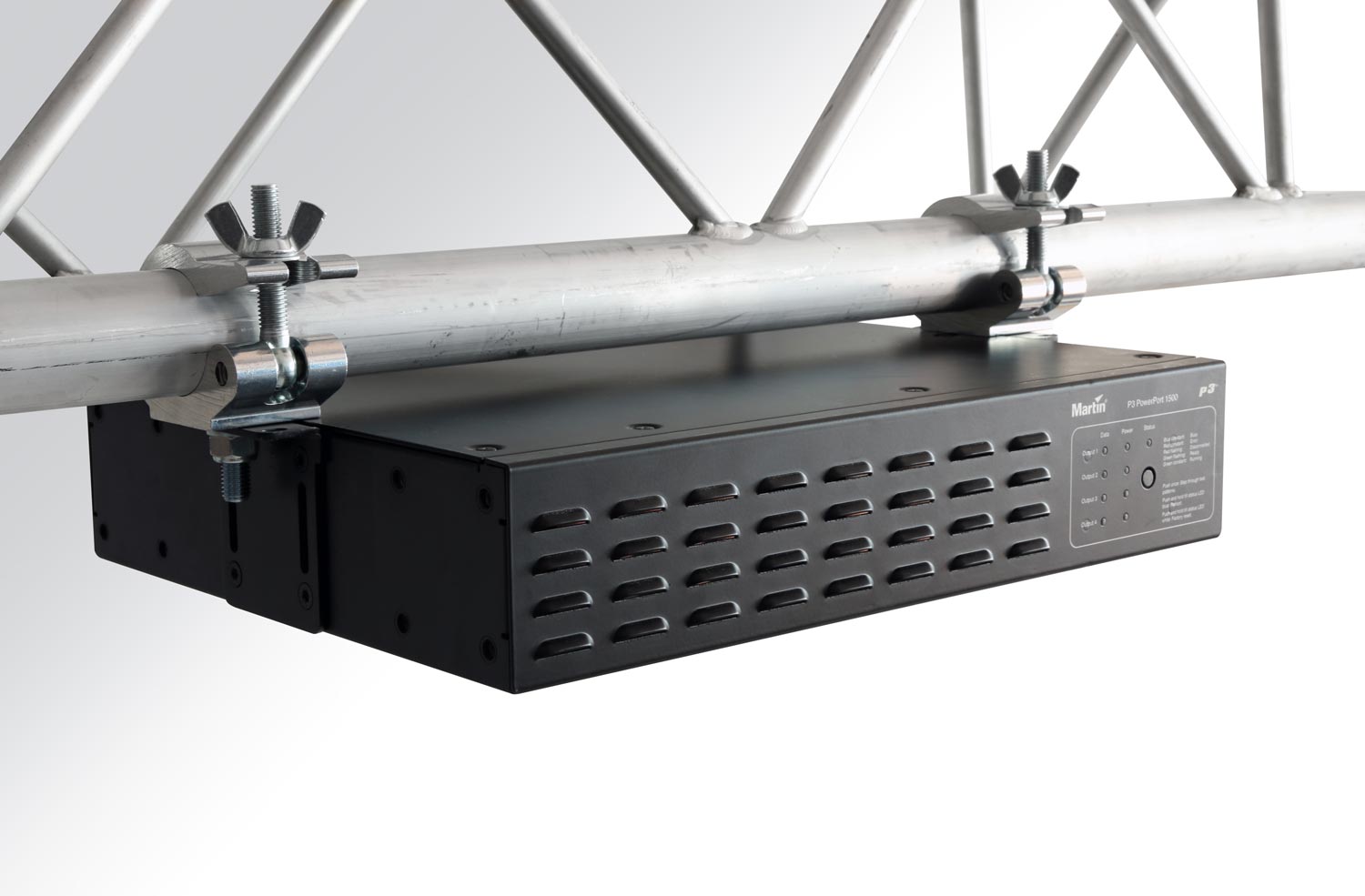

Mounting: 19-inch rackmount, wall mount, flown from rigging clamps

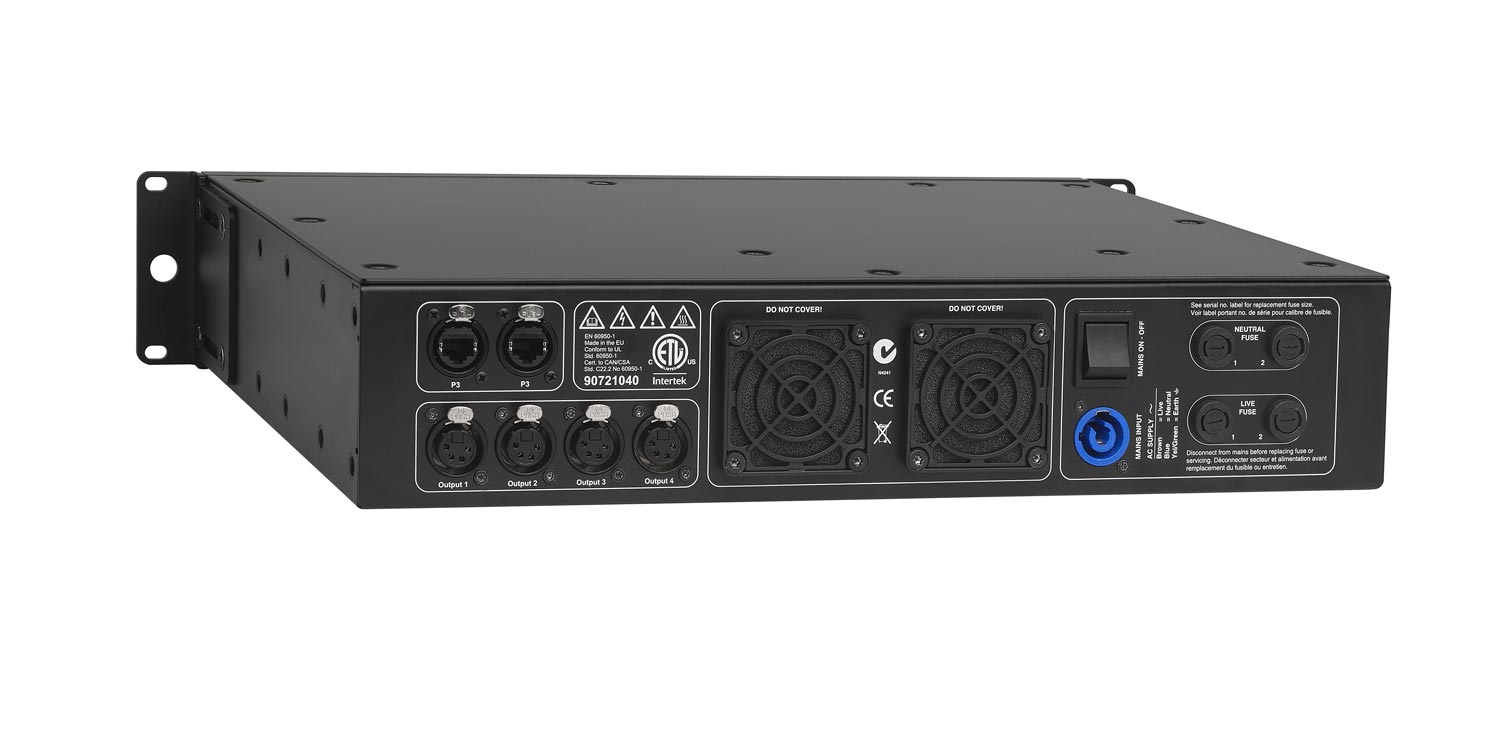

Connections

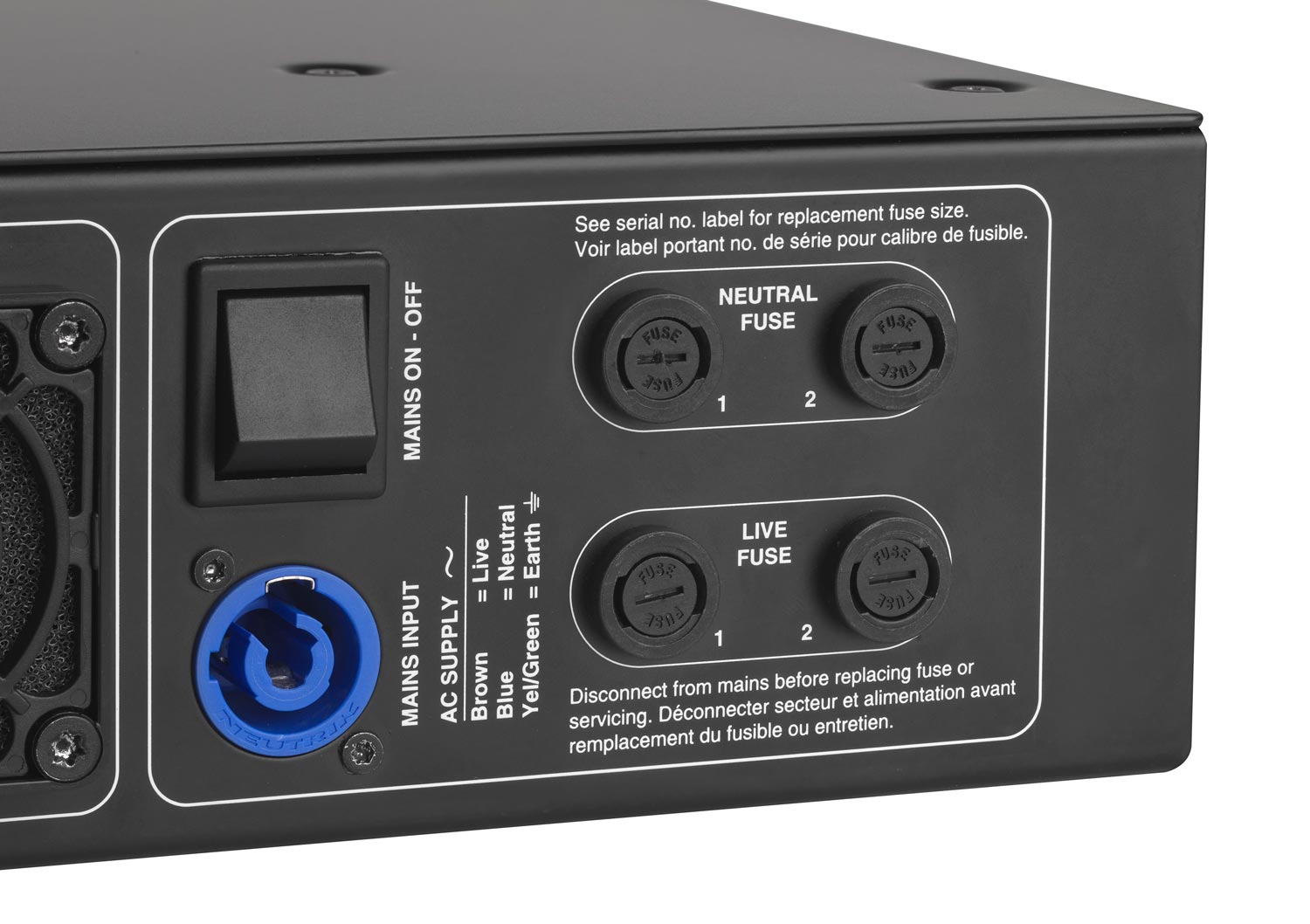

Power input: Neutrik PowerCon

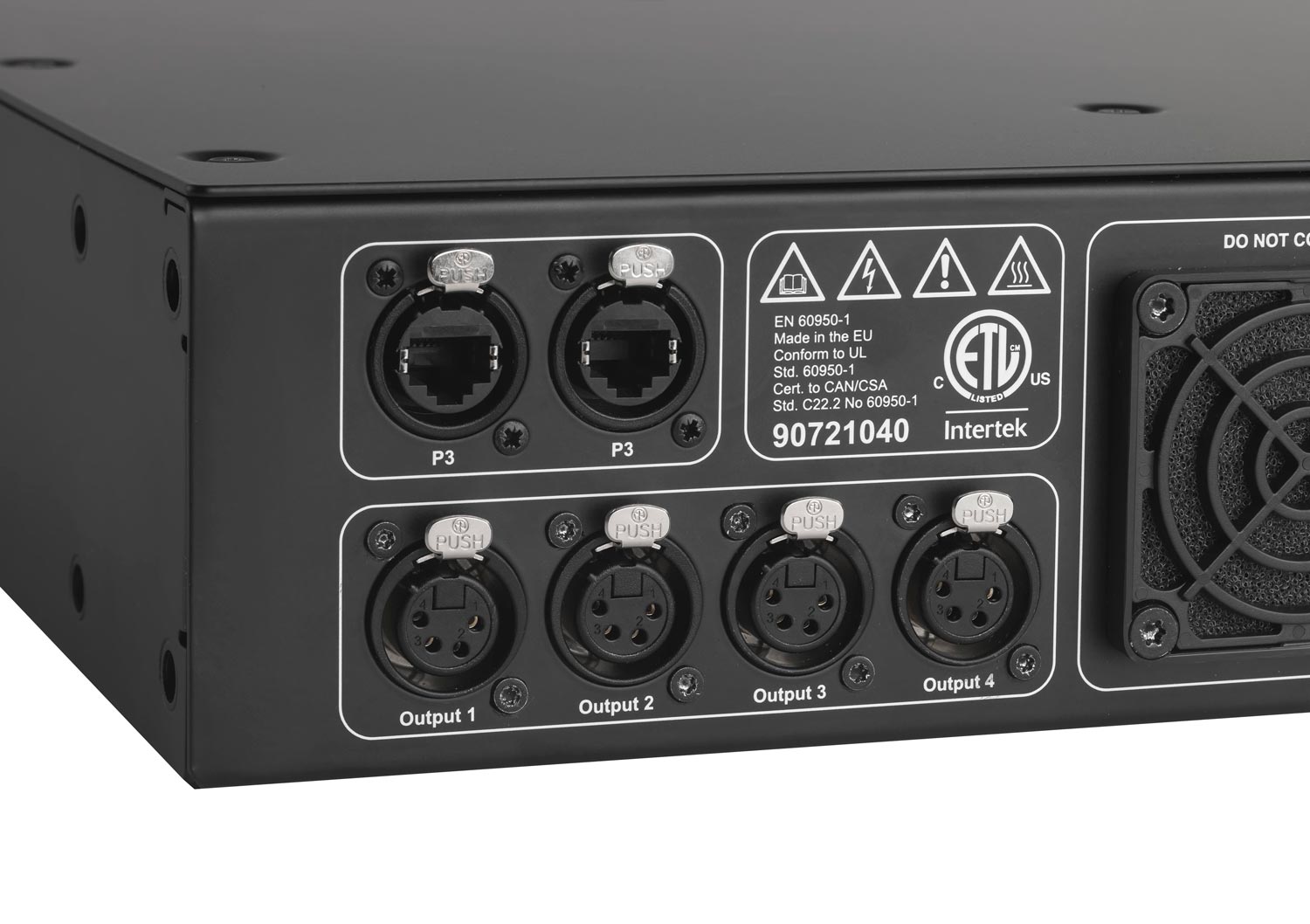

P3 data in/out: Two Neutrik Ethercon RJ-45 sockets
Combined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable)
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity)
Main fuse: 10 AT (slow blow) x 4
Thermal
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -20° C
Total heat dissipation (calculated, +/- 10%):
530 BTU/hr. (not including display devices but with system at full load)
