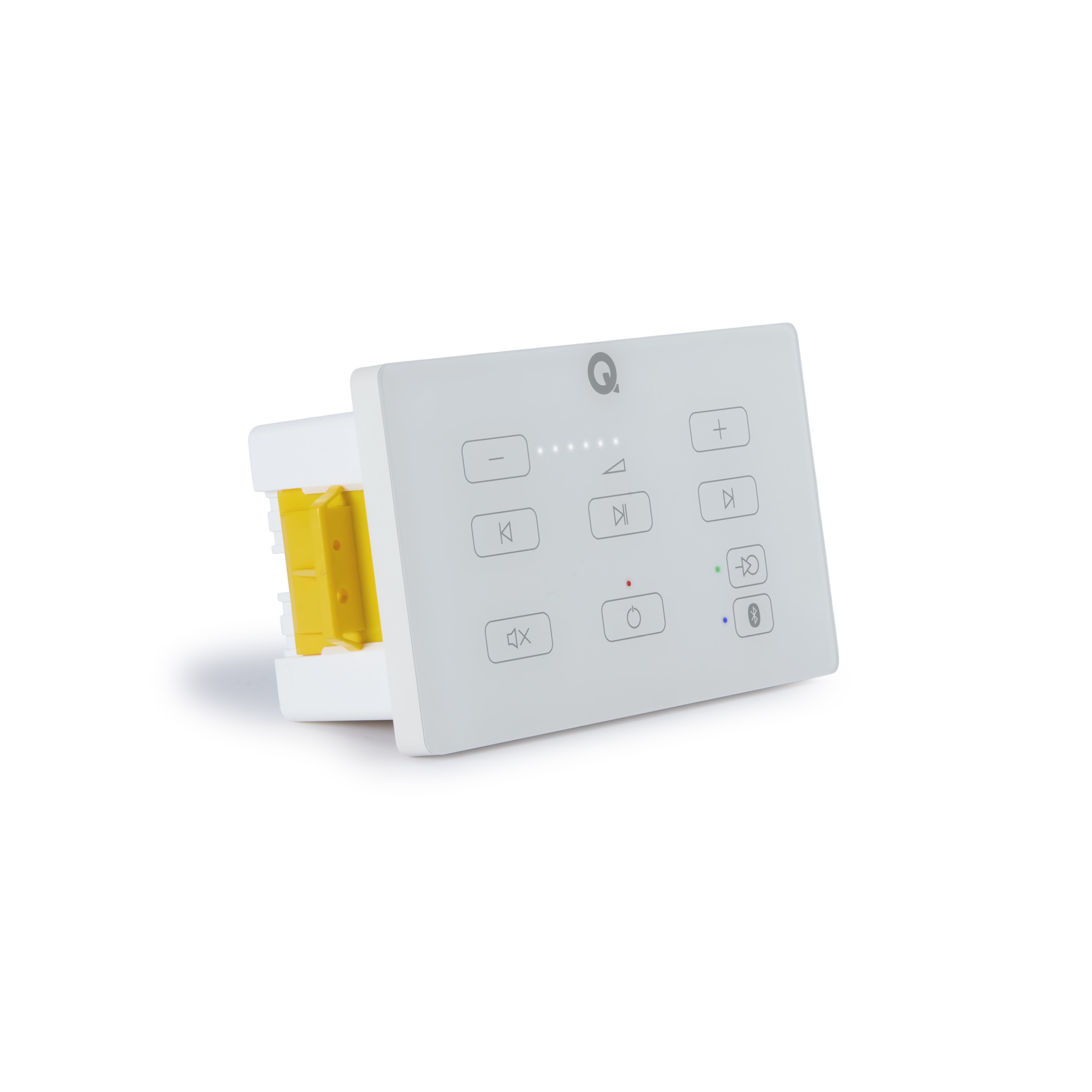

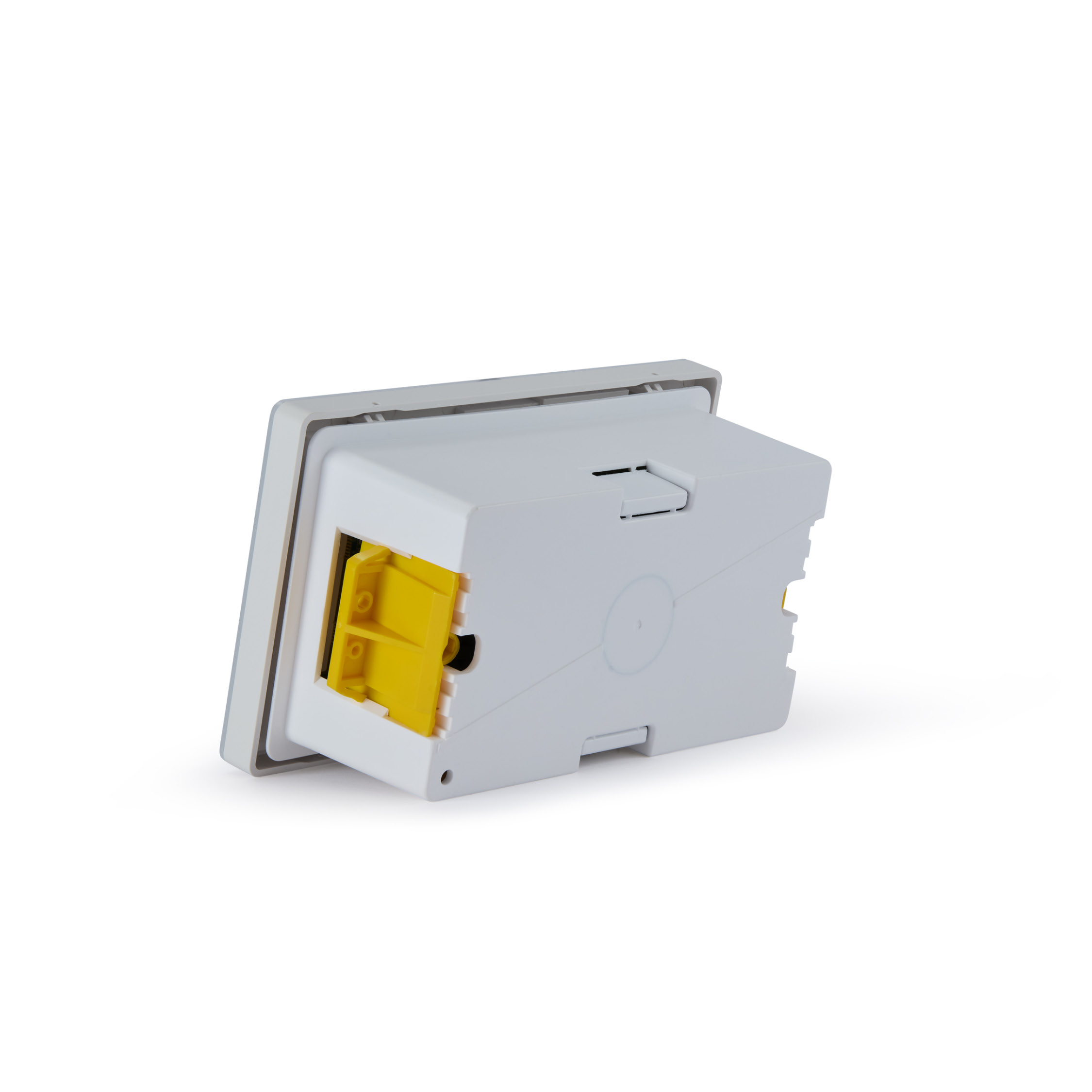

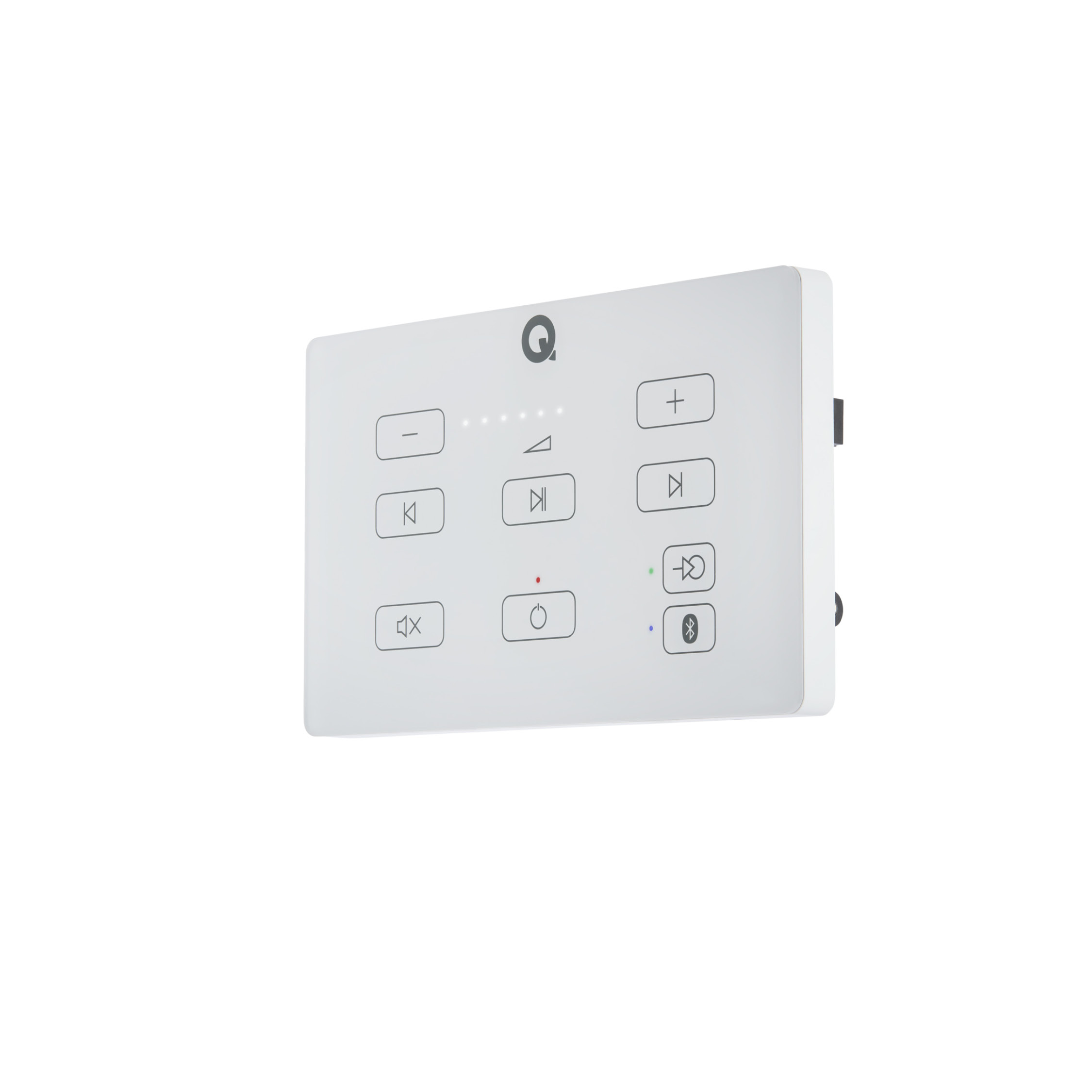

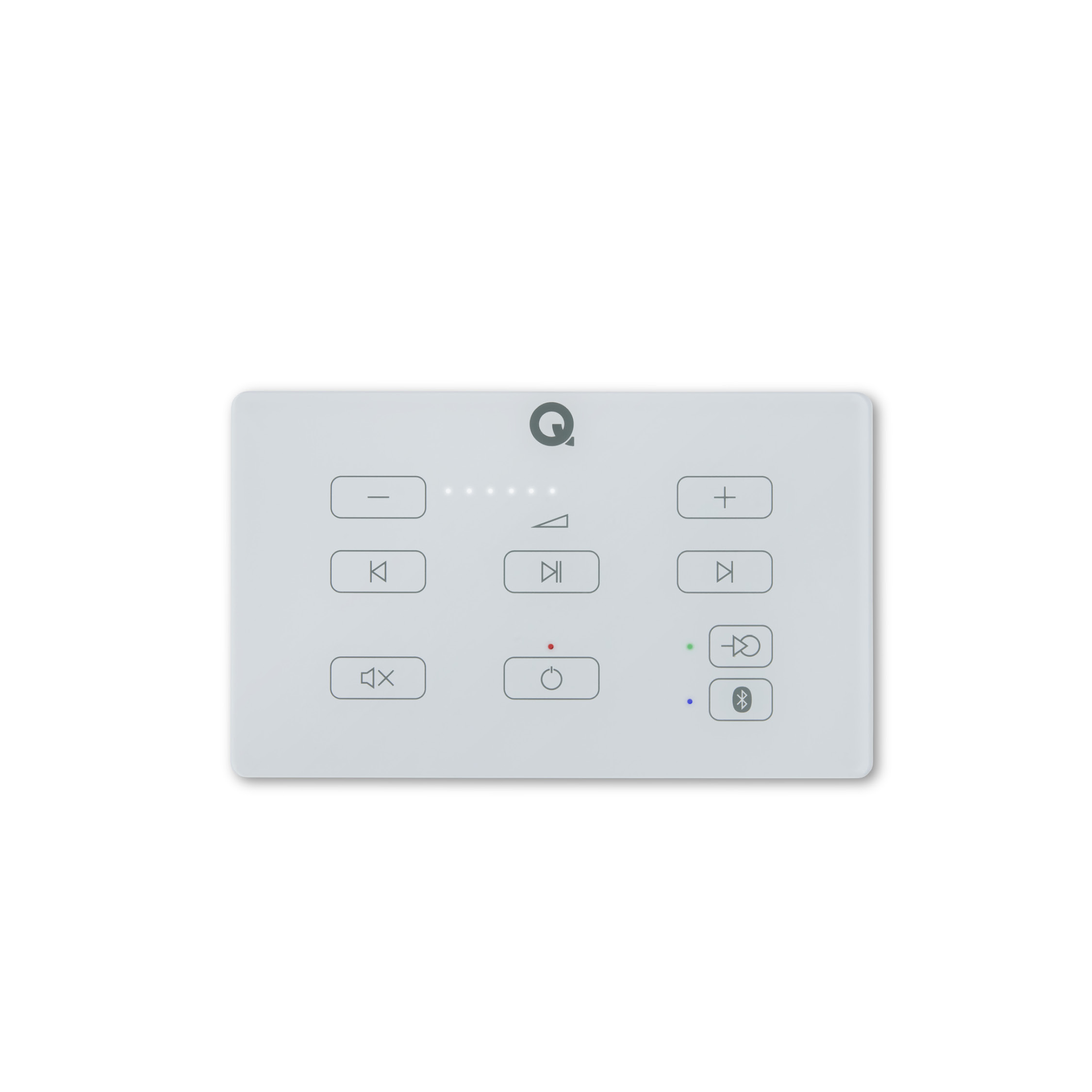

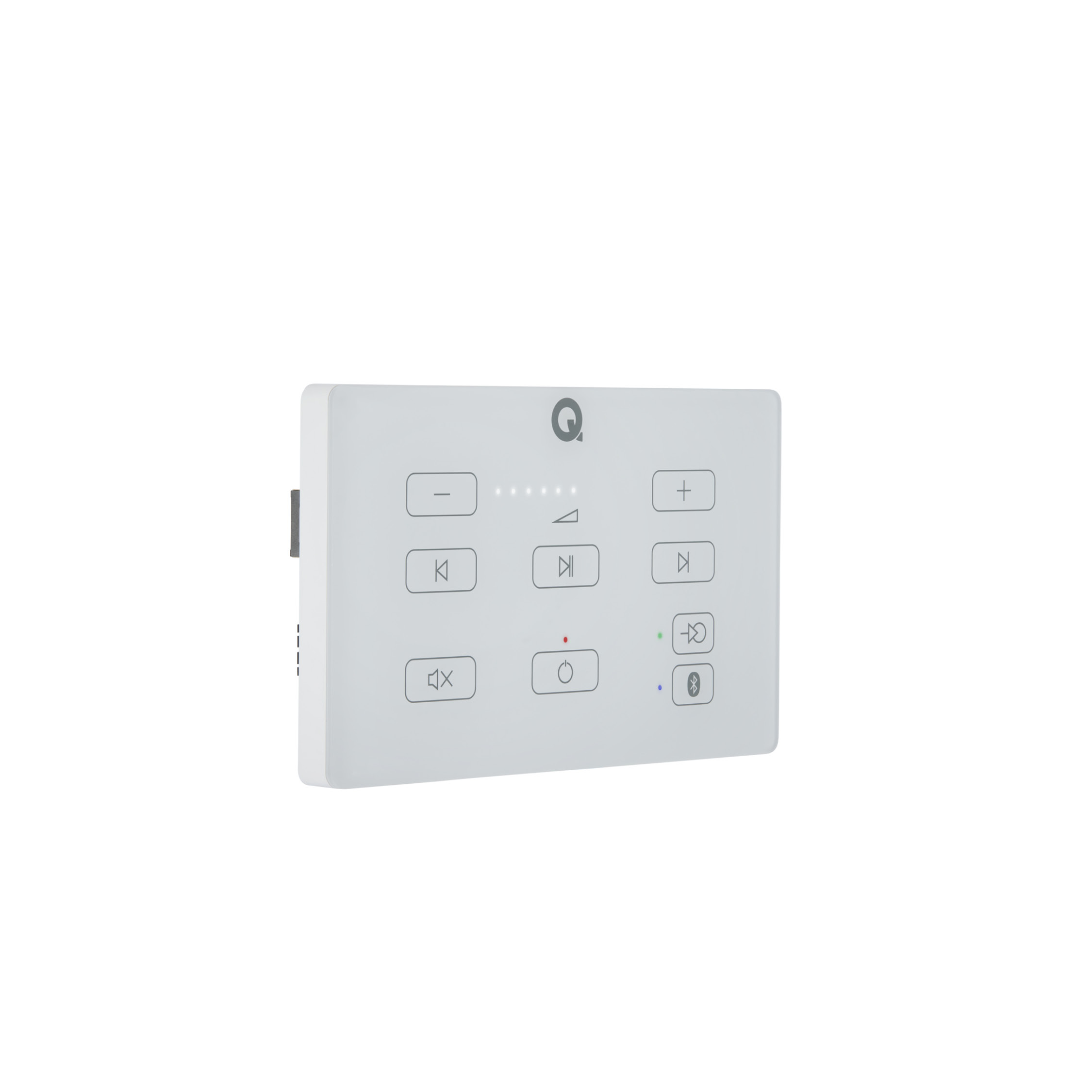

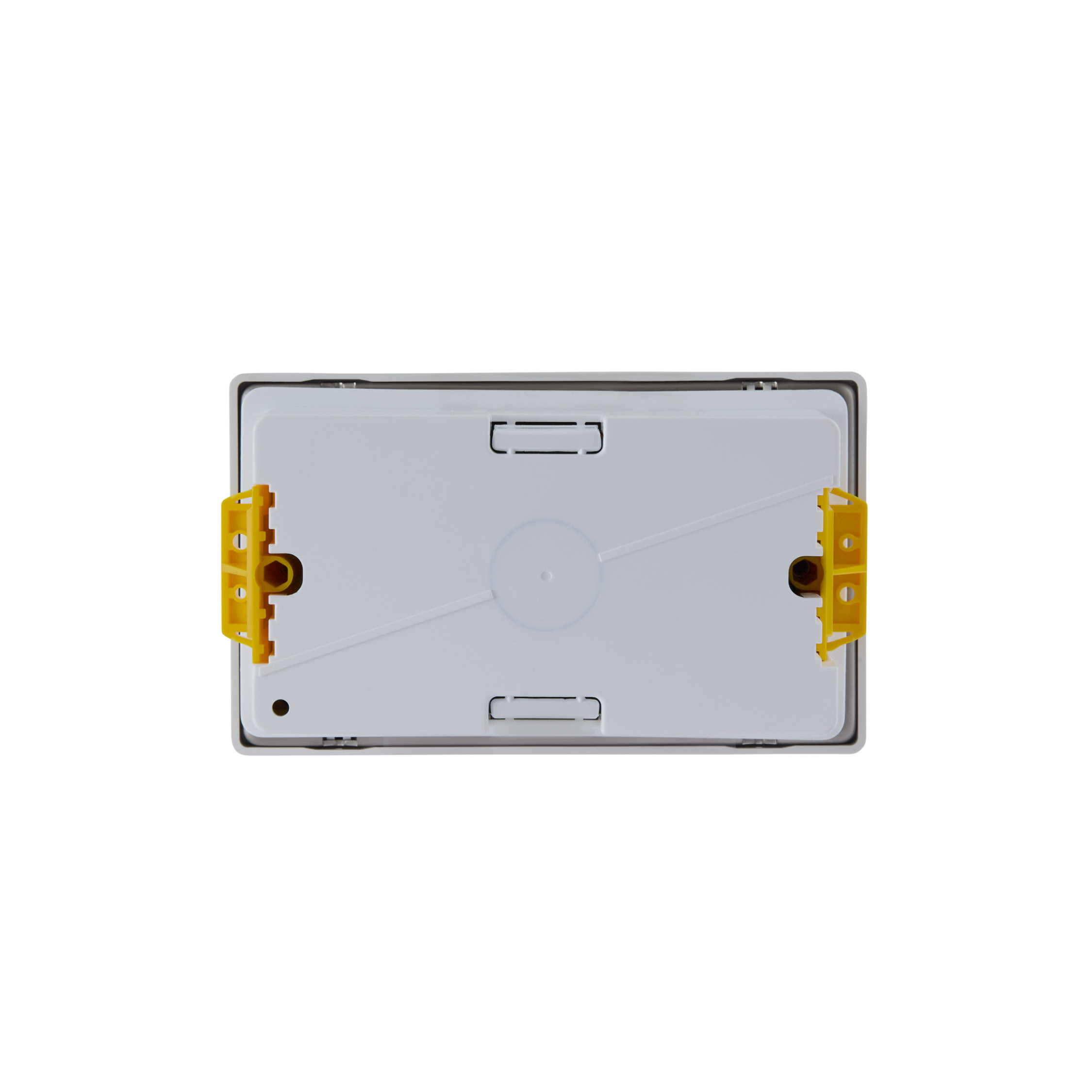

Q Acoustics E60 System Pack White
Â
An affordable in-wall audio system delivering powerful, high-quality sound with easy installation. A splash-proof design suits kitchens and bathrooms, while Bluetooth and optical connectivity support wireless music streaming or TV audio. Flexible mono or stereo playback, scalable outputs, and intuitive touch controls ensure effortless everyday performance anywhere in the home.
Â
Wireless
Bluetooth: BT 5.0, A2DP
AUX
Optical TOSLINK: Resolution: 16bit 48kHz
Speaker Outputs:
• Left & Right
• Stereo or dual mono
Analogue Line
3.5mm stereo:
• Modes: Fixed or variable
• Max level: 670mV
Amplifier Type
Class D:
• Continuous power: 2 x 25W @ 6Ω
• THD: 0.07% @ 1W / 0.2% @ rated power
• SNR: >75dB @ rated power
• Frequency response: 20Hz - 20kHz ± 1dB
Ratings: E60 wall panel: IP54:Â
Control:
• Touch sensitive buttons: x 9
• BT AVRCP: v1.6 (play, pause, skip, track)
Power Supply:
• Input: 100 - 240V AC 50/60 Hz
• Output: 22V DC 1.5amps
• Dimensions (HxWxD): 30mm x 50mm x 115mm
Power Consumption:
• Typical: 10W
• Standby: <2W
Wall Panel:
• Net weight: 1.3kg
• Dimensions (HxWxD): 91mm x 151mm x 33mm
• Operating ambient temperature: Max. 40 ºC
Speaker Cable:
• Gauge: 19 AWG
• Lengths: 2 x 7m
DC Extension
Gauge: 16 AWG
Lengths: 5m
Connectors:
• 5.5mm x 2.5mm DC male
• 5.5mm x 2.5mm DC female
