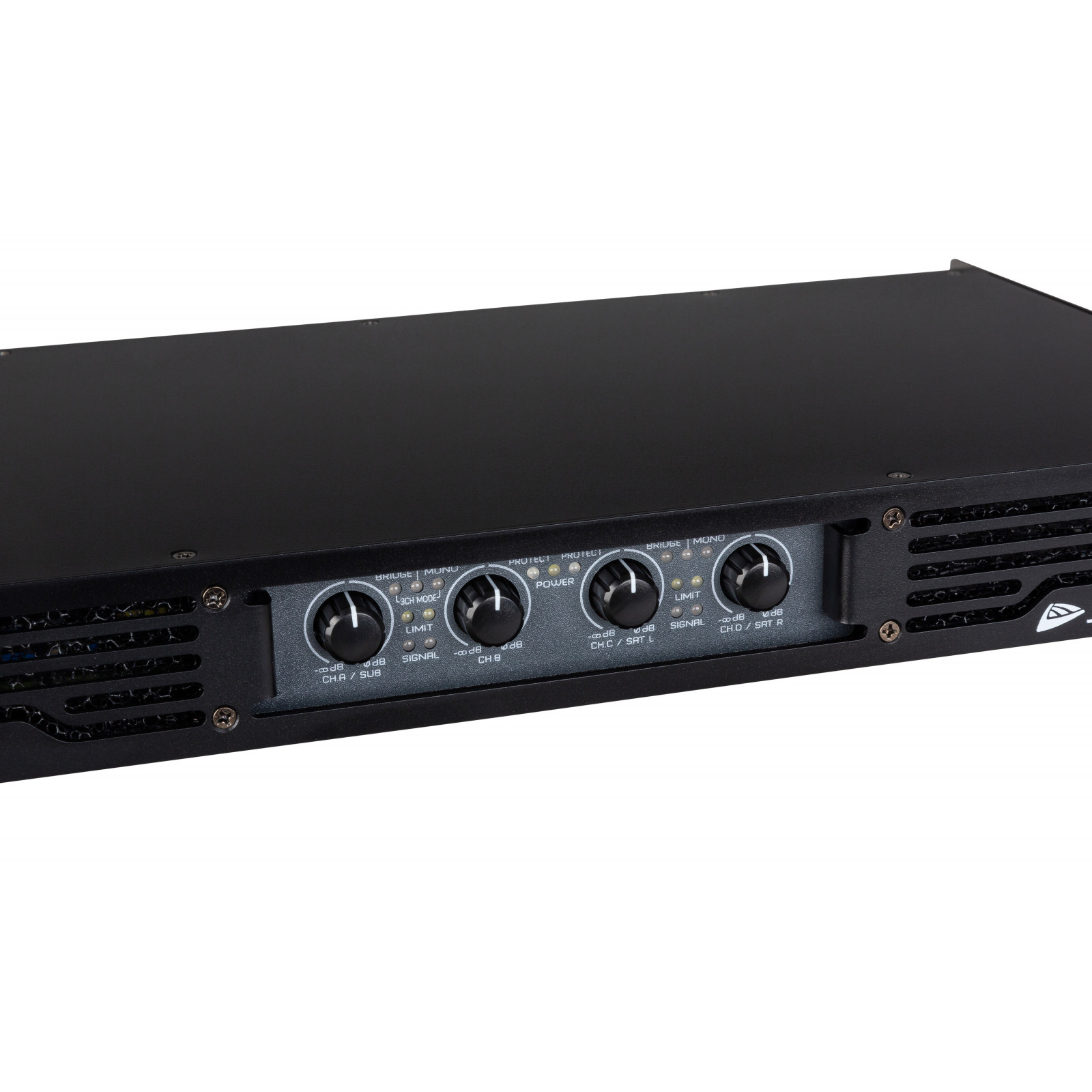

Professional 4-channel power amplifier in an extremely compact 19" 1U-housing
-Professional 4-channel power amplifier in an extremely compact 19" 1U-housing (H: 44mm)

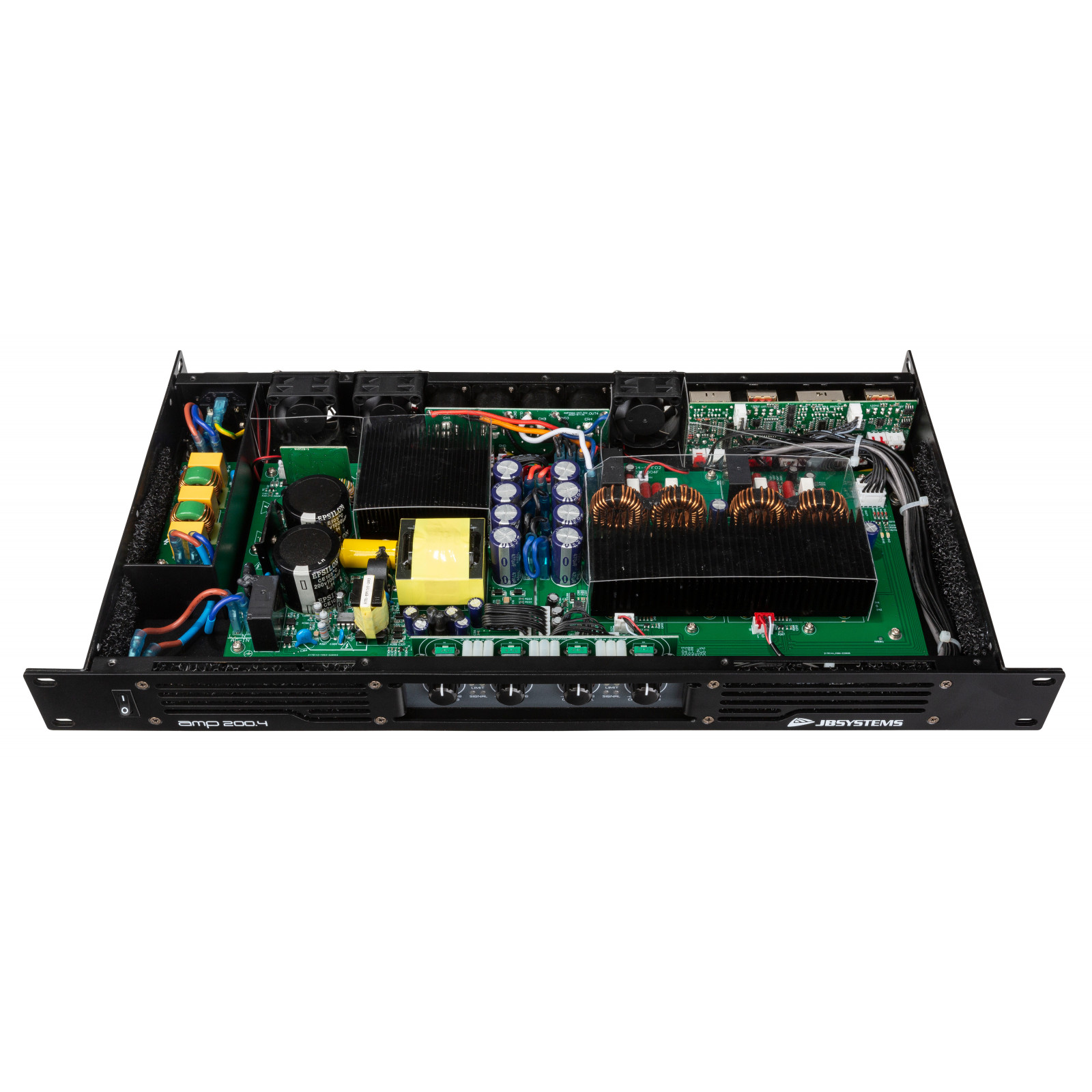

-The unit houses 2 separate class-D amplifiers that can be configured independently to obtain the following combinations:
Both amps in stereo mode: 4x 200Wrms @ 4Ω (4x 100Wrms @ 8Ω)
Both amps in mono mode: 4x 200Wrms @ 4Ω (4x 100Wrms @ 8Ω)
Both amps in Bridge mode: 2x 400Wrms @ 8Ω
3 Channel mode (2 sattelites + sub): 2x 200Wrms @ 4Ω (or 2x 100Wrms @ 8Ω) + 1x 400Wrms @ 8Ω
-120Hz High Pass Filter on/off switch for satellite speakers
-120Hz Low Pass Filter on/off switch for subwoofer
-DC fault + high temperature + overload and short circuit protections

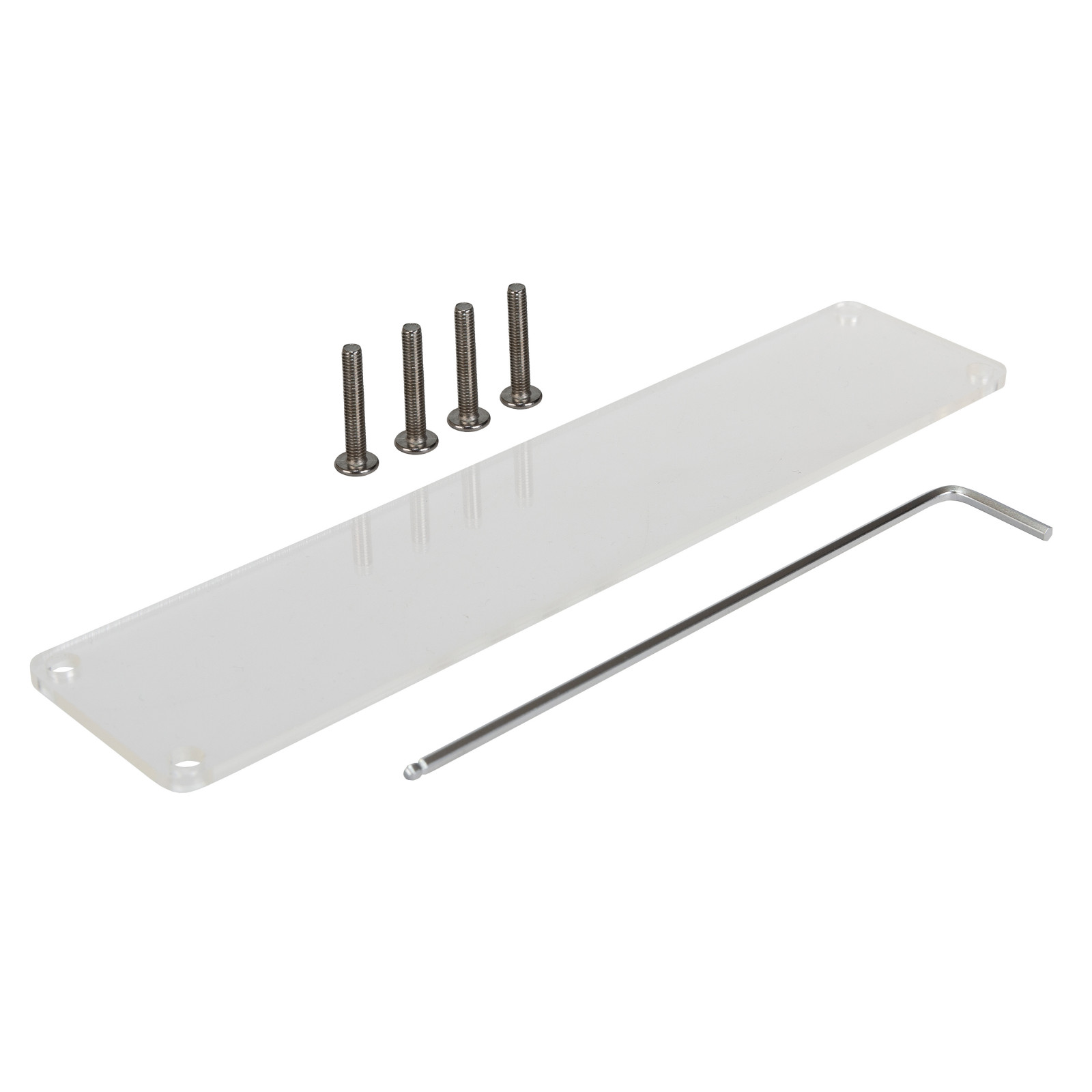

-A plastic cover (included) can be installed to prevent access to the level knobs

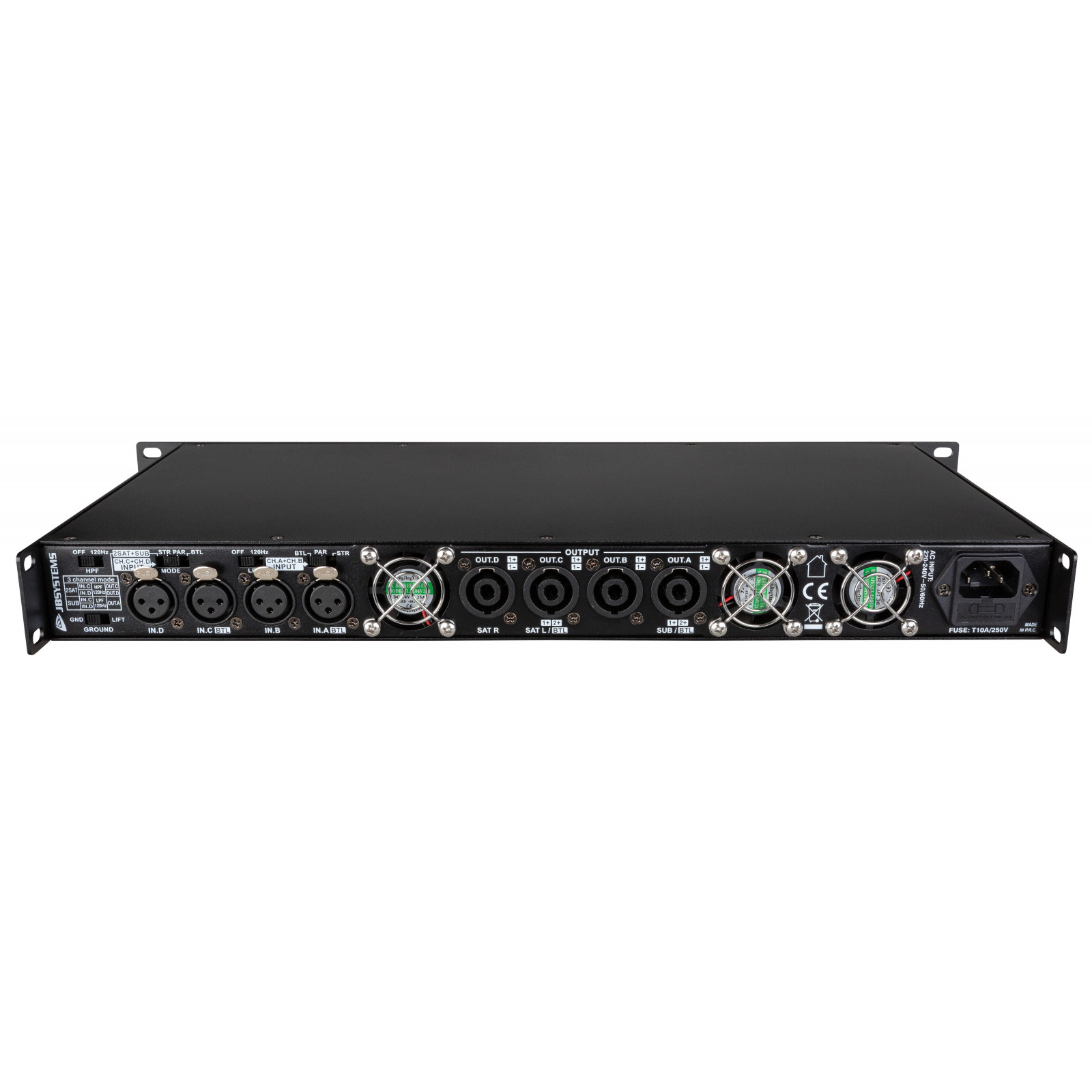

-Balanced XLR inputs
-Speakon® compatible outputs
|
General : Dimensions (cm) |
48.3 x 4.4 x 24 |
|
General : Weight (kg) |
4.71 |
|
General : Color |
black |
|
General : Powerinput |
AC 230V, 50Hz |
|
General : Energy Label |
No |
|
General : Display |
No |
|
General : RU |
1U |
|
General : IP rating |
indoor |
|
Audio : min. frequency (Hz) |
20 |
|
Audio : max. frequency (Hz) |
20000 |
|
Audio : frequency range |
120 |
|
Audio : S/N ratio (> dB) |
100 |
|
Audio : max. output channels |
4 |
|
Audio : Wrms 4Ω stereo, per channel |
200 |
|
Audio : Wrms 8Ω stereo, per channel |
100 |
|
Audio : Wrms 8Ω bridge |
400 |
|
Audio : functions |
fixed crossover |
|
Connections : input |
3 pin XLR, IEC |
|
Connections : output |
speakon |
Opis nije dostupan
