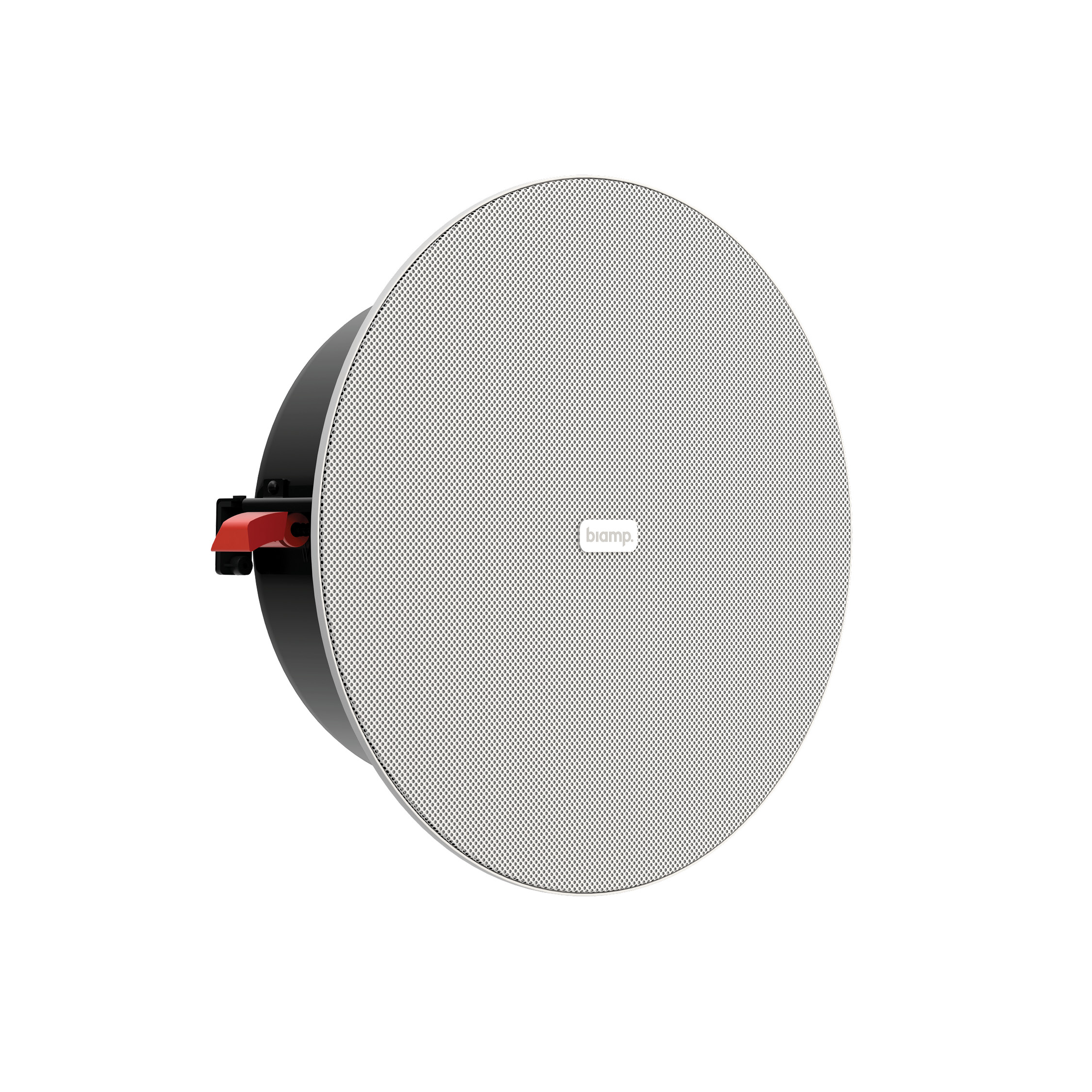

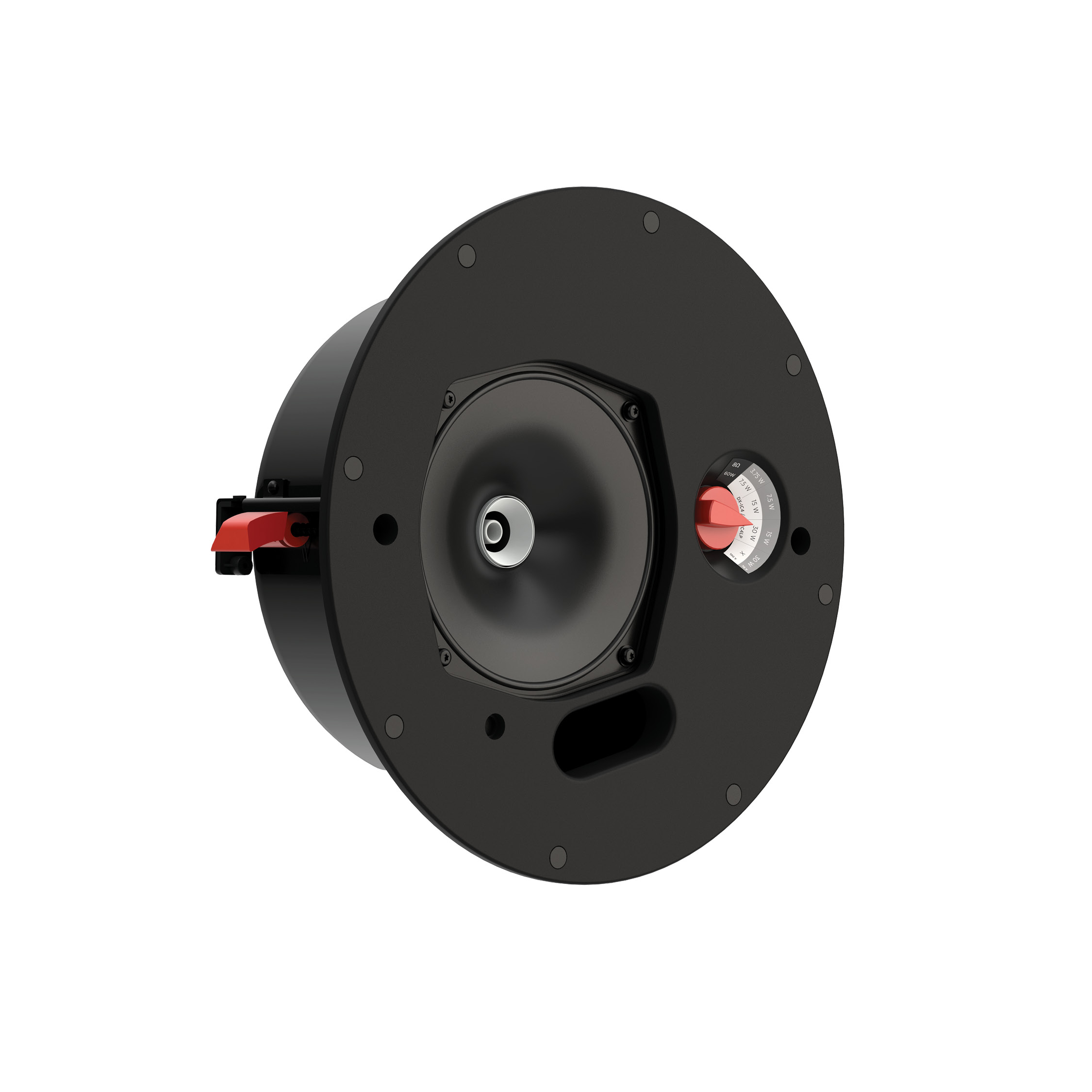

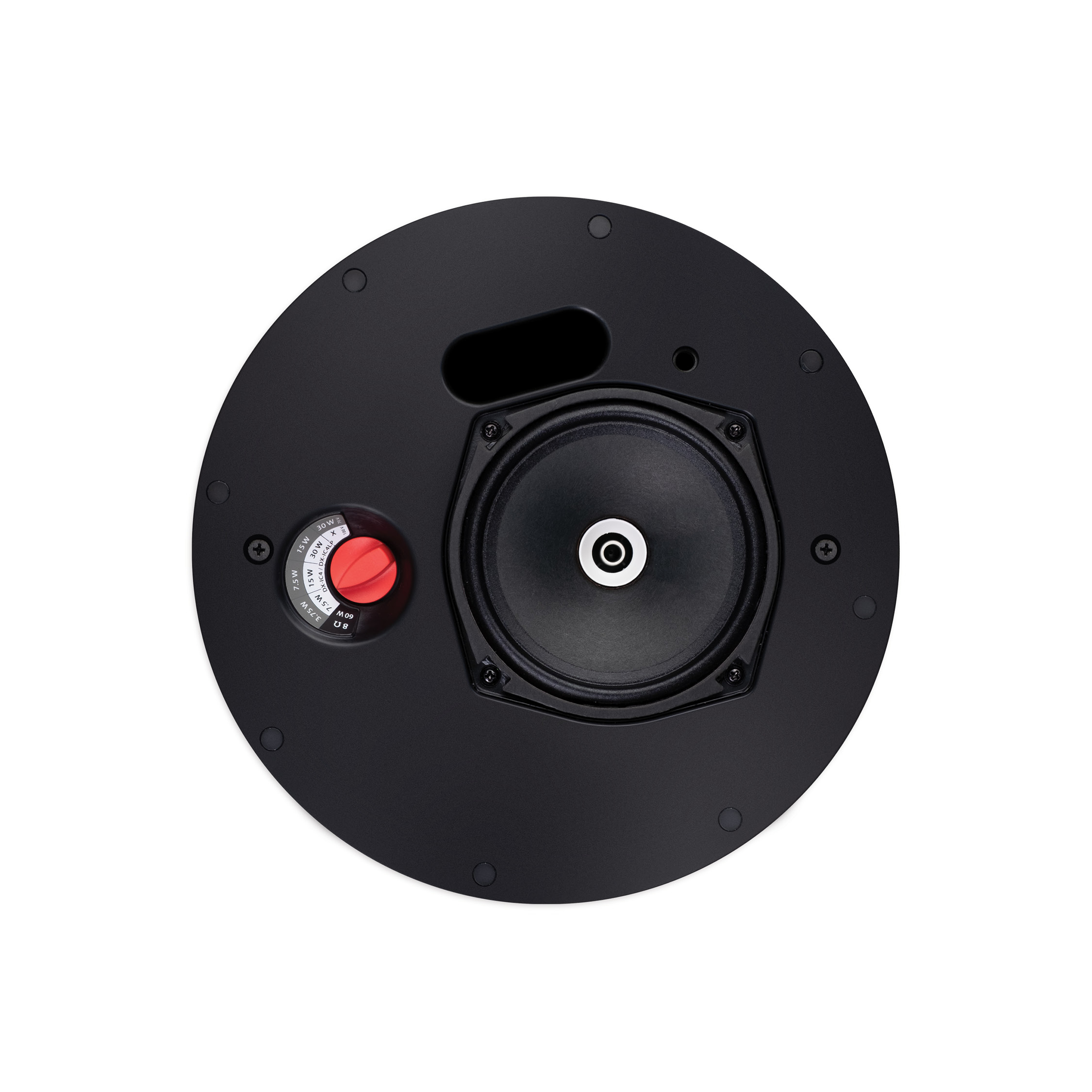

Biamp Desono DX-IC4LP
4.5-inch low-profile, high efficiency, coaxial, in-ceiling loudspeaker with HF compression driver; 8-ohm or 70V/100V operation
Only 3.8" (97 mm) in depth, the DX-IC4LP solves space problems that competing products cannot. Suitable for paging, background music, or to augment larger systems, the DX-IC4LP is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.
Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX family of loudspeakers apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4LP exhibits reduced distortion and industry-leading sensitivity permitting 3dB to 6dB greater output level, while requiring half the amplification power of competing products.
GENERAL
Depth: 3.81 inches (97 mm)
Diameter:
• 10.16 inches (258 mm)
• Cutout Diameter: 8.74 inches (222 mm)
Weight: 5.8 lbs (2.66 kg)
Finish: RAL Color: White RAL 9016
ENVIRONMENTAL
Operating Environment: Indoor
POWER
Power:
• 60W Cont.
• 240W Peak
LOUDSPEAKER
Loudspeaker Type: Two-way 4.5-inch ceiling loudspeaker (low profile)
Operating Range: 115 Hz - 20 kHz
Transformer:
• 70V: 30W, 15W, 7.5W, 3.75W
• 100V: 30W, 15W, 7.5W
Sensitivity: (1W/1m) 91 dB
Dispersion: 165° conical
Drivers:
• LF 1 x 4.5"
• HF 1 x 0.75"
AUDIO
Impedance: 8Ω
Maximum Output:
• Max Output @1m: 108 dB
• 118 dB Peak
CERTIFIED SOLUTIONS
Zoom: Zoom Certified
COMPLIANCE
Certifications: UL1480, UL2043, CSA62368-1, NFPA70, NFPA90
