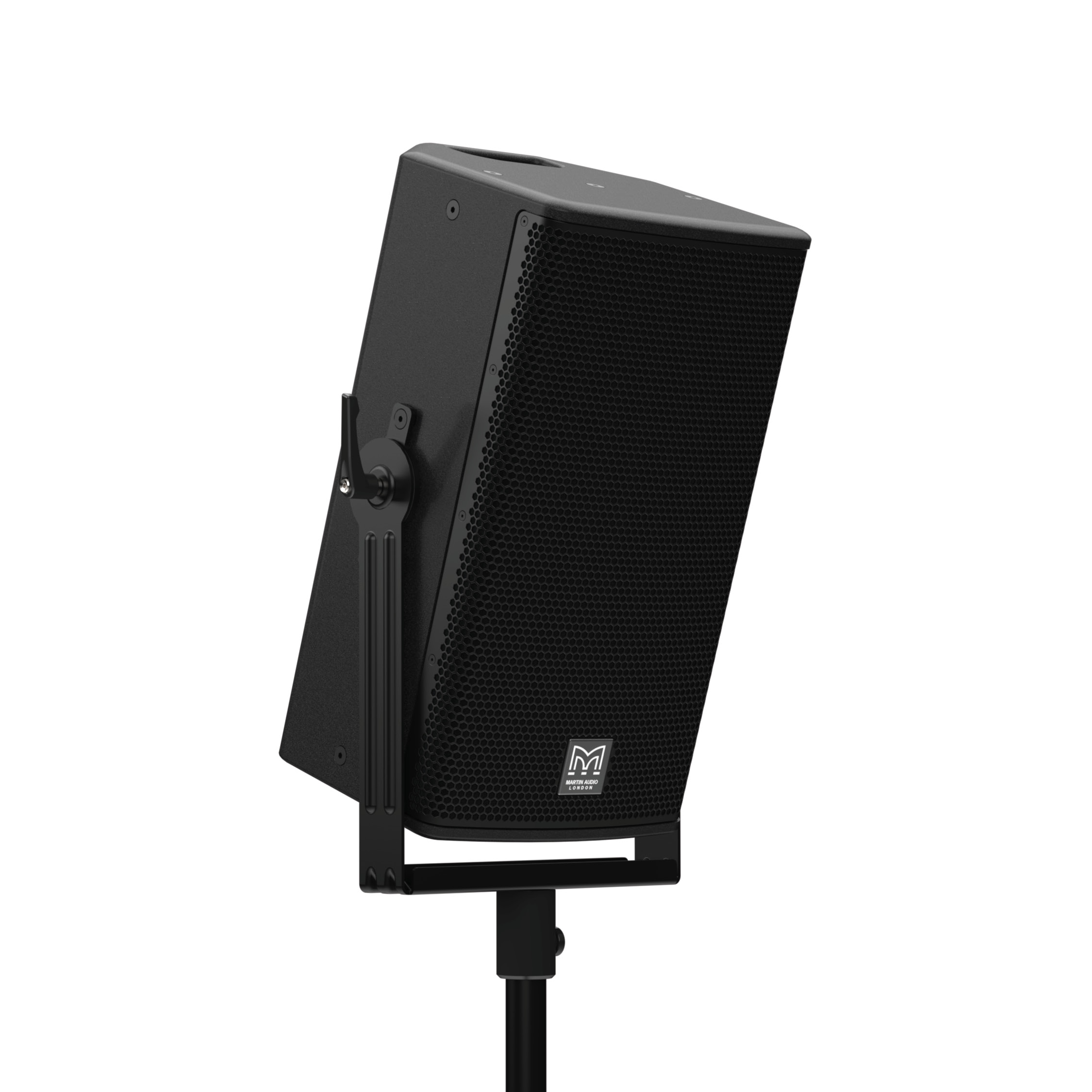

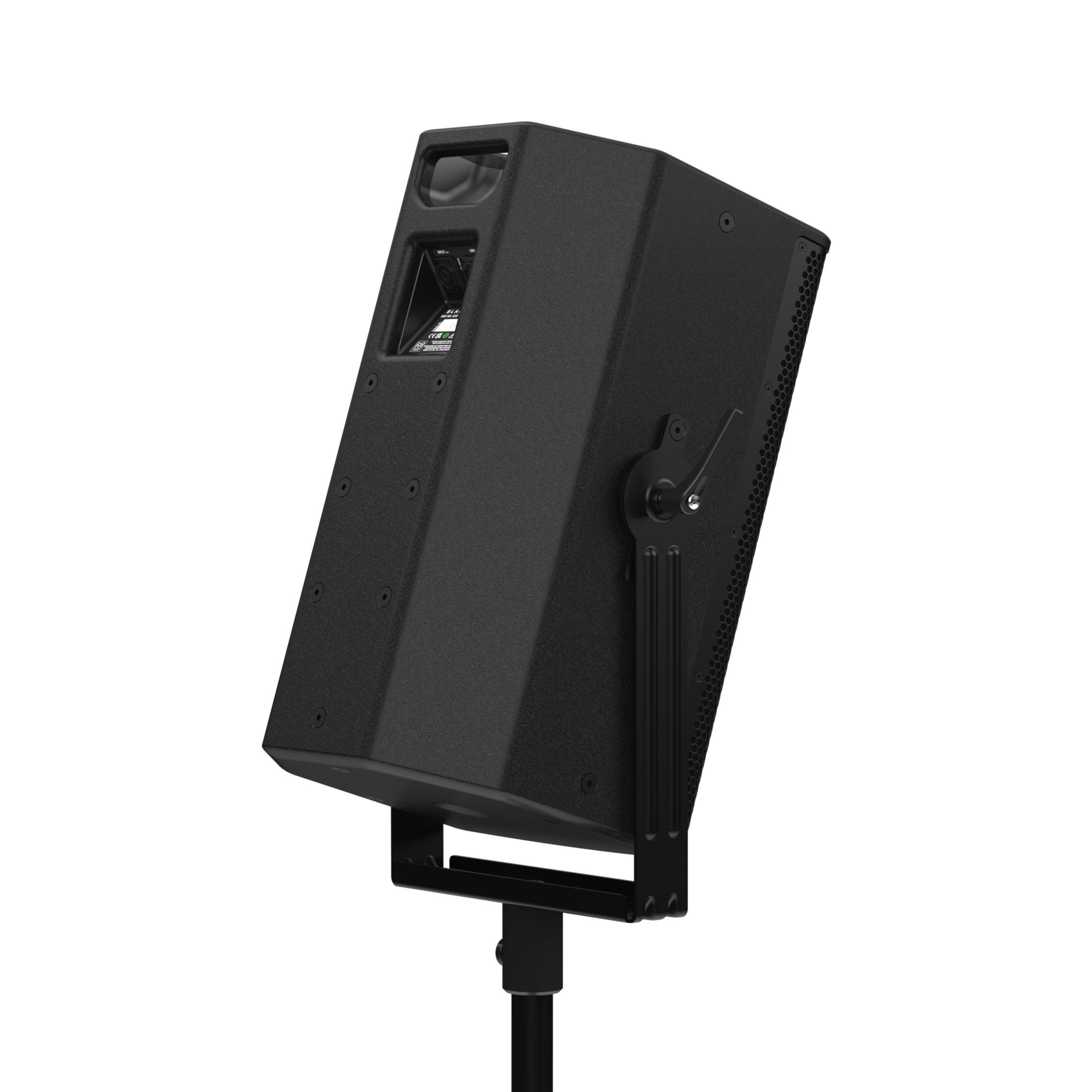

MARTIN AUDIO BLACKLINE Q10-B - Pasivni zvučnik
10" Passive Two-way Portable Loudspeaker
With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome. The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements.
Type: Compact, passive two-way loudspeaker
Frequency response [1]: 63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz
Driver (LF): 10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil, polyimide dome
Rated power [2]: 250 W AES, 1000 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [3]: 95 dB
MAXIMUM SPL [3]: 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
Nominal impedance: 8 ohm
Dispersion:
• Dispersion: 90°–110° (horizontal) × 50° (vertical)
• User-rotatable Differential Dispersion horn
Crossover: 3 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint
Protective grille: Black perforated steel grille with scrim cloth backing
Connectors: 2 x NL4 connectors
Pin connections (input): 1+/1–
Pin connections (link): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings:
• 15 x M8 inserts, 6 x M8 inserts for wall bracket
• 1 x bar handle with recycled ABS pocket
• Pole-mount socket with removable cover
Dimensions:
• (W) 300 mm x (H) 545 mm x (D) 310 mm
• (W) 11.8 in x (H) 21.5 in x (D) 12.2 in
Weight: 15.3 kg (33.7 lbs)
