MARTIN AUDIO Blackline X15 - Pasivni zvučnik

Šifra: 11771
Na stanju
Regularna cena:
119.880,00 rsd
89.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
107.880,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 12.000,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!


Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Svetogorska 9, Beograd
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje

The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.


  • High power, passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 80° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts


  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Unobtrusive stage monitoring
  • Corporate AV events and conferences
  • Weddings and parties
  • Main PA infill
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets



TYPE     High-power, passive two-way system
FREQUENCY RESPONSE (5)     55Hz-20kHz ± 3dB, -10dB @ 45Hz
DRIVER     LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2)     400W AES, 1600W peak
SENSITIVITY (8)     99dB
MAXIMUM SPL (9)     125dB continuous, 131dB peak
DISPERSION (-6dB)     80° H x 50° V (user-rotatable)
CROSSOVER     2.2kHz passive
ENCLOSURE     Multi-angle birch/poplar ply
FINISH     Black textured paint
PROTECTIVE GRILLE     Black perforated steel with scrim cloth backing
CONNECTORS     2 x NL4 type
PIN CONNECTIONS (LINK)     1+/- to 1+/-
FITTINGS     19 x M8 inserts, pole-mount socket, 2 x bar handles
DIMENSIONS     (W) 427mm x (H) 690mm x (D) 419mm
(W) 16.8ins x (H) 27.2ins x (D) 16.5ins
WEIGHT     24kg (52.9lbs)
ACCESSORIES     Wall bracket, eyebolts


Architectural Specifications

The loudspeaker shall be a passive, two-way system. Its transducers shall consist of a reflex-loaded 15” low frequency driver and a 1.7” diaphragm/1” exit compression driver mounted on a high frequency horn which shall be user-rotatable to enable vertical or horizontal orientation of the enclosure.

Horizontal dispersion shall be 80° and vertical dispersion shall be 50°. The on-axis frequency response shall be 55Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 131dB peak calculated at 1 metre. Power handling shall be 400W AES, 1600W peak. Rated impedance shall be 8 ohms.

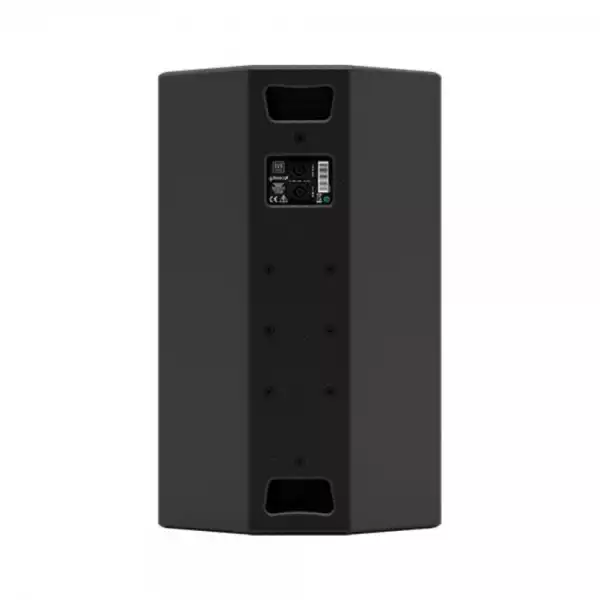

The rear connector panel shall be fitted with two NL4 type connectors. Low and high frequency sections shall be integrated by an internal 2.2kHz passive network. For optimal performance the loudspeaker shall be operated in conjunction with a dedicated electronic controller.

The symmetrical, multi-angle enclosure shall be made from plywood and finished with a black textured paint. Optional white and RAL colour finishes shall be available to special order. The enclosure shall be fitted with a pole-mount socket and M8 threaded inserts to accommodate eyebolt suspension and a wall bracket. The drivers shall be protected by a perforated steel grille with scrim cloth backing.

Dimensions (W x H x D) shall be 427mm x 690mm x 419mm (16.8in x 27.2in x 16.5in). Weight shall be 24kg (52.9lbs).

The loudspeaker shall be the Martin Audio Blackline X15.
