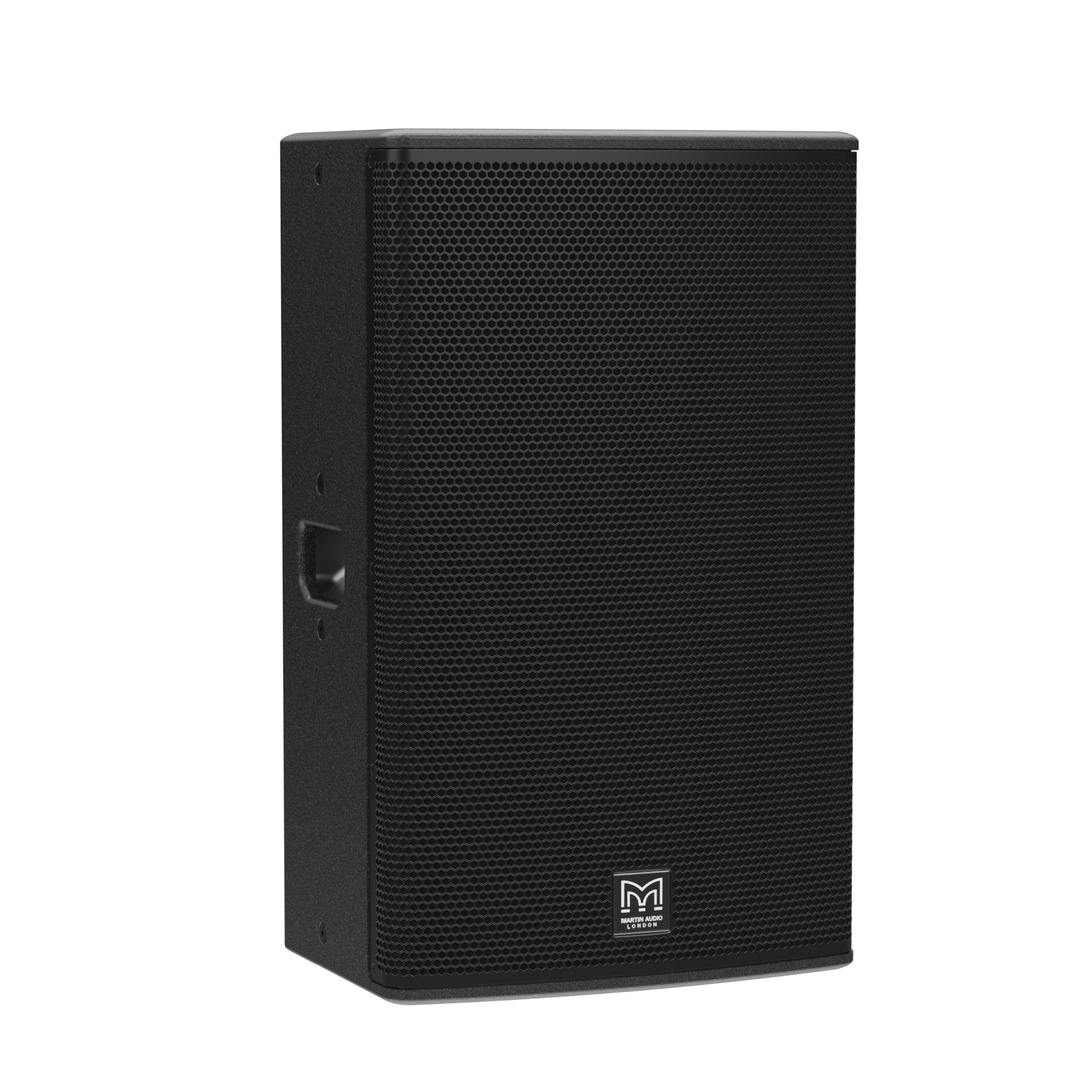

MARTIN AUDIO BLACKLINE Q15-B
15" Passive Two-way Portable Loudspeaker
Blackline Q15 is a significant upgrade over its predecessor, delivering enhanced performance and wider coverage, and features a die-cast aluminium chassis for improved thermal conductivity and more efficient motor cooling.
A passive two-way system, Q15 is designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure.
Features
• Passive two-way system
• Symmetrical multi-angle plywood enclosure
• Peak SPL of 133dB (139dB with crest factor 4)
• User-rotatable Differential Dispersion horn
• Dispersion: 70°– 90° horizontal × 50° vertical
• Vertical and horizontal orientation
• Screw-tight, cloth-backed perforated steel grille
• Integrated ergonomic handle made from recycled ABS
• Pole-mount cover maintains clean lines
• 8Ω nominal impedance
• Two NL4 connectors
• Flexible mounting options via M8 inserts
Applications
• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Unobtrusive stage monitoring
• Corporate AV events and conferences
• Weddings and parties
• Main PA infill
• Secondary stages at festivals
• Houses of worship, leisure centres and retail outlets
Type: Passive two-way loudspeaker
Frequency response: 51 Hz – 17 kHz ± 3 dB, –10 db @ 41 Hz

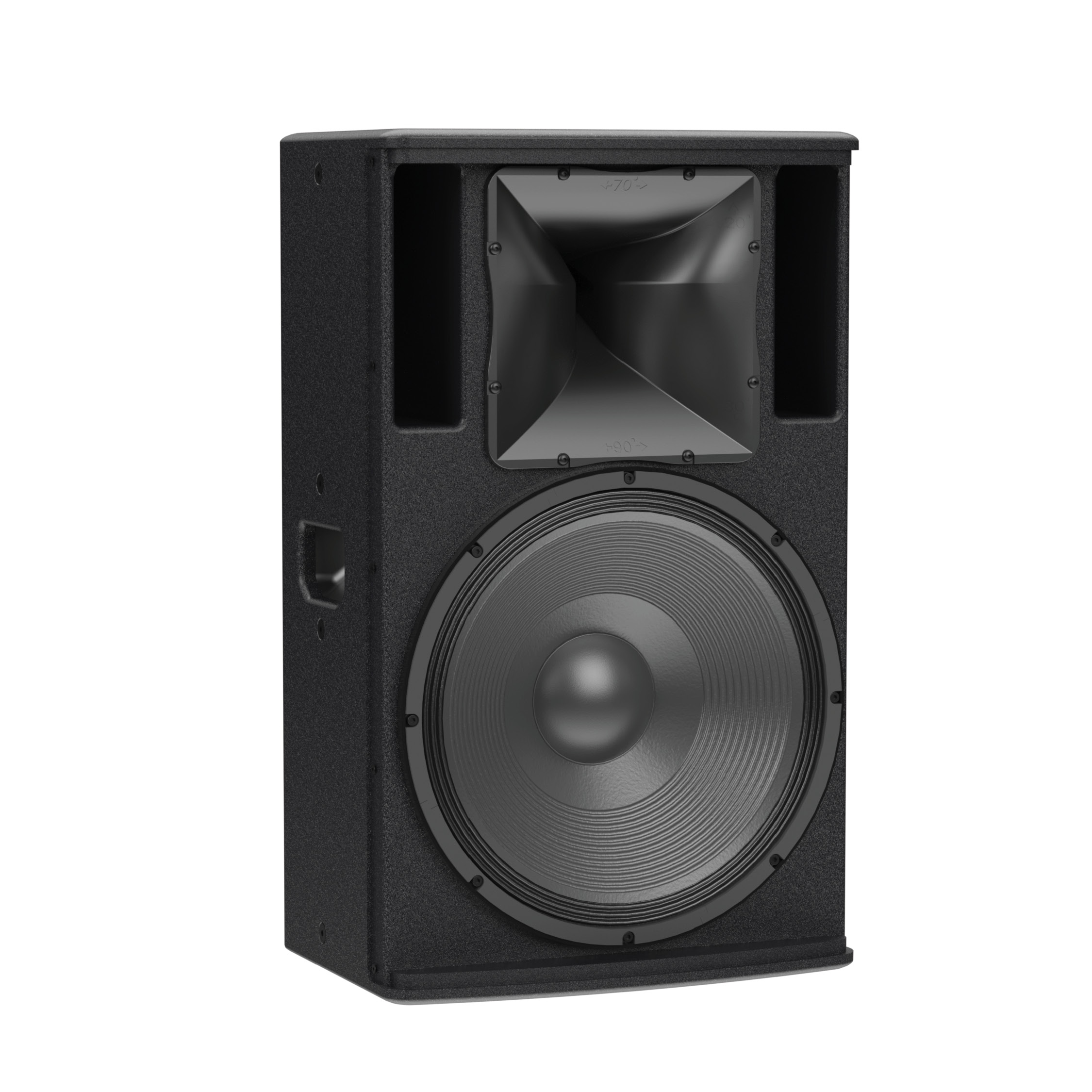

Driver (LF): 15” (380 mm) with 4” (100 mm) voice coil, ferrite motor system
Driver (HF): 1.4" (35 mm) exit compression driver with 3" (75 mm) voice coil
Rated power: 800 W AES, 3200 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 98 dB
MAXIMUM SPL: 127 dB continuous, 133 dB peak, 139 dB peak with crest factor 4
Nominal impedance: 8 ohm
Dispersion:
• Dispersion: 70°–90° (horizontal) × 50° (vertical)
• User-rotatable Differential Dispersion horn
Crossover: 1.5 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint

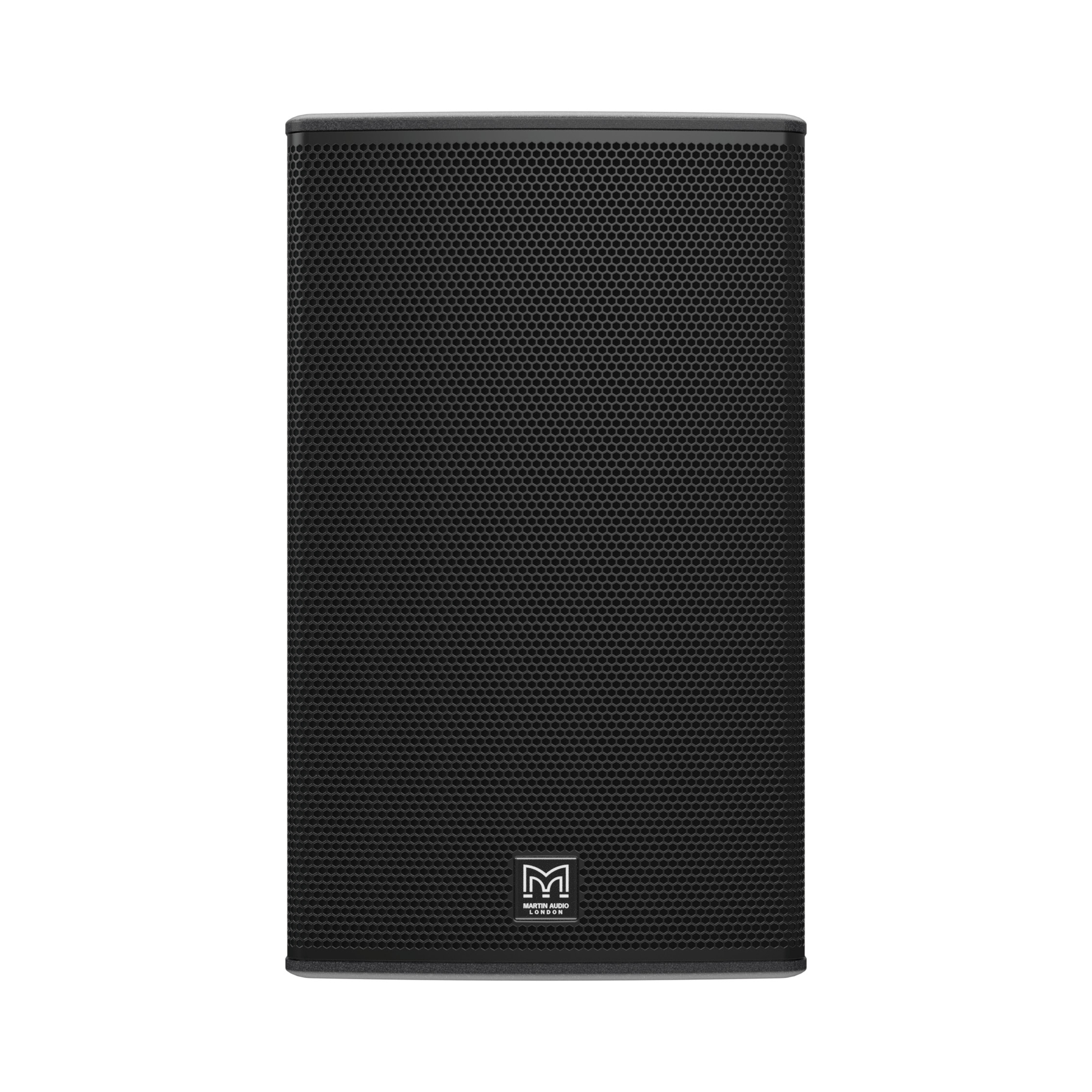

Protective grille: Black perforated steel grille with scrim cloth backing

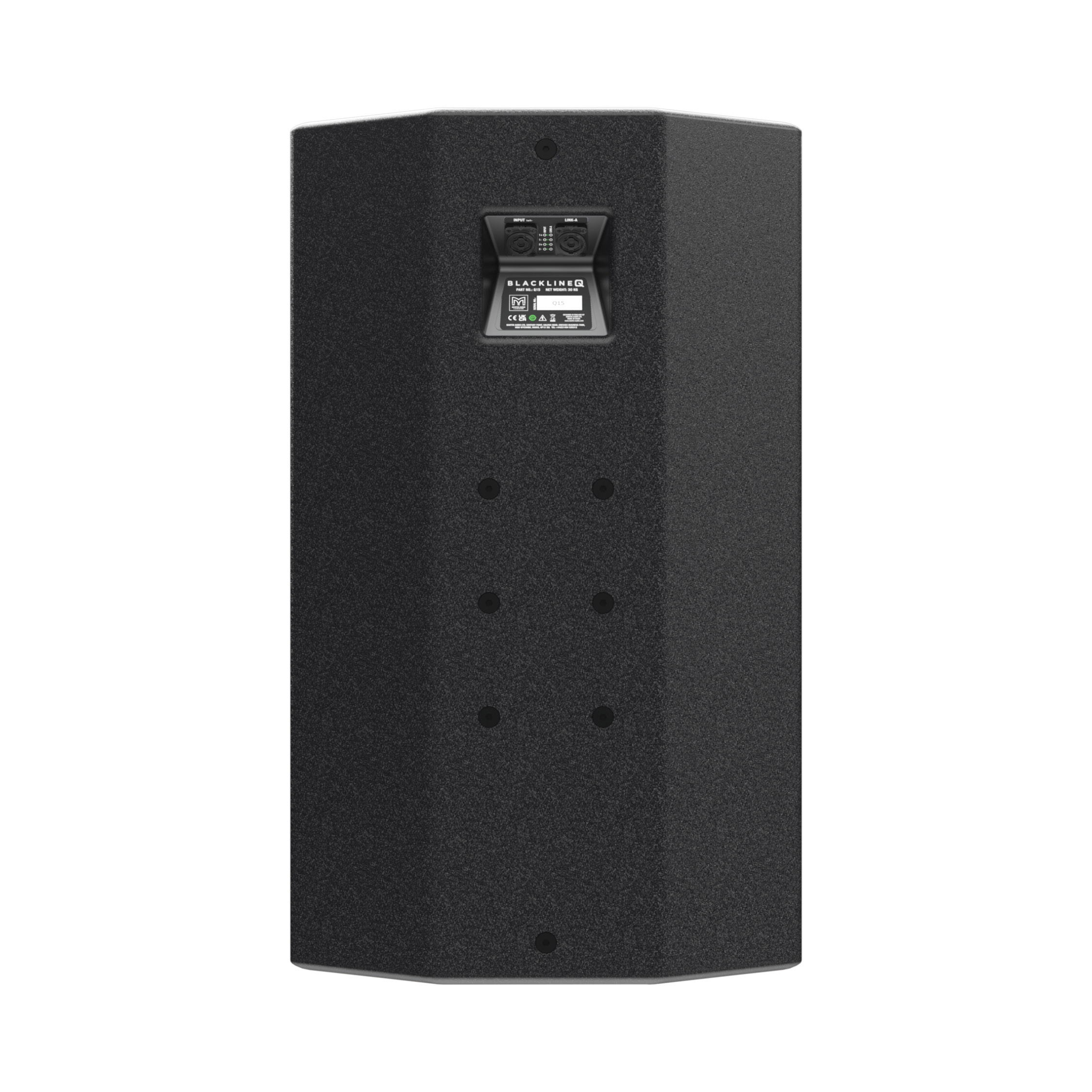

Connectors: 2 x NL4 connectors
Pin connections (input): 1+/1–
Pin connections (link): 1+/1– to 1+/1–
Fittings:
• 18 x M8 inserts, 6 x M8 inserts for wall bracket
• 2 x pocket handles made from recycled ABS
• Pole-mount socket with removable cover
Dimensions:
• (W) 420 mm x (H) 695 mm x (D) 400 mm
• (W) 16.5 in x (H) 27.4 in x (D) 15.8 in
Weight: 33.8 kg (74.6 lbs)
