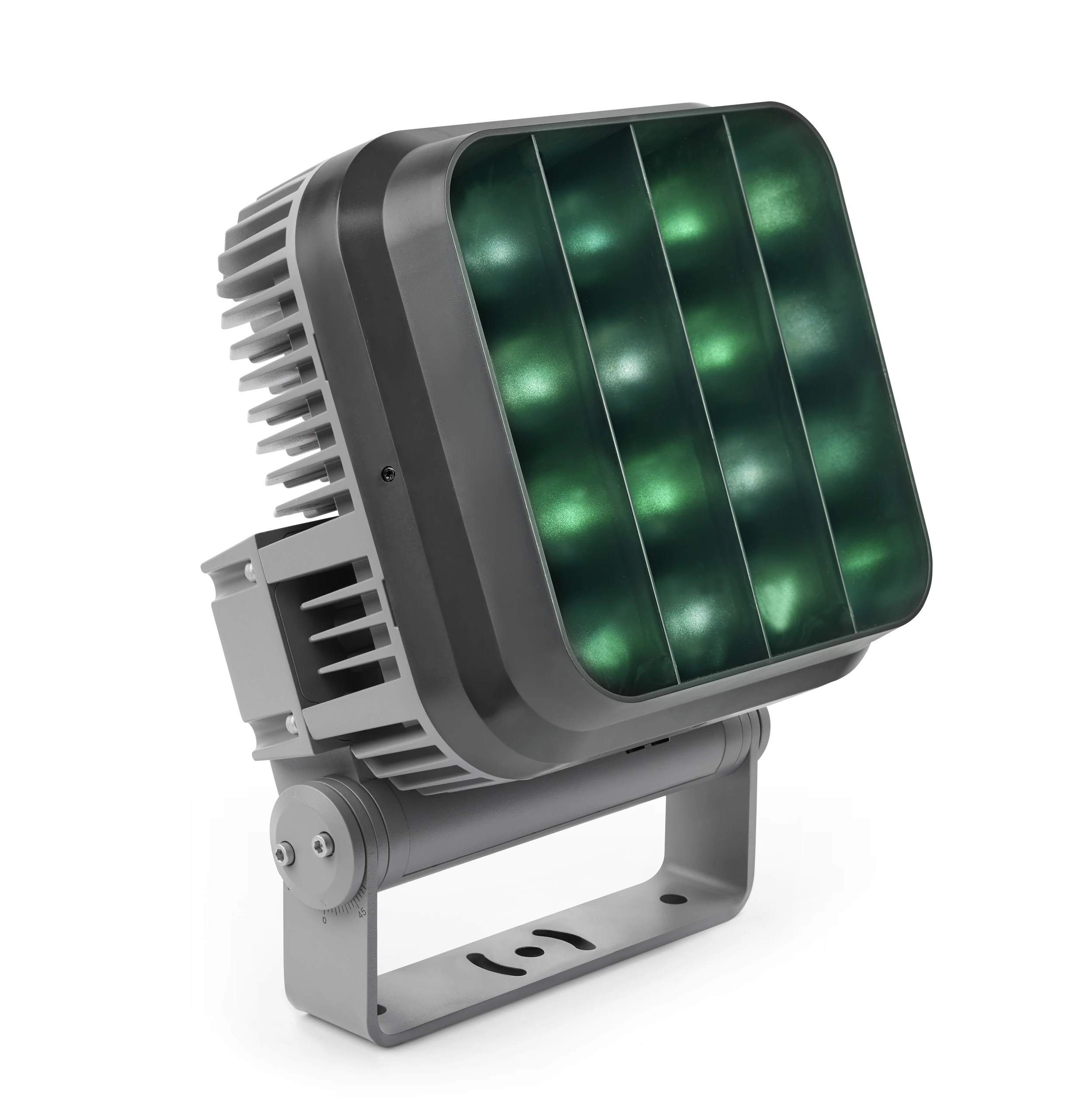

MARTIN Exterior Wash Pro L
Šifra:
Outdoor-rated QUAD color wash light with creative control
Specifications
Physical
Length: 165 mm (6.49 inch)
Width: 275 mm (10.83 in.)
Height: 370 mm (14.57 in.)
Weight: 12.4 kg (27.3 lbs)
Dynamic Effects
Intensity: 0 - 100 %
Color mixing: RGB + CTC (Color Temperature Control)
Color temperature control: 1000 K - 12500K in 50K steps
Control and Programming
Control systems: DMX, RDM

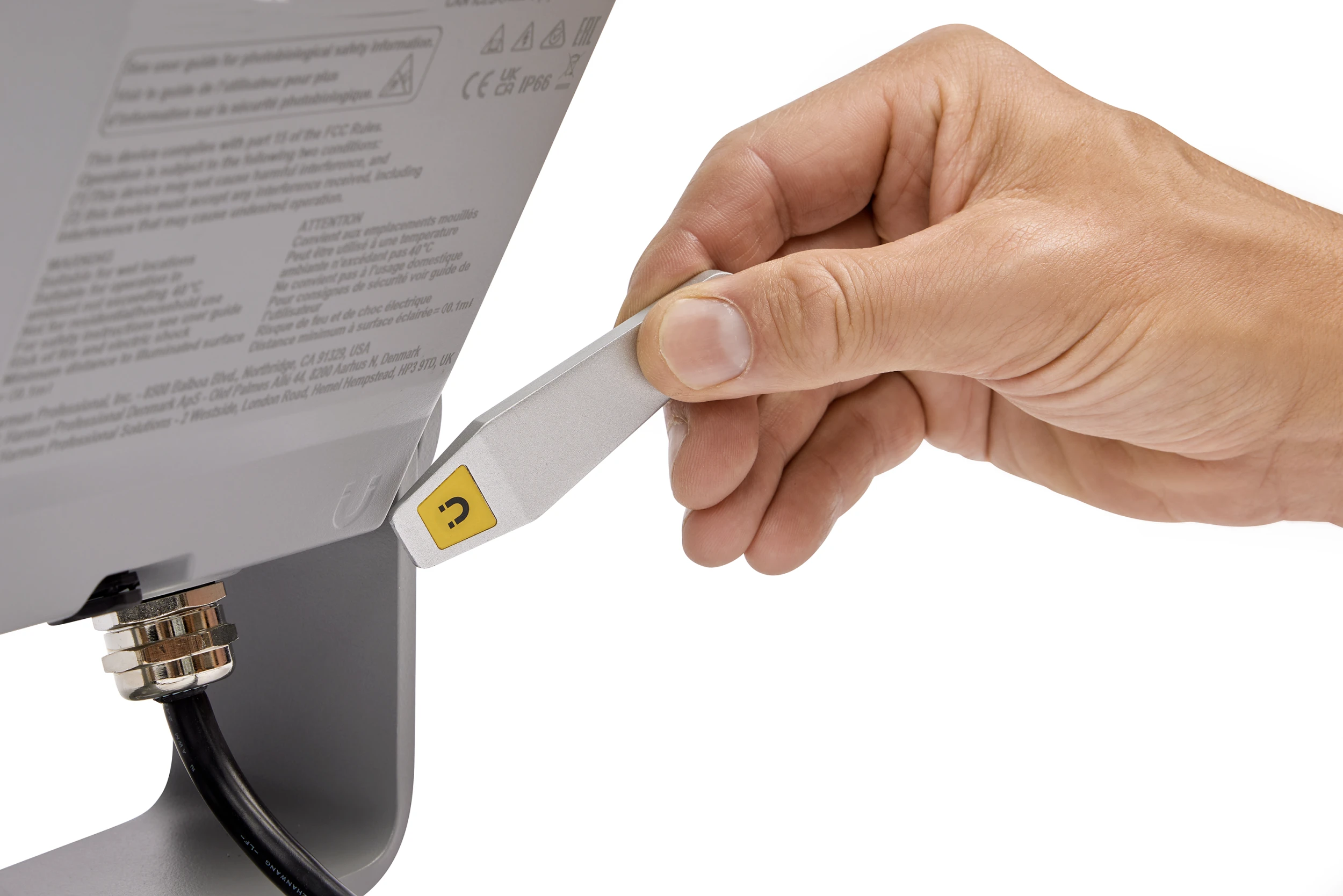

User interface: Magnetic sensor for local diagnostics and focusing
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX control of each color
Dimmer Resolution: 16-bit DMX control of intensity
DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
Firmware update: Serial upload via DMX link
Optics

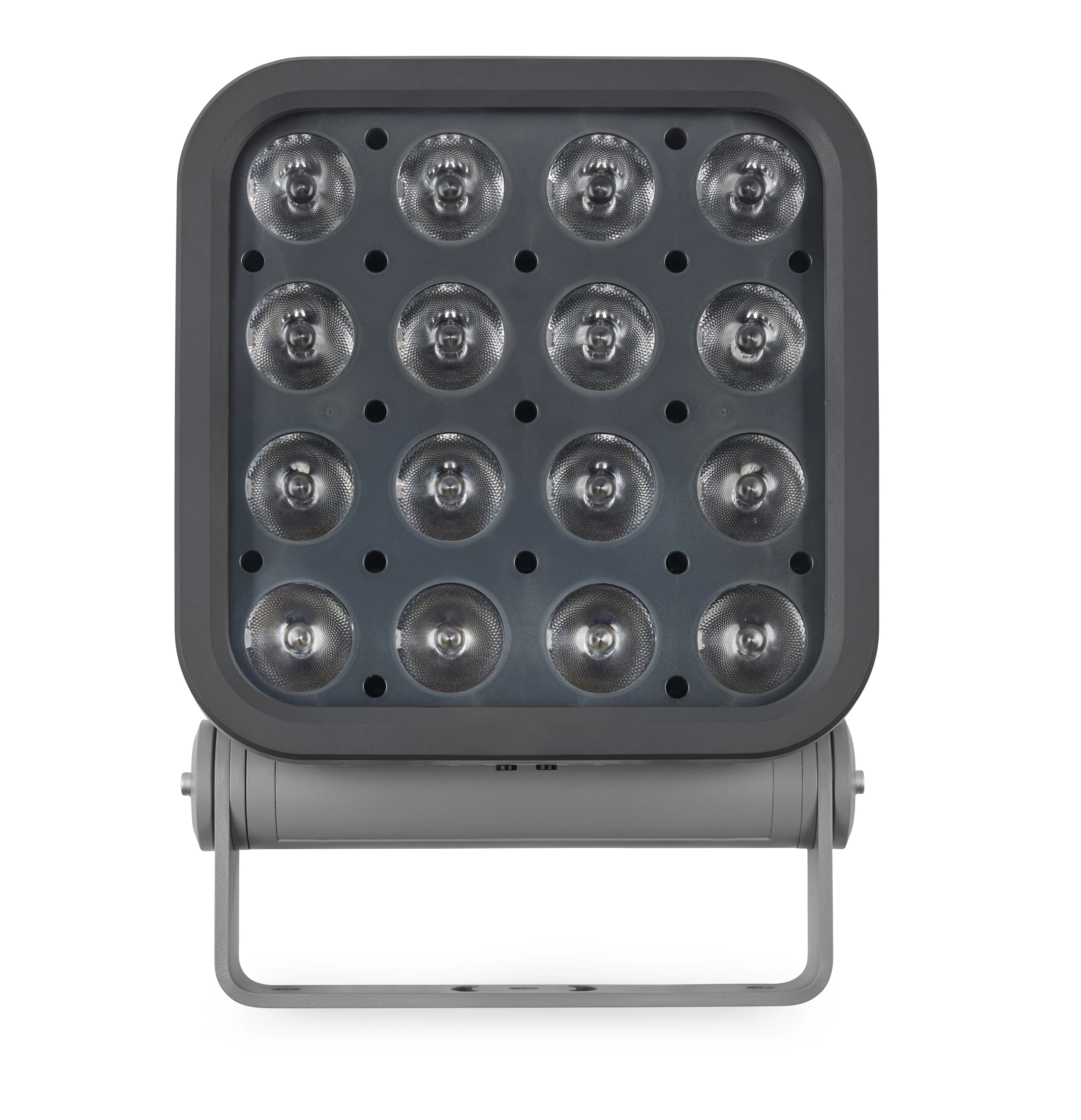

Light source: 16 x high-power RGBW LEDs
Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
LED manufacturer: Osram
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Beam Angle Options
Native beam angle: 8°
Narrow micro lens: 11°
Medium micro lens: 15°
Wide micro lens: 30°
Very Wide micro lens: 50°
Asymmetric micro lens: 8° x 50°
Photometric Data
CRI (Color Rendering Index) : > 70
CCT: 1000K - 12500K (Default 4000K)
LUMINOUS OUTPUT*
Full: 7100 lm
Red: 2280 lm
Green: 4550 lm
Blue: 1870 lm
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
Construction
Housing: Cast Aluminum
Color: Traffic grey RAL 7042 or Traffic white RAL 9016 - other colors available on request
Surface treatment: Anodized and electrostatic powder-coated
Protection rating: IP66
Effective Projected Area (EPA): 0.097 m² / 0.120 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting: Adjustable bracket
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
Connections
Power connection: 2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
Electrical
AC power: 100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 13 A
Surge protection: 4 KV
Max earth leakage: 0.5 mA
Power factor: 0.99 @110 V / 120 V, 0.95 @208 V / 230V, 0.92 @277 V
Max current draw: 1.50 A @100 V, 1.25 A @120 V, 0.65 A @230 V, 0.54 A @277 V
Power Consumption
Maximum: 150 W (reduced mode 120W)*
Idle: 3.5 W*
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
Thermal

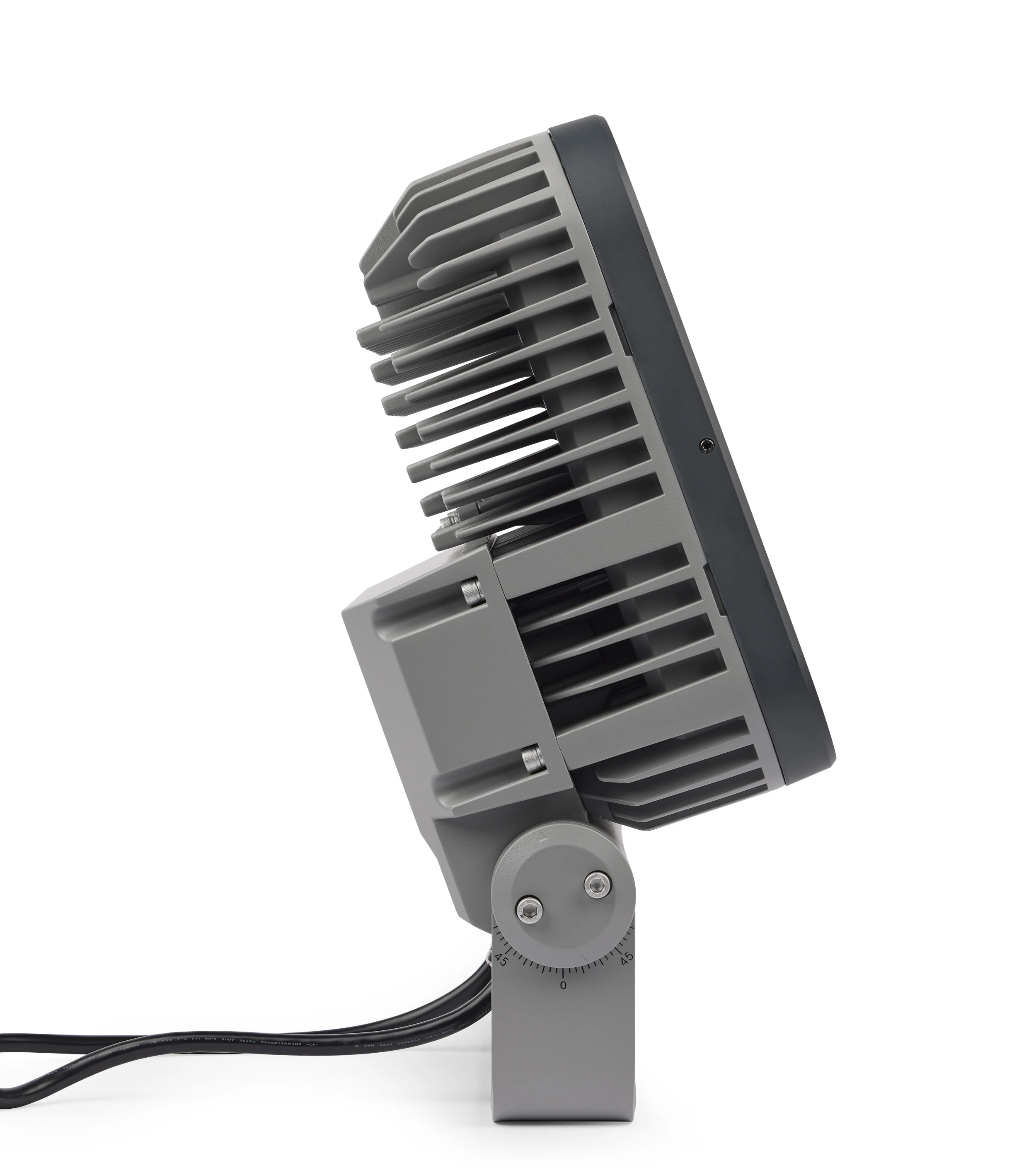

Cooling: Convection
Maximum ambient temperature: 45° C (113° F)*
Minimum ambient temperature: -30° C (-22° F)**
Total heat dissipation (calculated, +/- 10%): 512 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating.
**Power must be maintained below -20° C (-4° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 43 lm/W
LWR*: 516 lm/kg (234 lm/lb)*
*LWR = Lumen-to-Weight Ratio
Packaging: FSC certified cardboard inlay and outer box
