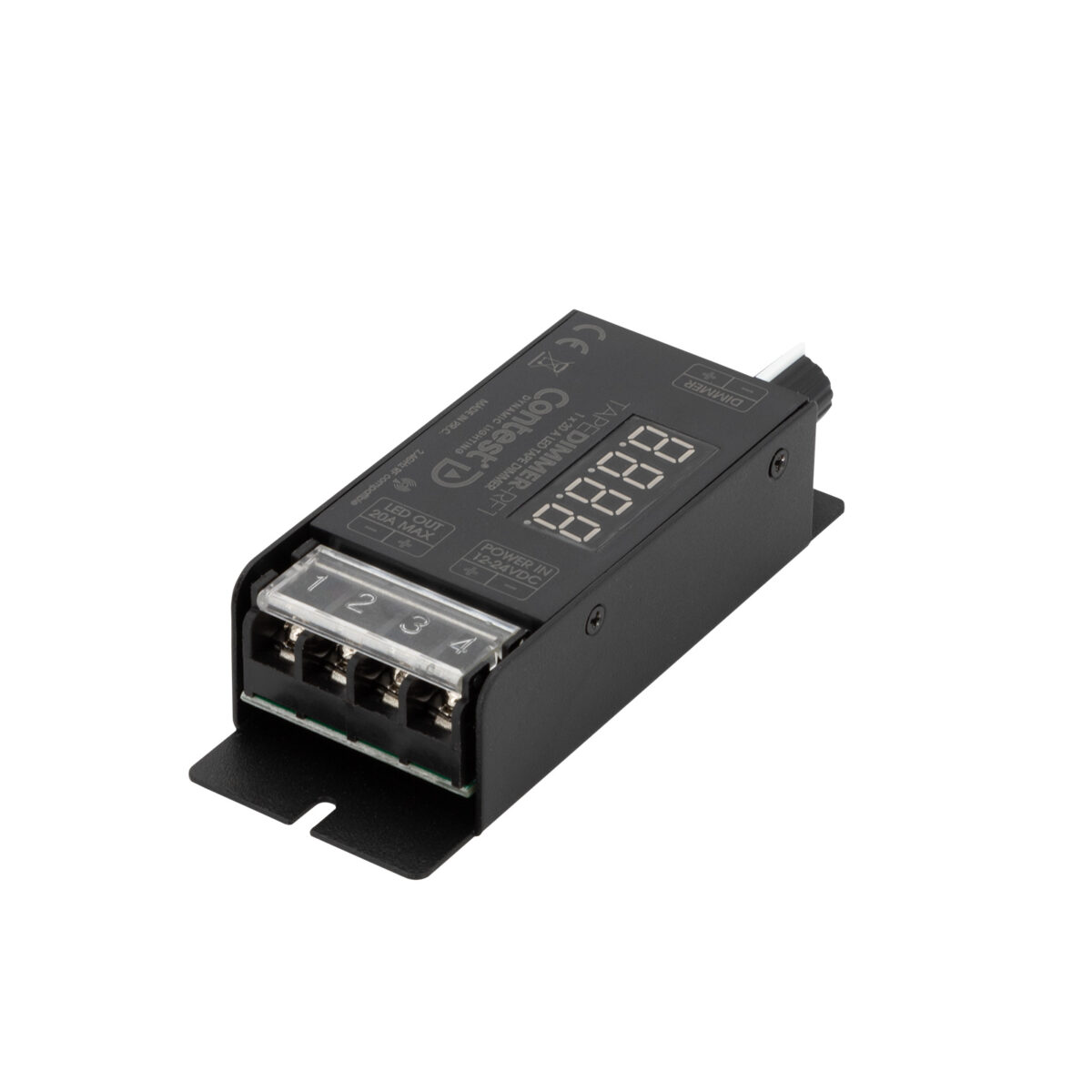

The TAPEDIMMER-RF1 allows manual dimming via a button, as well as dimming via 2.4GHz remote control (REMOTECTL4x2 or PILOTCTL-4×2 models). By default, it can be controlled by any remote control in any zone.

It is also possible to assign the TAPEDIMMER-RF1 to a specific zone on the remote control. In this case, it is necessary to synchronize the RF codes before installation.

Operating voltage: DC 12~24 V
Output: 1 channel
Memory: Yes
PWM frequency: 2 KHz (default), 500 Hz, 1K Hz, 4 KHz, 7.8 KHz and 15.6 KHz
Maximum power output:
PWM ≤ 2 KHz : 20 A ; 480 W / 24 V
PWM = 4/7.8 KHz : 15 A ; 360 W / 24 V
PWM = 15.6 KHz : 10 A ; 240 W / 24 V
Protection: Against short circuits
Operating temperature: -20 ~ 60°C
Static power consumption: < 1 W
Dimensions: 103 x 40 x 24 mm
Weight: 65 g
