DESCRIPTION

• Compact RGB remote control for LED projectors
• Extremely user-friendly and easy
• 2 user programmable scenes.
• Sends 4 standard DMX-channels: R + G + B + master dimmer
• Easy wall mounting, fits in any standard recessed wall box
• Perfect for use in LED installations for hotels, homes, shops, …
• Several wall dimmers can be combined together in bigger installations
• Comes with 2 different cover plates
• 3 different working modes for maximum flexibility.

TECHNICAL INFORMATION

• Power Input: DC 12V / 400mA.

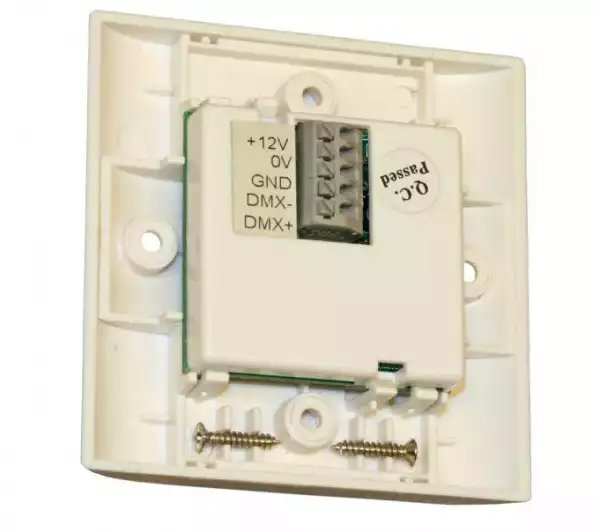

• DMX outputs: wire terminals
• DMX channels: RGB1 mode:
• CH1 = RED (DMX-values : 000  255)
• CH2 = GREEN (DMX-values : 000  255)
• CH3 = BLUE (DMX-values : 000  255)
• CH4 = MASTER DIMMER (DMX-values : 000  255)
• RGB2 mode:
• CH1 = RED (DMX-values : 000  255)
• CH2 = GREEN (DMX-values : 000  255)
• CH3 = BLUE (DMX-values : 000  255)
• CH4 = MASTER DIMMER (DMX-values : 000  190)
• 2 CHANNEL mode:
• CH1 = DIMMER1 (DMX-values : 000  255)
• CH2 = DIMMER2 (DMX-values : 000  255)
• Size: cover plate = 83 x 83 mm
• Installation depth = 16 mm
• Weight: 60 g
