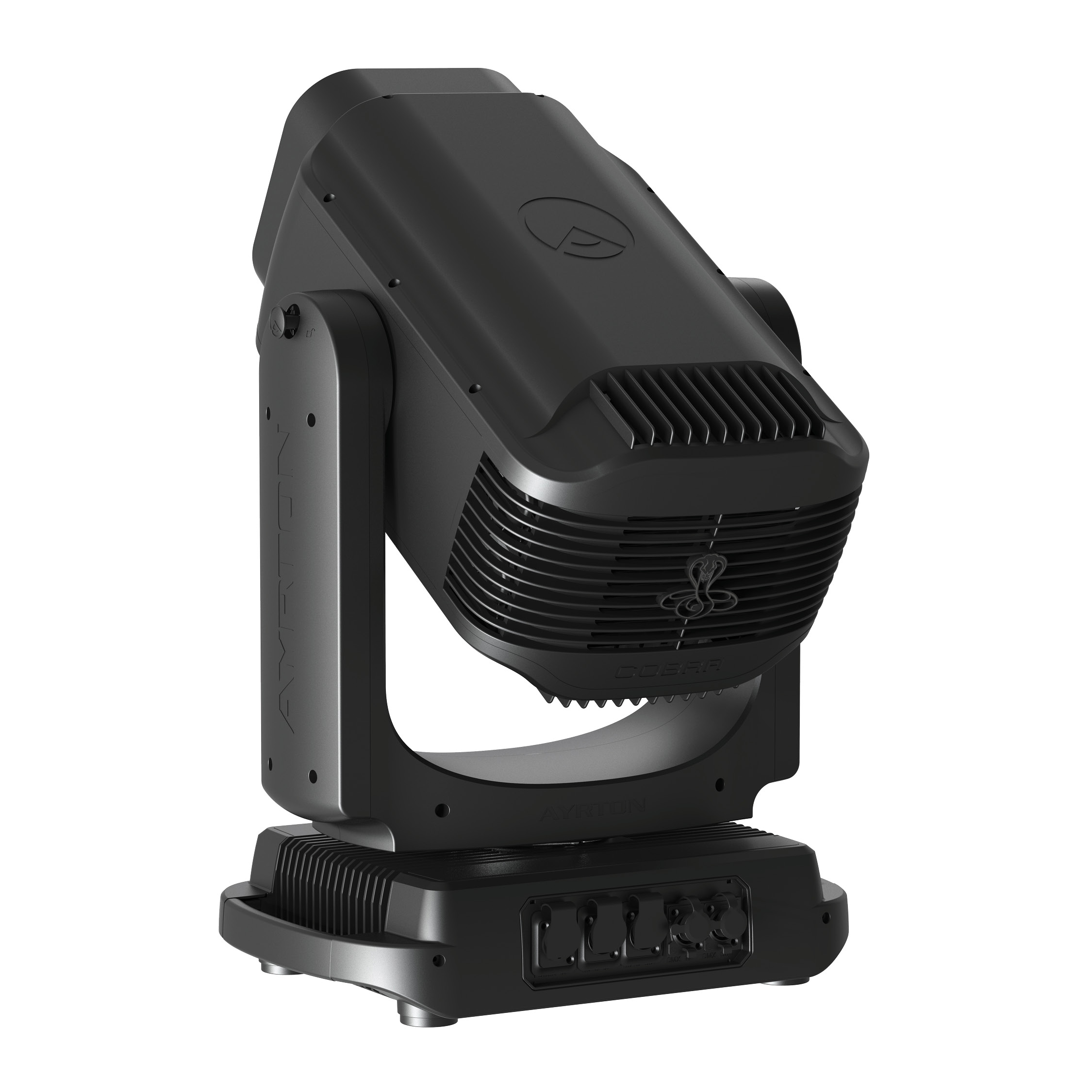

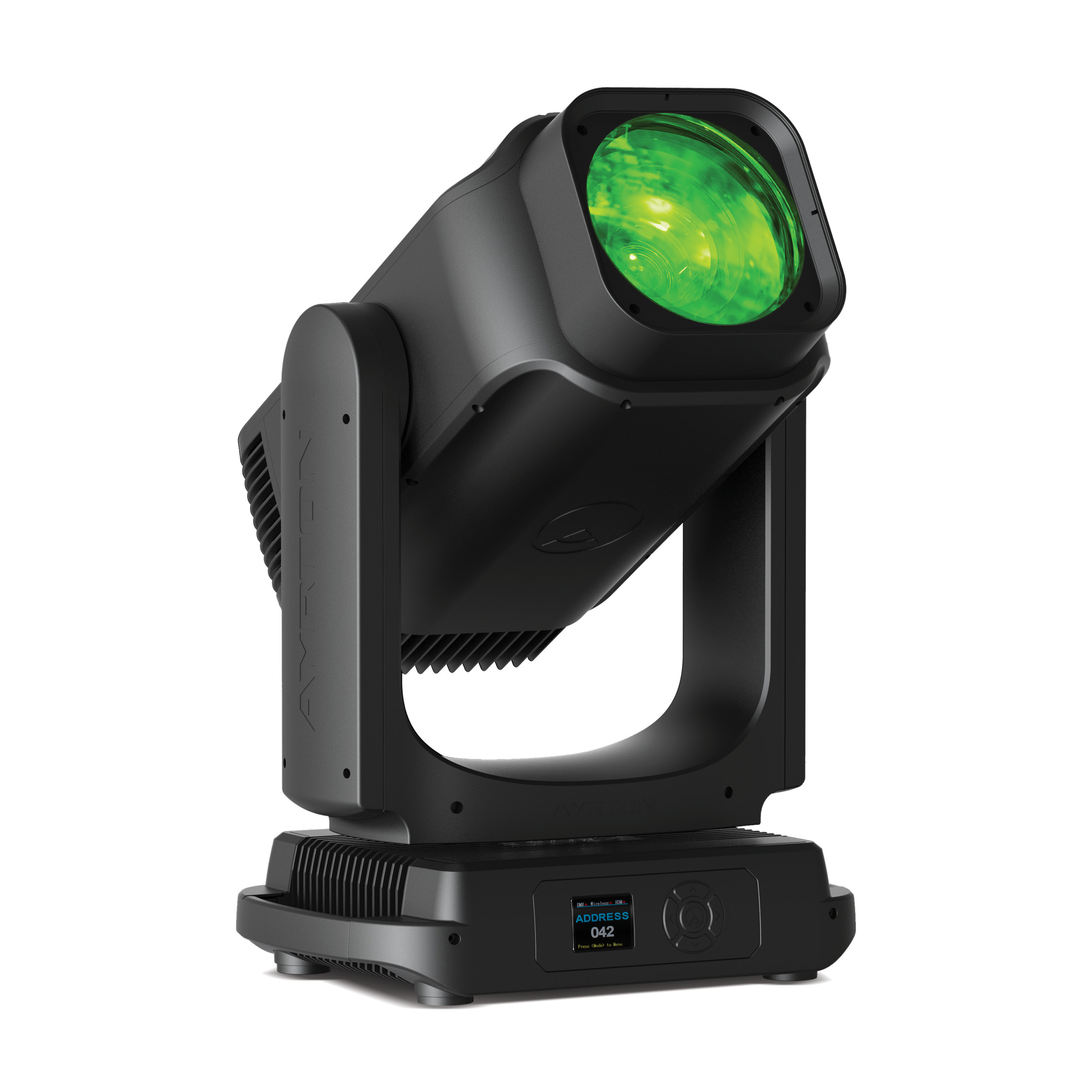

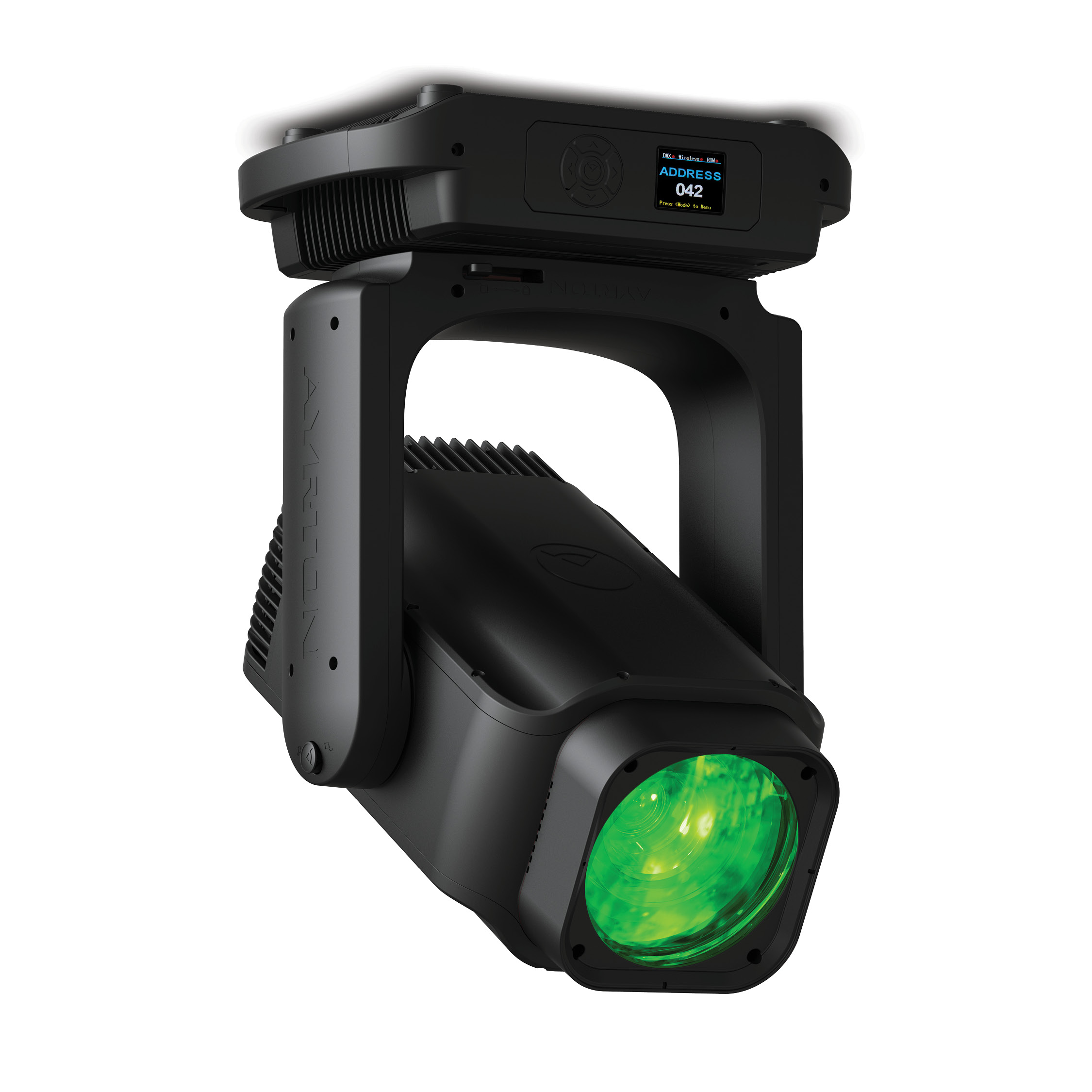

AYRTON Cobra
Cobra is the first factory standard Ayrton phosphor laser source luminaire based on the concept of DreamSpot 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. Cobra pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. Cobra adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
OPTICS
• 13-element 38:1 zoom high-resolution optic system
• Beam aperture: 0.6 ° to 23 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 170 mm frontal lens for greater performance
LIGHT SOURCE
• Luminous flux: 1,544,000 lux at 10 m
• Colour temperature output: 6500 K
• CRI: greater than 65
• Rated life (L70): up to 12,000 hours
• Speckle-free source
MOVEMENT
• Highly accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation
COLOURS
• Sophisticated colour mix system providing CMY color mixing
• Fixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filters
GOBOS
• One indexable rotating gobo wheels with 12 metal gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Fixed multiposition gobo wheel with instant access to 80 metal gobos
• Gobo diameter: 6.9 mm
• Image diameter: 4 mm
FROST
• 2 frost filters: one light, one heavy
EFFECTS
• Monochromatic graphical animation effects wheel with continuous rotation in both directions
• 2 set of 4 combinable rotating and indexable prisms
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadioTM
• IP65 XLR-5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 powerCON TRUE1 TOP male connector for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX• -RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNetTM & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 35 to 45 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 480 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Silent Mode
• Safety protection against excess temperature
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 25 m (82 ft) at full power with a converge beam
COMPLIANCE
• EU (EMC & LVD)
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B: 2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 422 x 663 x 280 mm (l x h x d)
• Flight-case foam: 560 x 565 x 485 mm (l x h x d)
WEIGHT
• Product: 33 kg
