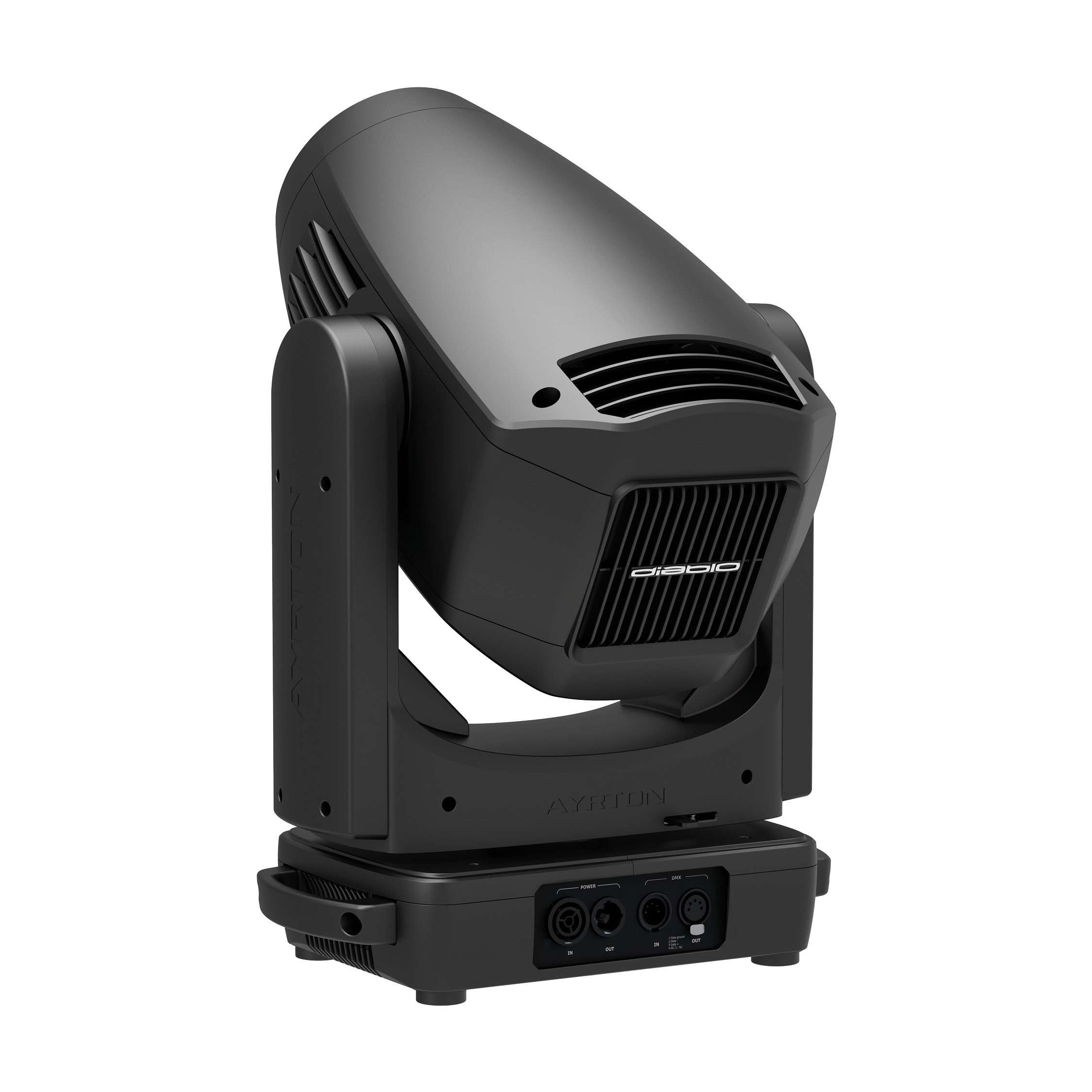

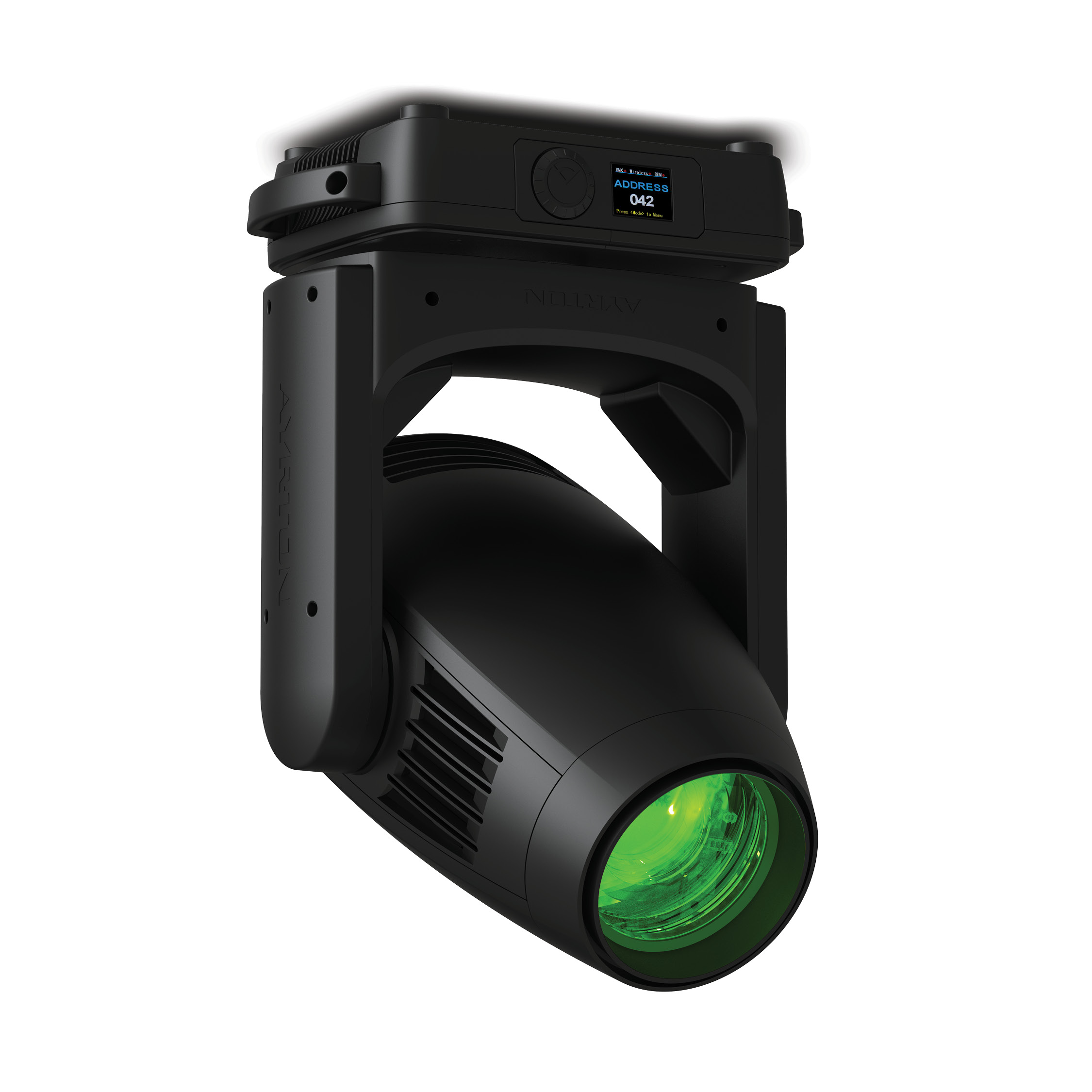

AYRTON Diablo
Diablo Profile is available in two versions: S and TC. Diablo Profile S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 7000 K.
Diablo Profile TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90 and high TM30 readings, at a colour temperature of 6000 K. Fully equipped at the factory, Diablo Profile includes a CMY colour mixing system combined with a progressive CTO and a wheel with seven complementary colours that produces an infinite palette of bright pastels and saturated colours. The effects section includes a wheel with seven interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. Diablo Profile has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, perfect for stage and studio applications.
OPTICS
• 13-element 7.5:1 zoom high-resolution optic system
• Beam aperture: 7 ° to 53 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 119 mm frontal lens for greater performance
LIGHT SOURCE
Diablo Profile S
• 26,500 lumens 8000 K white-light engine
• Total luminaire output: up to 19,000 lumens
• Colour temperature output: 7000 K
• CRI: greater than 70
Diablo Profile TC
• 20,500 lumens 7000 K white-light engine
• Total luminaire output: up to 14,000 lumens
• Colour temperature output: 6500 K
• CRI: greater than 90
Diablo Profile S & Diablo Profile TC
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated with either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt with automatic repositioning
• Moving-head range: 540 ° (pan) & 263 ° (tilt)
COLOURS
• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with seven complementary colours
GOBOS
• Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 25.5 mm
• Image diameter: 20 mm
• Gobo thickness: 1.1 mm
FRAMING SYSTEM
• 4 individually positionable shutter blades
• Rotation of the framing system module: +/- 45 °
IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• Light frost filter
• Heavy frost filter (optional, included)
EFFECTS
• Graphic animation effect-wheel with continuous rotation in both directions
• 5-facet circular indexable rotating prism
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through a built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess-temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• XLR 5-pin male and female connectors for DMX connection
• powerCON TRUE1 male and female connectors for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 34 to 56 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power: 550 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including a new Silent Mode
• Safety protection against temperatures excesses
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Aluminium and copper heatsinks
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety-cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 1.5 m (4.92 ft)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC):
• UL 1573
• FCC Part 15, Subpart B: 2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 365 x 591 x 208 mm (l x h x d)
• Flight-case foam: 430 x 660 x 280 mm (l x h x d)
WEIGHT
• Product: 22 kg
