AYRTON MagicPanel FX
MagicPanel FX is the exciting new multi-function, multi-use luminaire descended from the renowned MagicPanel R.

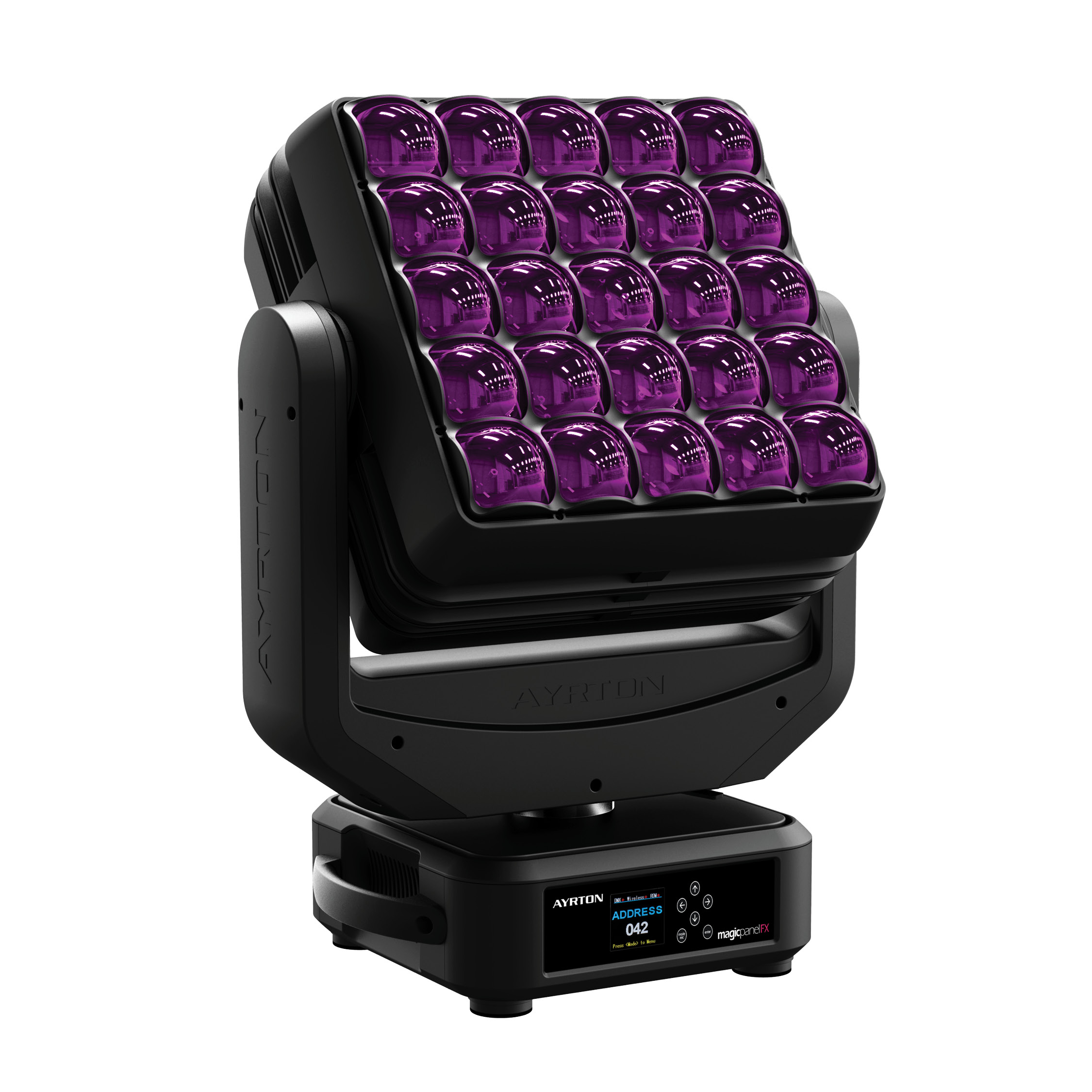

With a revolutionary new optical zoom system that has no visible moving parts and a stationary transmitting lens, this proprietary system has a 15:1 zoom ratio with a range of 3.6 ° to 53 °. The front face of MagicPanel FX is comprised of a 5 x 5 array of squared lenses with perfectly isolated emitters – which offer exciting new possibilities for creating 2D graphical effects. Each of the 25 squared 65 mm output lenses have an optical surface equivalent to that of an 80 mm round lens, combined with an ultra-powerful, low-etendue, LED emitter. MagicPanel FX produces an extremely powerful beam capable of creating extraordinarily new 3D volumetric effects.
OPTICS
• 2-elements 15:1 zoom high-resolution optic system
• Beam aperture: 3,6° to 53°
• Fast motorised linear zoom
• 25 squared 65 mm frontal lens
LIGHT SOURCE
• 25 x 1,000 lumens RGBW High-Power LED source
• Total luminaire output: up to 13,500 lumens
• Luminous intensity: 2,070,000 cd (narrow beam)
• Rated life (L70): up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation
COLOURS
• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed
EFFECTS
• 2D & 3D graphical effects capabilities
• Effects can be coupled with beam, wash or matrix applications
• Built-in pattern effects with speed and fade controls for scenic applications
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• 6 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• XLR 5 pin male and female connectors for DMX connection
• etherCON RJ45 IN / OUT connectors for ArtNet™ connection
• owerCON TRUE1 male connectors for power connection
CONTROL
• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 19 to 118 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power 1,000 W maximum
COOLING SYSTEM
• Advanced cooling system
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
• Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 2.0 m (6.56 ft)
Compliance
• EU (EMC & LVD)
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US Safety
• UL 1573
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 486 x 641 x 307 mm (l x h x d)
• Flight-case foam: 569 x 672 x 367 mm (l x h x d)
WEIGHT
• Product: 28.7 kg
