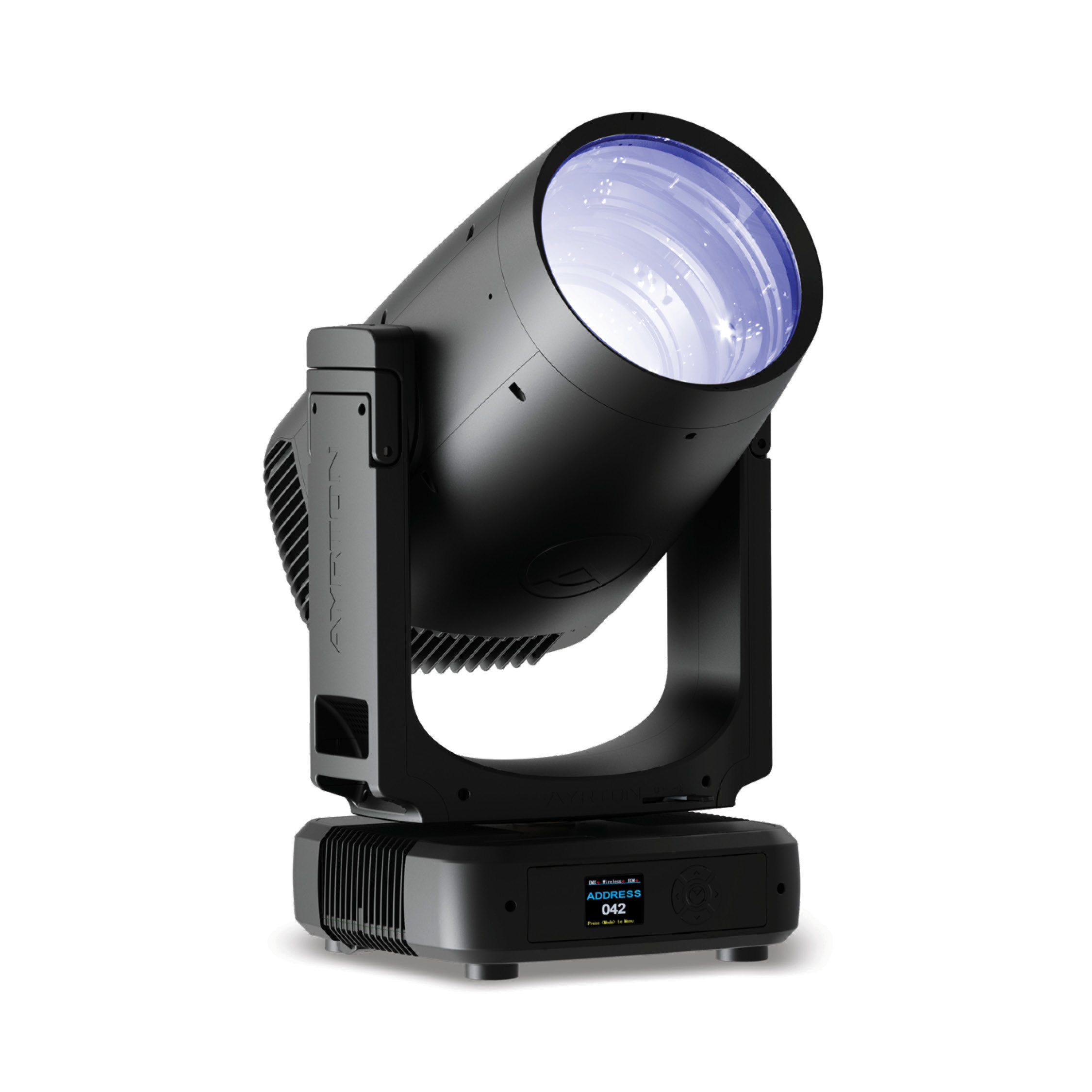

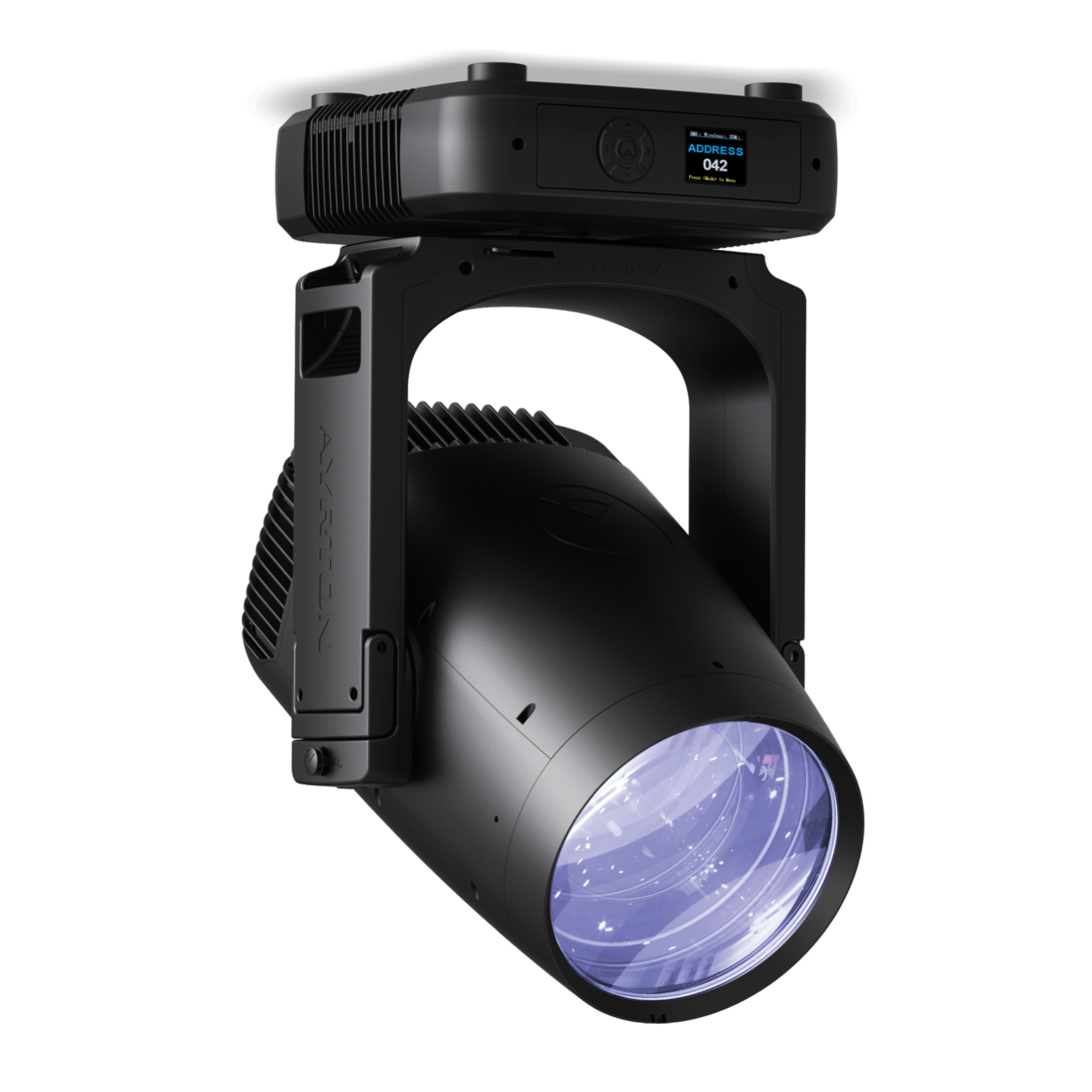

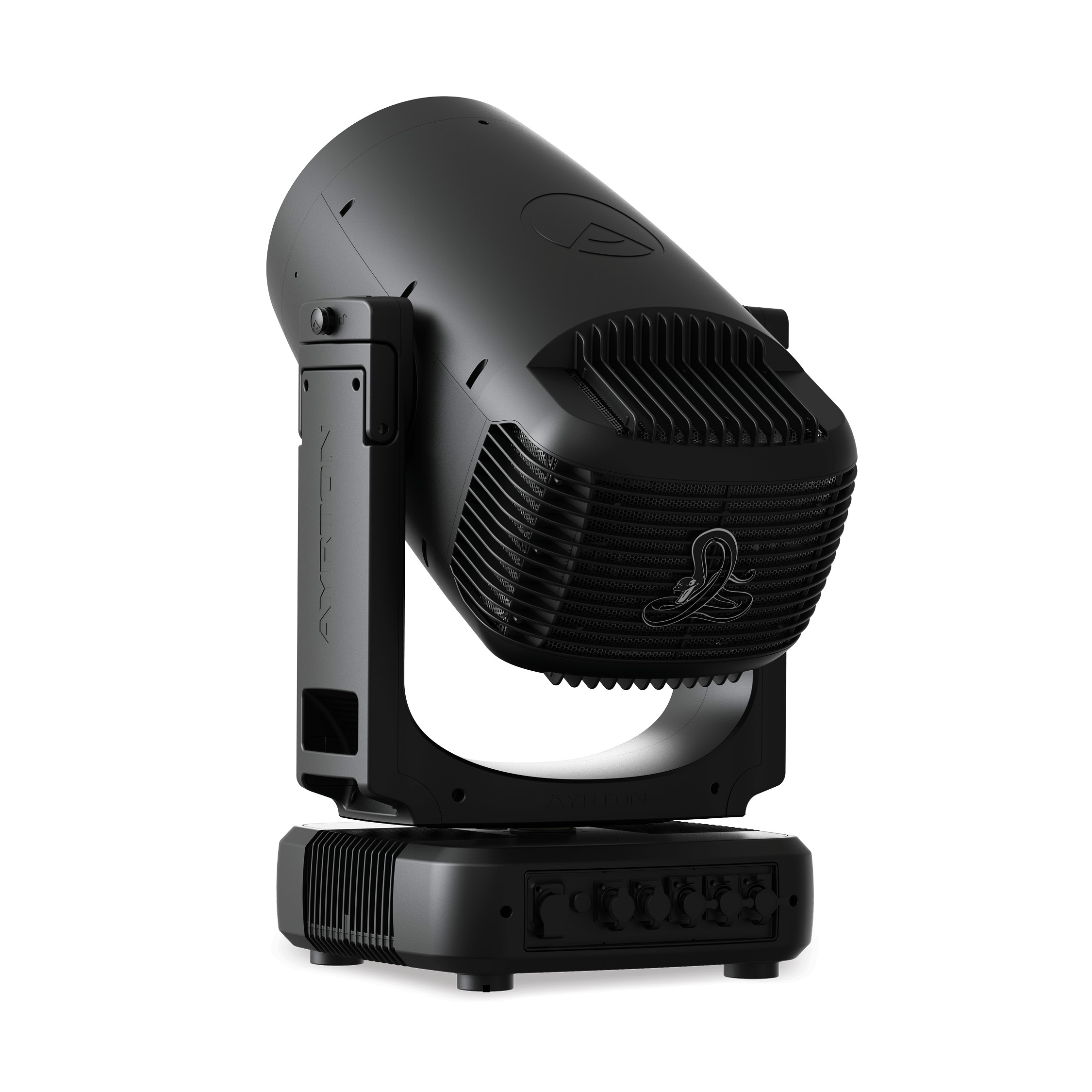

AYRTON Mamba
After the global triumph of Cobra—sold in thousands across the world—Ayrton unveils Mamba, a groundbreaking, versatile lighting concept.
Equipped with a laser source twice as powerful, Mamba delivers a multitude of breathtaking new psychedelic effects that are nothing short of spectacular. Mamba boasts unmatched graphic capabilities, featuring 18 motors dedicated solely to effect creation. It offers a vast selection of 92 fixed and rotating metal gobos across two wheels, specifically designed to sculpt light in “beam” mode. An endlessly rotating ovoid animation wheel adds to its dynamic arsenal. The gobos can be paired with an initial level of two palettes, each containing four individually rotating prisms that can be combined. These can then be linked to a second level of four combinable prisms situated at the front of the fixture, enabling the creation of a multitude of complex volumetric effects. Completing its graphic toolkit are two Frost filters. Mamba introduces a highly innovative colour section, including a brand-new high-definition gradient CMY mixing system and an instant-access multi-position wheel equipped with 15 complementary colour filters, two multicolour filters, two CTP correctors, a progressive CTO, and three multicolour sections – RGB, CMY, and RGB+CMY – spread over two concentric circles.
OPTICS
• 13-element 21:1 zoom high-resolution optic system
• Beam aperture: 0.7 ° to 15 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 250 mm frontal lens for greater performance
LIGHT SOURCE
• Luminous flux: 2,600,000 lux at 10 m
• Colour temperature output: 9000 K
• Rated life (L70): up to 12,000 hours
• Speckle-free source
MOVEMENT
• Highly accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation
COLOURS
• Sophisticated colour mixing system providing CMY color mixing
• Fixed colour wheel with variable CTO, 15 complementary colour filters, 2 minus green filters, 2 multicolour filters and 3 coloured animation sections
GOBOS
• One indexable rotating gobo wheels with 12 Quartz glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Fixed multi-position gobo wheel with instant access to 80 metal gobos
• Gobo diameter: 6.9 mm
• Image diameter: 4 mm
FROST
• 2 frost filters: one light, one heavy
EFFECTS
• Monochromatic graphical animation effects wheel with continuous rotation in both directions
• 2 set of 4 combinable rotating and indexable prisms
• 2 extra set of 2 combinable rotating and indexable prisms
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• • 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 TOP male connectors for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Footprint of 47 DMX channels
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 800 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Silent Mode
• Safety protection against excess temperature
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Base and head in die-cast aluminium
• Heatsinks in aluminium and copper
• Arms in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 35 m (114.83 ft)
COMPLIANCE
• EU (EMC & LVD)
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B: 2018
• Certified and compliant with US FDA CDRH laser product requirements
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 405 x 747 x 369 mm (l x h x d)
• Flight-case foam: 680 x 500 x 640 mm (l x h x d)
WEIGHT
• Product: 41 kg
