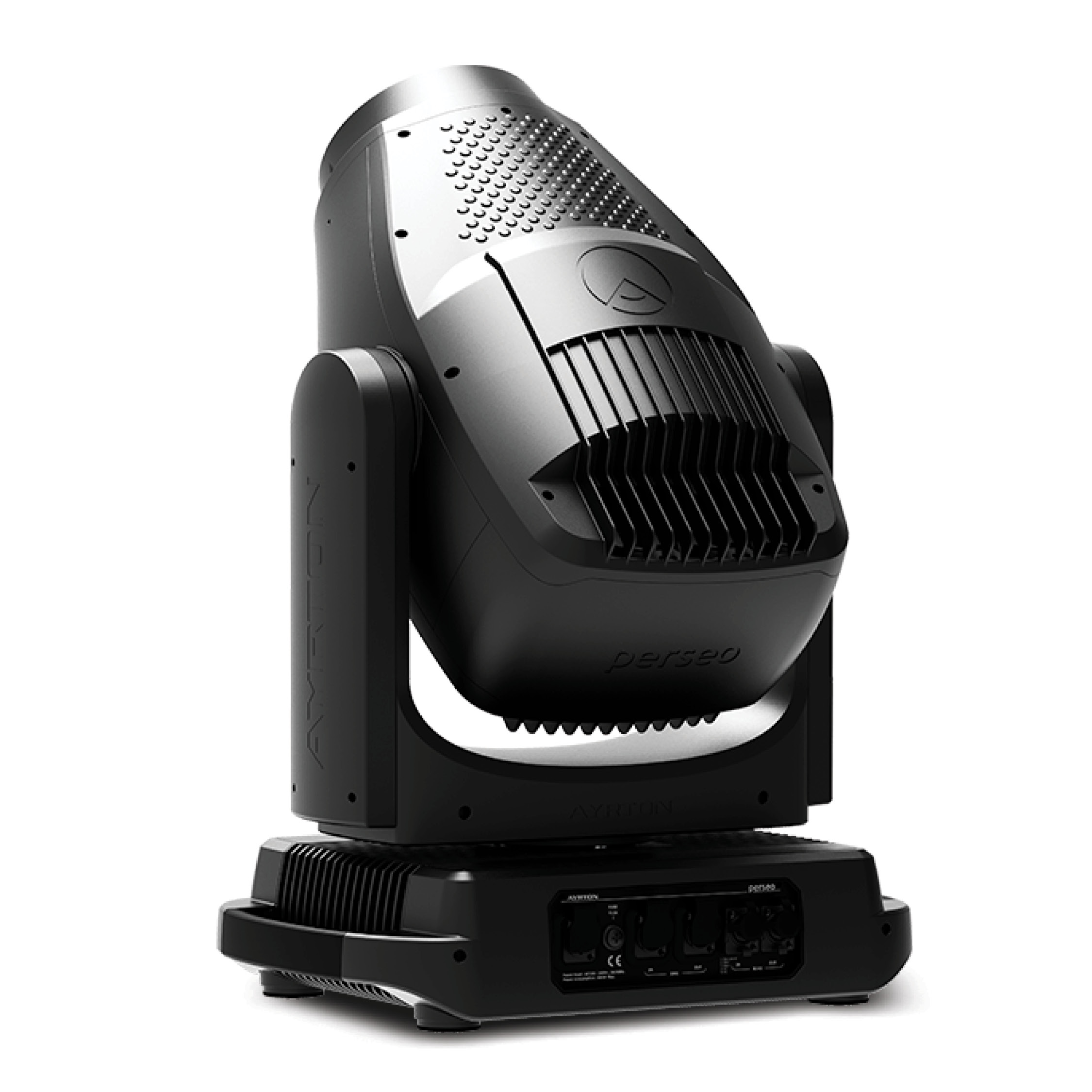

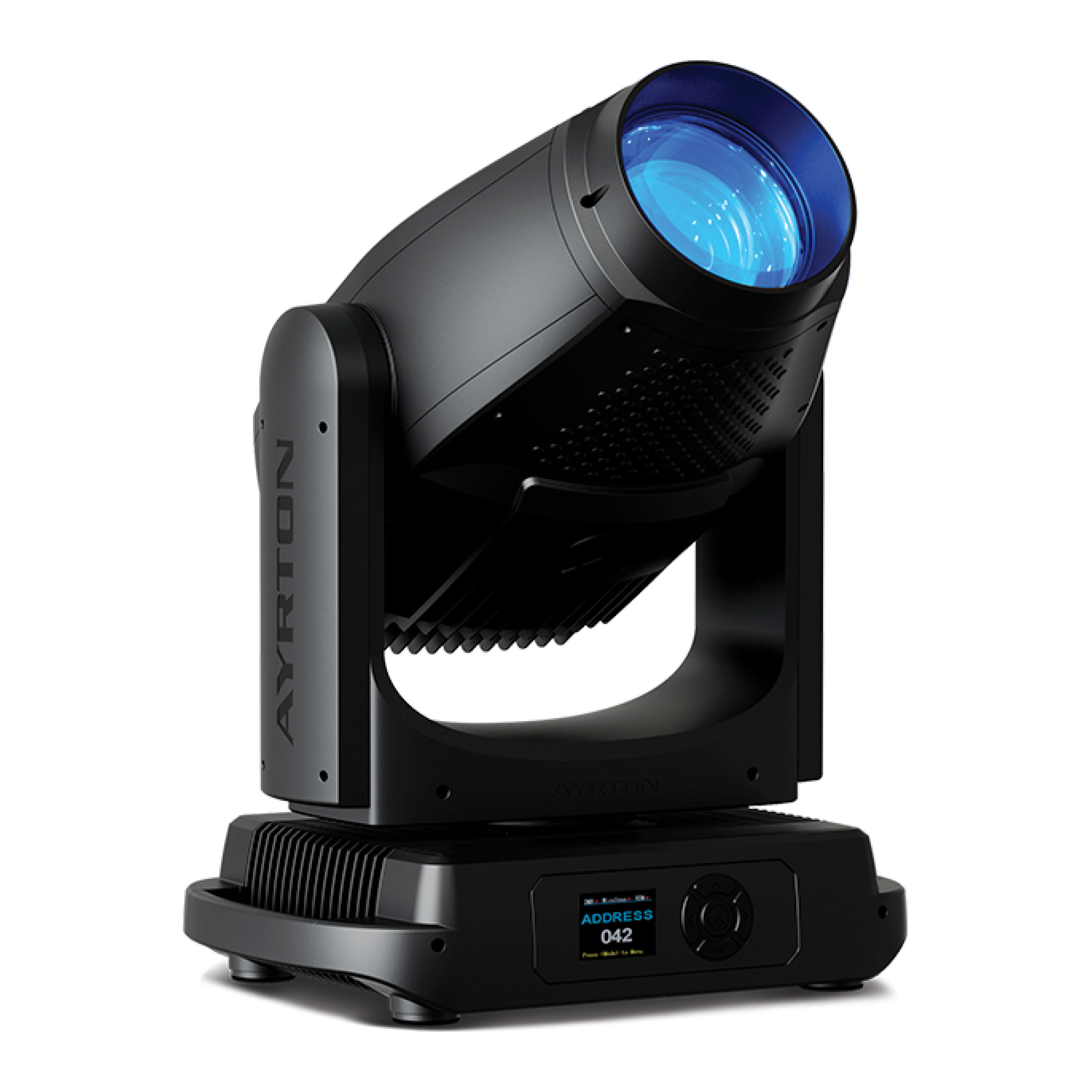

AYRTON Perseo Profile
Perseo Profile is the first compact multi-function luminaire with an IP65 enclosure rating developed by Ayrton for intensive outdoor use.
Equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,400 lumens. Ayrton has specifically developed the optics in Perseo Profile to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7 ° to 58 °. Ayrton has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminium, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, Perseo Profile is provided with a highly effective phase-change liquid cooling system fitted with six submersible fans located outside the watertight enclosure.
OPTICS
• 13-elements, 8:1 zoom high-resolution optic system
• Beam aperture: 7° to 58°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 148 mm frontal lens for greater performance
LIGHT SOURCE
Perseo Profile S
• 40,000 lumens 8200 K white light engine
• Total luminaire output: up to 30,000 lumens
• Colour temperature output: 6900 K
• CRI: greater than 70
Perseo Profile TC
• 34,000 lumens 7000 K white light engine
• Total luminaire output: up to 26,000 lumens
• Colour temperature output: 6500 K
• CRI: greater than 90
Perseo Profile S & Perseo Profile TC
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving head range: 540° (pan), 263° (tilt)
COLOURS
• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with six complementary colours
GOBOS
• Indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Fixed gobo wheel with 11 high-precision glass gobos (special shape), plus open position
• Rotating Gobo diameter (rotating gobo): 27 mm
• Image diameter: 22 mm
• Gobo thickness: 1.1 mm
• Static Gobo diameter: See User manual
FRAMING SYSTEM
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the framing system module: +/- 45°
IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROSTS
• 2 frost filters: one light, one heavy
EFFECTS
• Focusable graphic animation effect-wheel with continuous rotation in both directions
• 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• IP65 version
• IP65 XLR 5-pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet™ connection
• IP65 powerCON TRUE1 male connector for power connection
• IP66 version
• DMX IN / OUT tails to bare end for IP66 DMX connection
• Ethernet IN / OUT tails to bare end for IP66 ArtNet™ connection
• Power tail to bare end for IP66 power connection
CONTROL
• DMX 512 protocol, through IP65 DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet™ & sACN protocol through IP65 Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 4 DMX modes (from 38 to 61 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power: 800 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Silent Mode
• Safety protection against excess temperature
HOUSING
• Moving-head skeleton made of die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in die-cast aluminium
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (14 °F)
• Minimum usage distance: 2 m (6.56 ft)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC):
• UL 1573
• FCC Part 15, Subpart B: 2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 490 x 710 x 330 mm (l x h x d)
• Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
• Product: 38.8 kg
