The MC1.2+ easily converts PCM audiostreams through its USB, AES/EBU (XLR), AES3/EBUid (BNC) and S/P‑DIF (Toslink/BNC, RCA via adapter) interface ports. This process can be performed simultaneously - also via USB - in both directions: In and Out. Such an exceptional flexibility proves to be extremely useful in a professional recording studio, broadcast studio or as part of a sound reinforcement system. There, thanks to the MC1.2+, versatile and lossless signal transfers between audio interfaces, digital mixers and effects processors in real‑time become possible. In addition, this DDC from MUTEC improves the sound quality of the USB connection by isolating the USB power supply and then regenerating the signal. This feature makes the MC1.2+ also very appealing for audiophile listeners.

Bi-directional signal conversions up to 192 kHz between all digital PCM audio interfaces: USB, AES/EBU, AES/EBUid, S/P‑DIF (BNC, RCA via adapter, Toslink)
Custom‑designed asynchronous USB interface with very low latency
Improves the sound quality of the USB audio stream by isolating the USB power supply and then regenerating the signal
Low noise audio clock oscillators ensures audiophile sound quality
USB‑Bus-powered for mobile operation
Internal international power supply
DC‑Input for external power supply
Status display of the selected power supply
Individual lock indicators for USB and digital audio inputs
SCMS status bit analysis for the S/P‑DIF inputs
Input clock rate display, separately for USB and digital audio inputs
USB Audio Class 2.0 driver for Windows supports ASIO, MME, DirectSound, WASAPI, Kernel Streaming, PCM 16‑bit/24‑bit at all clock rates between 44.1 kHz and 192 kHz
Converts to all output formats simultaneously while the original signal remains accessible
Converts AES3 and S/P‑DIF signals to Dolby devices with AES3id interfaces
Digital audio signal refreshing in long‑distance applications
Works with MacOS, Windows, Linux
Available with silver or black aluminium front panel
Optional mounting set for 19" racks (1U)
Developed and manufactured in Germany

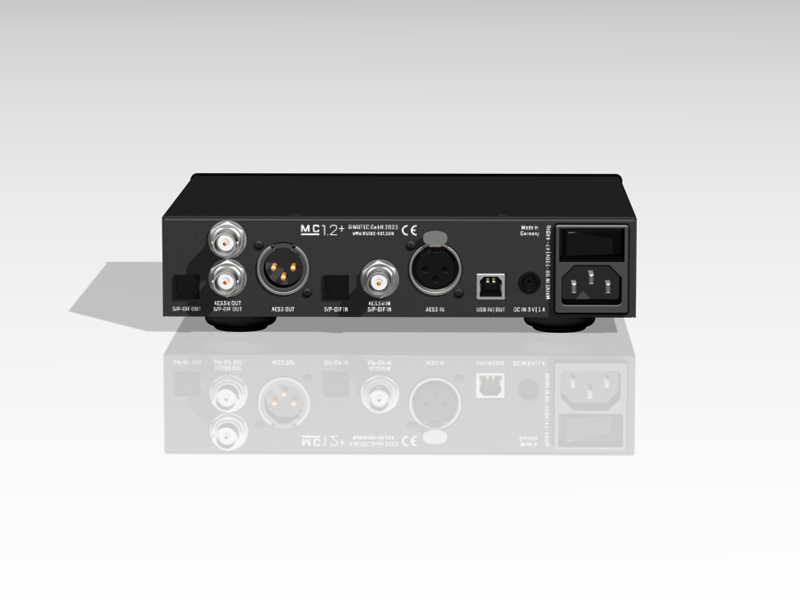

Interfaces
1 x USB2.0 interface, bi-directional usable
1 x XLR input for AES3/11, 110 ohms terminated, transformer balanced
1 x BNC input for S/P-DIF + AES3id, 75 ohms terminated, unbalanced
1 x Optical input for S/P-DIF, Toshiba Toslink™, EIAJ RC-5720
1 x XLR output for AES3/11, terminated, transformer balanced, buffered
1 x BNC input for S/P-DIF, 75 ohms terminated, unbalanced
1 x BNC input for AES3id, 75 ohms terminated, unbalanced
1 x Optical output for S/P-DIF, Toshiba Toslink™, EIAJ RC-5720

Power Supply
USB interface
DC input, 9 V, JEITA RC-5320A JSBP5
Internal switching power supply, input Voltage: 90 V - 260 V (automatic adjustment), 47 Hz - 440 Hz, power consumption: max. 10 W

Mechanical Details
Cover size/material/color: 196 x 42 x 156 mm without connectors (W x H x D), 1 mm steel sheet, black powder-coated
Front panel size/material/surface: 198 x 44 x 4 mm (W x H x D), aluminium, anodized, silver or black color
Weight: 1155 g

Order Information
MC1.2+ with silver front panel, item no. 8015-113, EAN-Code: 4260342461228
MC1.2+ with black front panel, item no. 8015-114, EAN-Code: 4260342461235
