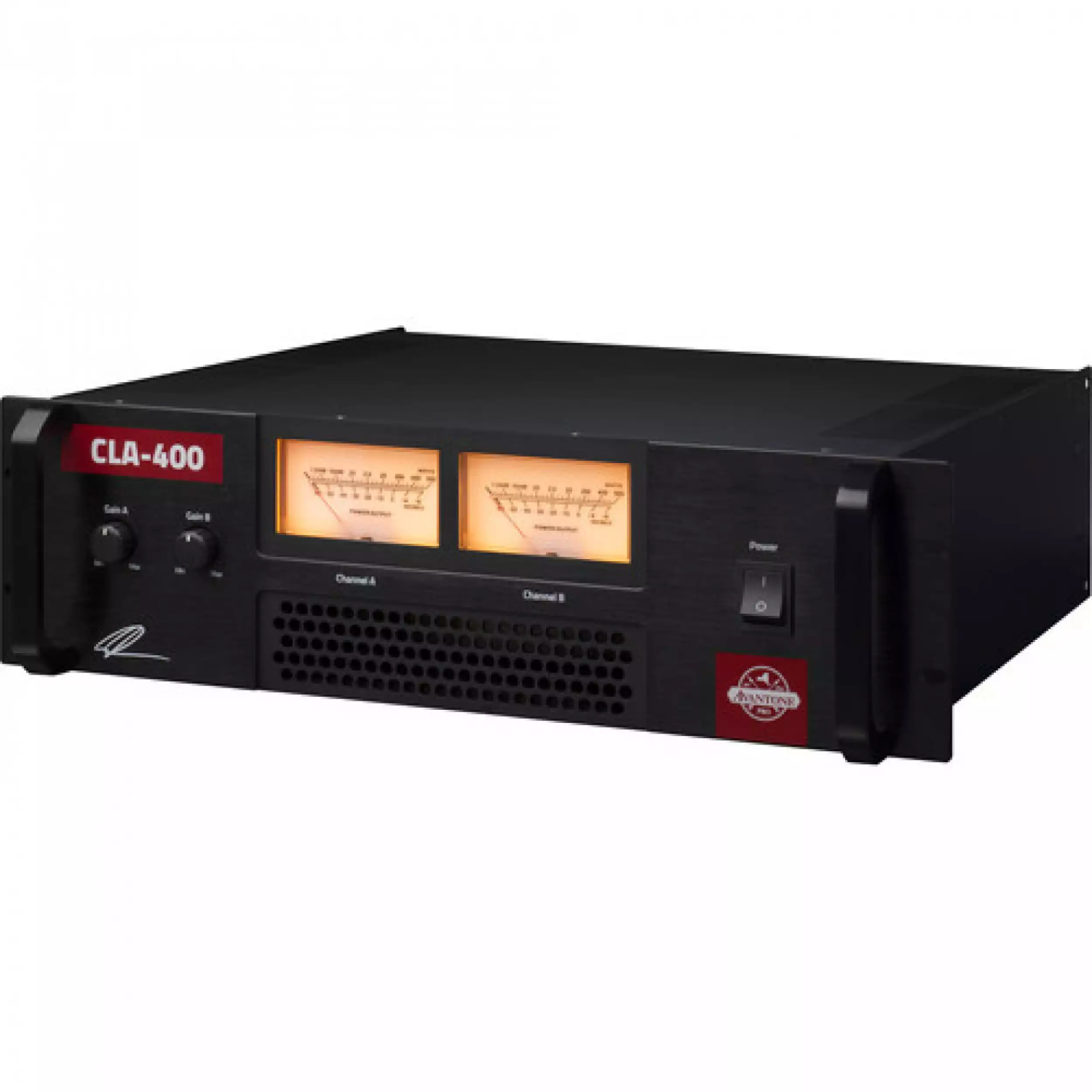

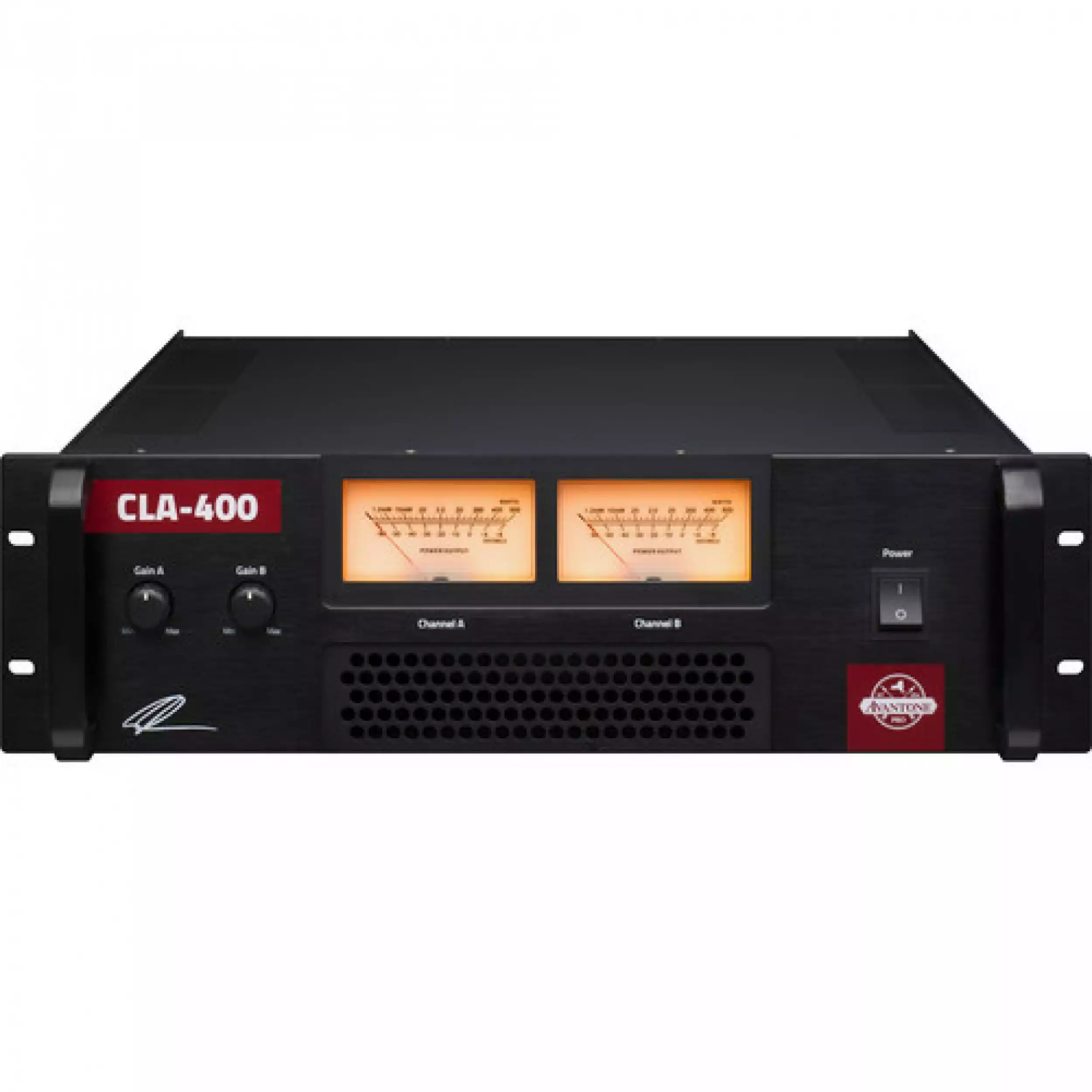

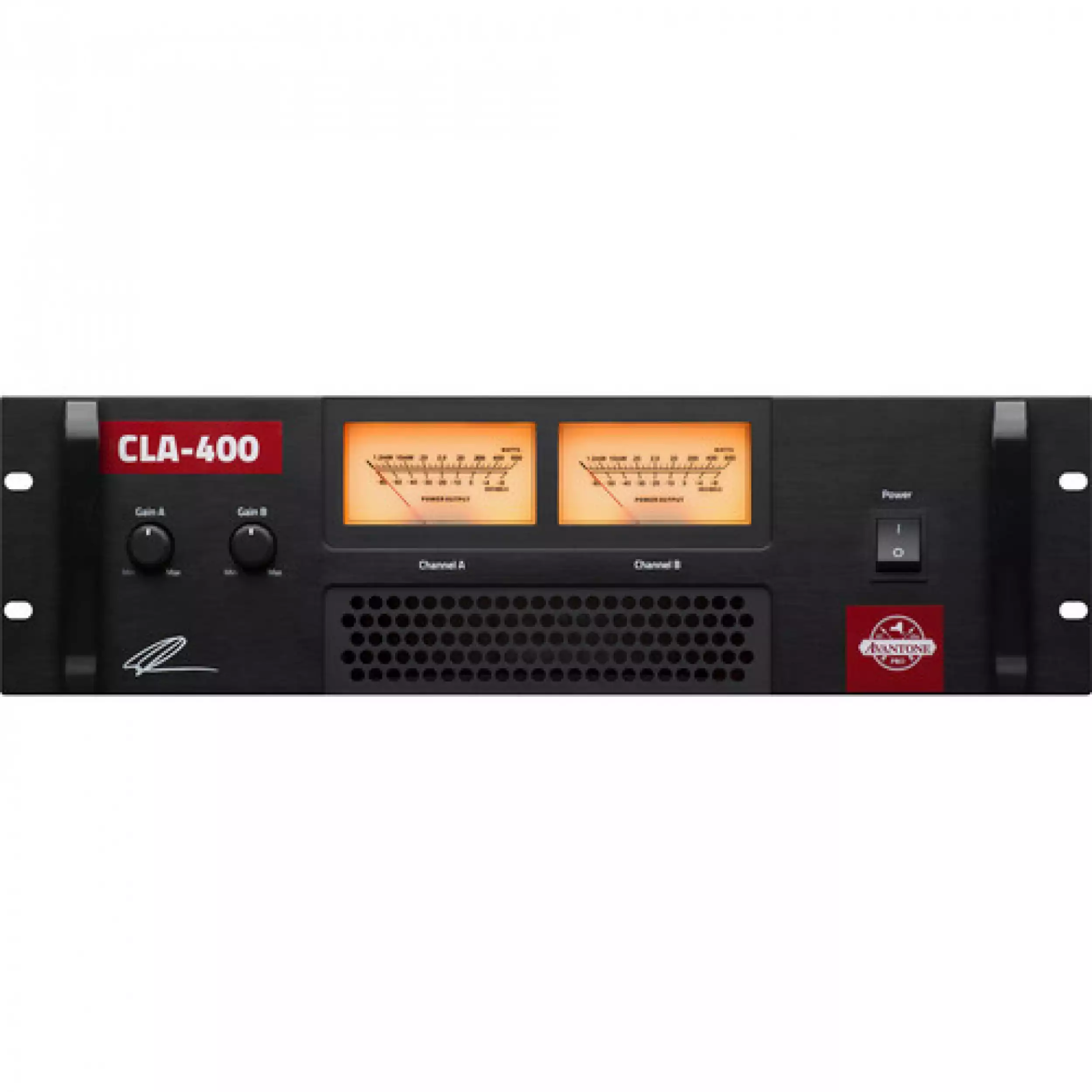

Avantone Pro CLA-400

Šifra:
Uskoro na stanju

Garantujemo najnižu cenu na tržištu!
U slučaju da pronadjete isti proizvod po povoljnijoj ceni,
molimo Vas da nas kontaktirate na:
bestprice@player.rs

Opcija:

Looking for a professional amplifier capable of powering medium to large studio monitors? Check out the Avantone Pro CLA-400 Studio Reference Amplifier, a dynamic, high-output, high-resolution full-range amplification system. Built in the "old school" way, the no-compromise design features high-quality Japanese components, generous VU meters, and a serious toroidal transformer linear power supply. The convection-cooled chassis provides fanless, silent operation, allowing the amplifier to be used in the same room as the monitors.

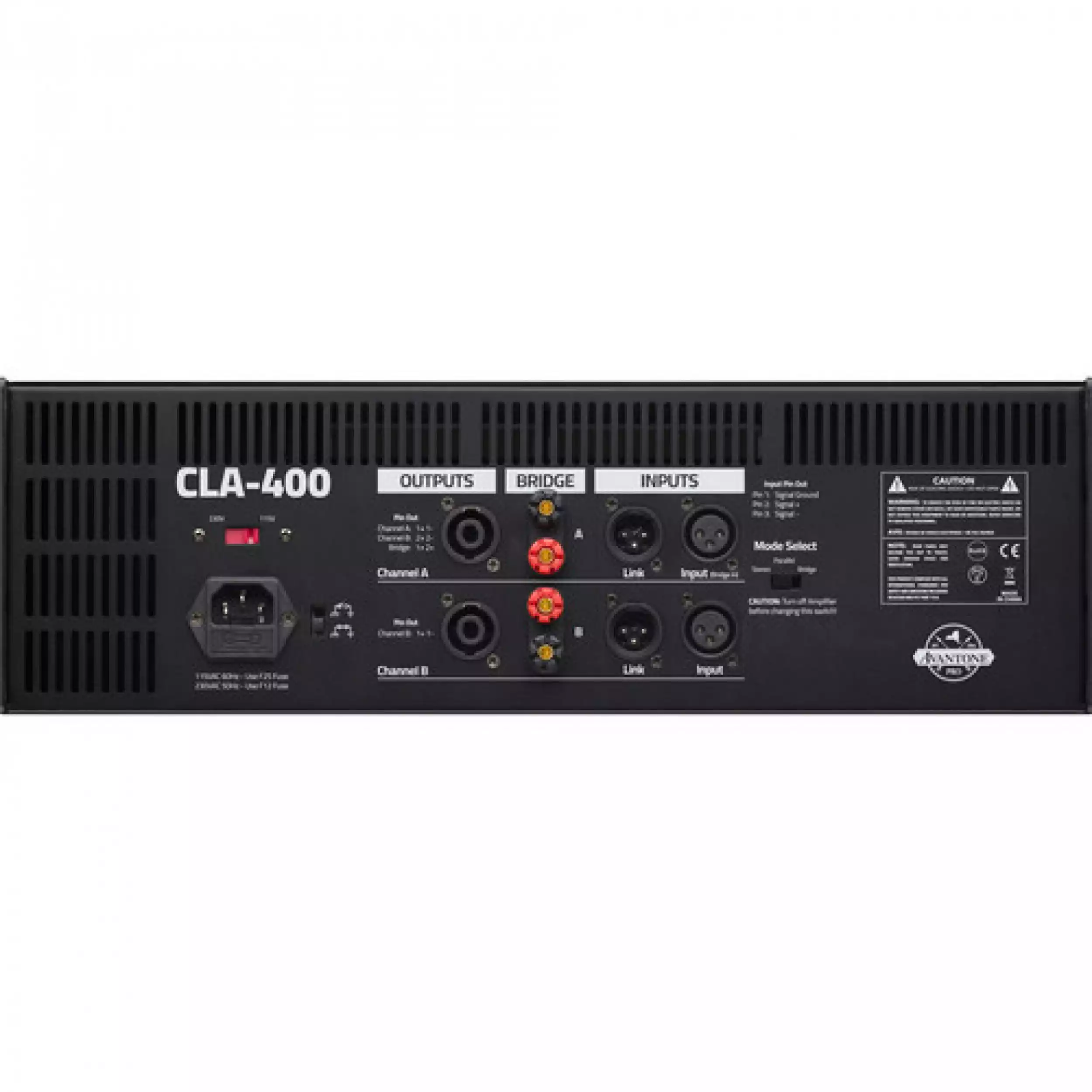

The CLA-400 boasts a frequency response of 20 Hz to 20 kHz (±0.5 dB) with a power output of 360W at 8 ohms and 540W at 4 ohms per channel. The amplifier can also be used in bridged mode, providing 760W into 8 ohms. The rear panel features two XLR inputs, two XLR link outputs, two speakON connectors, and two sets of terminal block connectors. Both the terminal block and speakON connectors feature bridge configurations for flexibility in deployment. The Avantone Pro CLA-400 produces very-low distortion, steady performance under harsh conditions, and a transparent sound, making it well suited for discerning studios.

At a Glance
XLR inputs with Link Output per channel

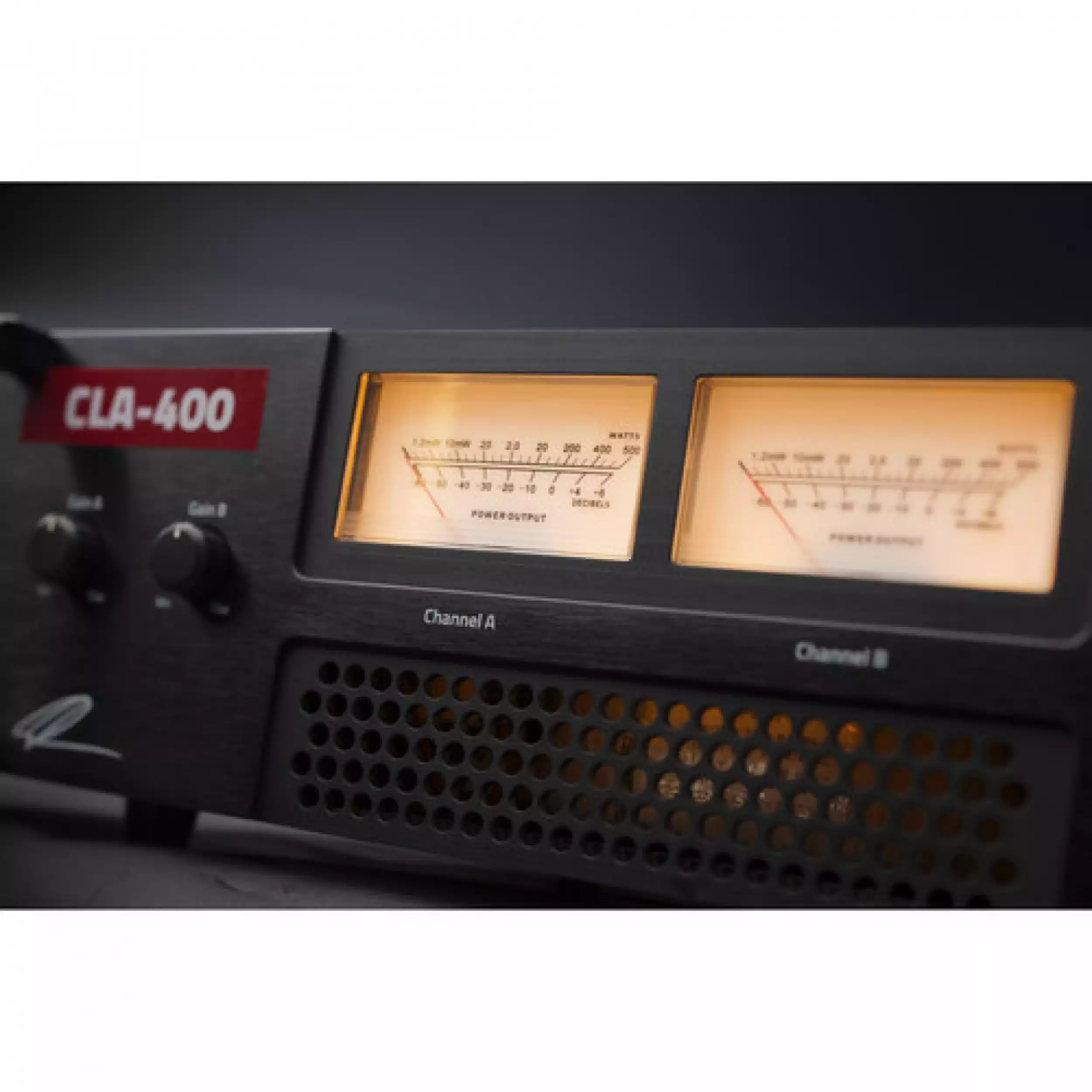

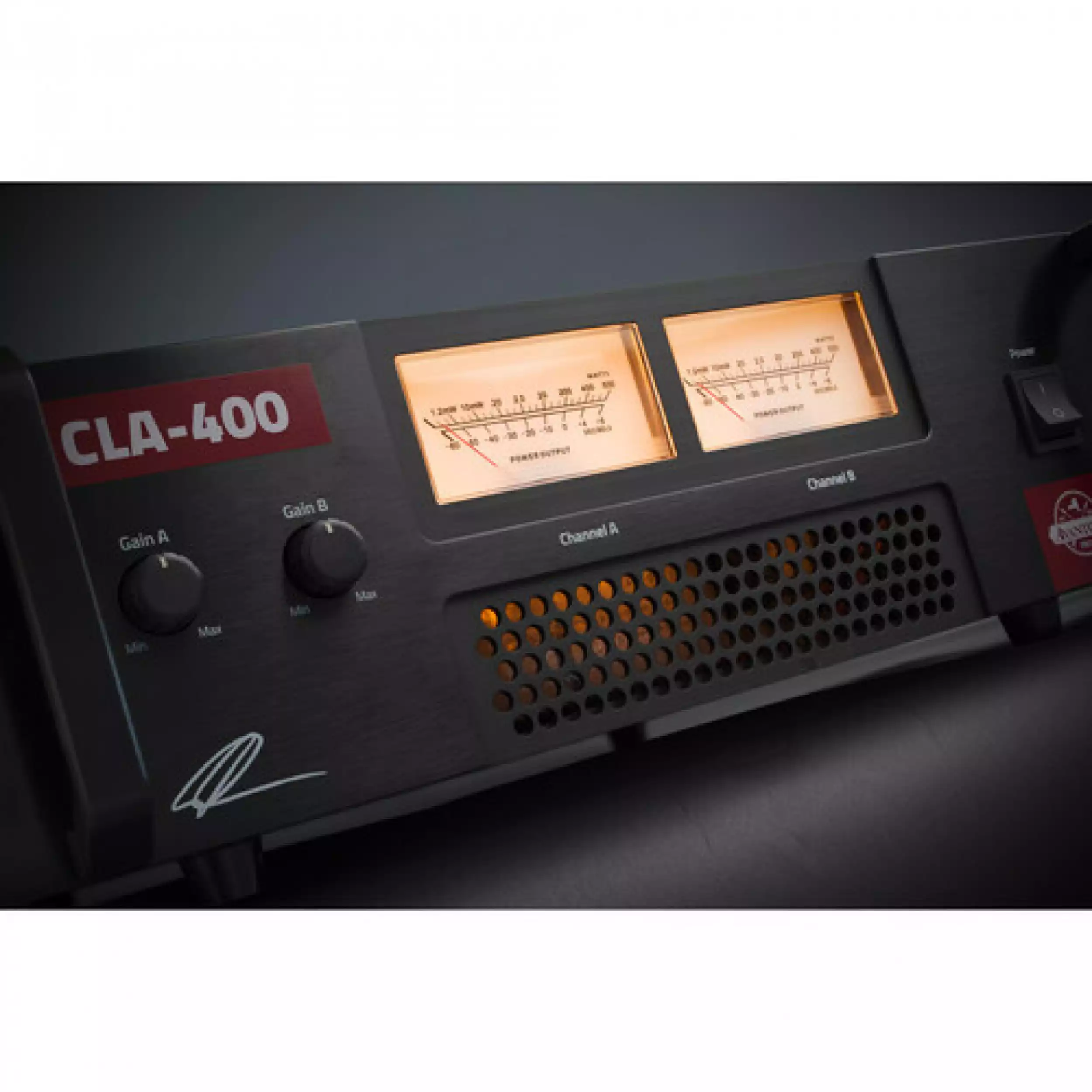

Analog VU metering
Monolithic amounts of reference-grade power
Convection-cooled design for silent operation
Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
Class AB amplifier
Large toroidal transformer linear power supply
Convection cooled for silent operation (no fans)
Low noise
Steady performance
Open transparent sound
Output Power
Stereo power: 360W at 8 ohms
Stereo power: 540W at 4 ohms
Bridge power: 760W bridged into 8 ohms

Amplifier
Number of Channels 2
Power Rating 4 Ohms:
540 W per Channel (1 kHz)
8 Ohms:
360 W per Channel (1 kHz)
760 W Bridged (1 kHz)
Amplifier Class Class-AB
Performance
Frequency Response 20 Hz to 20 kHz ±0.5 dB
Damping Factor 250 at 8 Ohms
Input Sensitivity 0.775 V / 0 dBu
Input Impedance 20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
SNR > 103 dB
THD < 0.1%
Intermodulation Distortion < 0.1%
Crosstalk -70 dB
Slew Rate 28 V/μs
Connectivity
I/O 2 x XLR 3-Pin Female Balanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru
2 x speakON NL4 Speaker Output
2 x Binding Post Pair 2-Pin Speaker Output
Digital I/O None
USB None
Power
AC Input Power User Selectable:
115 to 230 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Physical
Rackmount Size 3 RU
Cooling Convection
Dimensions 19.0 x 18.0 x 5.2" / 482.6 x 457.2 x 132.1 mm
Weight 49 lb / 22.2 kg
Packaging Info
Package Weight 60 lb
Box Dimensions (LxWxH) 23.63 x 9.5 x 9.38"
