Genelec 8341 AW - Aktivni studijski monitor
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom karticom.
Garantujemo najnižu cenu!
High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.
For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.
System Specifications
Frequency Response: 45 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 38 Hz
High cutoff -6dB: 37 kHz
SPL
Peak SPL: ≥118 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL: ≥110 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥101 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise: ≤3 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted).
Weight
Weight: 9.8 kg (21.6 lb)
Dimensions
Height: 351 mm (13 7/8 in)
Height with Iso-Pod: 370 mm (14 5/8 in)
Width: 237 mm (9 3/8 in)
Depth: 243 mm (9 5/8 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type: Racetrack
8341A bass driver
Count: 2
Width: 170 mm (6 3/4 in)
Height: 90 mm (3 1/2 in)
Midrange
Driver type: Coaxial
8341A midrange driver cone (coaxial)
Diameter: 90 mm (3 1/2 in)
Treble
Driver type: Coaxial
8341A treble driver metal dome (coaxial)
Diameter: 19 mm (3/4 in)
Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %
Amplifier Section
Amplifiers
8341 bass amplifier: 250 W Class D
8341 midrange amplifier: 150 W Class D
8341 treble amplifier: 150 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤0.5 W
Idle: ≤16 W
Full output: 250 W
Signal processing section

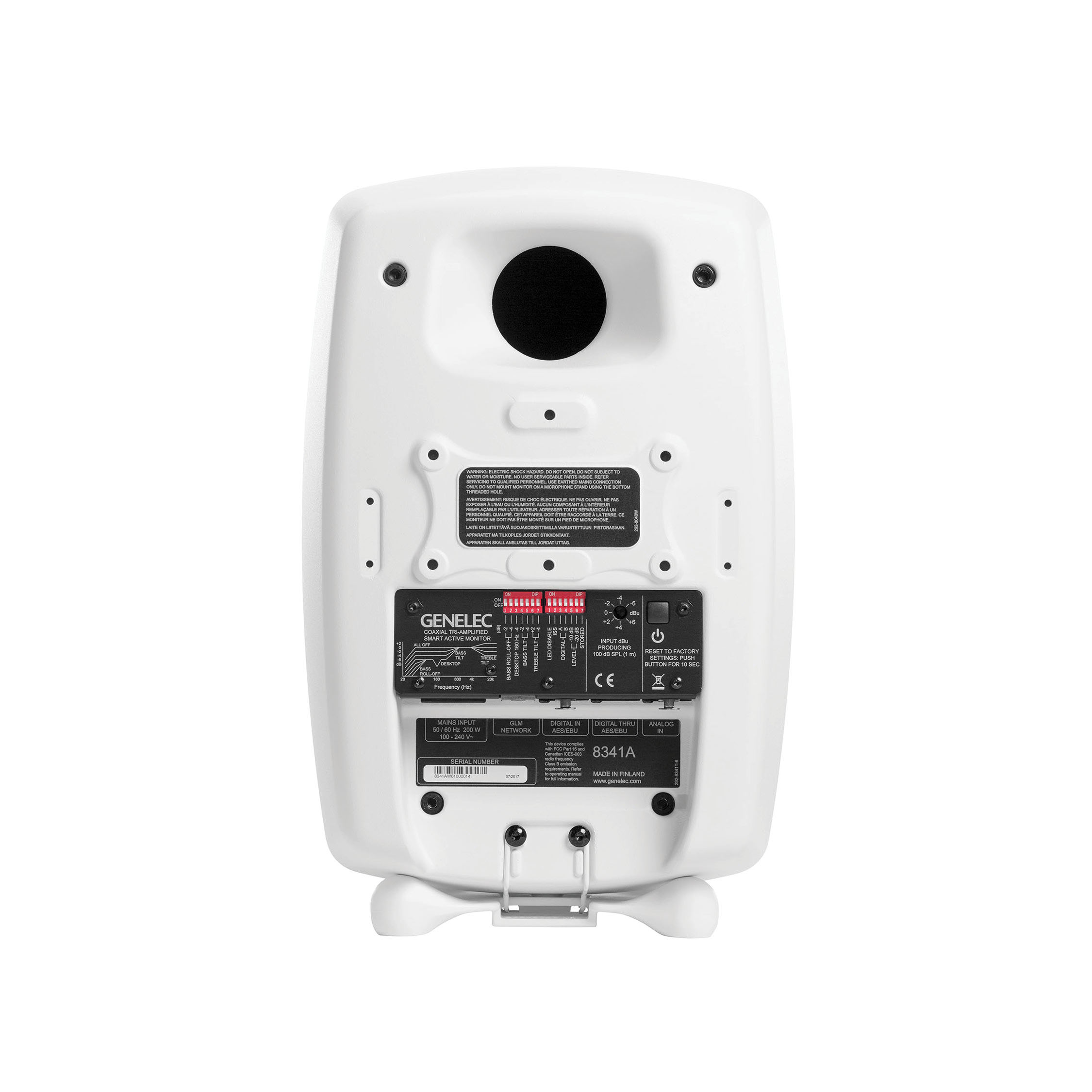

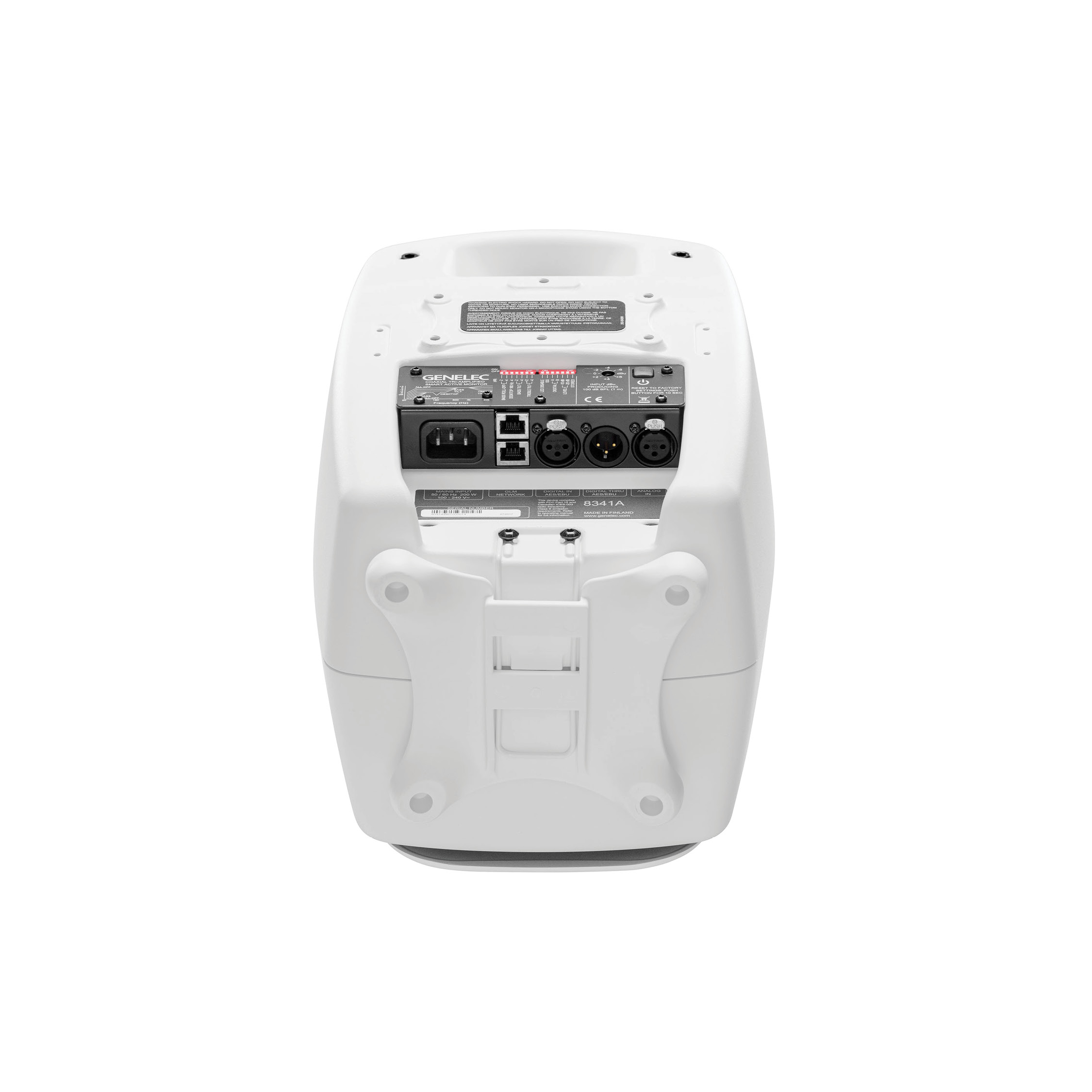

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid: 500 Hz
Mid/Treble: 3000 Hz
