Frequency Response: 45 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 38 Hz
High cutoff -6dB: 37 kHz

SPL
Peak SPL: ≥118 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL: ≥110 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥101 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.

Self-generated noise
Self-generated noise: ≤3 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted).

Weight
Weight: 9.8 kg (21.6 lb)

Dimensions
Height: 351 mm (13 7/8 in)
Height with Iso-Pod: 370 mm (14 5/8 in)
Width: 237 mm (9 3/8 in)
Depth: 243 mm (9 5/8 in)

Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port

Drivers
Bass
Driver type: Racetrack
8341A bass driver
                                              2
Width: 170 mm (6 3/4 in)
Height: 90 mm (3 1/2 in)

Midrange
Driver type: Coaxial
8341A midrange driver cone (coaxial)
Diameter: 90 mm (3 1/2 in)

Treble
Driver type: Coaxial
8341A treble driver metal dome (coaxial)
Diameter: 19 mm (3/4 in)

Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %

Amplifiers
8341 bass amplifier: 250 W Class D
8341 midrange amplifier: 150 W Class D
8341 treble amplifier: 150 W Class D

Mains voltage: 100-240 VAC 50/60Hz

Power consumption
ISS Active: ≤0.5 W
Idle: ≤16 W
Full output: 250 W

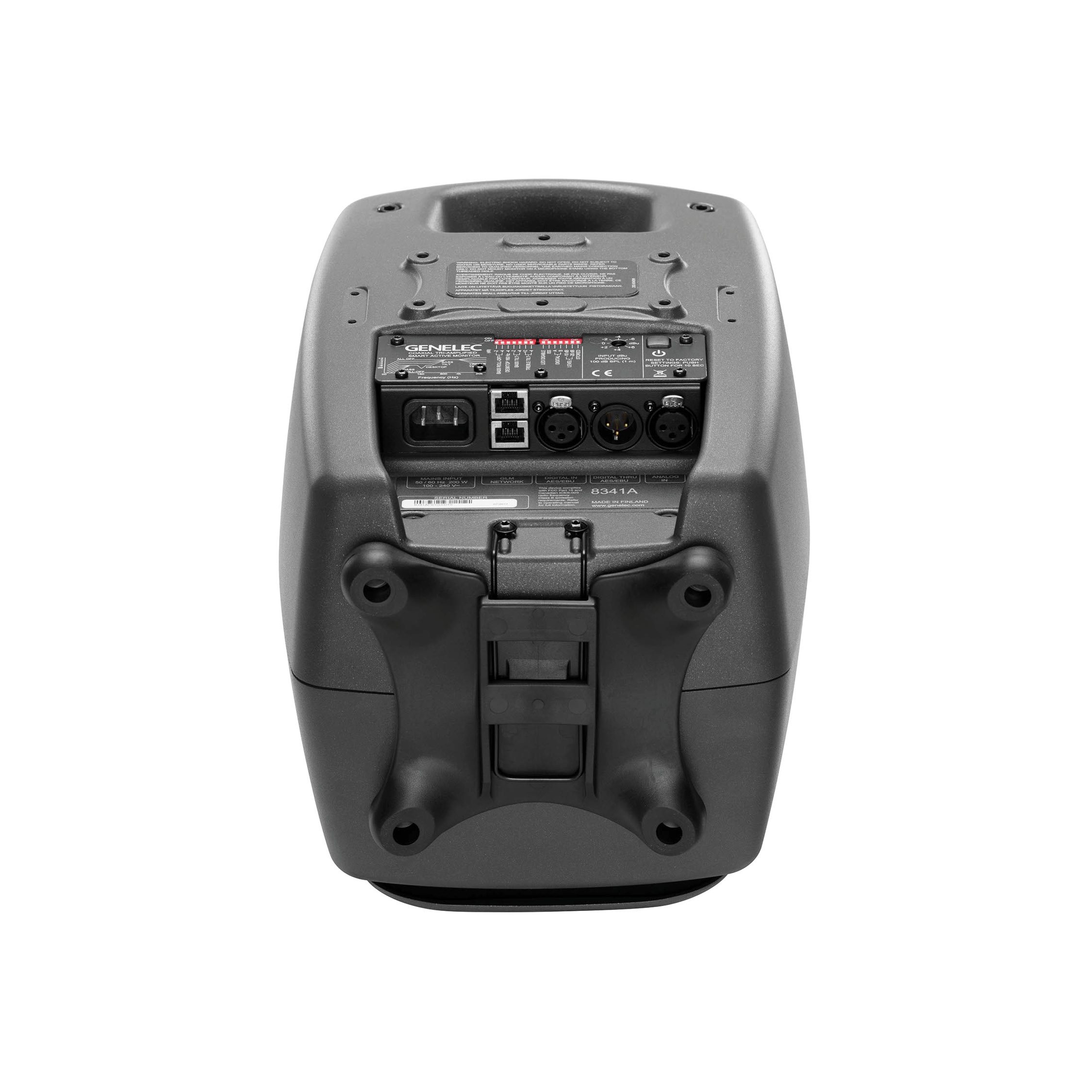

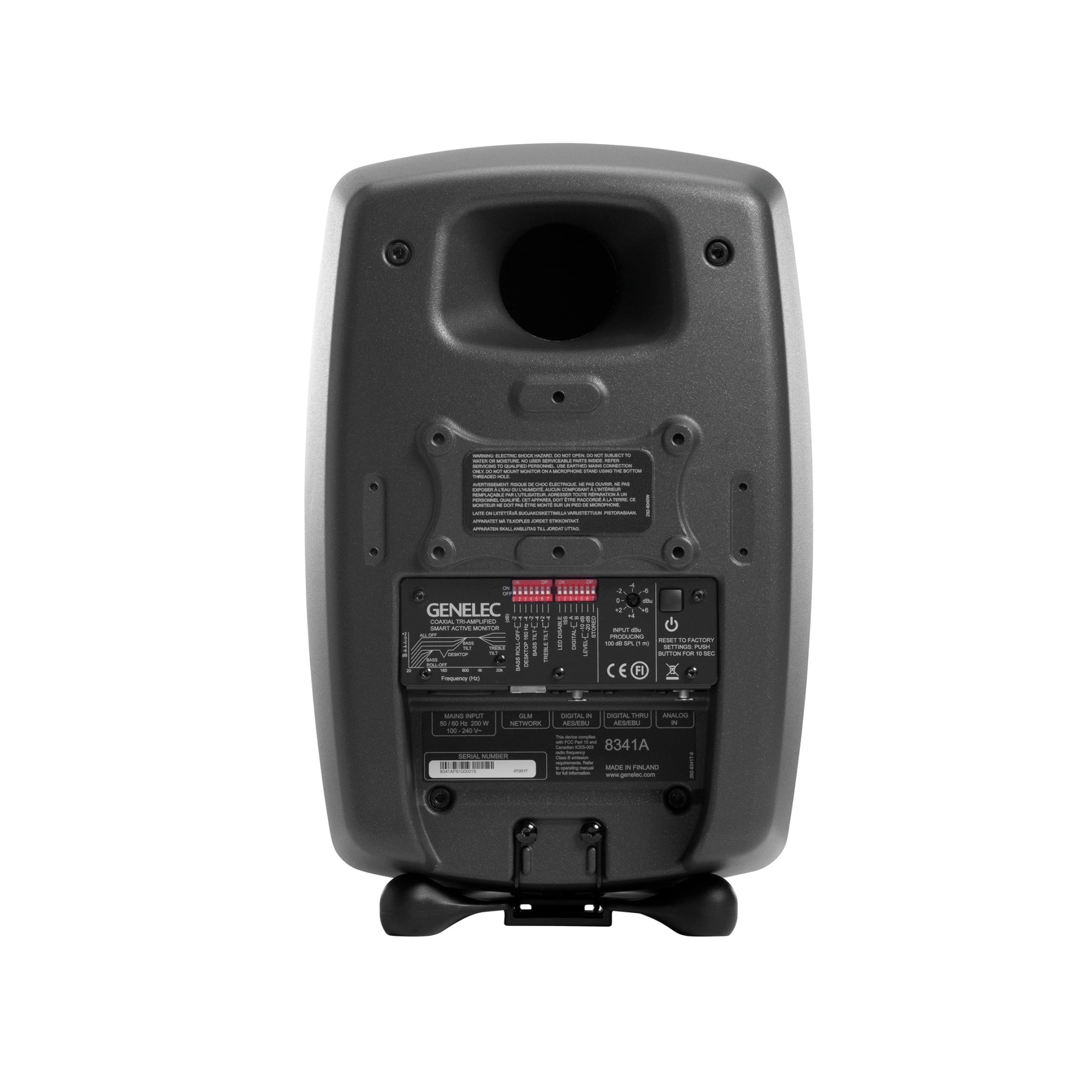

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.

Crossover
Bass/Mid: 500 Hz
Mid/Treble: 3000 Hz
