Tascam IF-AE16
Šifra: 19051
119.328,00 rsd
99.440,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!

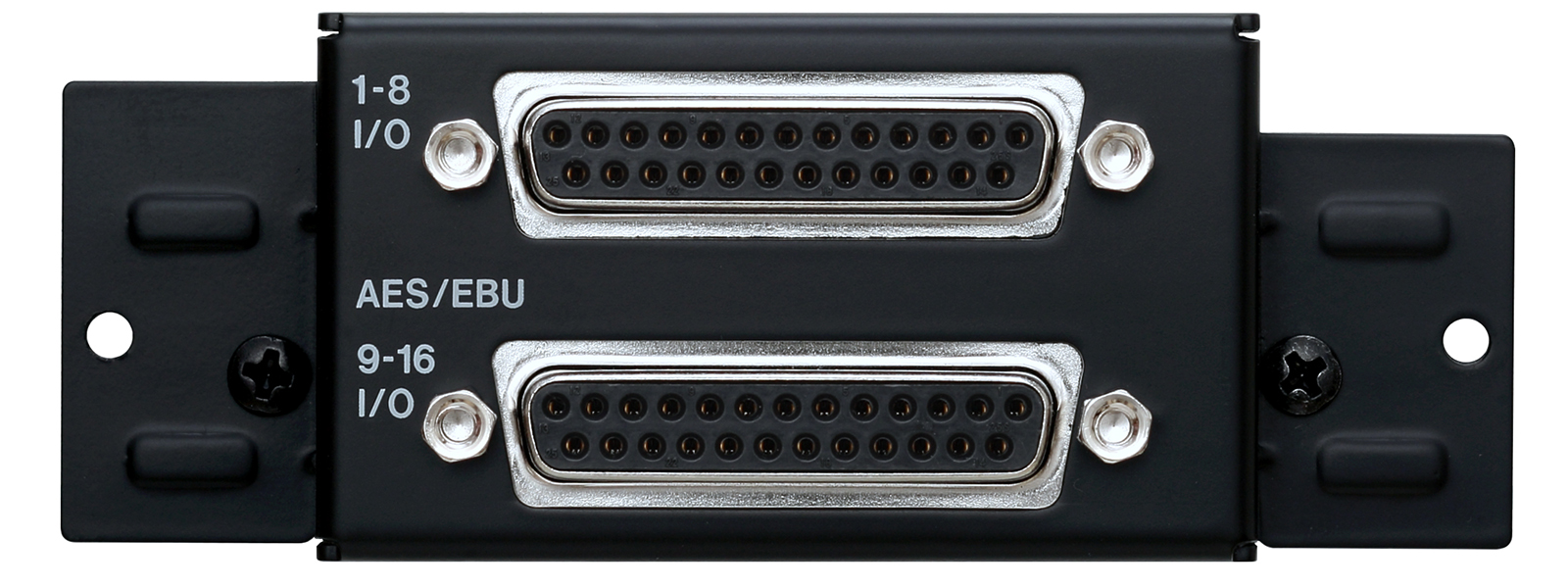

16-IN/16-OUT AES/EBU EXPANSION CARD
Supporting models : TASCAM Sonicview 24XP / TASCAM Sonicview 16XP / DA-6400 / DA-6400dp
The IF-AE16 is an optional 16-in/16-out AES/EBU interface card for the TASCAM expansion slot system. The IF-AE16 will convert sampling rates for each input and supports virtually all sampling frequency rates.
Specs:
- Formats and channels : 16 channels at 44.1/48kHz, 24-bit 16 channels at 88.2/96kHz, 24-bit (double speed)
- Connector : D-Sub 25-pin
- Locking screws : No. 4-40 UNC (inch type)
- Output format : AES3-2003/IEC60958-4 (AES/EBU)
Key Features:
- 16-in/16-out AES/EBU interface
- Built-in sampling rate converter for each input pair supporting 32k - 192kHz sampling rates
* Settings can be made for each pair of channels - Two D-sub 25pin connectors for channels 1-8 and 9-16 S/PDIF also supported as an input data format
- Input/output connector pin assignments* conform to AES59-2012
* AES59-2012, used by many pro audio devices, utilizes the "TASCAM standard" pinout - Compatible with the TASCAM Expansion Slot system
In the Box:
- IF-AE16 × 1
- Owner's Manual with Warranty
