Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/instr inputs:
• 10 x XLR/TRS "combo" jacks
• Individual -20 dB pad and 48V phantom power
• Preamp gain: +74 dB in 1 dB increments
• 1 MΩ impedance on the line/instr inputs
• Independent balanced send/return inserts on channels 1-2
Analog inputs:
• 2 x 1/4-inch insert returns function as balanced TRS
• line inputs (with no mic inputs connected)
• Max level: +21 dBu
• +20 dB digital gain on each input
Analog outputs:
• 8 x 1/4-inch TRS line out (balanced, DC coupled)
• Max level: +21 dBu
• -99 dB digital trim on each output
• 2 x 1/4-inch TRS stereo headphone (see below)
Digital I/O:
• 2 banks (16 ch) of ADAT optical I/O at 1x sample rates
• 2 banks (8 ch) of S/MUX optical I/O at 2x sample rates
• Bank A switchable to stereo TOSLink I/O (optical S/PDIF)
Computer I/O:
2 x Thunderbolt 4 / USB 4.1 (40 Gbps) Type C
        • USB3 / USB2 compatible
        • USB audio class compliant (no driver needed)
1 x Thunderbolt-compatible / USB4 GEN3 C-to-C cable
        • 40Gpbs / 240W
        • Length = 2 meters
        • Cable included
        • Provides 15W power downstream / 0W upstream
Compatible with USB2 Type A with a C-to-A cable
        • (sold separately)
Round Trip Latency (RTL): ~1.8 ms
        • (32 sample buffer at 96K)
Total audio channels: see "Total Audio I/O" below
Total audio I/O:
• 26 in / 28 out (54 total channels) at 1x sample rates
• 18 in / 16 out (34 total channels) at 2x sample rates
• 710 in / 12 out (22 total channels) at 4x sample rates
Headphone:
• 2 x 1/4-inch TRS stereo headphones
• Output impedance: <1Ω
• Max output: 13.3 dBu
Networking:
• 2x Gigabit AVB Ethernet ports
• 16 AVB streams in/out at sample rates up to 96 kHz
• 8 AVB streams in/out at 176.4 or 192 kHz
• 1-8 audio channels configurable per stream
• Up to 128 audio channels in & out (up to 96 kHz)
• Supports 1722.1 for Connection Management and Control
• Supports AAF stream formats & legacy AM8-24 format
• Stream format configurable per stream
Sync I/O:
• 1 x BNC Word Clock In
• 1 x BNC Word Clock Out/Thru
• Sample rates: all (from 44.1 to 192 kHz)

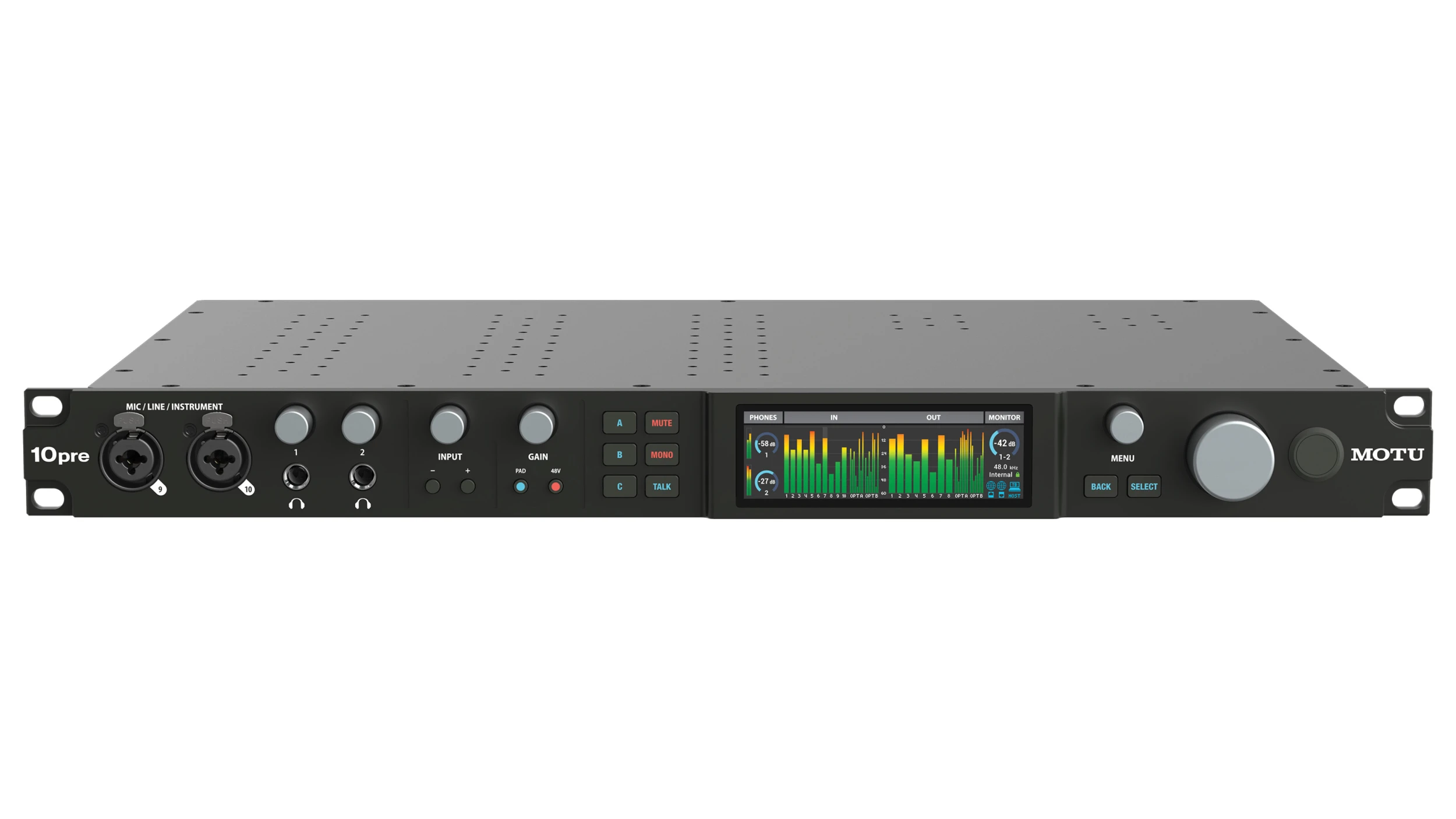

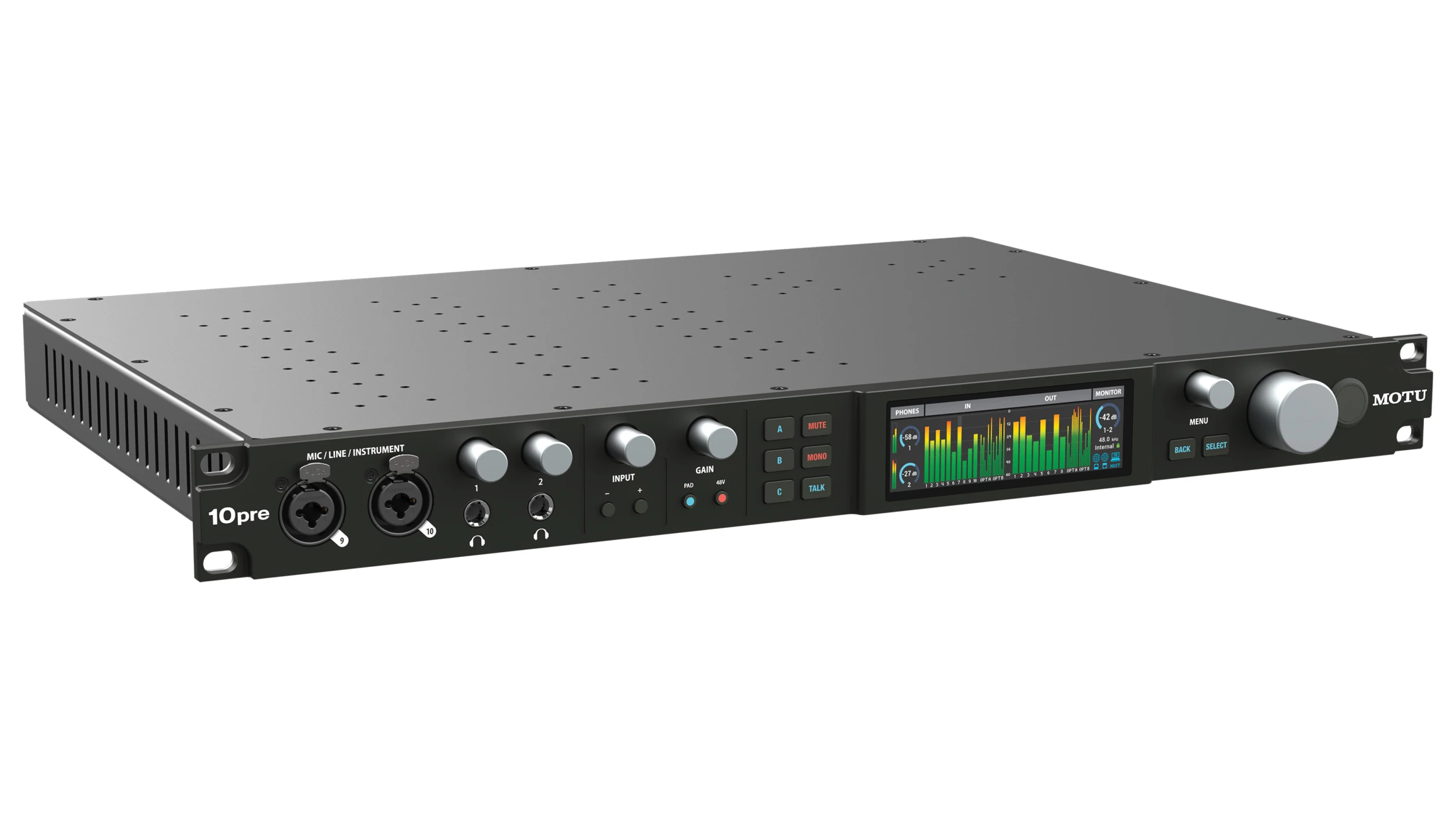

Front panel:
• 2 x 1/4" TRS headphone output
• 2 x encoder • headphone volume
• 1 x encoder • input channel select
• 1 x encoder • preamp gain
• 4 x switches • 2 channel select, 1 PAD, 1 48V
• 6 x switches • control room
• 1 x encoder • menu navigation
• 2 x switches • menu nav (Back & Select)
• 1 x large encoder • main volume
• 1 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display
• 1 x latching power button
Power:
• Internal 100-240V autoswitching supply
• 50-60 Hz • 1.0A max
Dimensions and weight (width x depth x height, enclosure only):
• 19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm
• 11 lbs / 5 kgs
