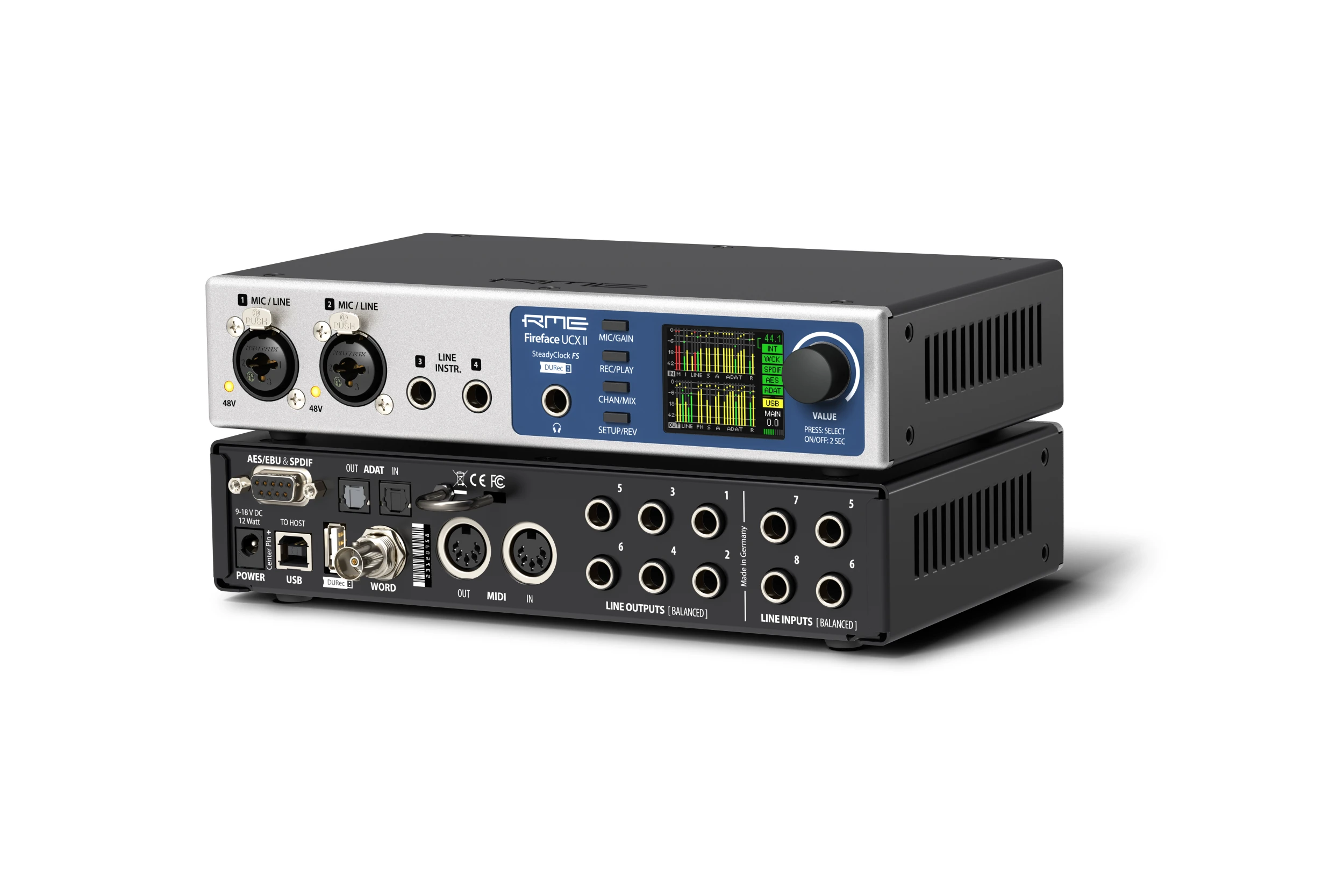

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

USB 2.0 Audio Interface
24 Bit / 192 kHz AD/DA converter
20 Input and output channels
SteadyClock FS
Stand-alone functionality
DURec feature: built-in digital recorder for all inputs and outputs directly to USB storage devices via the rear USB port (enables recording to USB sticks or hard drives with up to 2 TB capacity)
TotalMix mixing / routing software
DigiCheck software
Class Compliant
Compatible with optional ARC USB remote control (not included)
DC-coupled outputs - CV/Gate Voltage Control
+48 V phantom power
Colour display
Housingt type: 9.5" 1 U
Dimensions (W x H x D): 215 x 44 x 130 mm
Weight: 910 g
Incl. external power supply 100V - 240V AC, 12V 2A DC

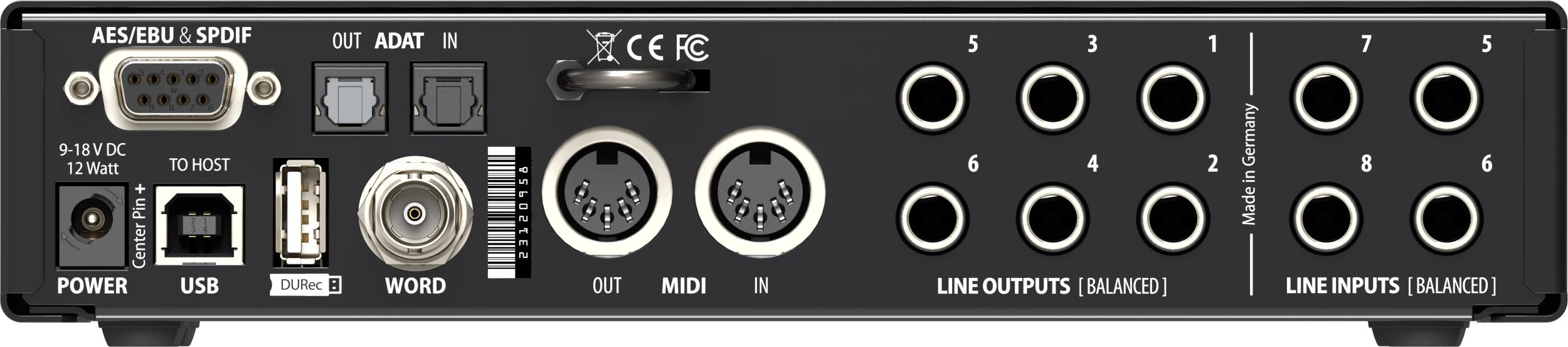

Connections:

2 Mic/line combo inputs: XLR / 6.3 mm jack
2 Instrument/line inputs: 6.3 mm jack
4 Line inputs: 6.3 mm jack
6 Line outputs: 6.3 mm jack
Stereo headphone output: 6.3 mm jack
ADAT input and output
Word Clock input and output
AES/EBU and S/PDIF coax
MIDI input and output
DUrec USB
